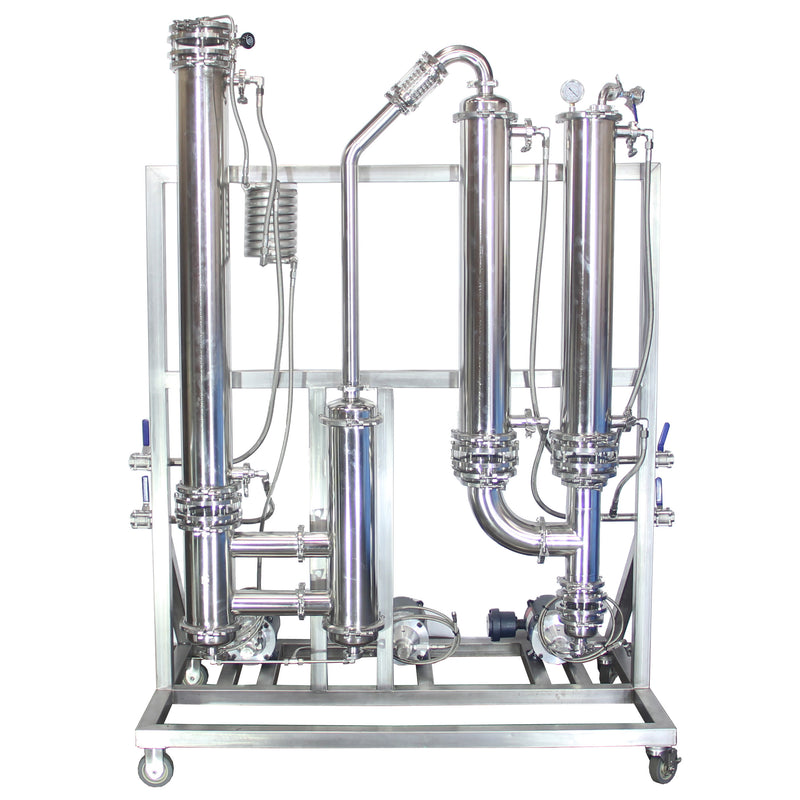

Falling Film Evaporator 50 GAL/HR

Product Code FEE-50GL

AvailabilityOut of stock

Unit price
Shipping calculated at checkout.
Square 1 Processing FFE.
The Square 1 Processing enhanced evaporation system is designed to meet every client’s power needs within its limits. Capable of evaporation rates from 20 gallons per hour to up to 50 gallons per hour. Constructed from SS304, fully tig welded and electropolished for protection against a broad spectrum of corrosive compounds.

Process Pumps
The Square 1 FFE is equipped with three magnetic gear pumps that are UL. listed for C1D1 environments. The pumps are capable of variable speeds upon demand and would need a VFD for each pump motor. Pumps are made in Italy, constructed of SS316 with PTFE seals and PEEK gears for long life span and limited maintenance requirements. Pumps can be equipped with either single phase or three phase voltage motors.

The Square 1 Processing FFE can be customized in a number of ways in order to meet our clients’ needs. Customization and completion of set up will affect the final cost of the unit..Because it is all dependent on the available power, before purchase of the unit you would need to know the power available for it to be built with the correct equipment including gear pump motors, chillers, heaters, and fluid circulation pump. This is due to the fact that not all industrial power is the same. The Square 1 Processing team is here to assist you with anything you may need help with along the way. For maximum efficiency of this FFE unit you would need a minimum of Three Phase 460v power.

Square 1 Processing includes on site training and set up with every purchase of any products to ensure correct operation and maximum efficiency of the equipment. To ensure that the setup goes smoothly, blueprints or a physical walk through of the facility or location where the equipment is going to be used, would be best.
