Specification

Connection Type: ISO-KF Flange
Connection Size: KF10, KF16, KF25, KF40, KF50
Material: Stainless Steel 304
Working Temp: -58°F~392°F
Service: Steam, Air, Water, Oil, Gasoline, Natural Gas, Most solvents and acids that are compatible with 304SS.

Feature

[Size]: As option describe.

[Quality Materials]: The clamp is made of high-quality 304 stainless steel, which is durable, stable, rust and corrosive-resistant, and good for long time using.

[Precise Design]: The clamp can be used for connecting standard NW/KF vacuum components.

[High Working Temp. & Wide Range of Applications]: The clamp can be used for connecting vacuum pipes or tubes in the same direction in the double seal system. It is suitable for different media including water, gas, and oil with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a small plastic bag with a label.

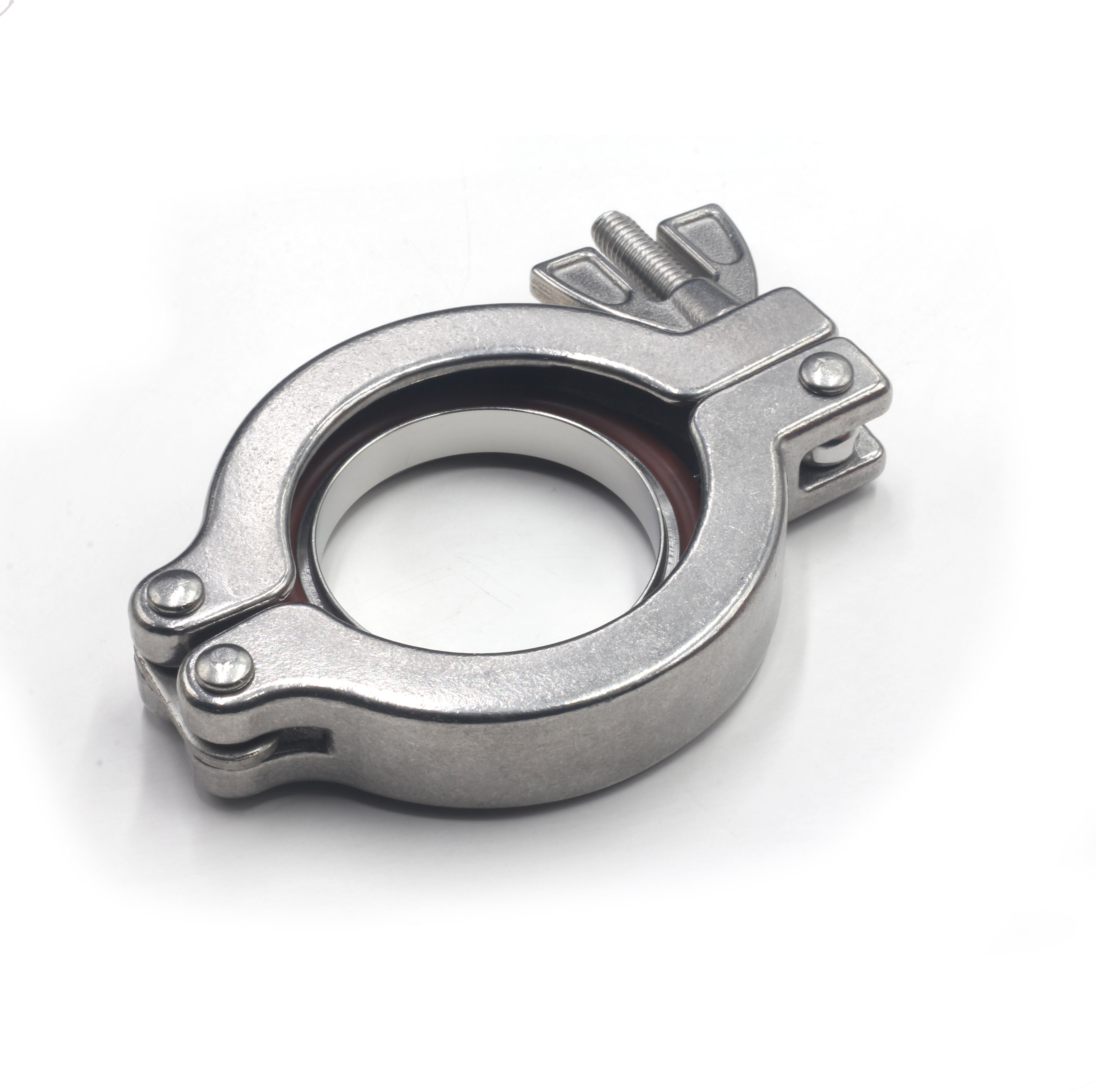

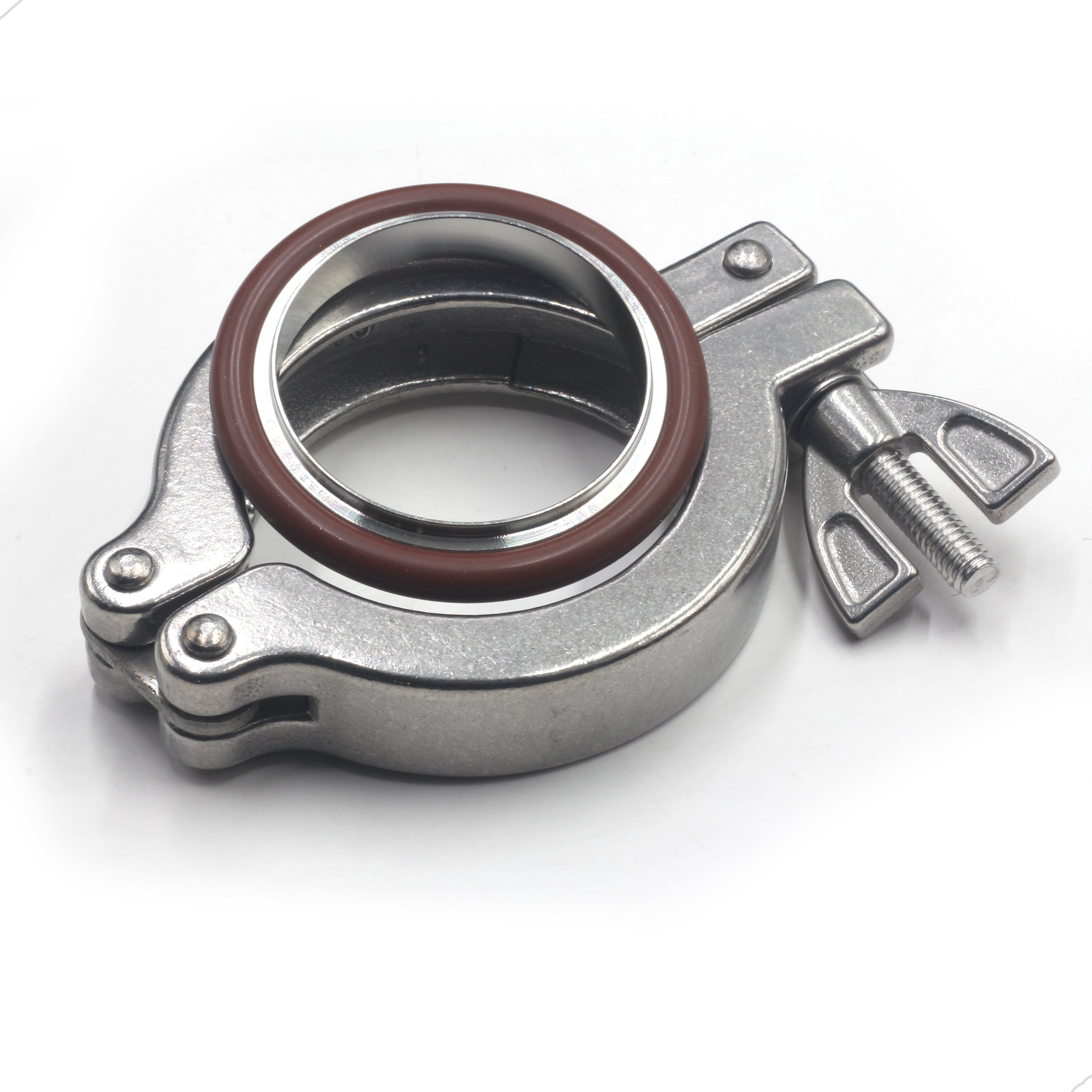

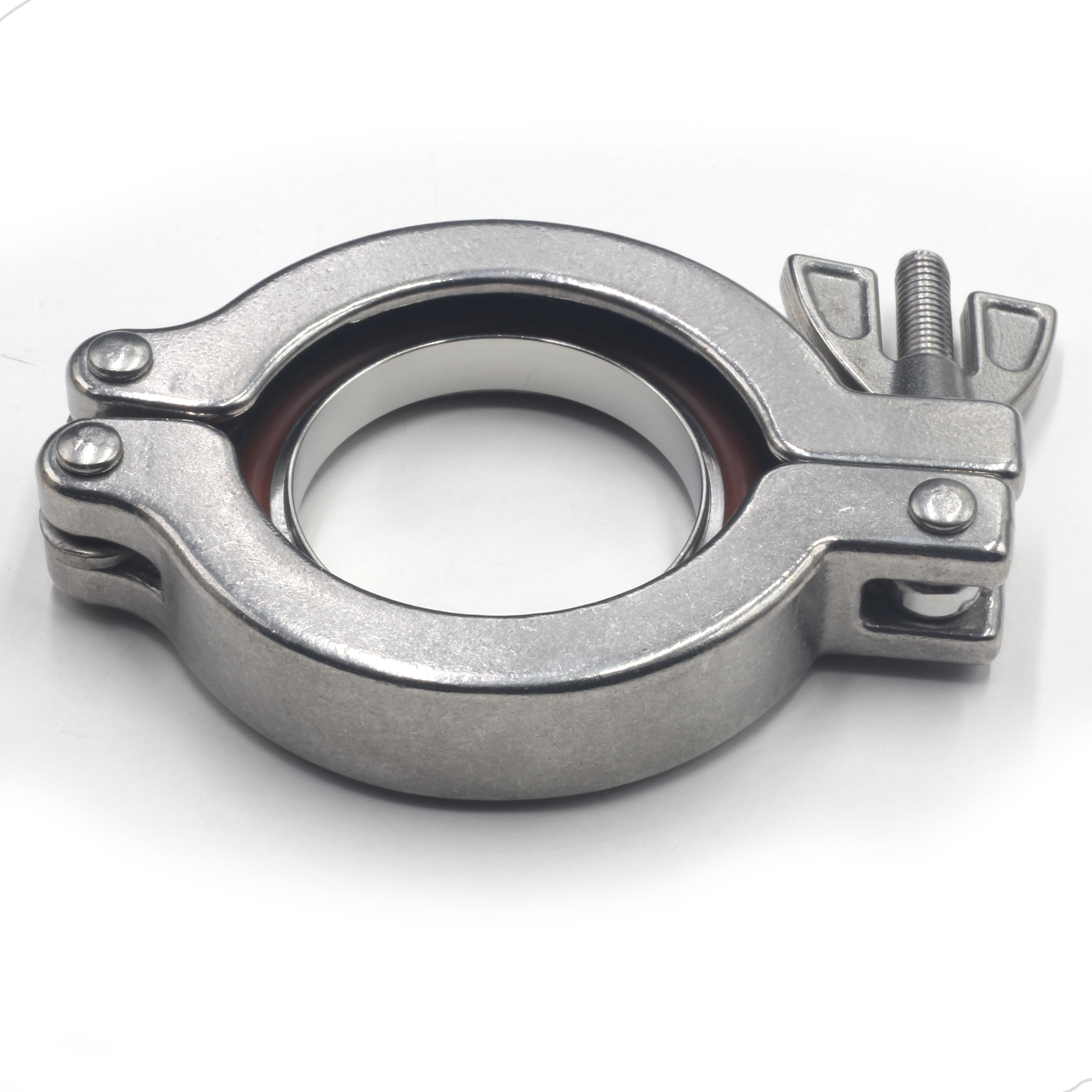

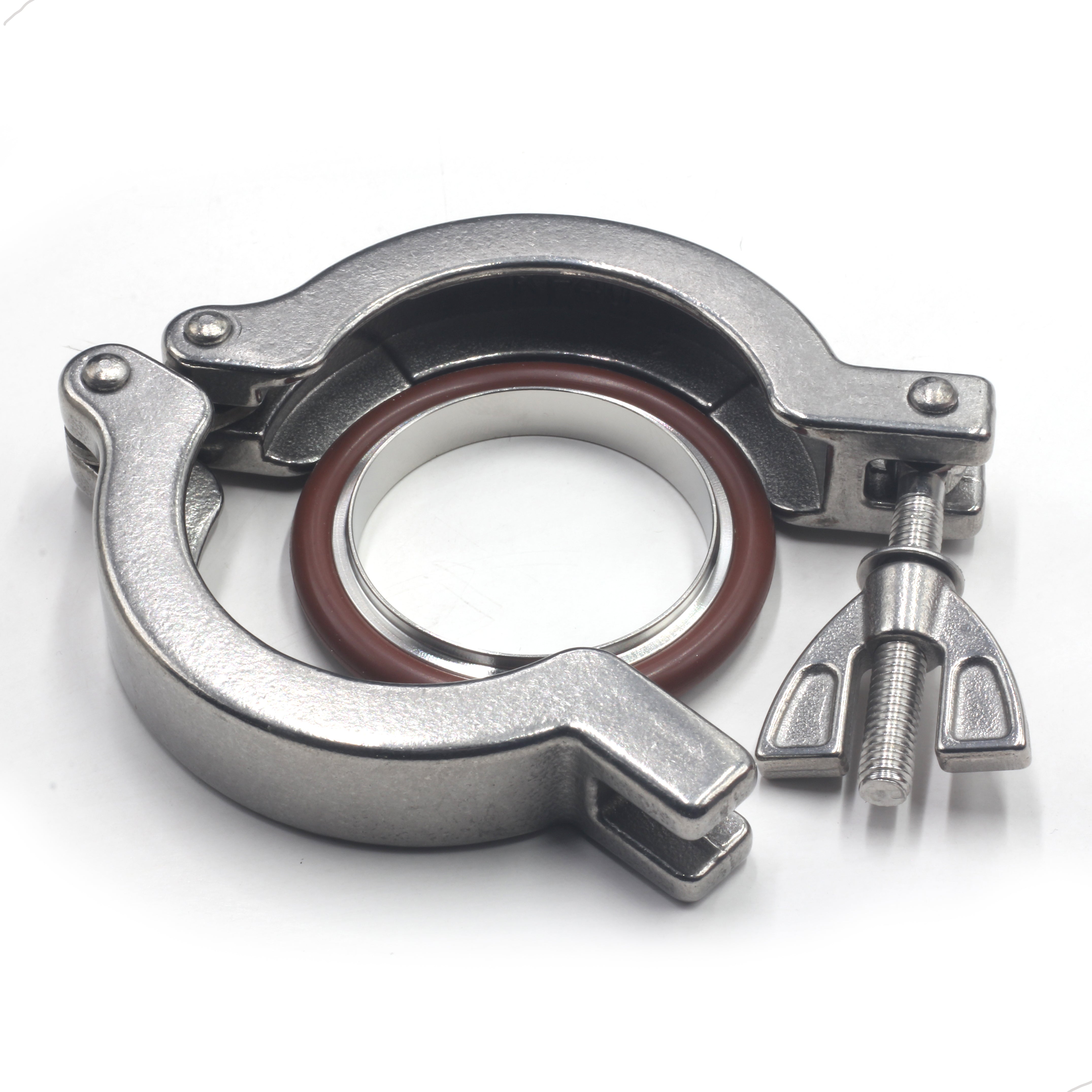

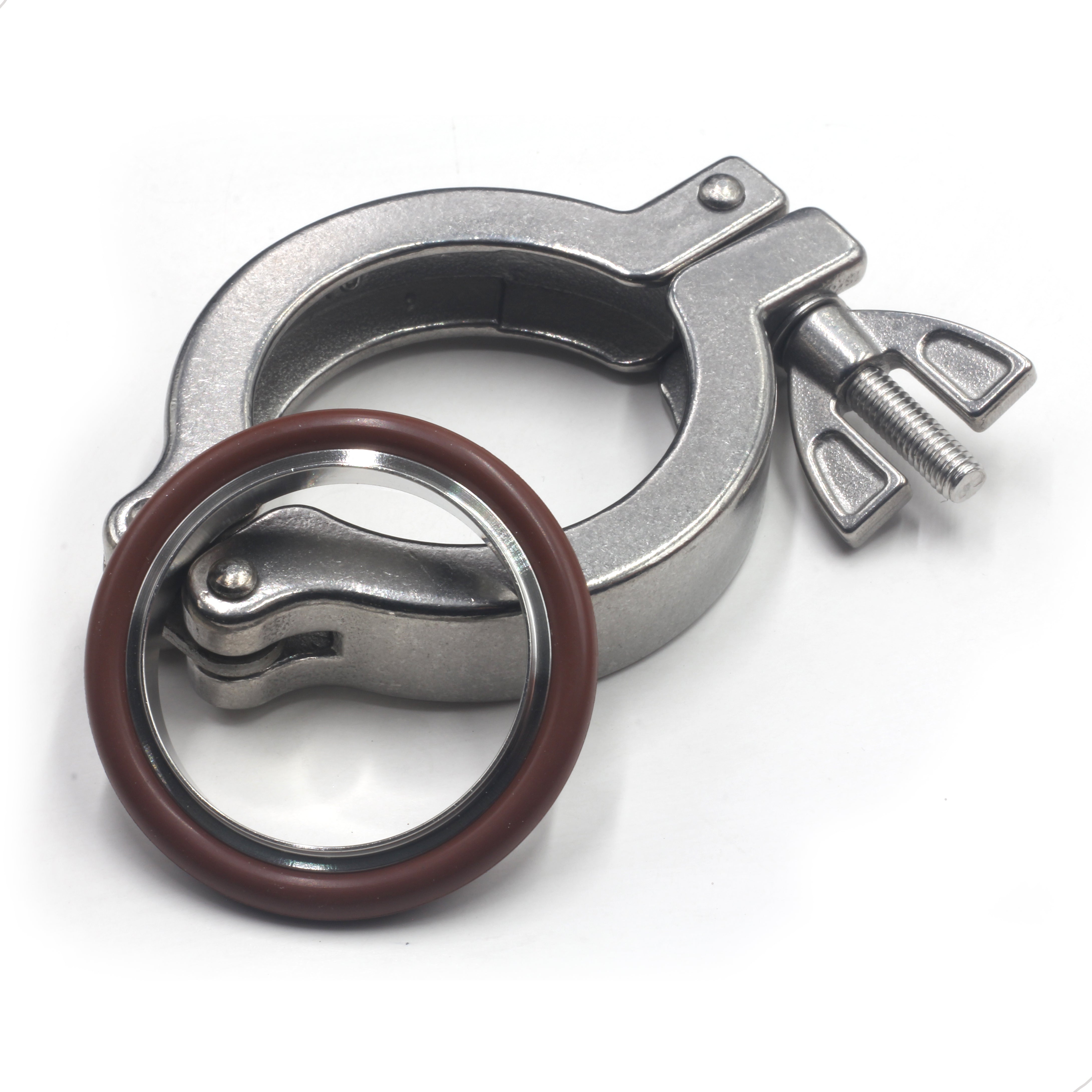

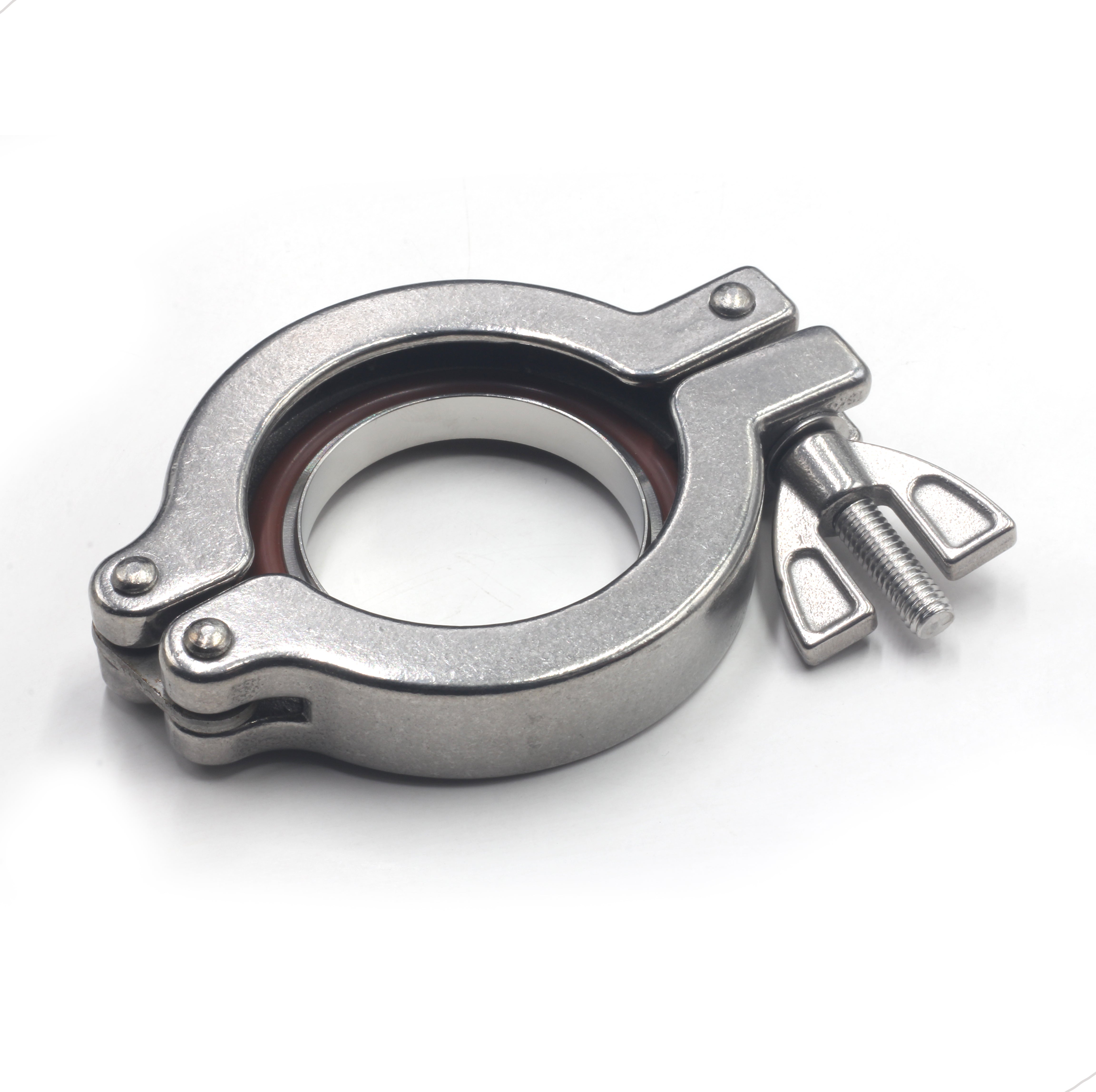

ISO-KF Flange Quick Clamp Wing Nut with Centering O-Ring Stainless Steel
