Specification

Connection Type: Tri Clamp
Connection Size (in): 1.5, 2, 3, 4, 6, 8, 10, 12
Hole Size (mm): 6
Filter Plate Height (in): 2
Material: Stainless Steel 304
Operating Temperature: -58°F~392°F
Working Pressure: 150PSI

Feature

[Size]: Tri Clamp Filter Plate with 6mm holes.

[Quality Materials]: The Filter Plate is made of high-quality 304 stainless steel, which is durable, stable, rust and corrosive-resistant, and good for long time using.

[Precise Design]: Tri Clamp support spools have a rigid surface across the face of the spool, called a perforated plate. This perforated plate has 6mm holes and is aligned flush-centered in the spool creating a face for tri-clamp gaskets to rest against. When filtered sediment accumulates at the face of the screen gasket increasing pressure, the perforated plate holds the gasket in place and prevents any screen displacement.

[High Working Temp. & Wide Range of Applications]: The Filter Plate can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface and filtration levels to remove fats, lipids, waxes, and other material during the extraction process. It is suitable for different media including water, gas, and oil with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a plastic bag with a label.

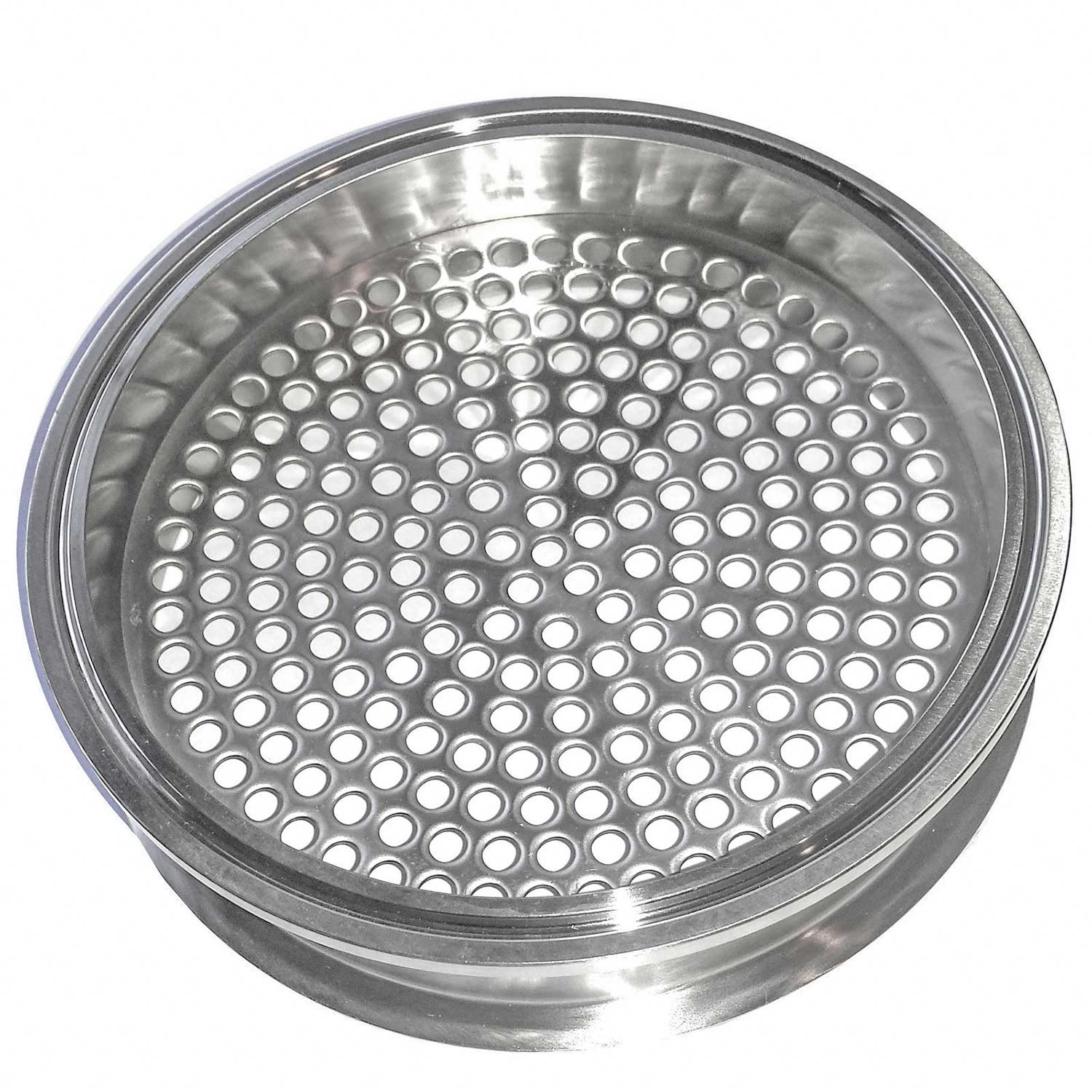

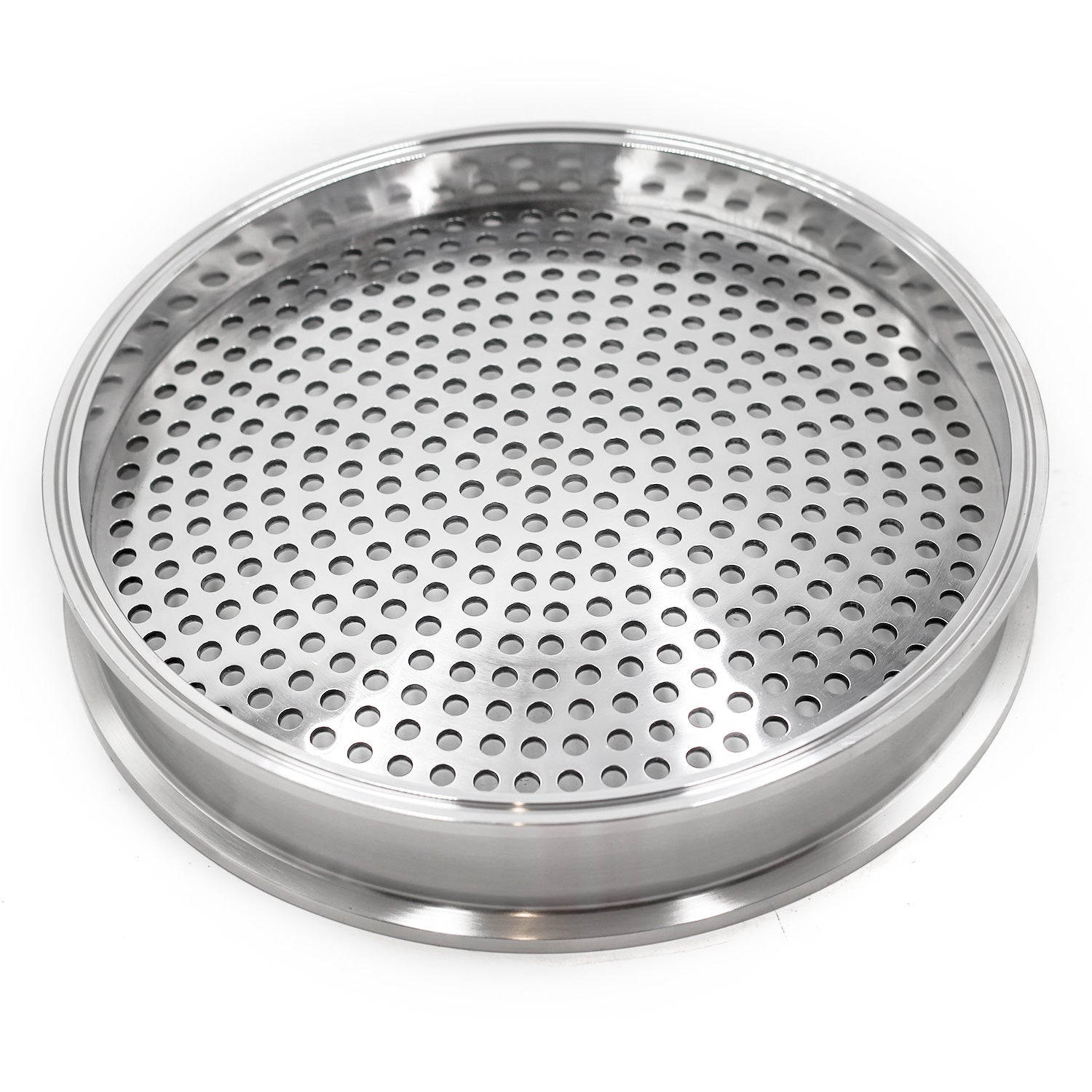

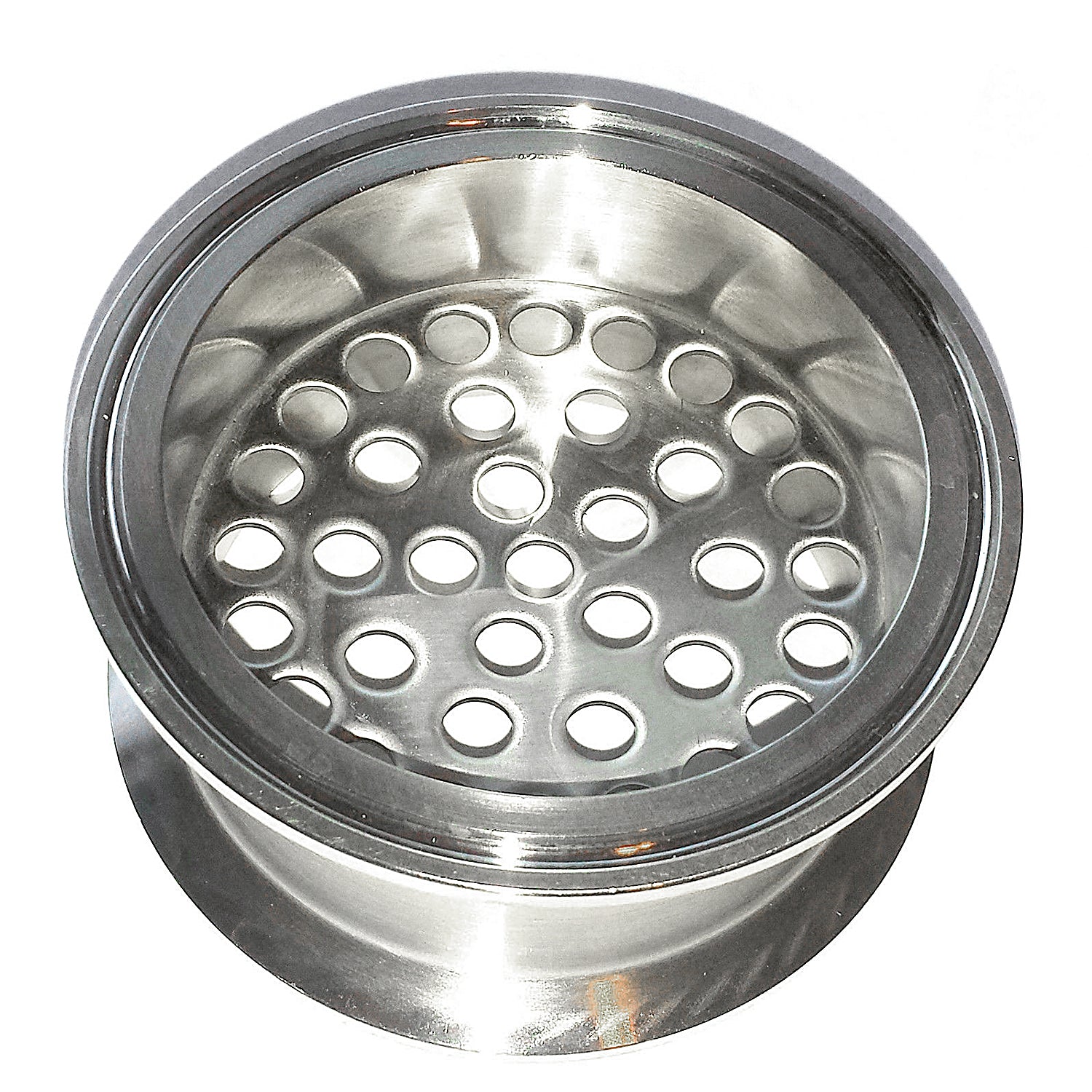

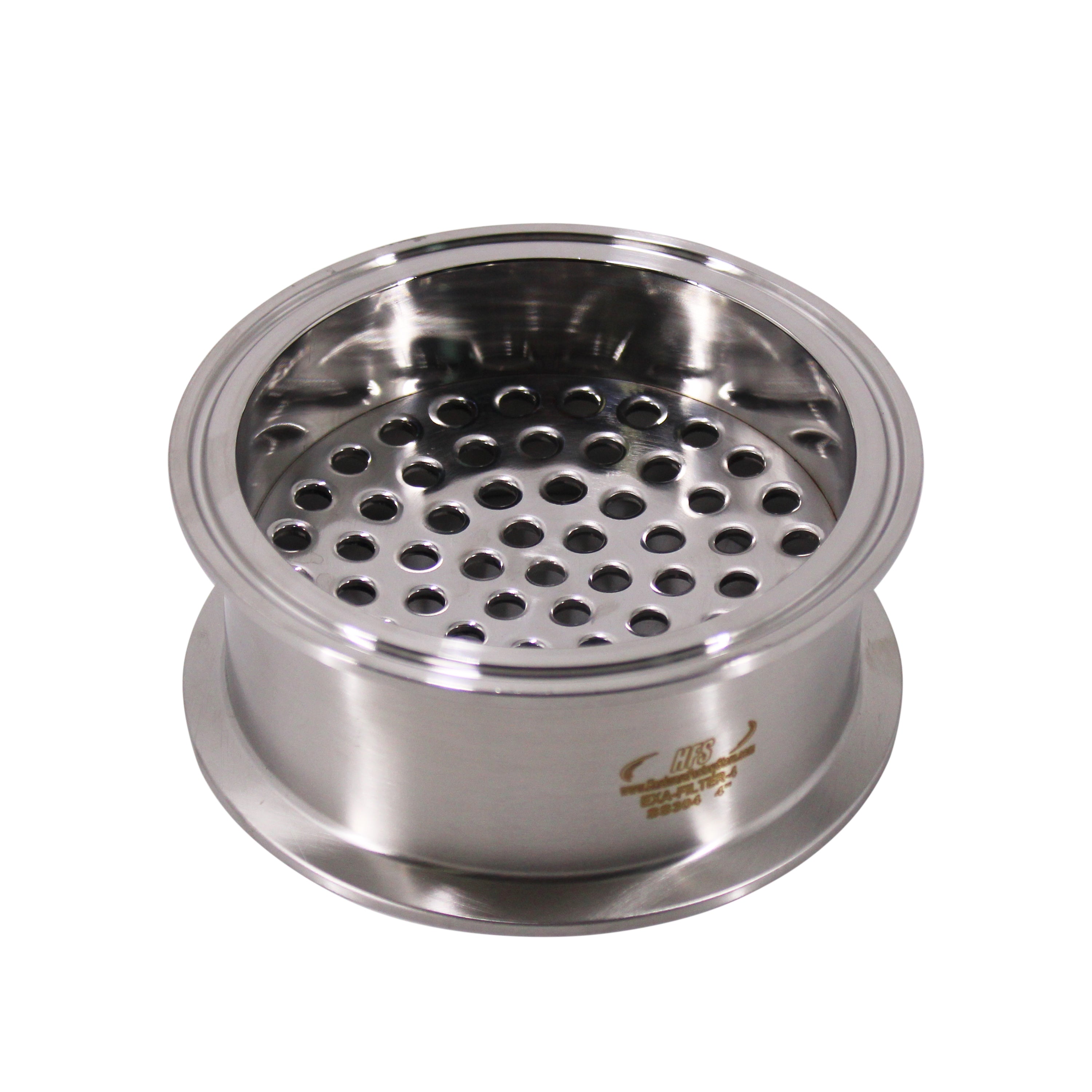

Tri Clamp Filter Plate - Mid Plate - 6mm Holes
