Dual Scale Vacuum Pressure Gauge, 2.5", -30 HG-150 PSI

CILCK HERE TO VIEW THE PRODUCT DATA SHEET

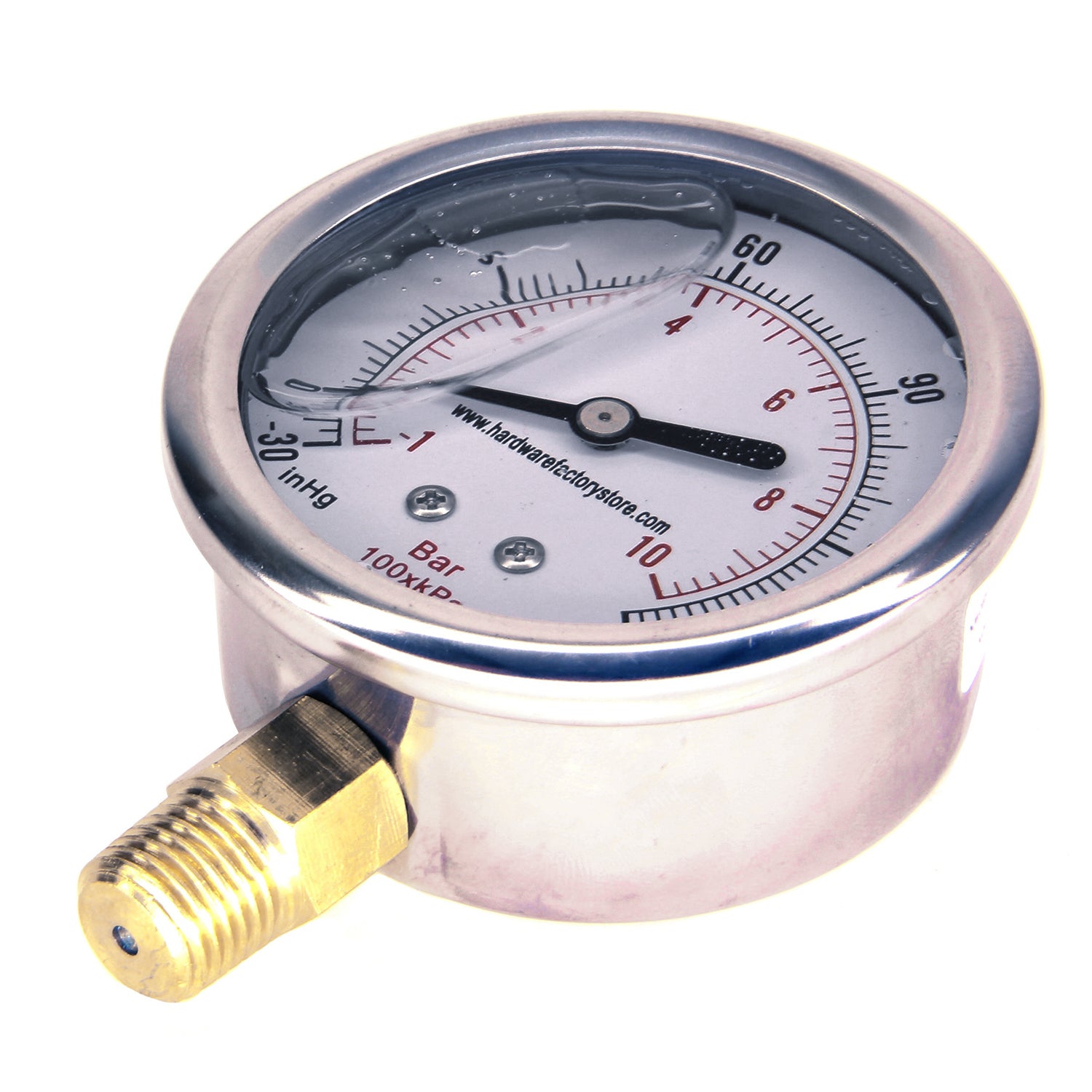

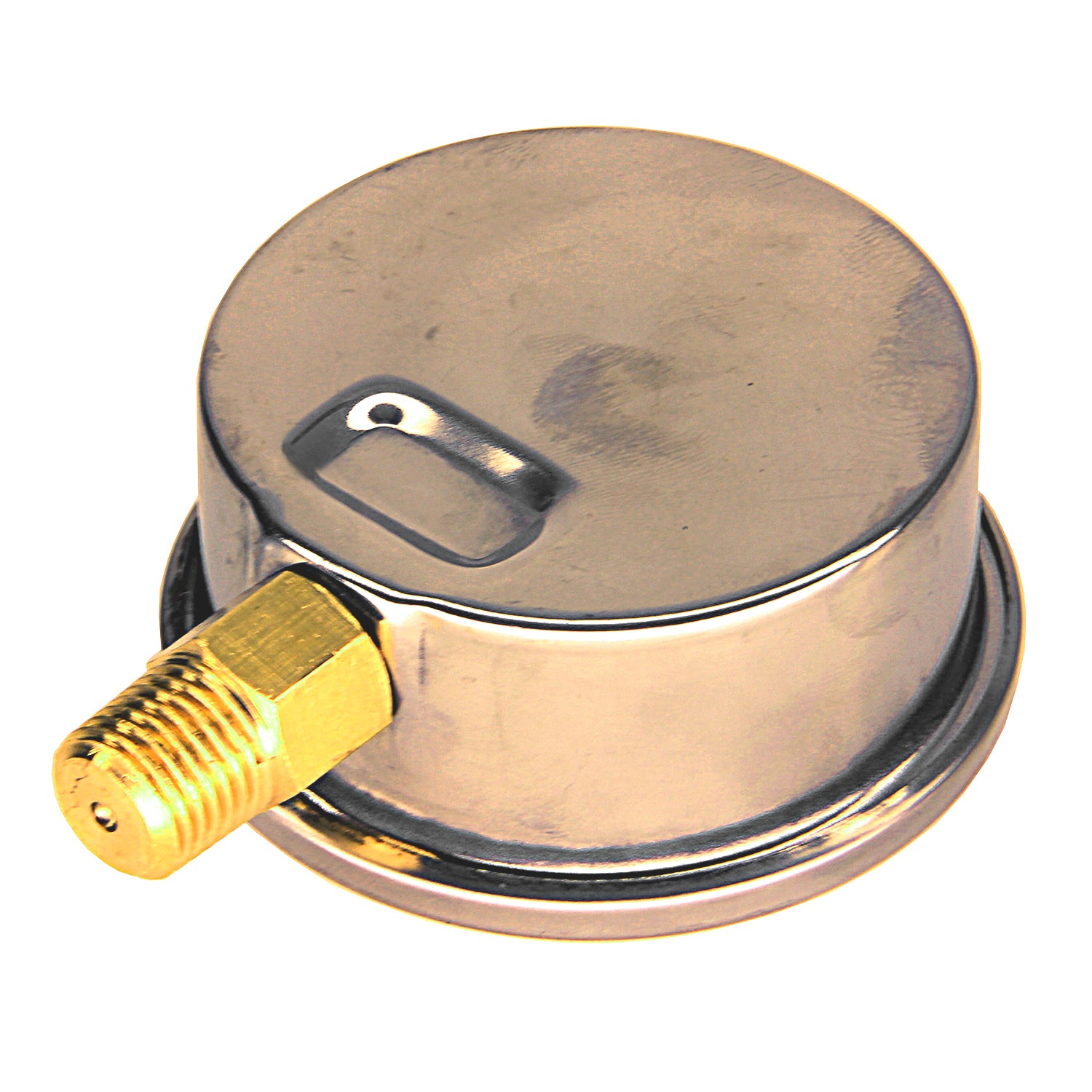

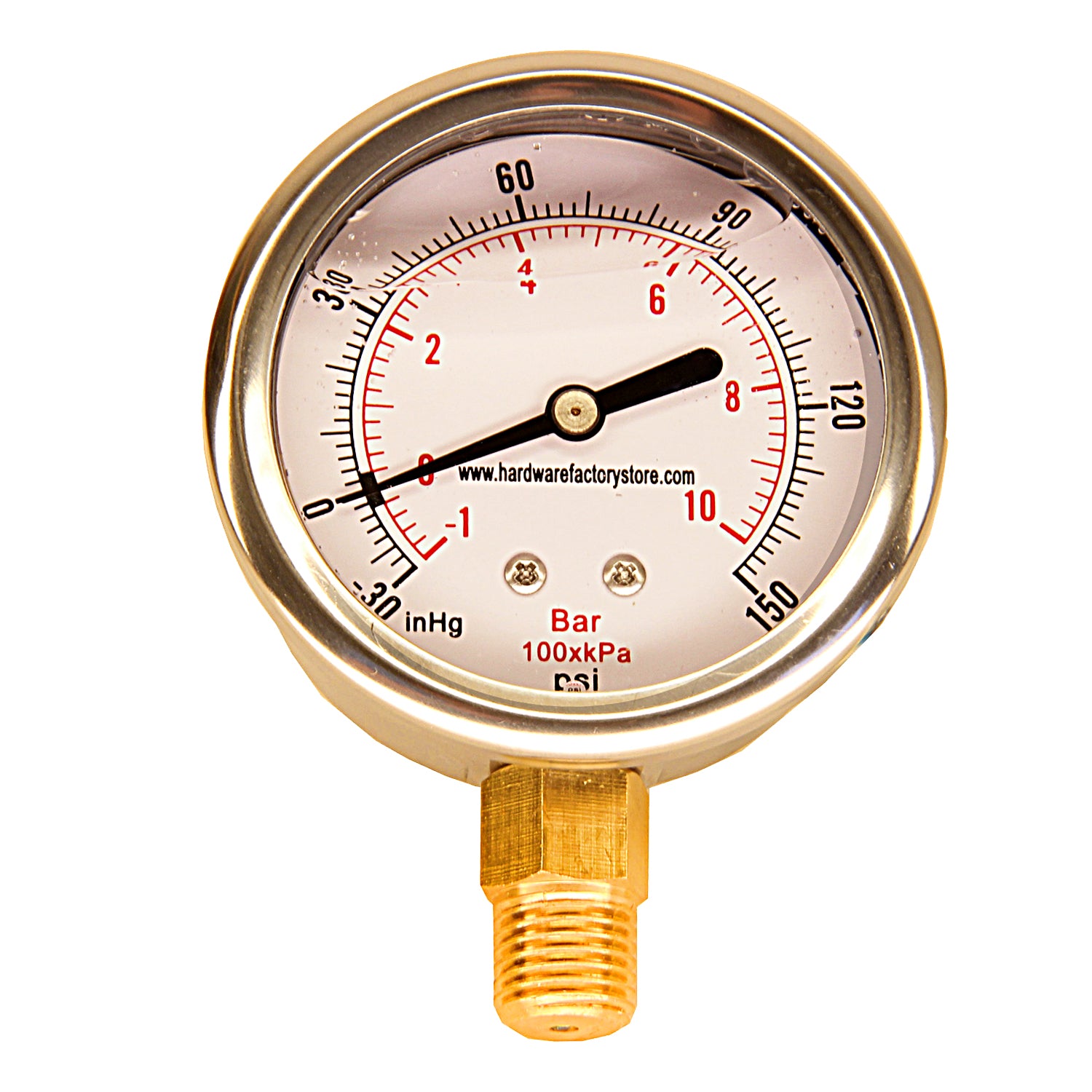

SKU: 15465/SIZE: Oil Filled - 1/4" NPT Brass
[MATERIAL]: Housing Material: Semisteel; Connection: Copper Alloy; Movement: Copper Alloy; Bourdon Tube: Copper Alloy; Window: Polycarbonate.
[SIZE]: Dial Size:2.5"; Thread:1/4" MNPT.
[ACCURACY AND SCALE]: +/- 3% ; PSI and Bar.
[Liquid Filling]: Glycerin.
[APPLICATION]: Normal Ambient Temp.:-4F to +140F (-20C to +60C)；It is suitable for both vacuum and pressure environment, the damping liquid (glycerin) can resist the vibration of working environment and reduce the pulsating effect of medium pressure.

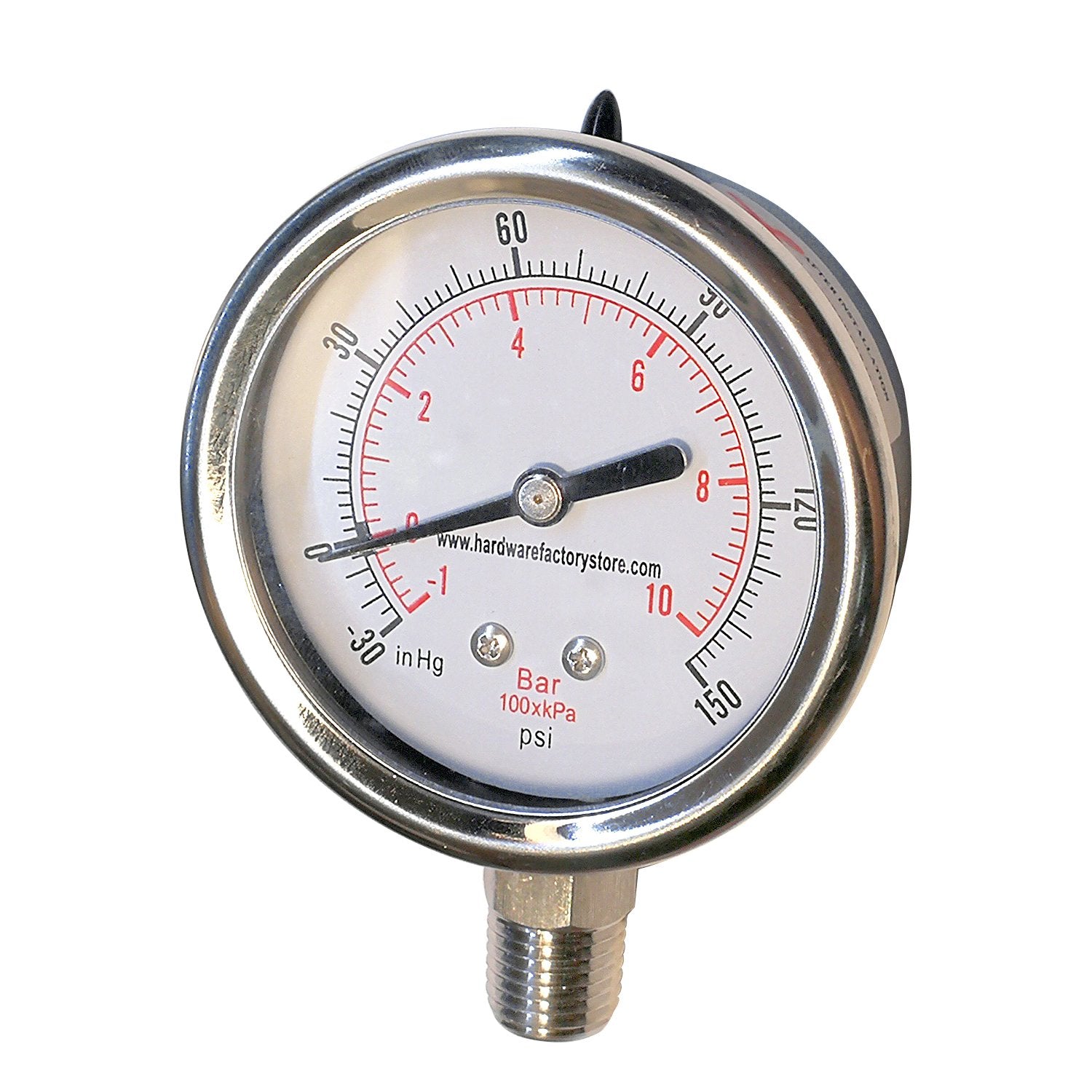

SKU: 15465-SS/SIZE: Dry - 1.4" NPT SS
[MATERIAL]: Housing Material: Stainless Steel 316; Connection: Copper Alloy; Movement: Copper Alloy; Bourdon Tube: Copper Alloy; Window: Polycarbonate.
[SIZE]: Dial Size:2.5"; Thread:1/4" MNPT.
[ACCURACY AND SCALE]: +/- 3%; PSI and Bar; No filling oil.
[RANGE]: -30 HG-150 PSI.
[APPLICATION]: Normal Ambient Temp.:-4F to +140F (-20C to +60C); It is suitable for both vacuum and pressure environment.

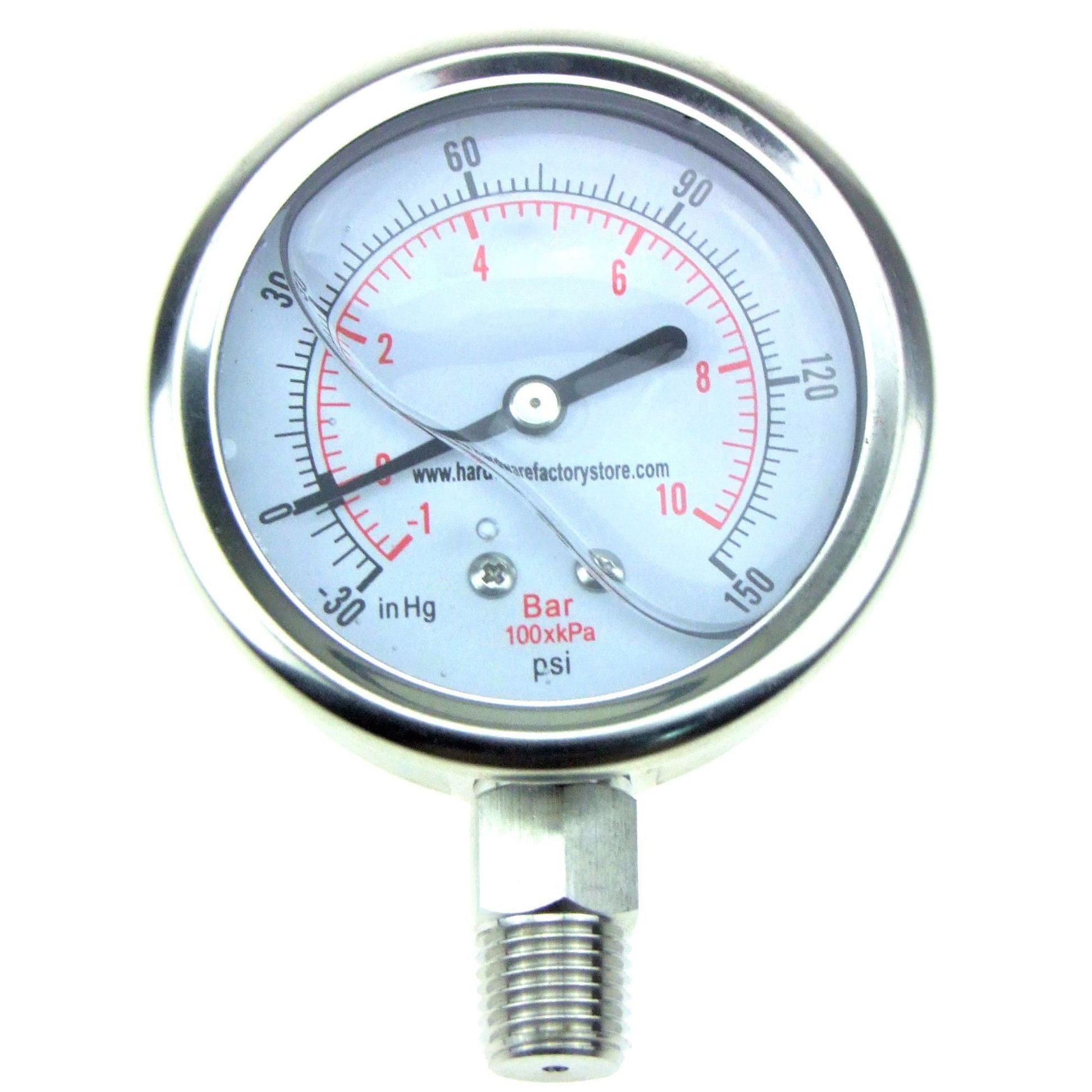

SKU: 15465-SS-OIL/SIZE: Oil Filled - 1/4" NPT SS
[MATERIAL]: Housing Material: Stainless Steel 316; Connection: Copper Alloy; Movement: Copper Alloy; Bourdon Tube: Copper Alloy; Window: Polycarbonate.
[SIZE]: Dial Size:2.5”; Thread:1/4" MNPT.
[ACCURACY AND SCALE]: +/- 3% ; PSI and Bar.
[Liquid Filling]: Glycerin.
[APPLICATION]: Normal Ambient Temp.:-4F to +140F (-20C to +60C)；It is suitable for both vacuum and pressure environment，the damping liquid (glycerin) can resist the vibration of working environment and reduce the pulsating effect of medium pressure.
