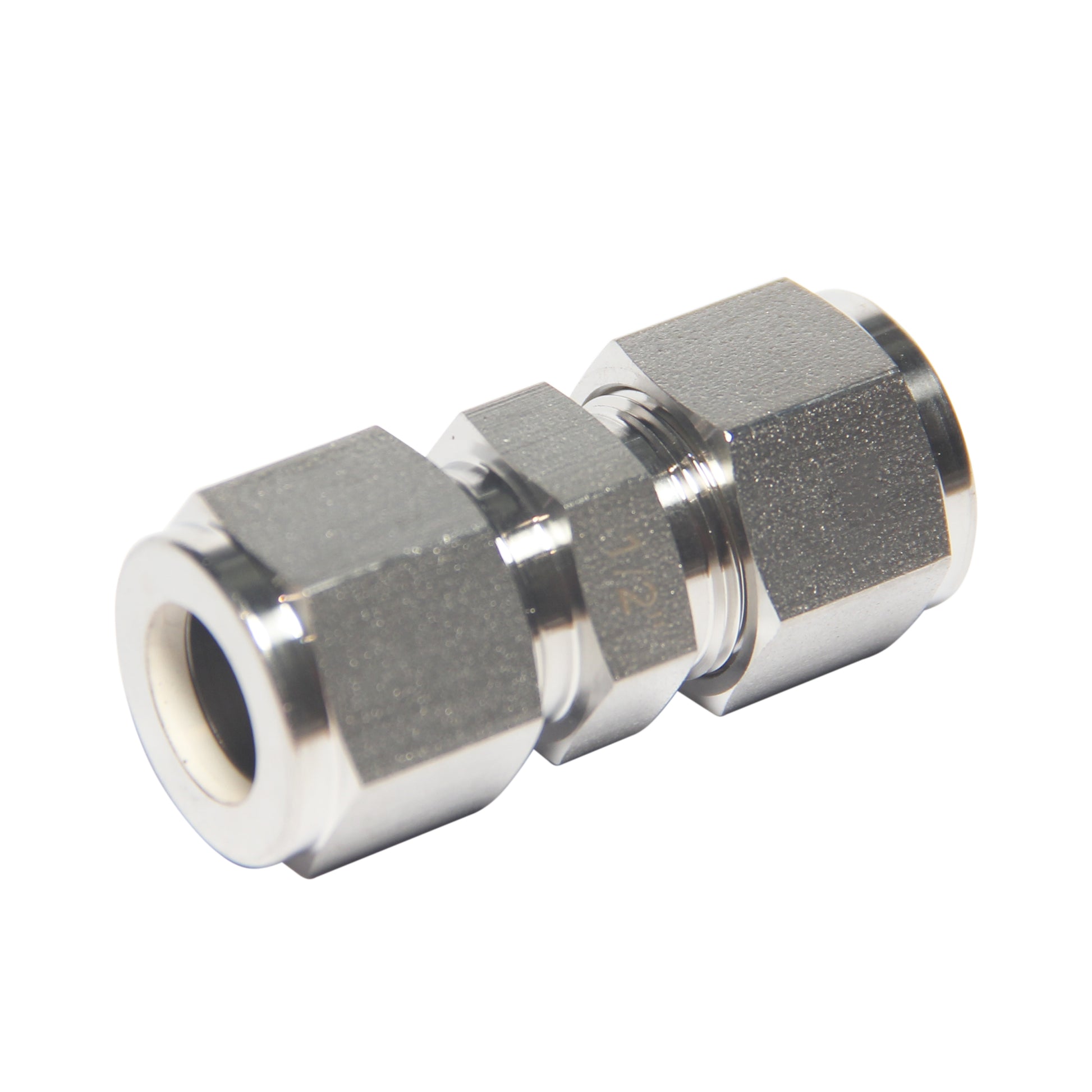

Compression Tube Fitting Union 1/2" Tube OD Adapter Stainless Steel 316

Specification

• Type: Compression Tube Fitting Straight Union
• Material: 316 Stainless Steel

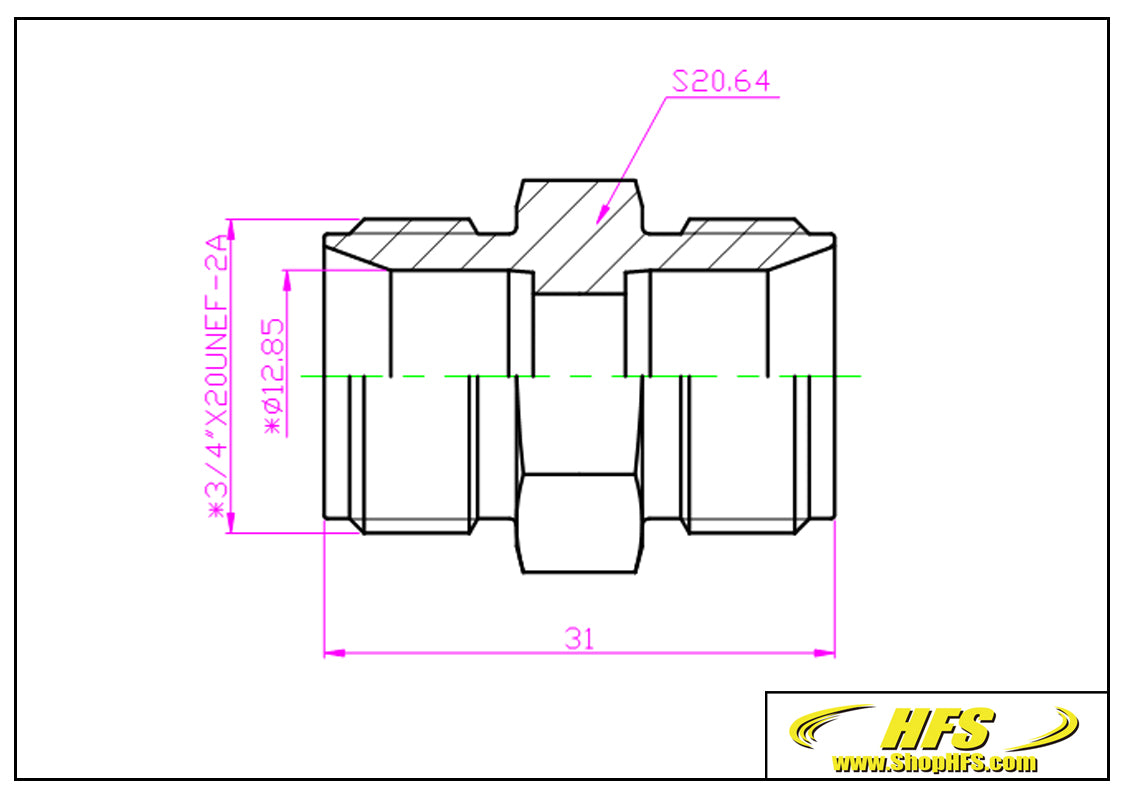

• Size: 1/2" Tube OD
• Thread: 3/4"x 20unef-2A
• Operating Temperature: -67°F~428°F
• Service: Steam, Air, Water, Oil, Gasoline, Natural Gas, Most solvents and acids that are compatible with 316SS.

Feature

[Quality Materials]: The Straight union is made of high quality 316 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

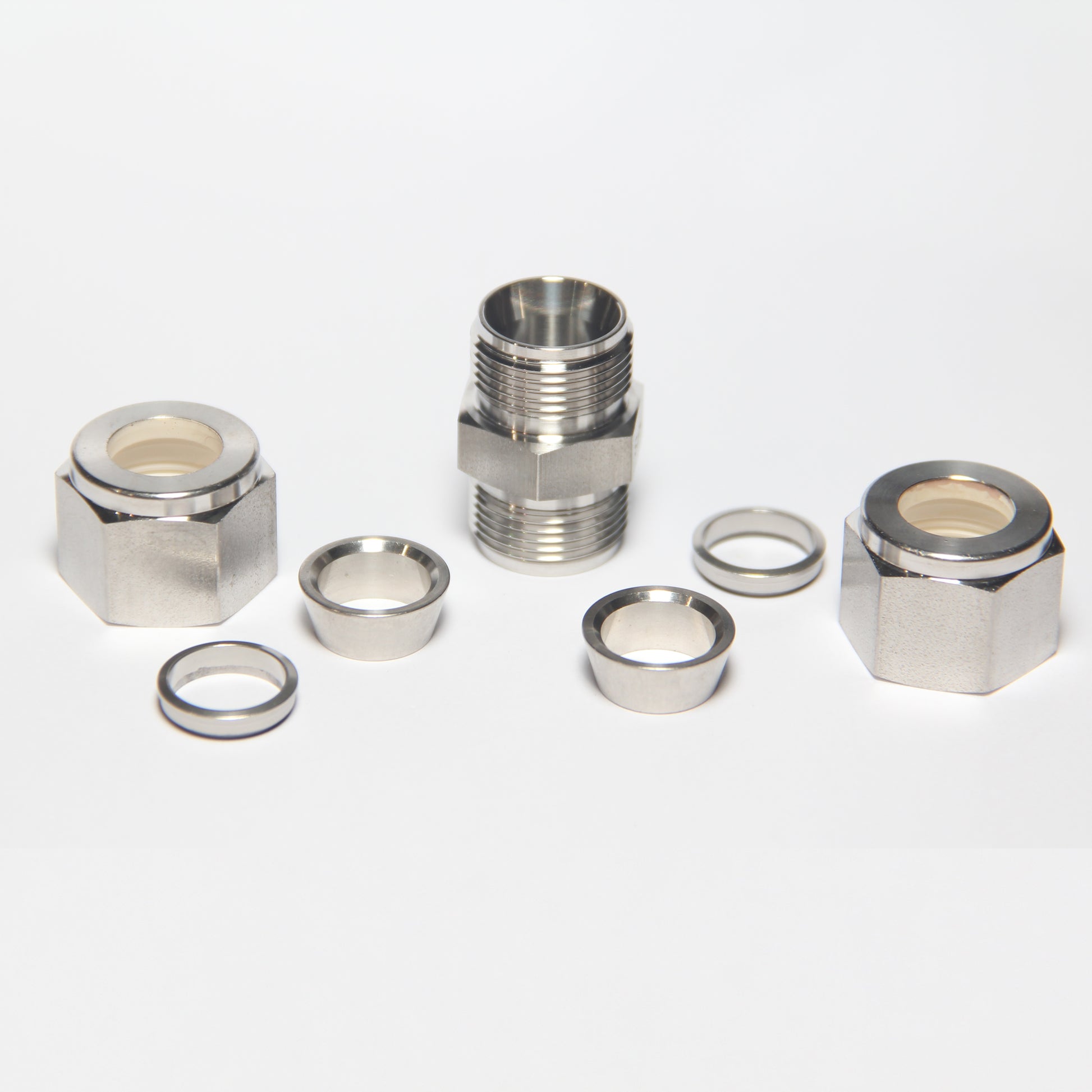

[Precise Design]: With Double Ferrule System, Compression fittings do not require tools or sealants, and can provide excellent leak-fee sealing on high pressure gas, vacuum, impulse, thermal shock, heavy vibration and many other stringent applications.

[High Working Temp. & Wide Range of Applications]: The union can be used for Fittings for connecting and extending stainless steel, copper, rigid and semi-rigid plastic tubing. It is suitable for different media including water, gas, and oil with working at -67°F~428°F.

[Convenient organization and storage]: Packed in a small plastic bag with label.
