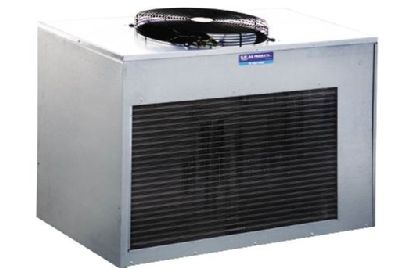

Water Chiller Refrigeration Unit

Fully assembled and factory charged Service water/glycol temperature range: +28°F to +120°F Small footprint; compact size; stainless steel plate heat exchanger Dual pump system and multi-zone capable Corrosion resistant GU-90 galvanized steel cabinet Digital temperature control with low ambient protection Includes flow switch, high/low pressure control and time delay Packaged chillers available with factory installed tank and recirculation pump Available up to 20 ton; 12 ton and up by special order

Tons: 4.5;
Volts: 230-3;
Min. Circuit
Amps: 39.299999999999997;
Max. Fuse Size: 50;
Inlet Conn.: 1 NPT;
Outlet Conn.: 1 NPT;
Length: 54.25";
Width: 28.25";
Height: 39.5";
Shipping Wt. Lbs.: 555;
