Tri Clamp High Pressure Clamp (13MHP)
Tri Clamp High Pressure Clamp (13MHP)
Couldn't load pickup availability
[Size]: 1.5", 2", 3", 4", 6", 8", 10", 12".
CLICK HERE TO VIEW THE DATASHEET.
[Quality Materials]: The Clamp is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

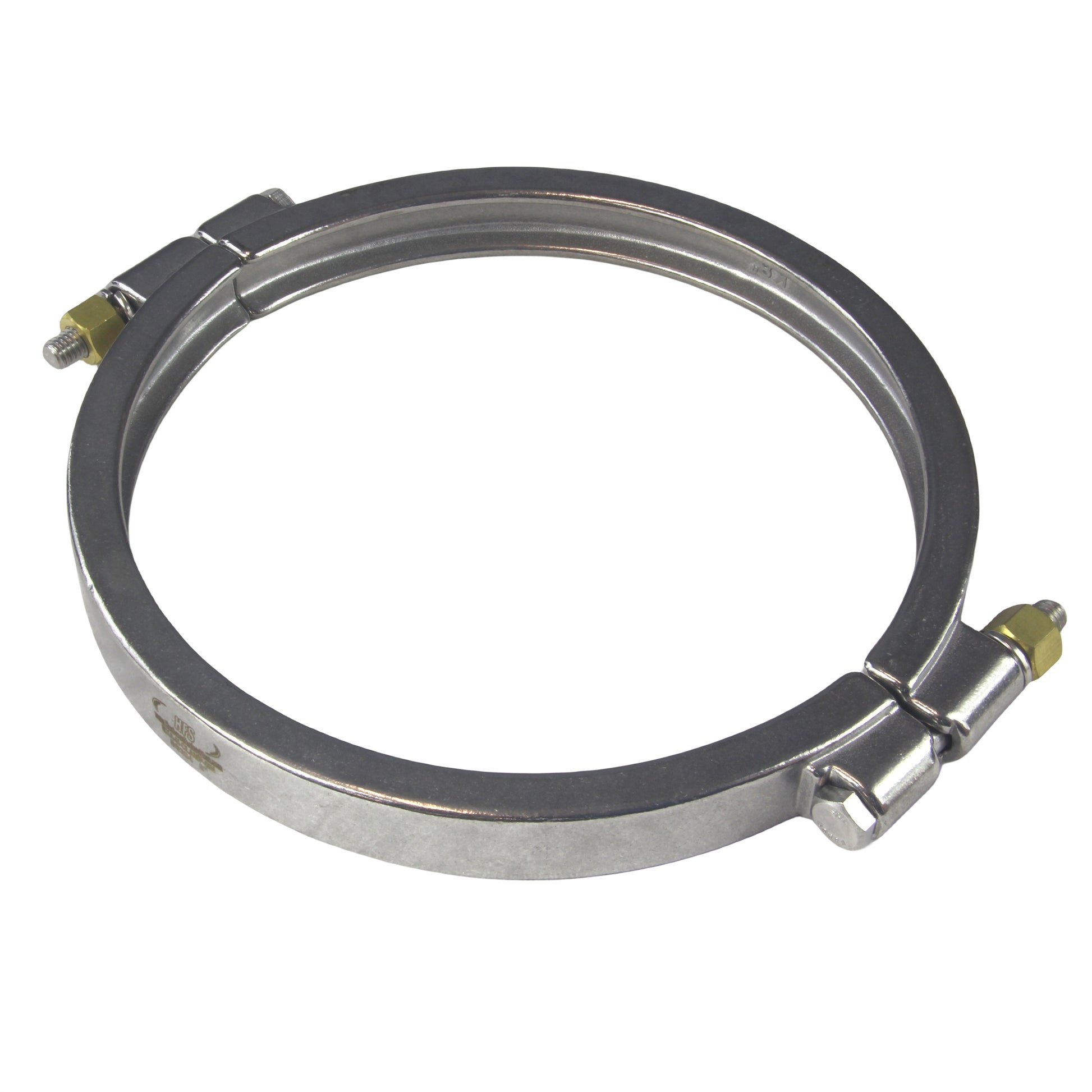

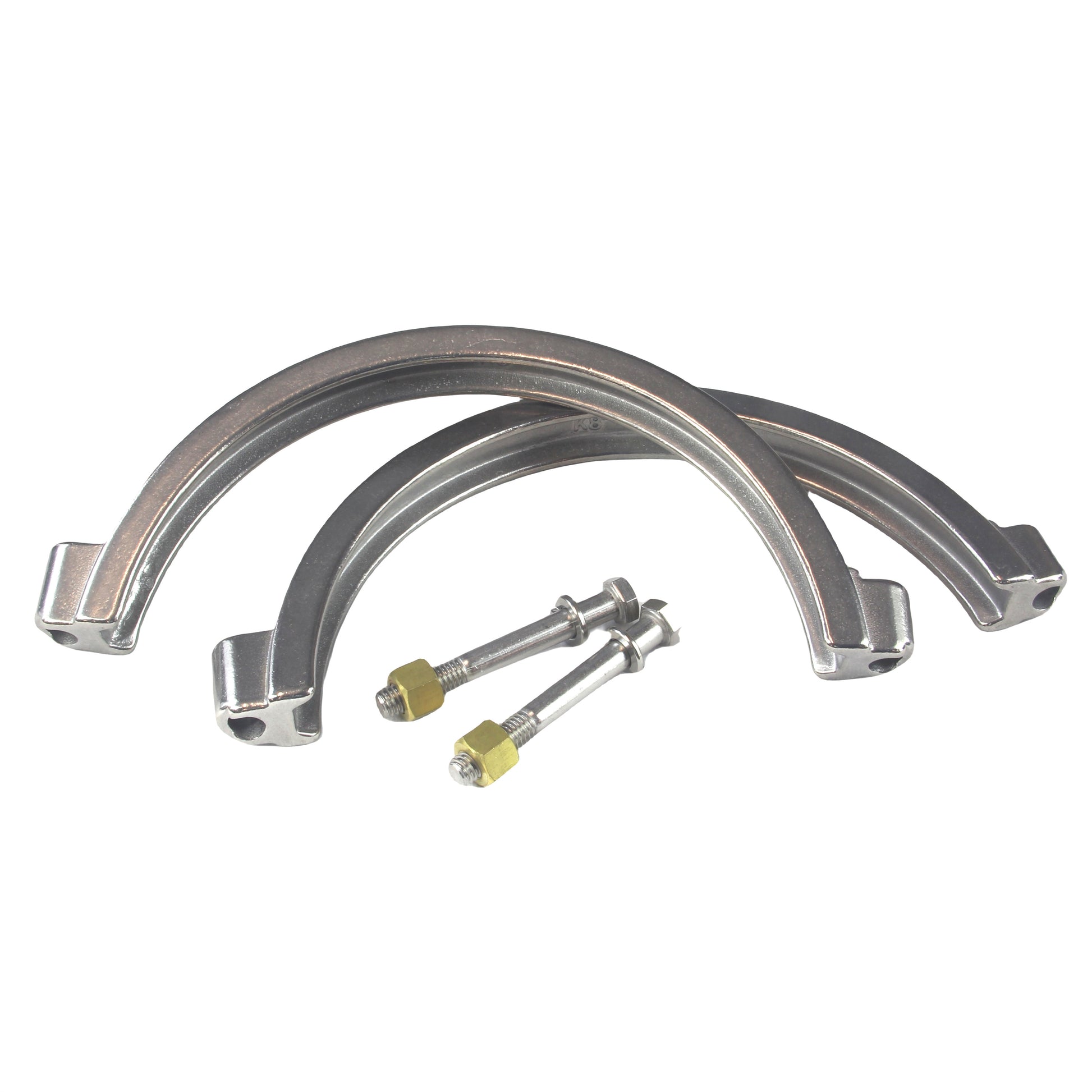

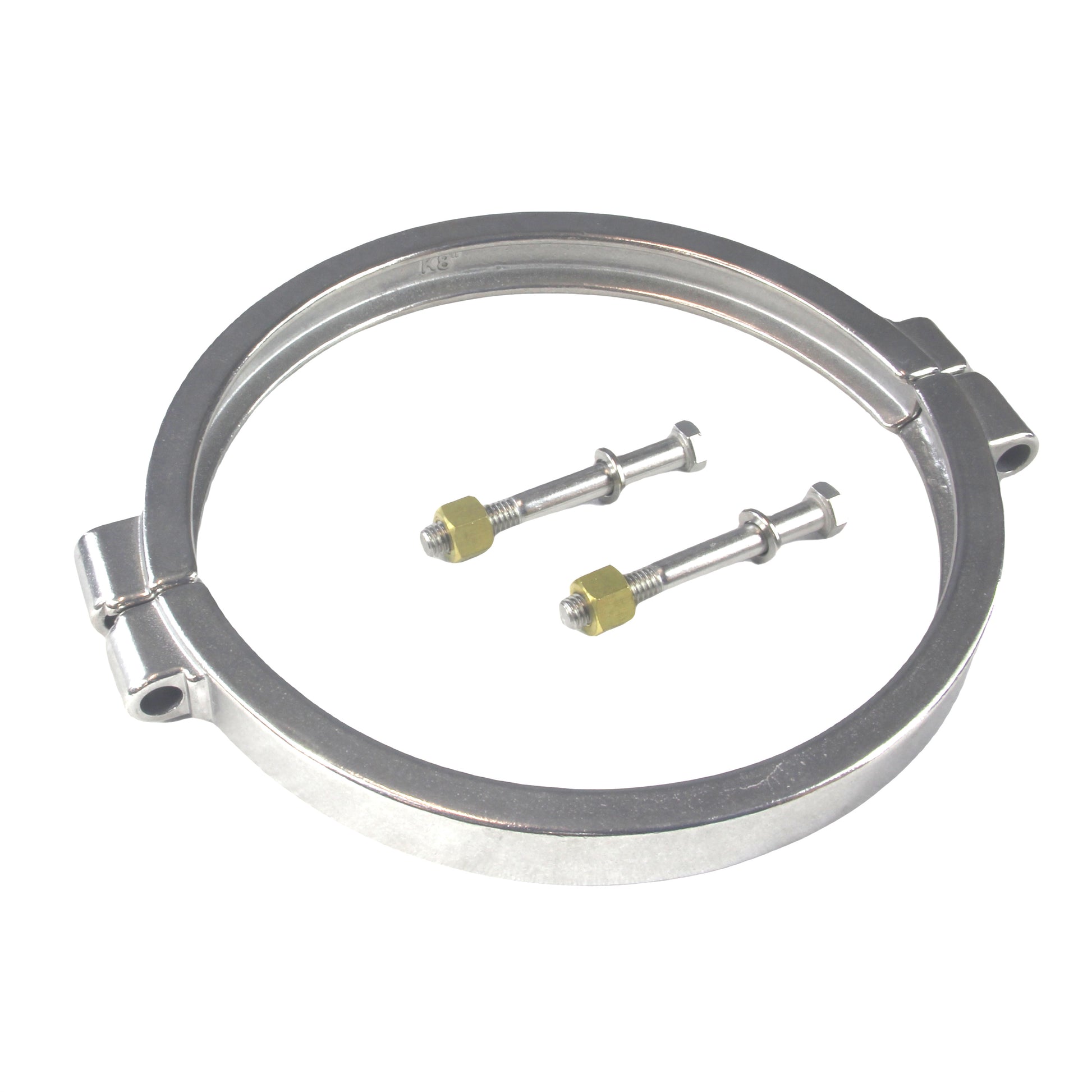

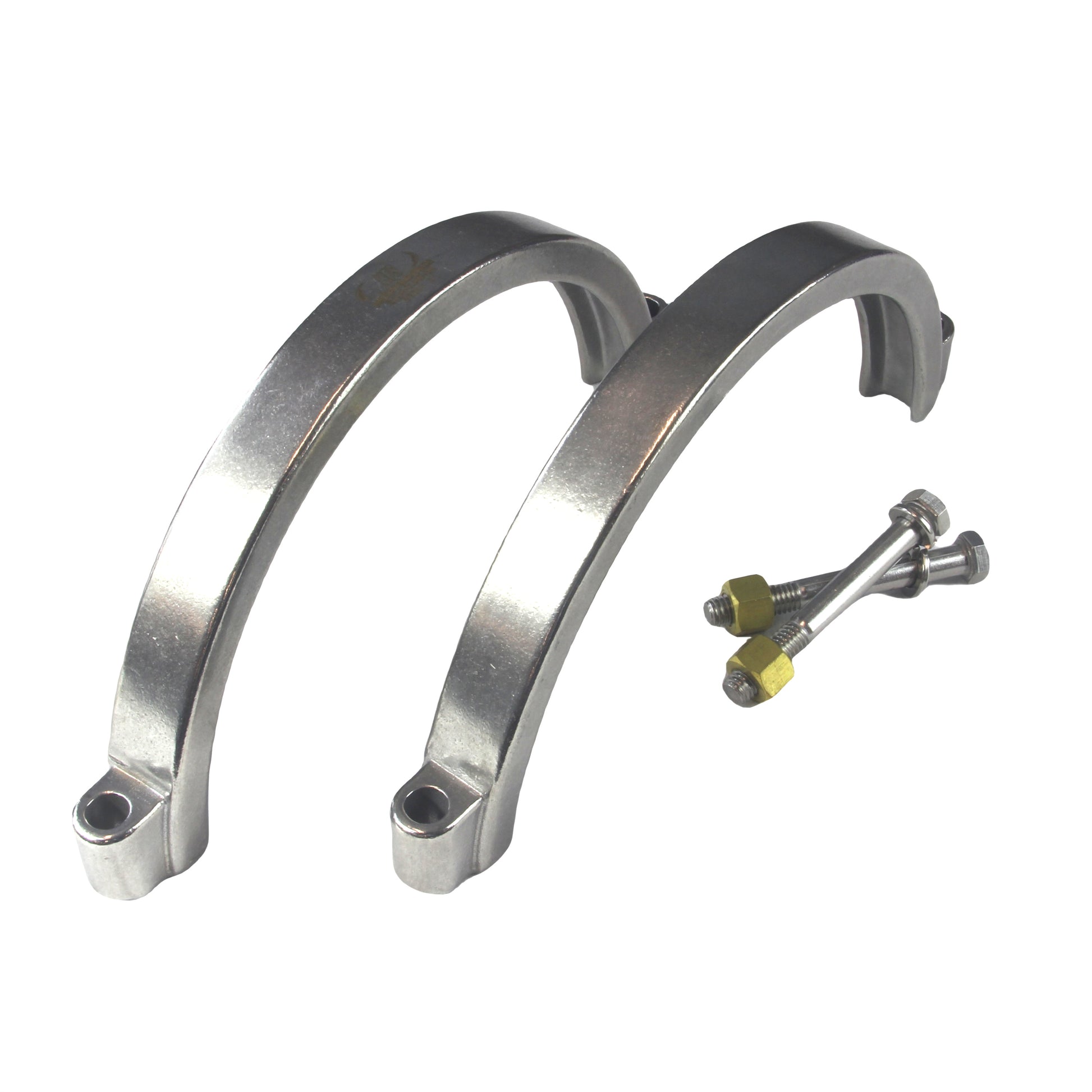

[Precise Design]: Bolted double pin high pressure clamps are a significant upgrade from the standard clamp, with the ability to withstand twice the pressure of comparable sized single or double hinged clamps.
[Wide Range of Applications]: Intended for Tri Clamp fitting connection, high pressure clamps are commonly used in situations where temperatures fluctuate and PTFE gaskets are installed.
[Convenient organization and storage]: Packed in a plastic pack with label.
|
SKU |
SIZE |
ΦA |
ΦB |
Max PSI @ 70°F |
Max PSI @ 250°F |
||
|
in |
mm |
in |
mm |
||||
|
EXA-H-CLAMP-1.5IN |
1 1/2" |
1.705 |
43.3 |
2.047 |
52 |
1450 |
725 |
|
EXA-H-CLAMP-2IN |
2" |
2.220 |
56.4 |
2.579 |
65.5 |
1000 |
653 |
|
EXA-H-CLAMP-3IN |
3" |
3.051 |
77.5 |
3.642 |
92.5 |
1000 |
580 |
|
EXA-H-CLAMP-4IN |
4" |
4.283 |
108.8 |
4.744 |
120.5 |
800 |
435 |
|
EXA-H-CLAMP-6IN |
6" |
6.220 |
158 |
6.693 |
170 |
300 |
200 |
|
EXA-H-CLAMP-8IN |
8" |
8.110 |
206 |
8.661 |
220 |
250 |
150 |
|
EXA-H-CLAMP-10IN |
10" |
10.157 |
258 |
10.740 |
272.8 |
200 |
125 |
|
EXA-H-CLAMP-12IN |
12" |
12.165 |
309 |
12.898 |
327.6 |
150 |
100 |
|
Dimensions and pressures for reference only, subject to change. |
|||||||
