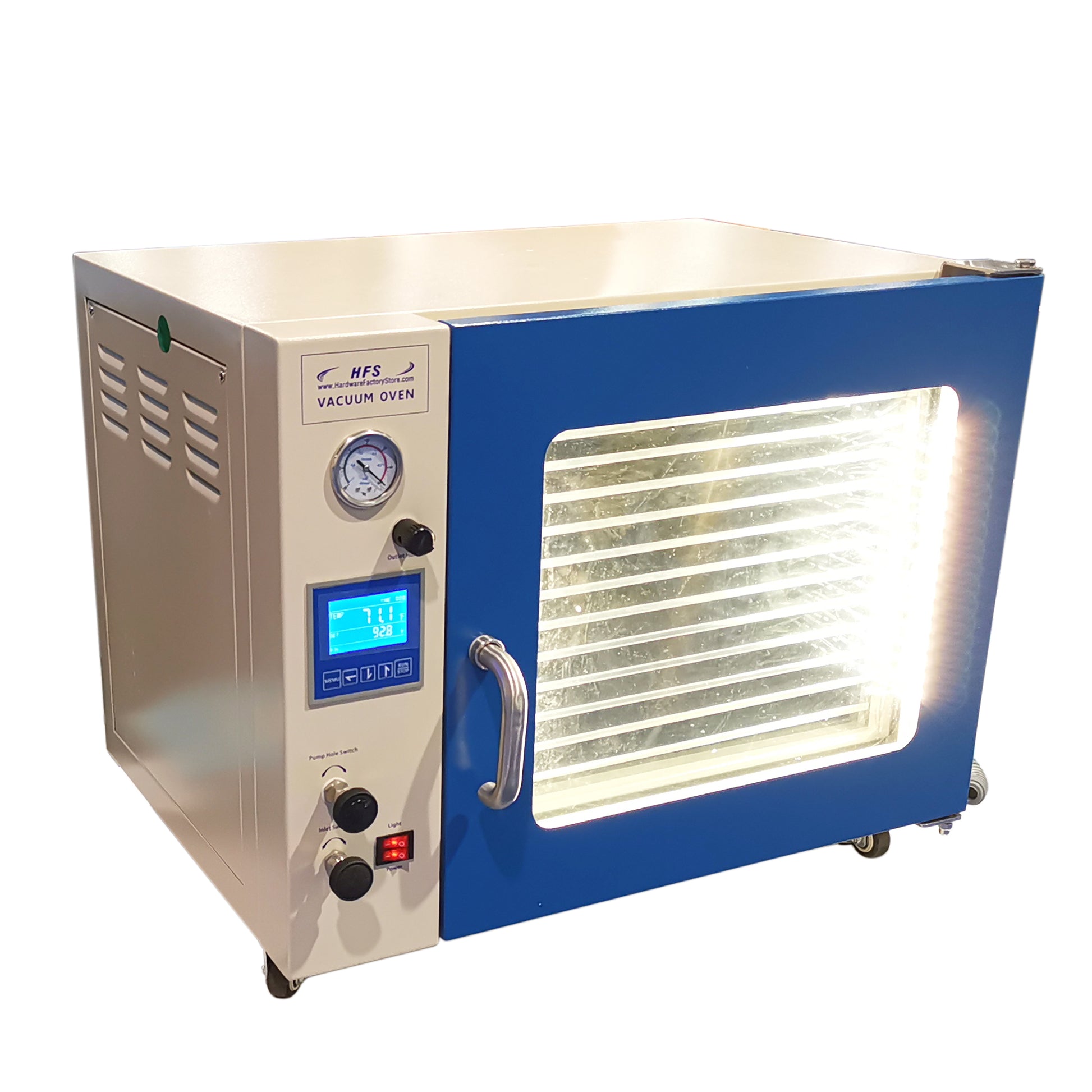

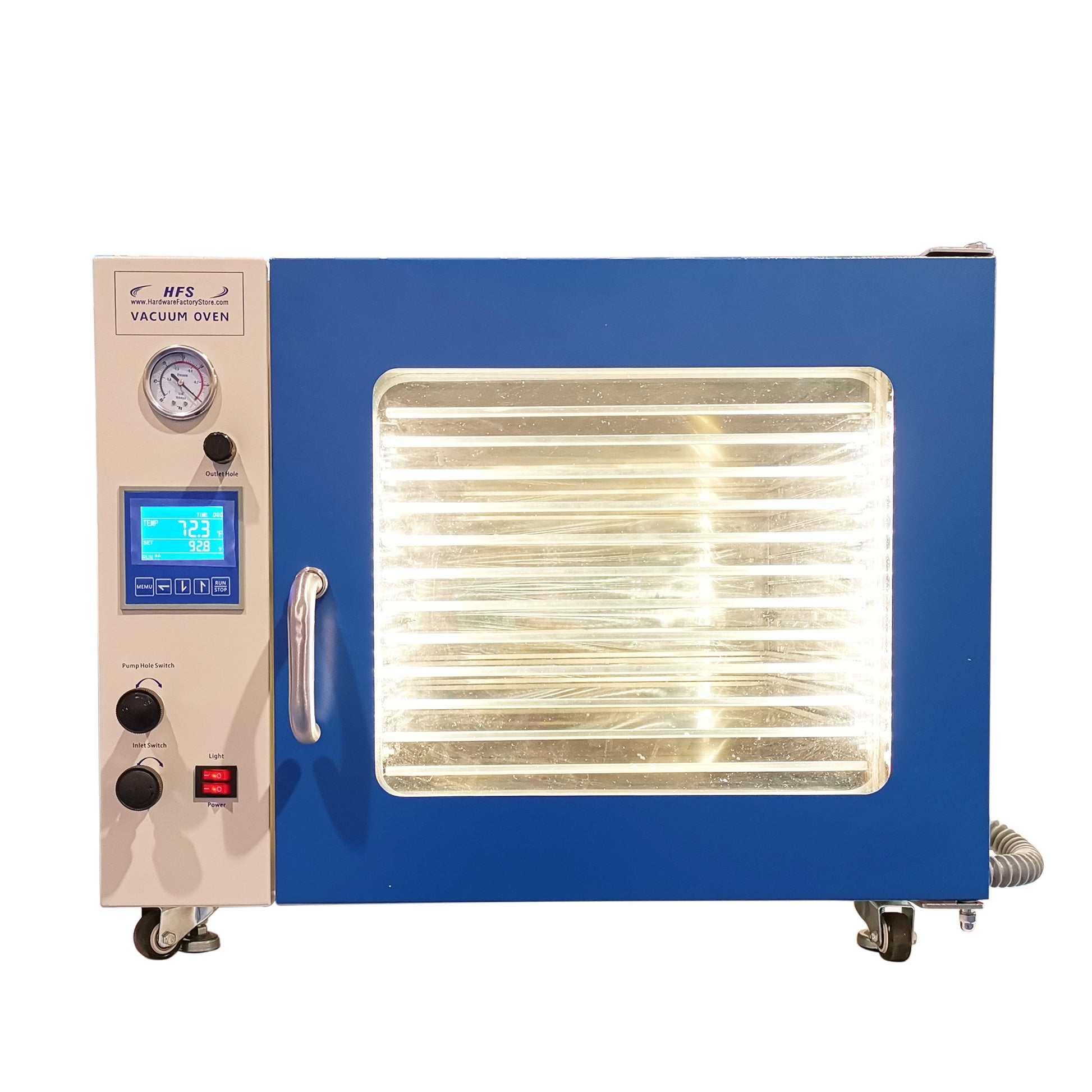

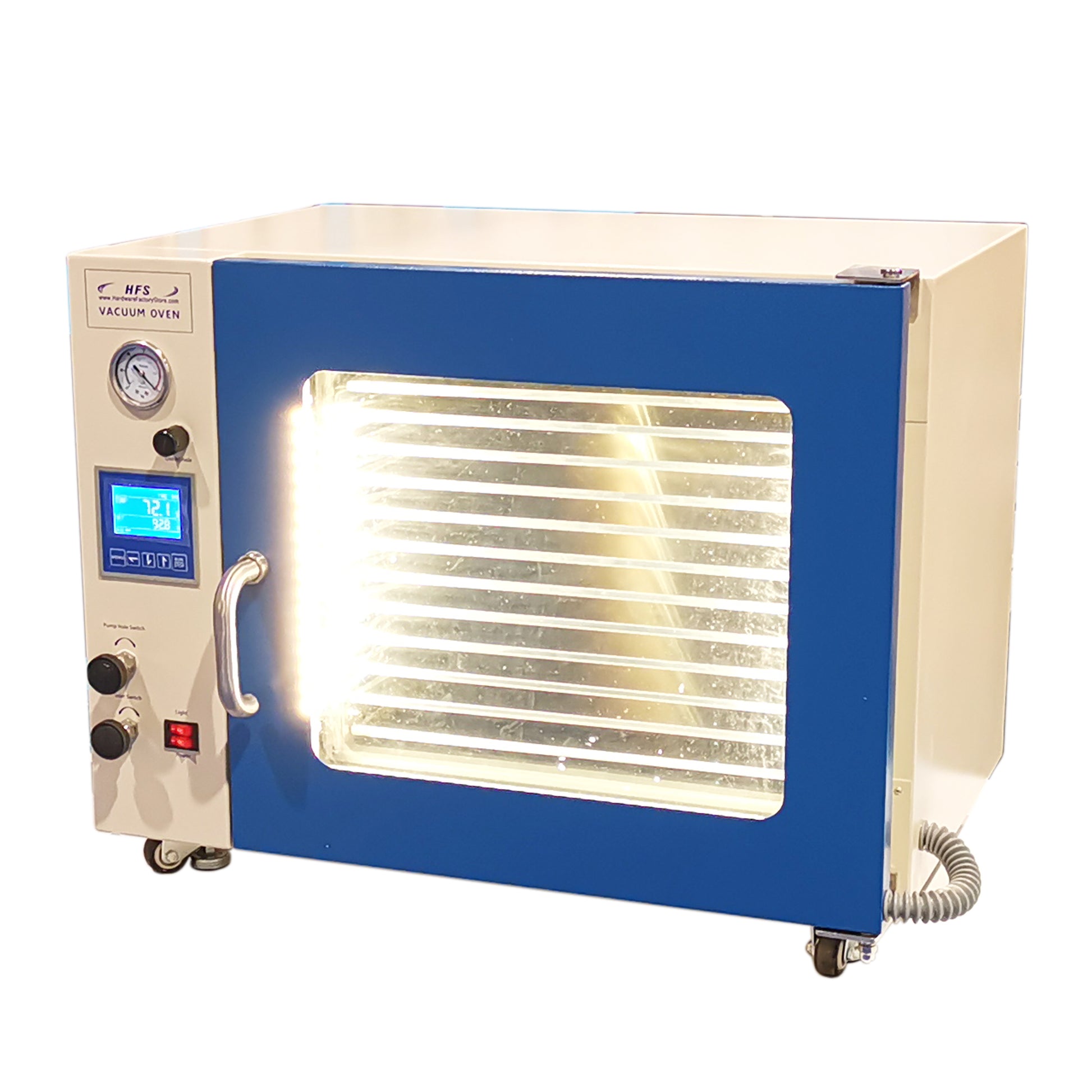

1.9 CuFt Digital Vacuum Oven 12 Shelf

Product Code DZF-6055

AvailabilityIn stock

$0.00 $1,710.00
Unit price
Shipping calculated at checkout.
Hurry! only 2 left in stock!
Most Orders Arrive in Four Days or less.
View Shipping Info Below.

Manual for DZF-6050 1.9 CuFt Oven

Click here to view the Certificate CE, ETL


  • 0-30" Hg gauge for quick vacuum level observation
  • 1/2" thick safety glass viewing window
  • Integrated LED Lighting
  • Digital controller
  • Barb inlet
  • Inlet Valve Type: Needle
  • Vacuum Line Type: Needle
  • Digital temperature and timer control with +/- 1 degree accuracy
  • Stainless Steel inner chamber
  • 4-Sided Heating - Left, Right, Bottom, Top
  • Standard KF-25 fitting for easy connectivity
  • 12 solid aluminum shelves included
  • KF25 clamp, centering ring,
  • Easy-to-use operation
  • No assembly required
  • 30 day Money-Back Guarantee
  • 1-Year Warranty

Included Items

  • DZF-6055 Oven
  • Owner's Manual
  • KF-25 Clamp, Centering Ring
  • 12 Solid Aluminum Shelves

Standards in Manufacturing

  • CE Certified
  • ENISO12100-1:2003, ENISO12100-2:2003, EN1050:1996
  • EN294:1992, EN418:1992, EN60204-1:2006


Chamber Dimensions (WxDxH)

16" x 14.5" x 14"

Chamber Material

Stainless Steel

Door Gasket Material


Timer Range

1-9999 minutes

Heater Power

1200 watts

Max Vacuum

30" Hg (133 Pa)

Power Supply

110V 50/60Hz 1-PH 13.6A

Power Cord

Standard US 3-Prong

Safety Designs

Circuit Breaker, Overheat Warning


12 Solid Shelves Included

Shipping Dimensions (WxDxH)

33" x 27" x 28"

Shipping Weight

220 Lbs

Temperature Range

Room Temperature to 215°F

Temperature Accuracy

+/- 1°F

Temperature Units


Unit dimensions (WxDxH)

28" x 22" x 22"


190 Lbs

Vacuum Fitting
