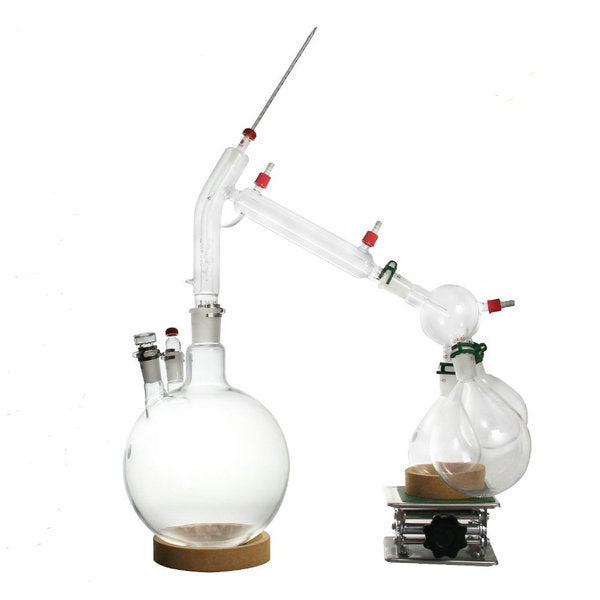

10L Short Path Distillation Kit

Product Code DIST-10L

AvailabilityIn stock

Unit price
Shipping calculated at checkout.
Most Orders Arrive in Four Days or less.
View Shipping Info Below.

This Kit Does NOT include a cold trap, vacuum pump, mantle, tubing or circulator

Vacuum Pumps: WELCH-3081-01
Circulator: AD07H200-A11B
Mantle: MANTLE-10L
Cold trap: COLDTRAP-2L

Capacity: 10L = 2000- 5000 grams
Run time: 4 to 8 hours dependent upon material composition and throughput
Distillation Temperature Range: 140-250C

Boiling Flask: 10L 2 Neck Borosilicate Round Bottom Flasks – 34/45, 24/40
Short Path Head: Distillation Head, 34/45, 14/20, 24/40
Distributor: Triple Cow Distribution Adapter, 24/40, 24/40
Receiving Flask: (3) 1L 1 Neck Borosilicate Oval-Shaped Round Bottom Flasks - 24/40
Feeding Tool: Glass Feeding Funnel with 4" Opening, 24/40
Thermal Adapter: 14/20 and 24/40
Plug: Hexagonal Glass Stopper, 14/20, 24/40, and 34/45
Metal Keck Clips: (2) 24/40 and (1) 34/45
Plastic Keck Clips: (3) 24/40
Connectors: (3) GL-14 with ¼” Straight Hose Barb Adapter
Cork Stand: 140mm and 110mm
Scissor Jack: Stainless Steel, 6x6x10”
Joint Lubricant: High-Vacuum Grease 5.3oz, by Dow Corning, -40 - 204 C
Thermometer: KANGAROO TRACEABLE THERMOMETER, -50-300°C (-58.0-572.0°F)
