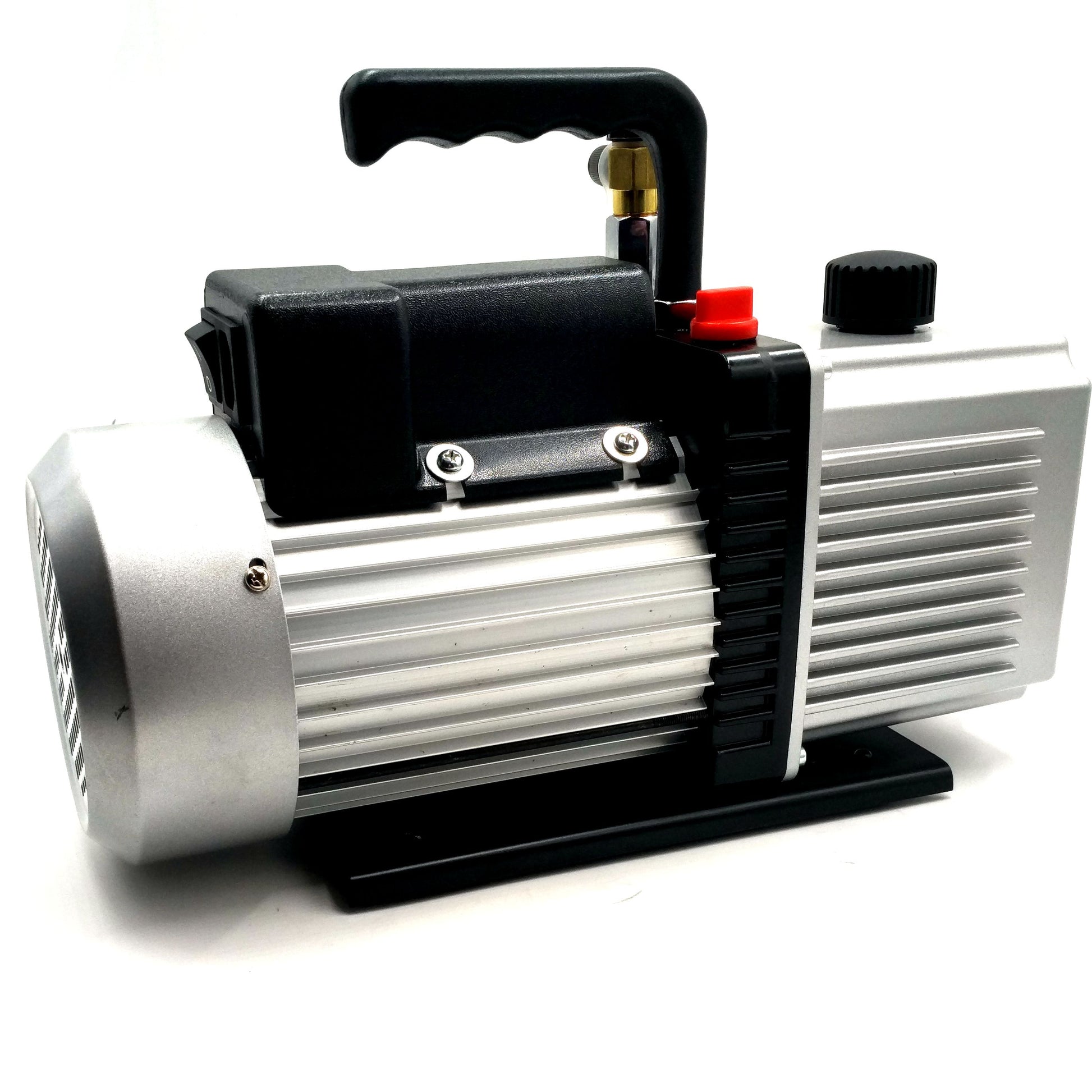

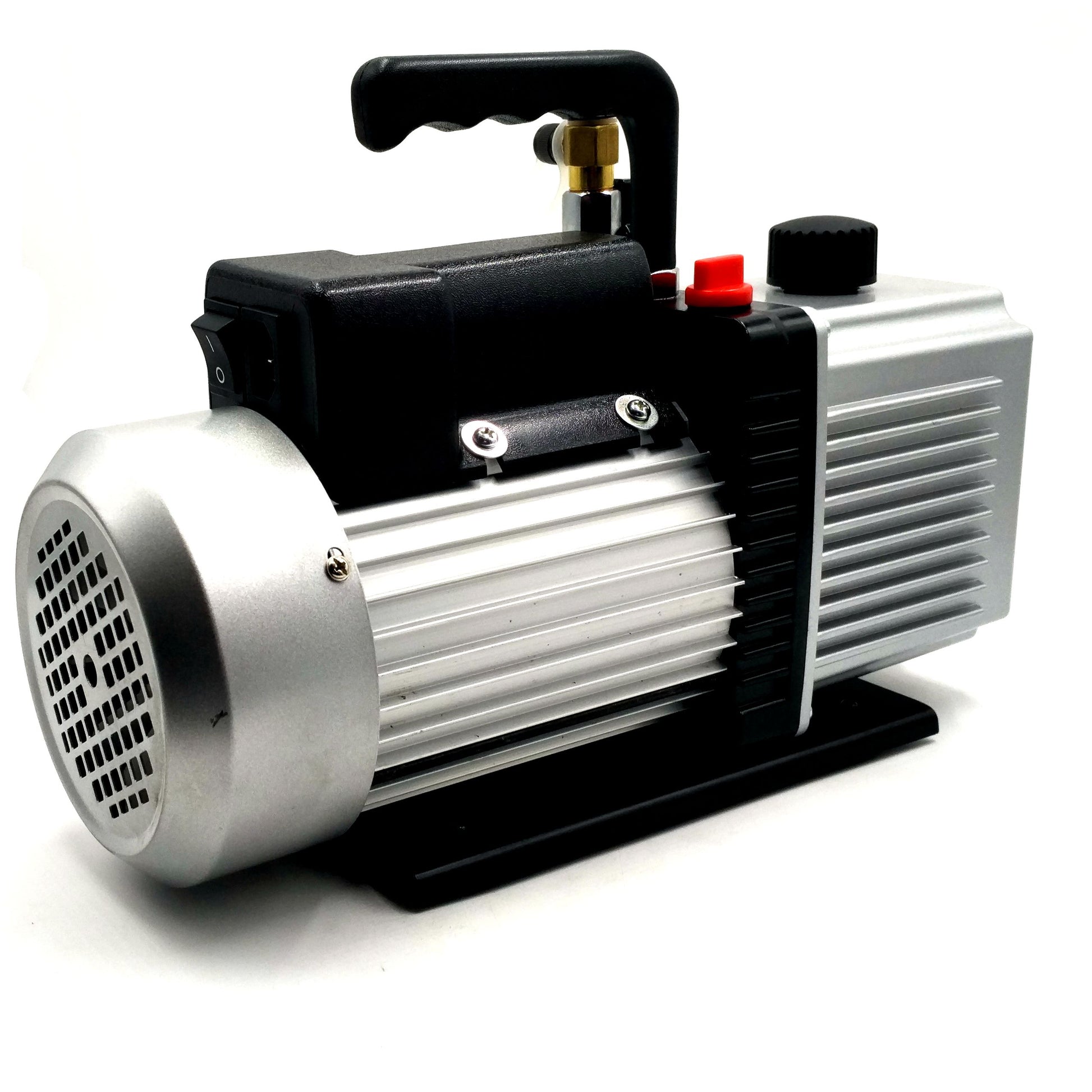

12CFM Single Stage Vacuum Pump VP1200

The VP-One series of single-stage rotary vane vacuum pumps are used to obtain a vacuum by pumping gas from a sealed container.
They are extremely useful in refrigeration repair, medical apliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.

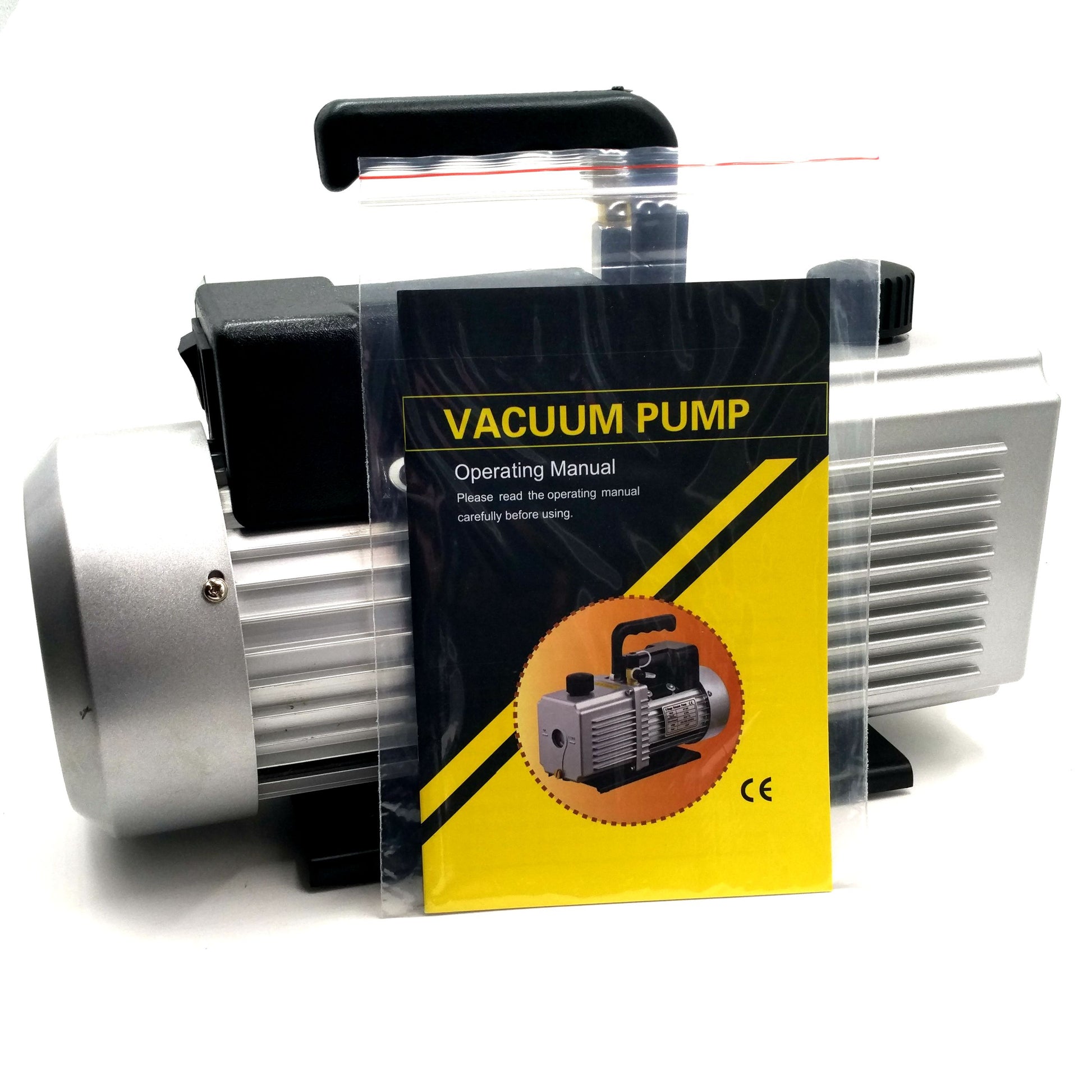

Manual & Datasheet for HFS Vacuum Pump

Parameter:

• Flow Rate: 12CFM 340L/min, 110V, 60Hz
• Ultimate Vacuum: 2Pa 150 Microns, 1 Stage
• Power: 1HP
• Inlet: 1/4" & 3/8" SAE
• Oil Capacity: 600ml
• Dimensions: 13.3" X 5.2" X 9.6"(340mmx132mmx245mm/)
• Weight: 12kgs

Features:

[Working Temp.]: The 12CFM 1 Stage Vacuum Pump operates in ambient temperature: 5℃~40℃. It is equipped with thermal protection function. If the room temperature is too or the voltage is too high, the product may stop working.

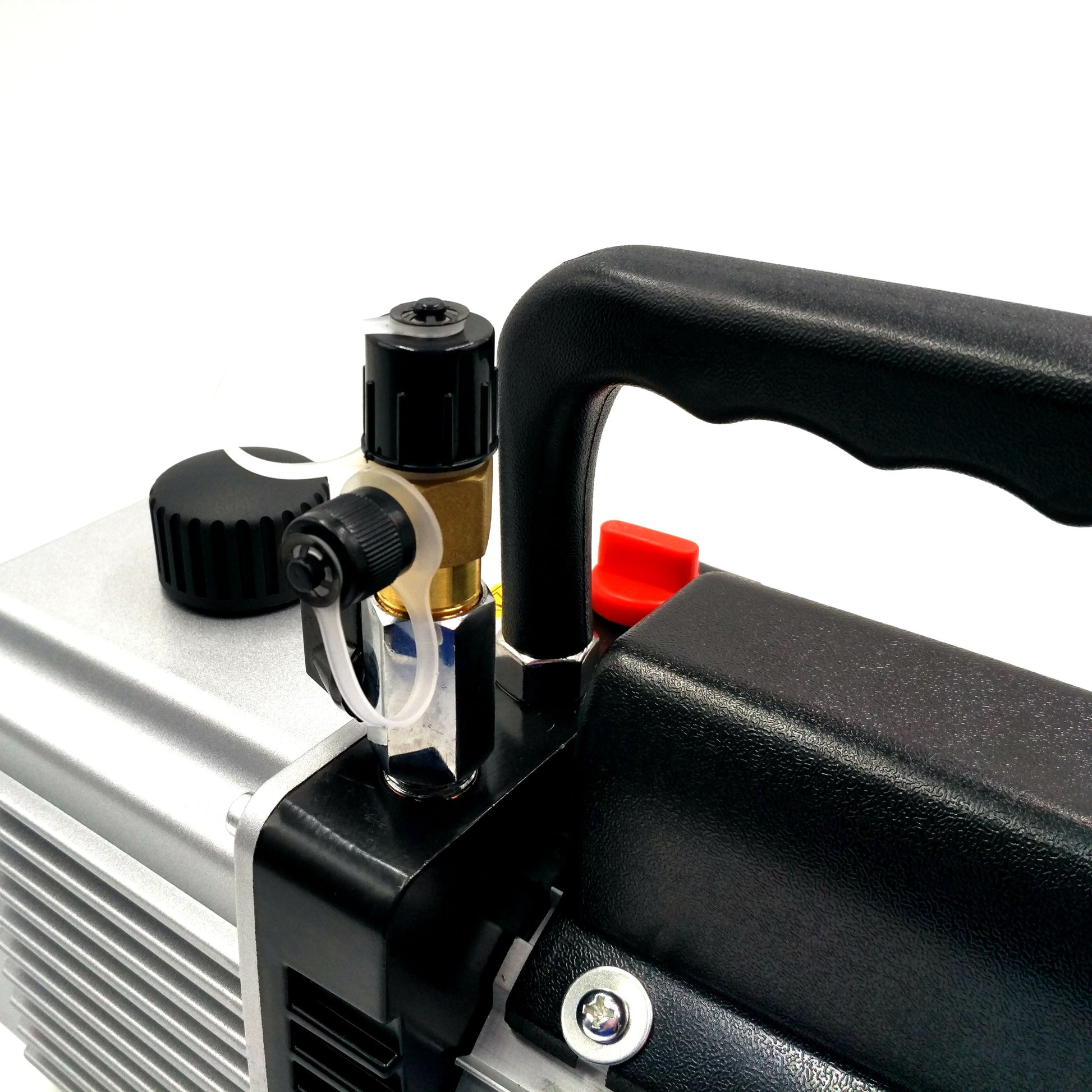

[Oil Anti Flow-Back Design & Environmental Design]: The gas inlet is specially designed to prevent oil form flowing back, preventing the container and hoses from being polluted;
The tank has separating devices at the exhaust port to prevent oil spraying and to reduce pollution.

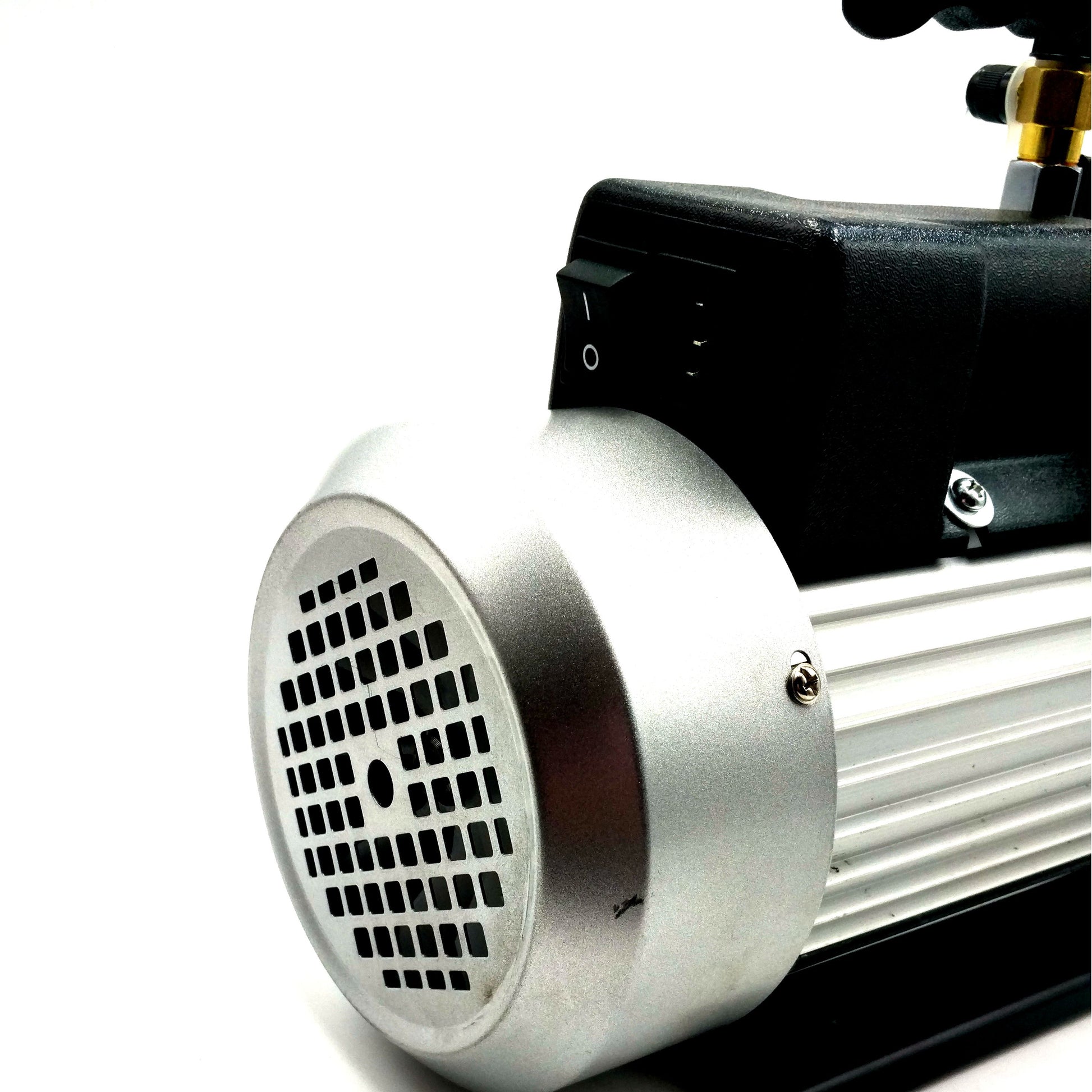

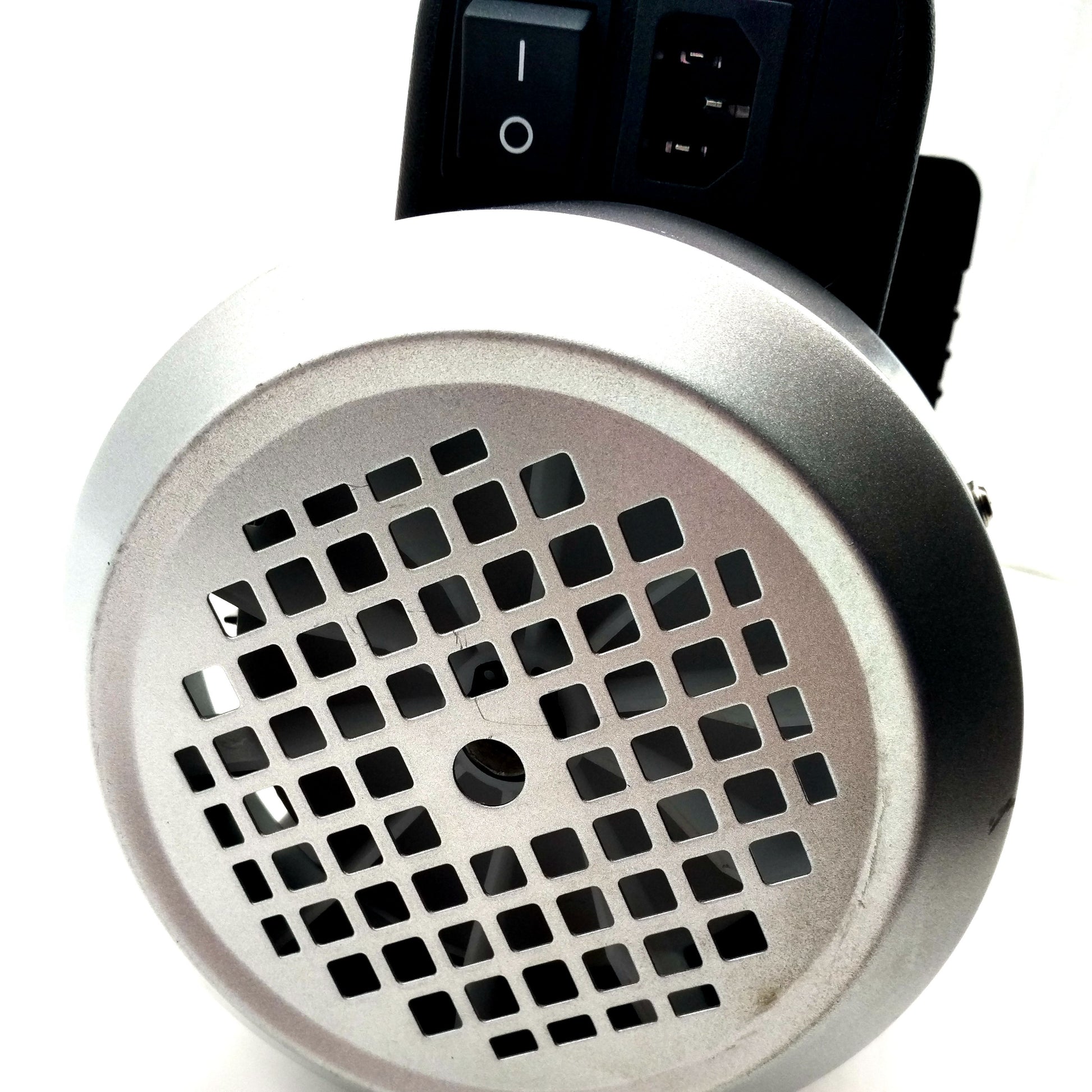

[Easy start design With Alloy Aluminum Casing]: Motor is made from allow casing which has good heat dissipation to keep the pump running efficiently and for a longer life;
It starts easily even in cold temperatures; Anti-Vibration - An electrometric coupling insert between the motor and module results in an extremely quiet and low vibration running condition.

[Application]: Vacuum Pumps are extremely useful in refrigeration repair, medical appliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
