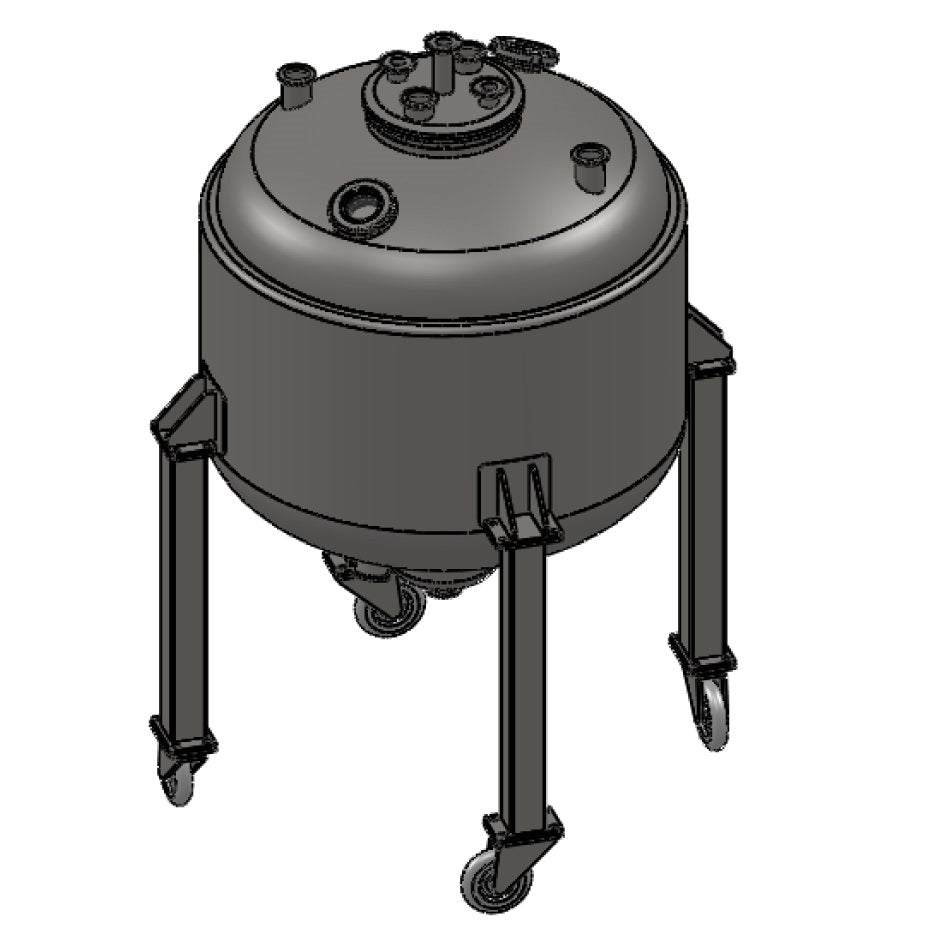

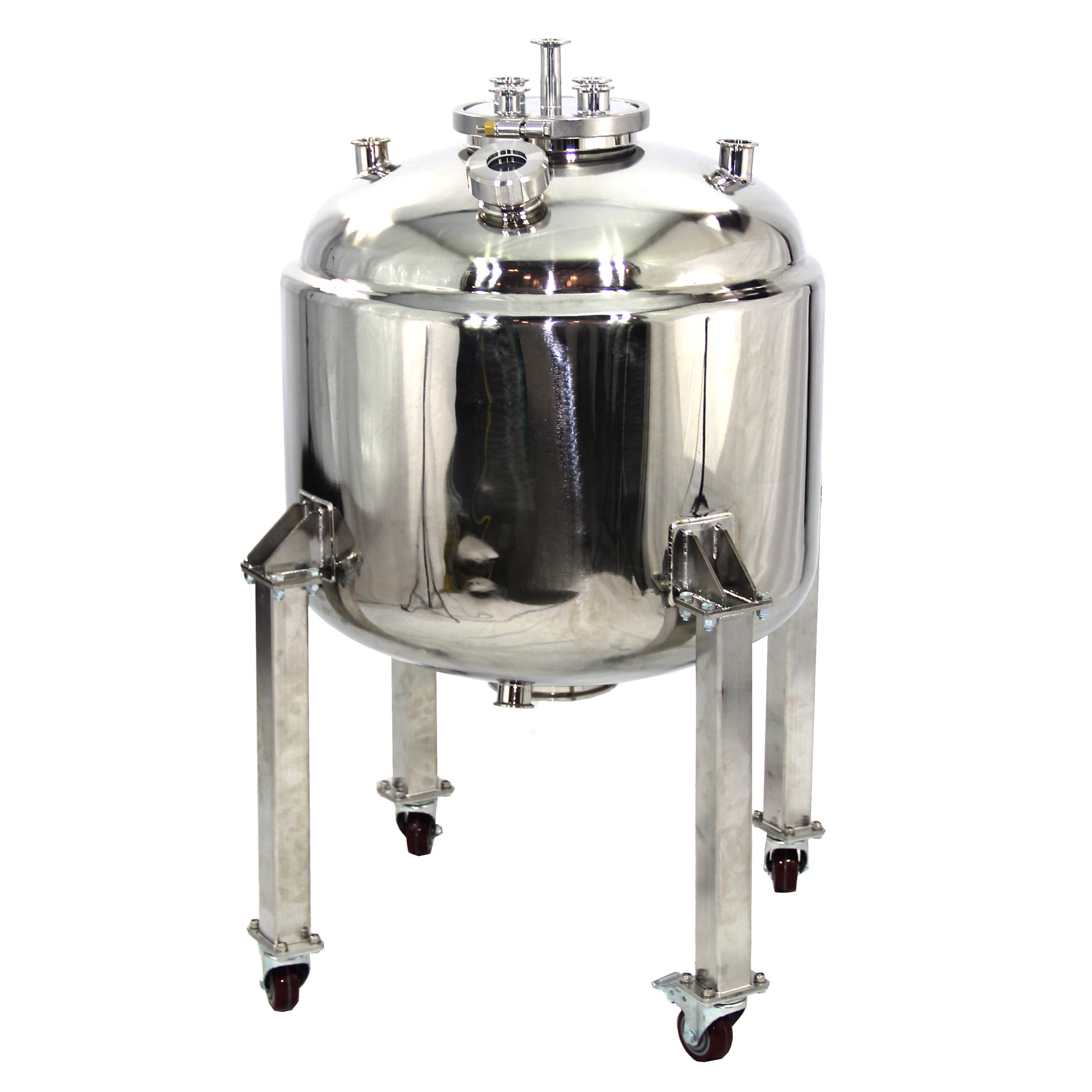

180 L, (200 lbs. Refrigerant), Jacketed Reactor (180L)

Spool Specifications:

• Material: Stainless 304
• Connection Type: Tri Clamp
• Connection Size (IN):24
• Length (IN):24
• Max Temp. (F): 250
• Max Pressure (PSI): 100
• Rackmount Bolt Size (IN): 1/2
• Specifications: Spool
• Diameter (IN):24
• Height (IN): 24
• Radius (IN): 12
• Volume Cube Ft.: 10857.34
• Fluid Capacity (L): 177.75
• Fluid Capacity (Gal): 47.03
• Butane Capacity (LBS): 192.1--240.12
• Propane Capacity (LBS): 152.08--240.12
• Bio Mass Capacity (LBS): 56.03--80.05
• 3A Sieve Capacity (LBS): 320.16
• Nugget Ice Capacity (LBS): 256.13

Jacket Specifications:

• Jacket OD (IN): 26
• Jacket Length (IN): 22
• Jacket Volume Cube Ft.: 823.1
• Jacket Fluid Capacity (L): 13.48
• Jacket Fluid Capacity (Gal): 4
• Sleeve Ice Capacity (LBS): 19
• Jacket Connection Type (IN): FNPT 1/2 x FNPT 1/2
