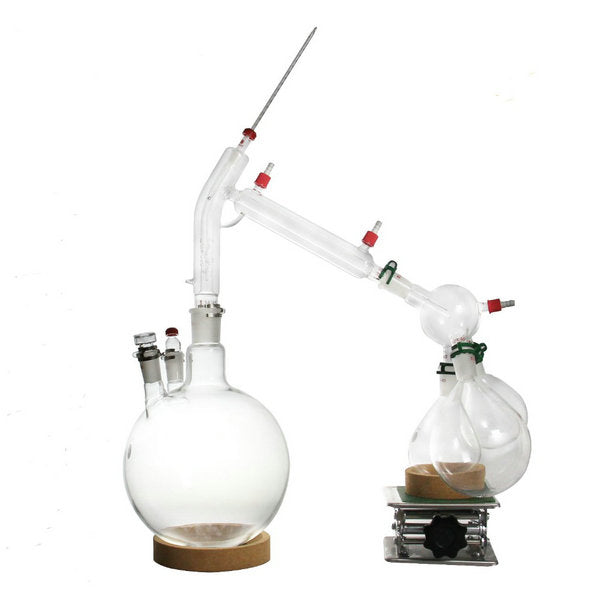

1L Short Path Distillation Kit

SKU:DIST-1L
HFS 1L Short Path Distillation Kit
This Kit Does NOT include a cold trap, vacuum pump, mantle, tubing or circulator

Recommendations:
Vacuum Pumps: WELCH-1400B-01
Circulator: AD07H200-A11B
Mantle: MANTLE-1L
Accessories: DIGIVAC-BULLSEYE
Cold trap: COLDTRAP-1L

Specifications:
Batch Capacity approximate: 1L = 200-500 grams
Run time: 4 to 8 hours dependent upon material composition and throughput
Distillation Temperature Range: 140-250C

Components:
Boiling Flask: 1L 2 Neck Borosilicate Heavy Bottom Flasks - 24/40, 24/40
Short Path Head: Distillation Head, 24/40, 14/20, 24/40
Distributor: Triple Cow Distribution Adapter, 24/40, 24/40
Receiving Flask: (3) 500ml 1 Neck Round Bottom Flasks - 24/40 Center Joint
Feeding Tool: Glass Feeding Funnel with 4" Opening, 24/40
Thermal Adapter: 14/20 and 24/40
Plug: Hexagonal Glass Stopper, 14/20 and 24/40
Metal Keck Clips: (3) 24/40
Plastic Keck Clips: (3) 24/40
Connectors: (3) GL-14 with ¼” Straight Hose Barb Adapter
Cork Stand: (2) 110mm
Scissor Jack: Stainless Steel, 4x4x6”
Joint Lubricant: High-Vacuum Grease 5.3oz, by Dow Corning, -40 - 204 C
Thermometer: KANGAROO TRACEABLE THERMOMETER, -50-300°C (-58.0-572.0°F)



	1pc of DIS-2NRF-1L HFS 1L 2 Neck Borosilicate Round Bottom Flasks - 24/40, 24/40		1pc of DIS-HEAD-2L HFS Short Path Distillation Head, 24/40, 14/20, 24/40
	1pc of DIS-CDA-250ML Triple Cow Distribution Adapter, 24/40, 24/40, GL 14		3pc of DIS-RBF-500ML HFS 500ml 1 Neck Round Bottom Flasks - 24/40 Center Joint
	1pc of DIS-FF4IN-2440 HFS Glass Feeding Funnel with 4" Opening, 24/40		1pc of DIS-TIA-2440 HFS Thermometer Inlet Adapter with Gasket, 24/40
	1pc of DIS-TIA-1420 HFS Thermometer Inlet Adapter with Gasket, 14/20		1pc of DIS-HSTOP-2440 HFS Hexagonal Glass Stopper, 24/40
	1pc of DIS-HSTOP-1420 HFS Hexagonal Glass Stopper, 14/20		3pc of DIST-SCLIP-24 HFS Stainless Steel Keck Clip #24, Single (1) Piece
	3pc of DIST-PCLIP-24 HFS Plastic Keck Clip #24 For 24/40 Joint, Single (1) Piece		3pc of DIST-GL14-0104 GL-14 with ¼” Straight Hose Barb Adapter, Temp. Reistance 180C, 356F
	2pc of DIST-CORK-110MM Cork Stand, 110mm, for 150ml-1000ml (1L) Flask, Single (1) PCS		1pc of 16457 HFS Lab Jack, Stainless Steel, 4x4x6”
	1pc of CORNING-GREASE High-Vacuum Grease 5.3oz, by Dow Corning, -40 - 204 C		1pc of DIST-THERMO-DIGI KANGAROO TRACEABLE THERMOMETER, -50-300°C (-58.0-572.0°F)
