Datasheet for Tri Clamp Mesh Screen Gasket

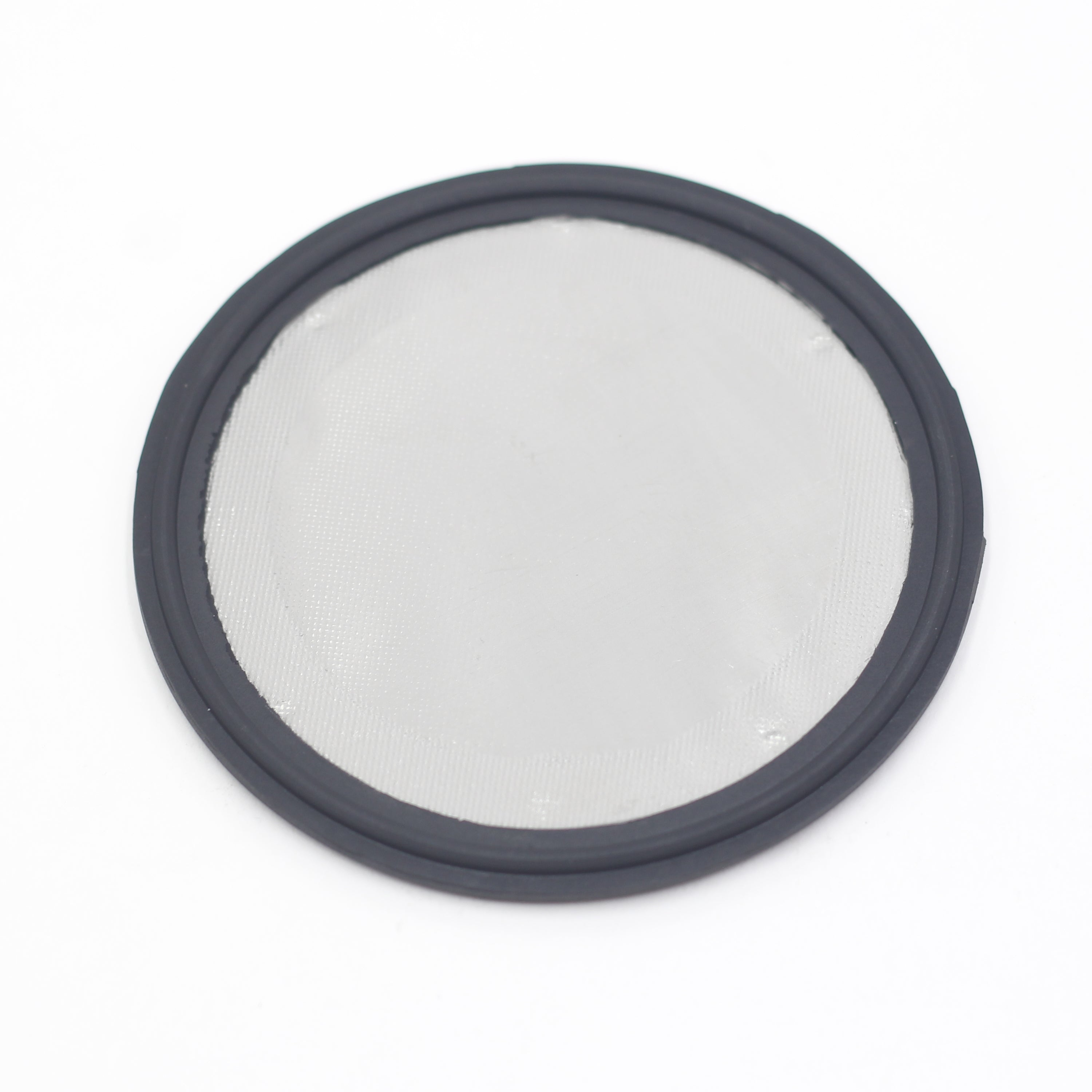

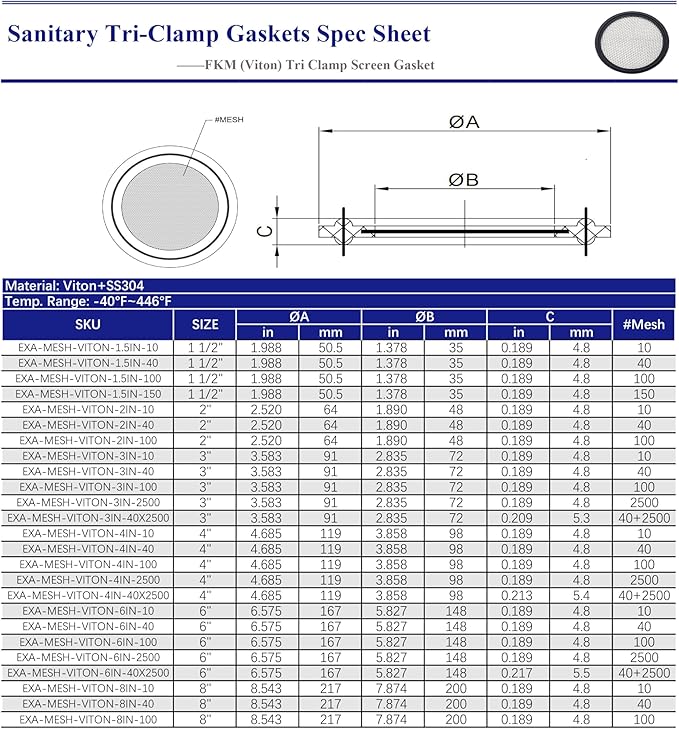

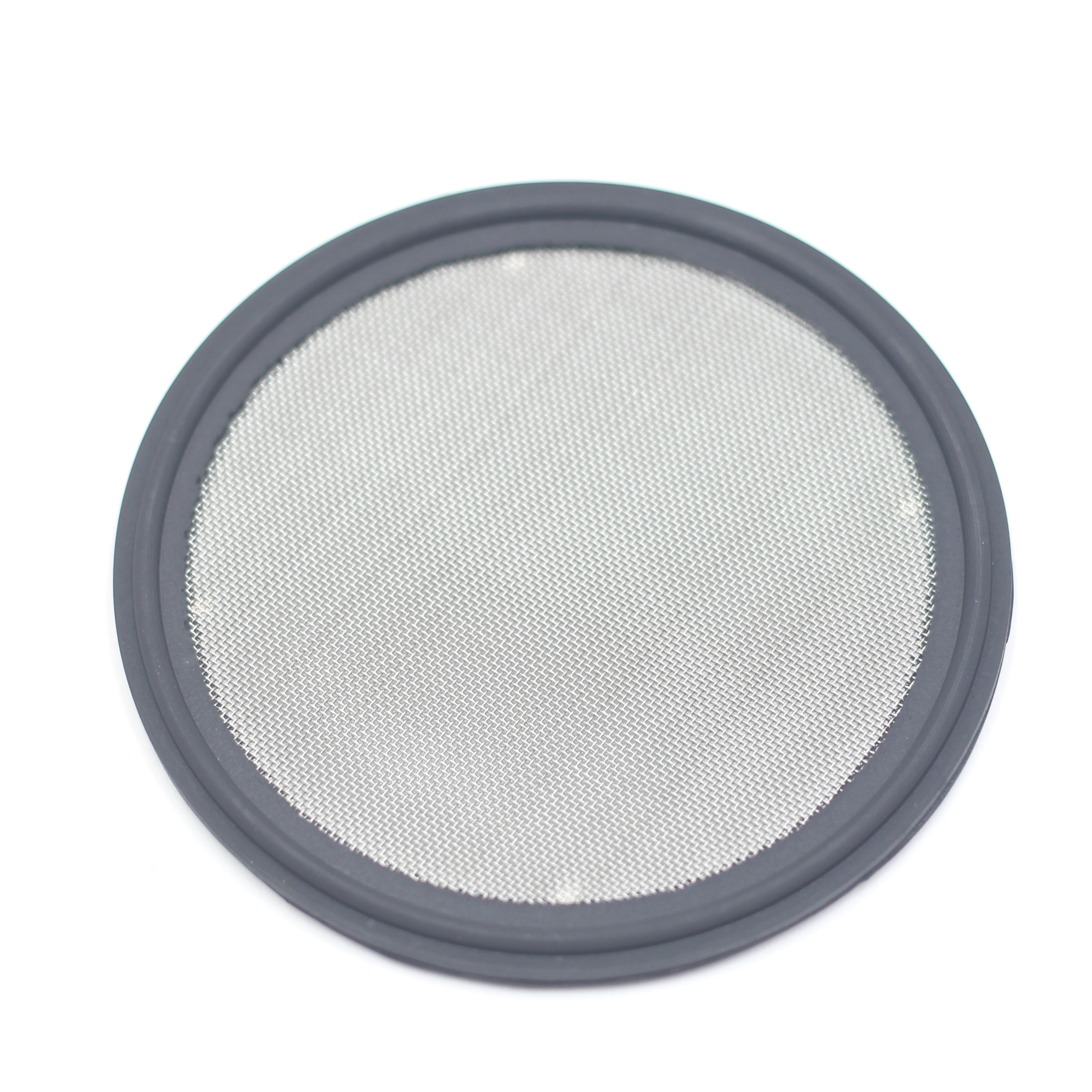

[Size]: 3'' Tri Clamp Screen Gasket, w/ double Stainless Screen. OD: 91mm, ID: 72mm, Thickness: 5.3mm.
[Quality Materials]: The Sanitary Gasket is made of high quality VITON with double stainless screen filter which is durable, stable and corrosive resistance and good for long time using.
[Precise Design]: The VITON screen gasket is designed with stainless screen filter (2500 Mesh/5 μm & 40 Mesh/420μm) in it which can filter effectively.
[High Working Temp. & Wide Range of Applications]: The screen filter is used to filter impurities from the liquid.It is suitable for different media including water, gas, and oil with working at -40°F~446°F.
[Convenient organization and storage]: Packed in a small plastic bag with label.
