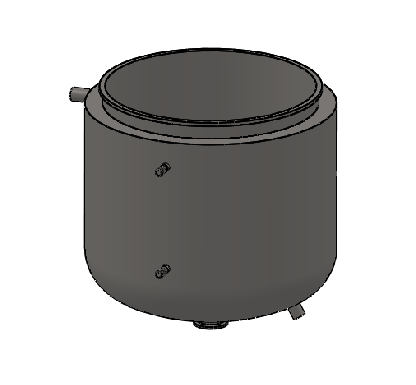

Specifications

Connection Size (IN):12
Length (IN):8
Max Temp. (F): 250
Max Pressure (PSI): 100
Rackmount Bolt Size (IN): 1/2
Specifications: Spool
Diameter (IN):12
Height (IN): 8
Radius (IN): 6
Volume Cube Ft.:904.78
Fluid Capacity (L):14.81
Fluid Capacity (Gal):3.92
Butane Capacity (LBS):16.01--20.01
Propane Capacity (LBS):12.67--20.01
Bio Mass Capacity (LBS):4.67--6.67
3A Sieve Capacity (LBS):26.68
Nugget Ice Capacity (LBS):21.34
Jacket Specifications:

Jacket OD (IN): 14
Jacket Length (IN):8
Jacket Volume Cube Ft.:326.73
Jacket Fluid Capacity (L):5.35
Jacket Fluid Capacity (Gal):1
Sleeve Ice Capacity (LBS):8

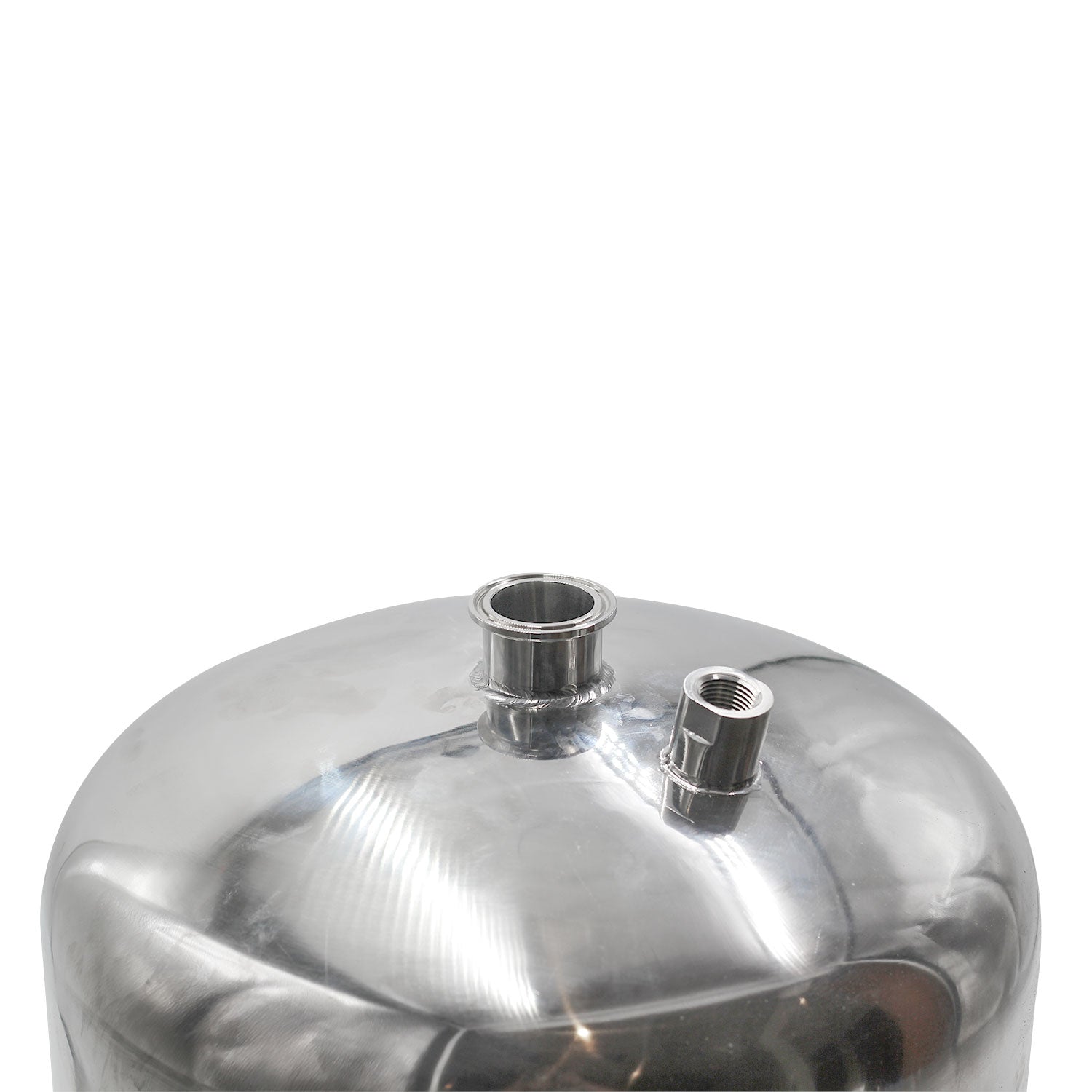

Jacket Connection Type (IN): FNPT 1/2 x FNPT 1/2

Feature

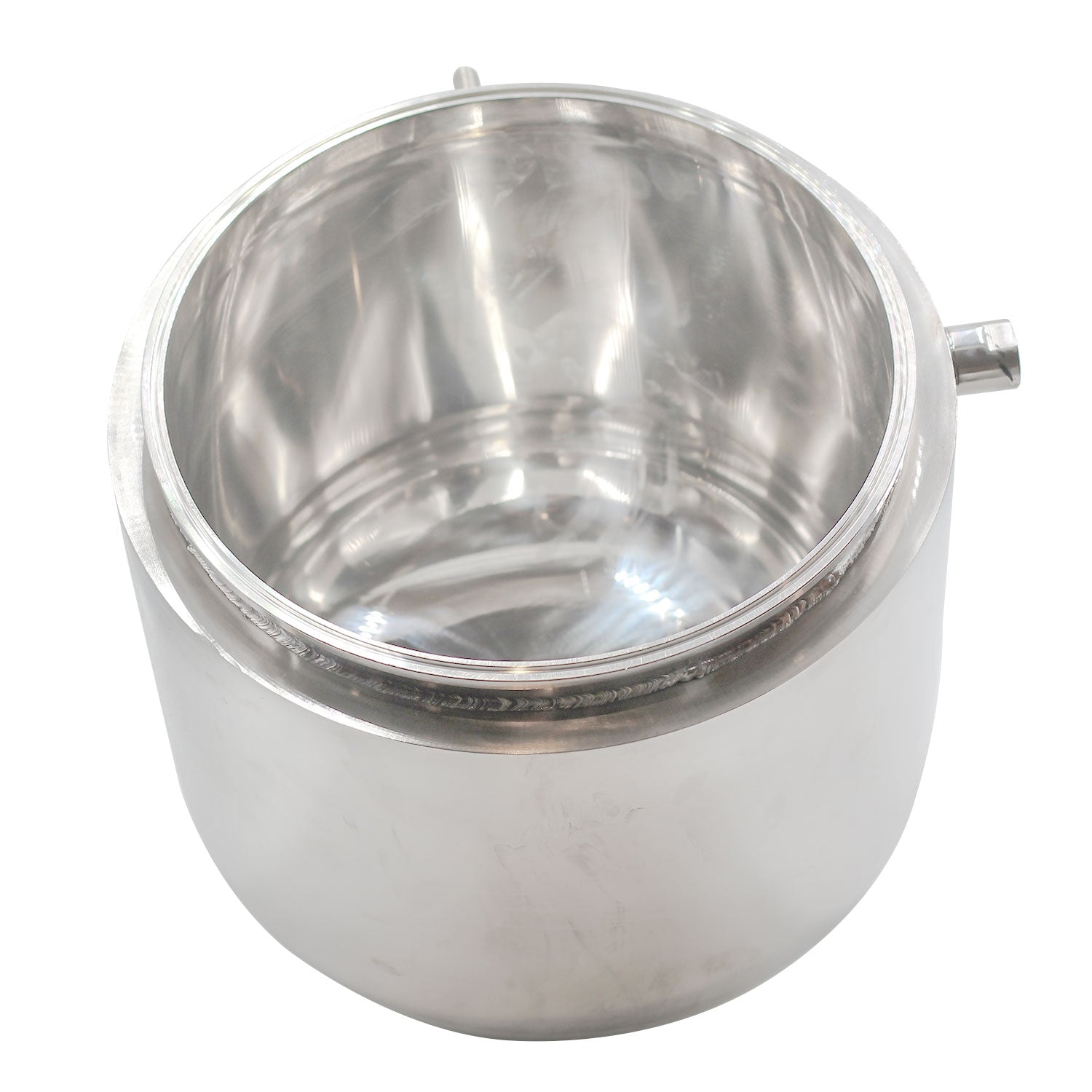

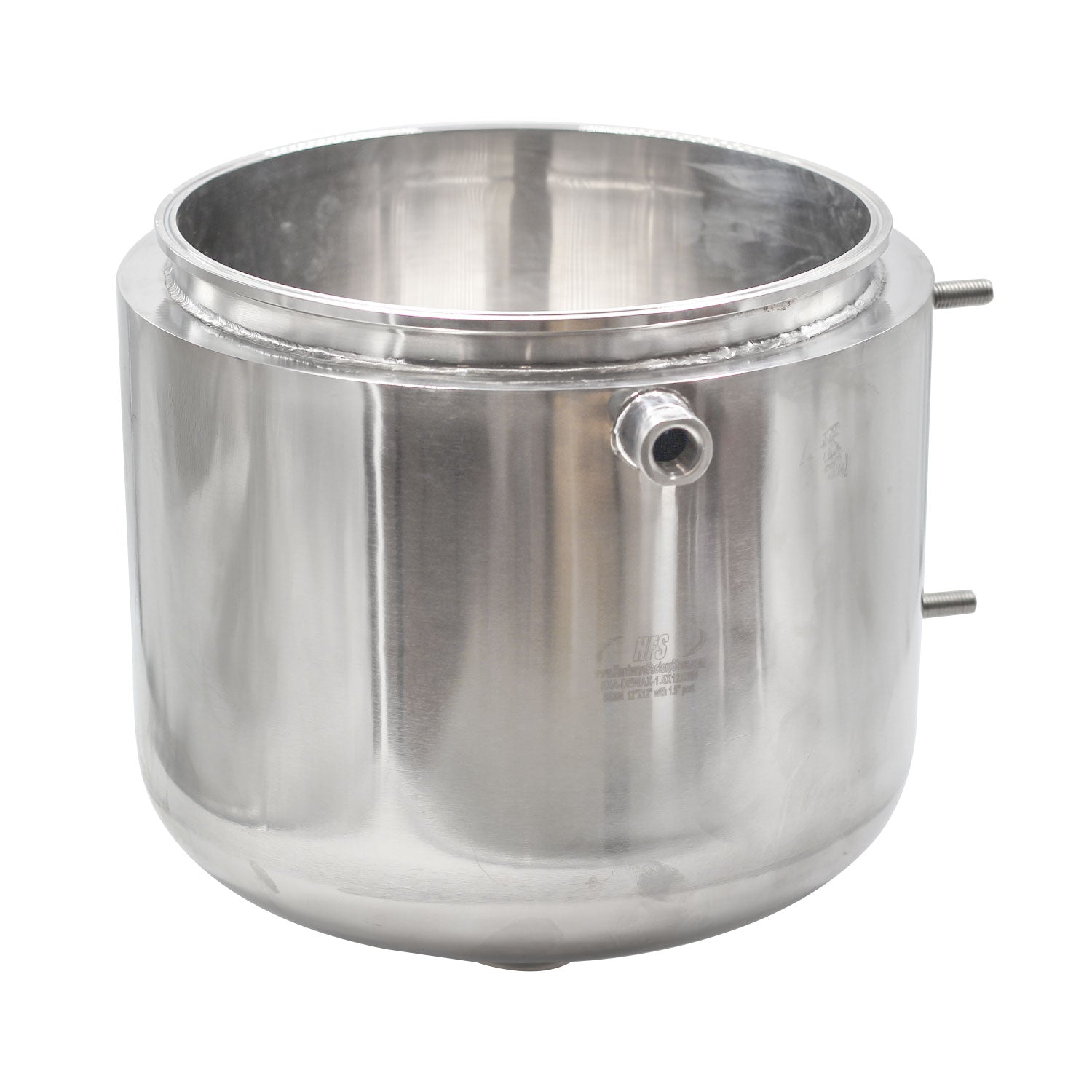

[Quality Materials]: The reactor is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: After the material mixture put into the inner cylinder, the material in the inner cylinder is heated and evaporated under the action of the heating medium in the jacket.

[High Working Temp. & Wide Range of Applications]: The reactor can be used for heat exchange between the material and the heating medium in the jacket. It is suitable for different media including water, gas, and oil with working at 14°F~212°F.

[Convenient organization and storage]: Packed in a carton box with label.
