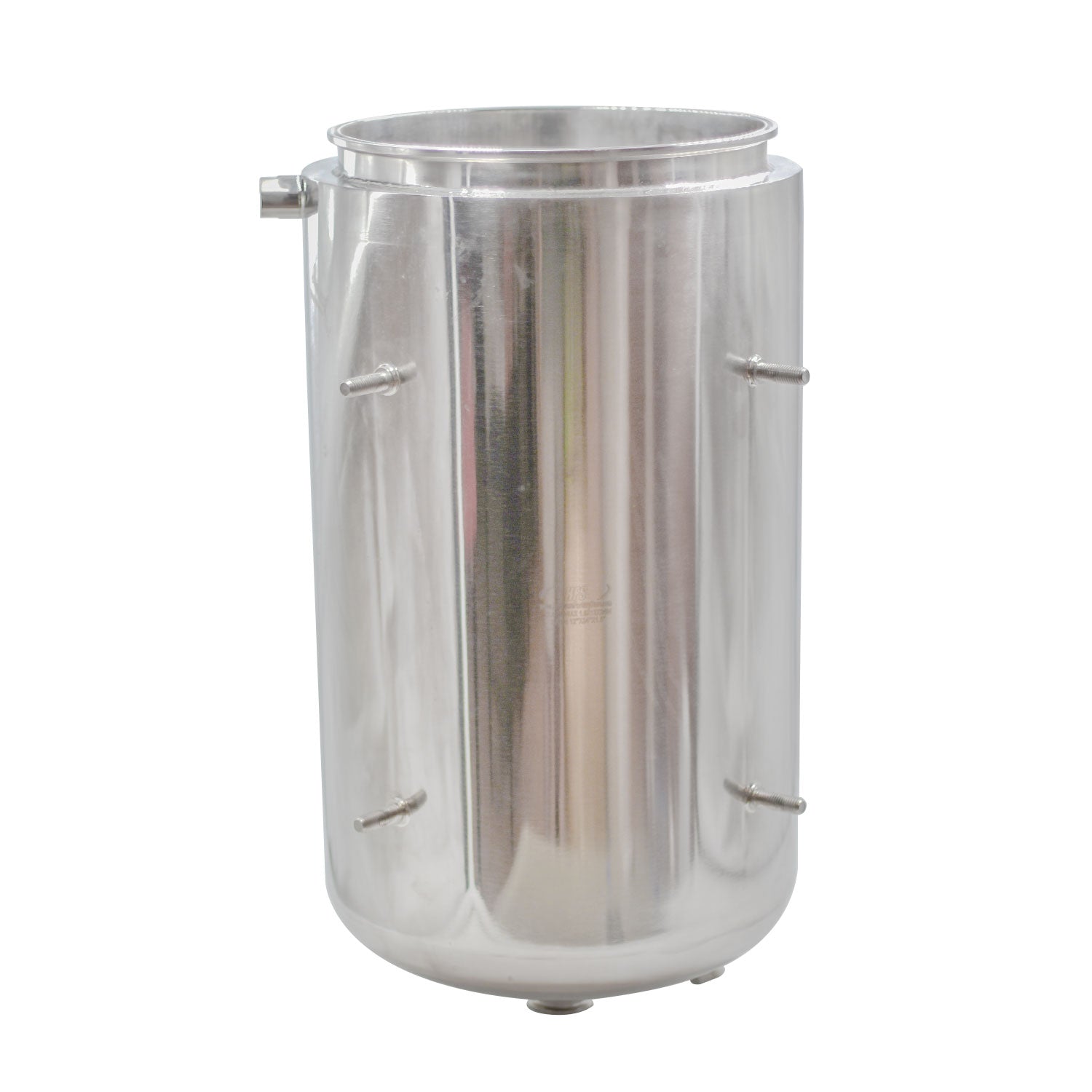

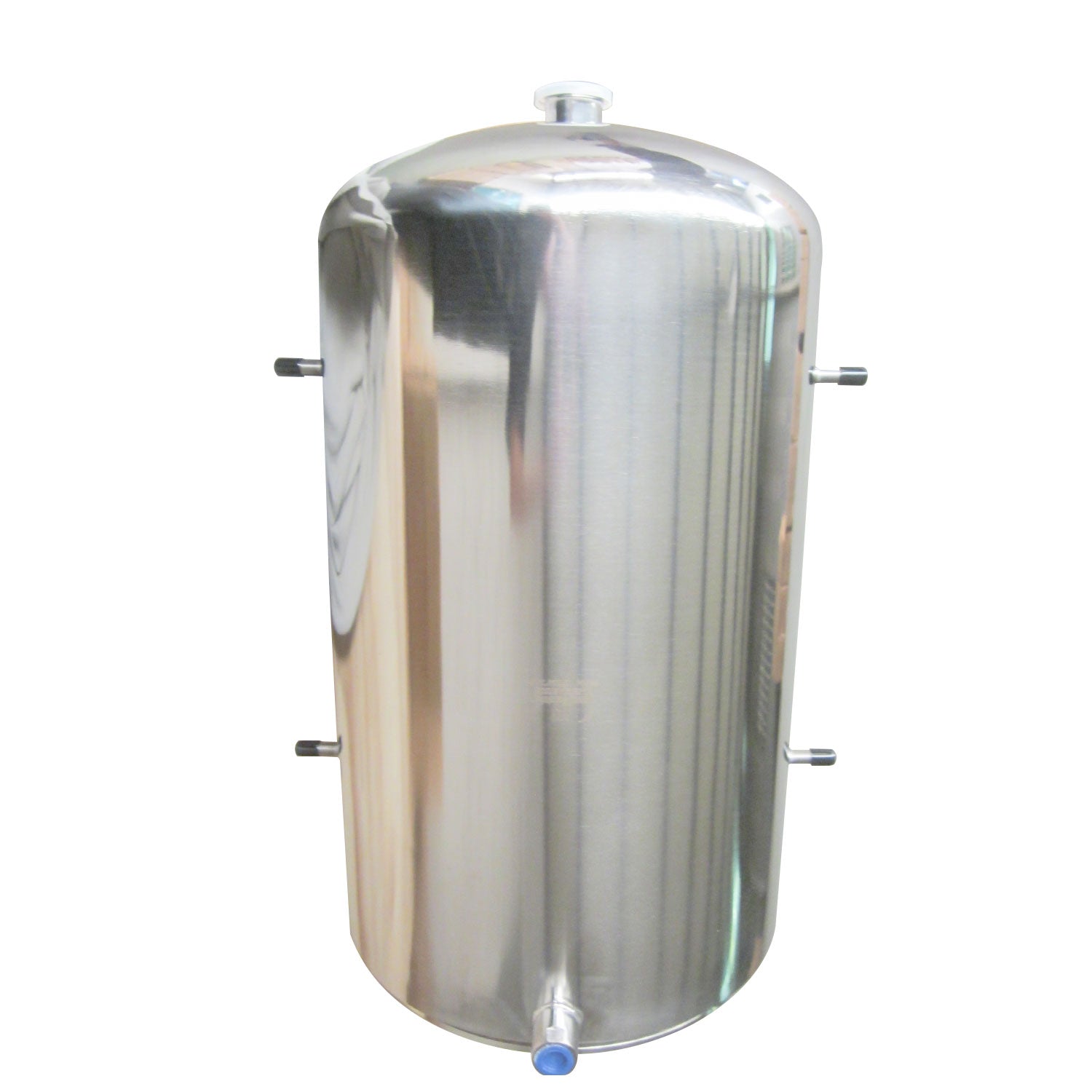

45 L Jacketed Vessel Base Container 12'' Tri Clamp, 24" Tall w/ 1.5" Tri Clamp Round Base

[Size]:
Lid Type: Tri Clamp
Top Connection (IN): Tri Clamp 12
Bottom Connection (IN): Tri Clamp 1.5
Sight Glass Size: (IN): 0
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Jacket Connection Type (IN): FNPT 1/2
Jacket OD (IN): 14
Jacket Length (IN): 24

Specifications: Vessel
Diameter (IN): 12
Height (IN): 24
Radius (IN): 6
Volume (Cu In): 2712.96
Fluid Capacity (L): 44.42
Fluid Capacity (Gal): 11.75
Butane Capacity (LBS): 48.00 - 60.00
Propane Capacity (LBS): 38.00 - 47.50
Biomass Capacity (LBS): 14.00 - 20.00
3A Sieve Capacity (LBS): 80.00
Nugget Ice Capacity (LBS): 64.00

Specifications: Jacket
Fluid Capacity (L): 18.81
Fluid Capacity (Gal): 4.98
Sleeve Ice Capacity (LBS): 27.11

[Quality Materials]: The reactor is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: After the material mixture put into the inner cylinder, the material in the inner cylinder is heated and evaporated under the action of the heating medium in the jacket.

[High Working Temp. & Wide Range of Applications]: The reactor can be used for heat exchange between the material and the heating medium in the jacket. It is suitable for different media including water, gas, and oil with working at 14°F~212°F.

[Convenient organization and storage]: Packed in a carton box with label.
