NOTE: EXA-JACKET, EXA-DEWAX, EXA-SPOOL series products can be customized according to your needs.
For more details, technical support or other questions, please call direct (626) 332-7744.

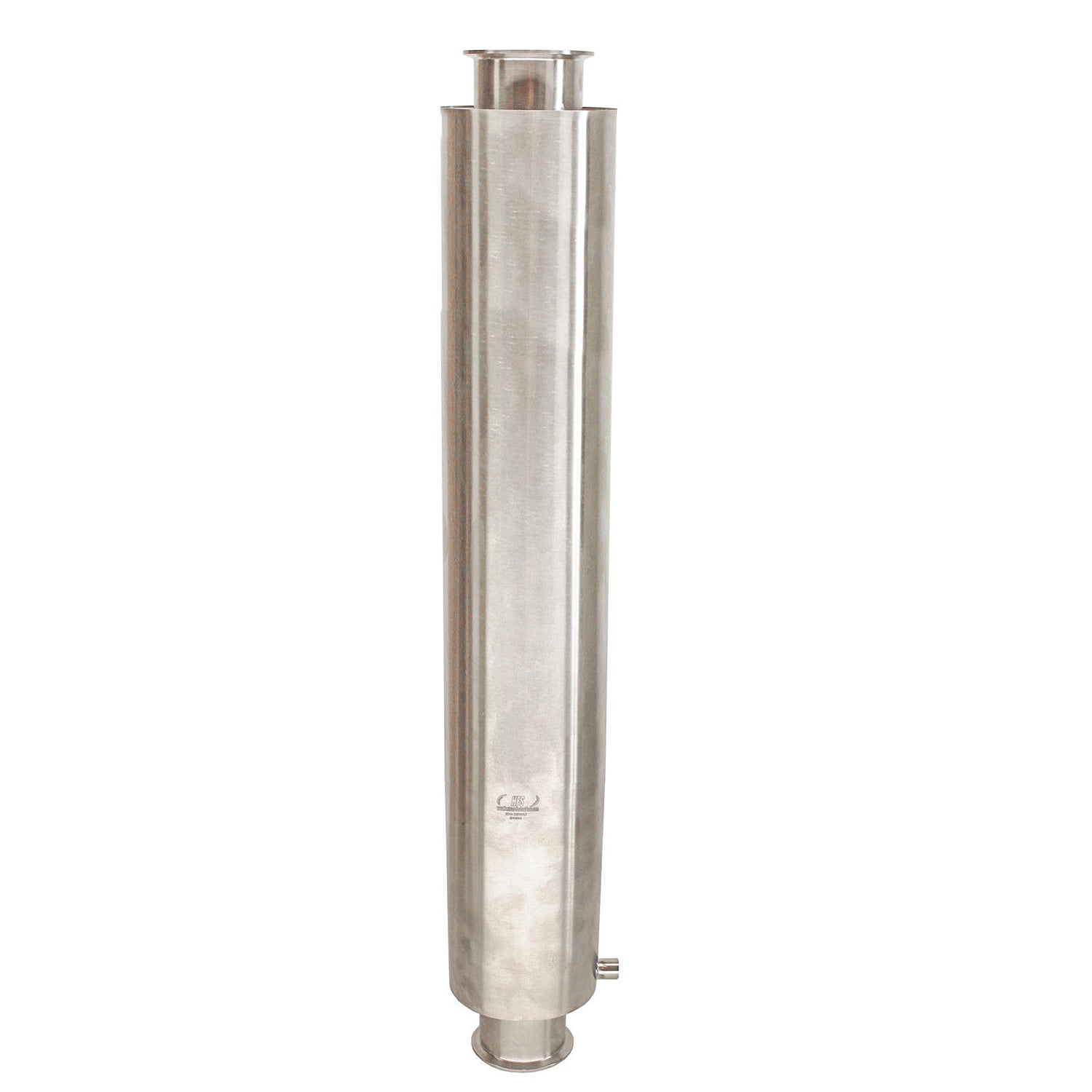

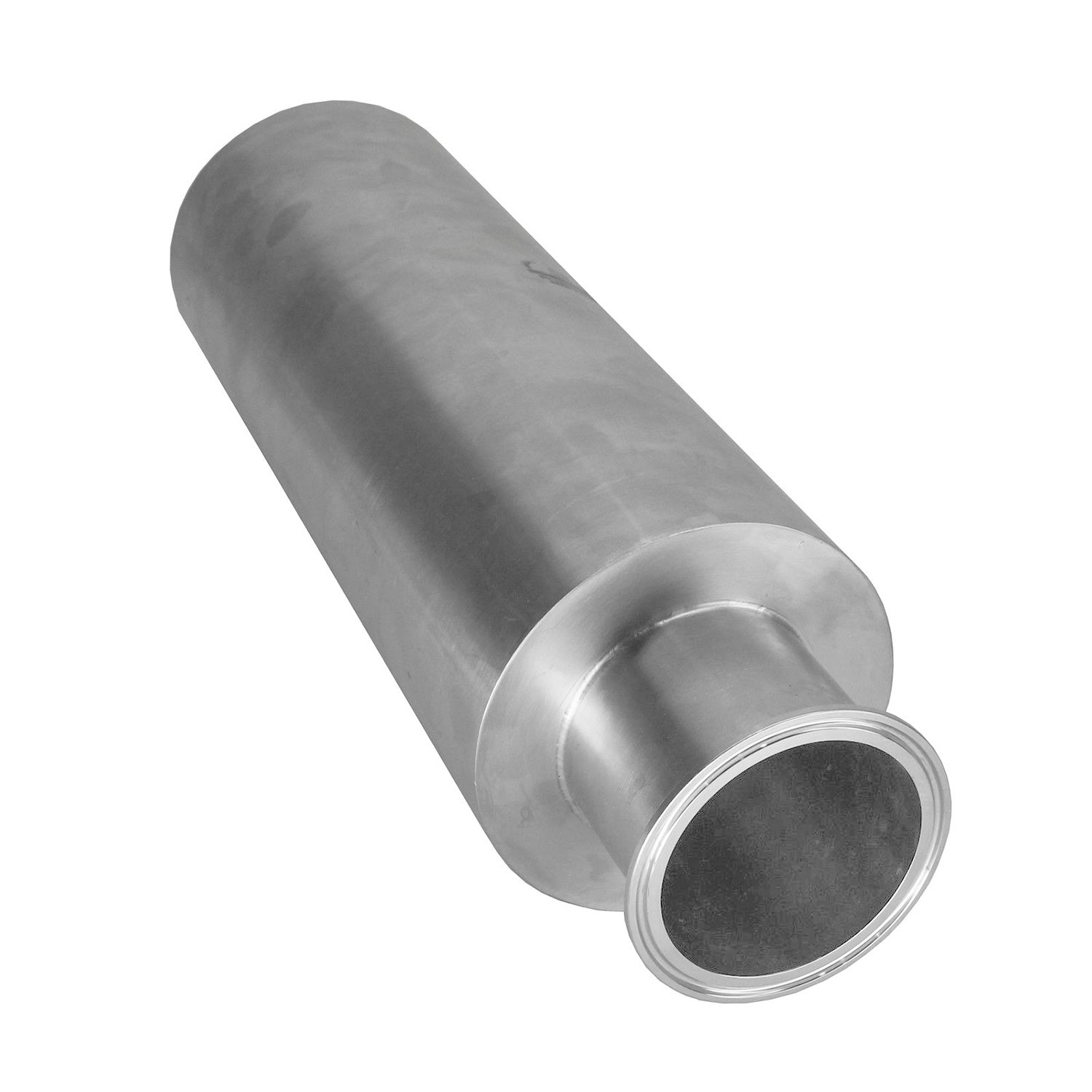

In addition to having the versatility of standard spools, sleeved spools have an open top shell over the spools outer wall. It provides the user the option to thermally influence the inner tube and its content without disrupting any ongoing process. Whether it is a liquid or solid, this static matter can be loaded through the open- top and drained through its bottom port. The sleeve’s narrow shape allows for a small quantity thermal influencing media to cover a substantial amount of surface area.

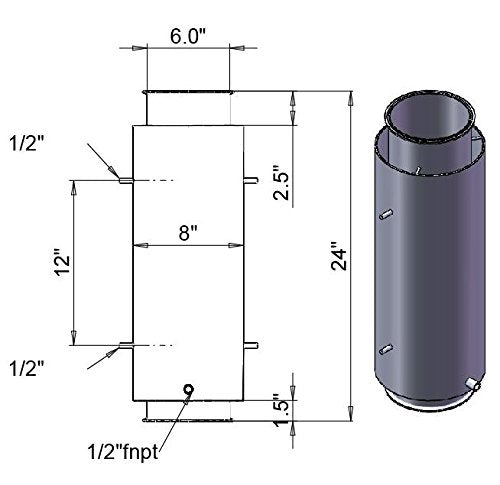

- Stainless Steel: 304
- Sanitary Size (in): 6
- OD of Flange End (in): 6.562
- Tube ID (in): 5.782
- Tube OD (in): 6
- Sleeve OD (in): 8
- Outer Port: 1.5" Tri Clamp
- Thickness of 1.5" TC port: 2.75mm
- Thickness of Dewax: 2.75mm

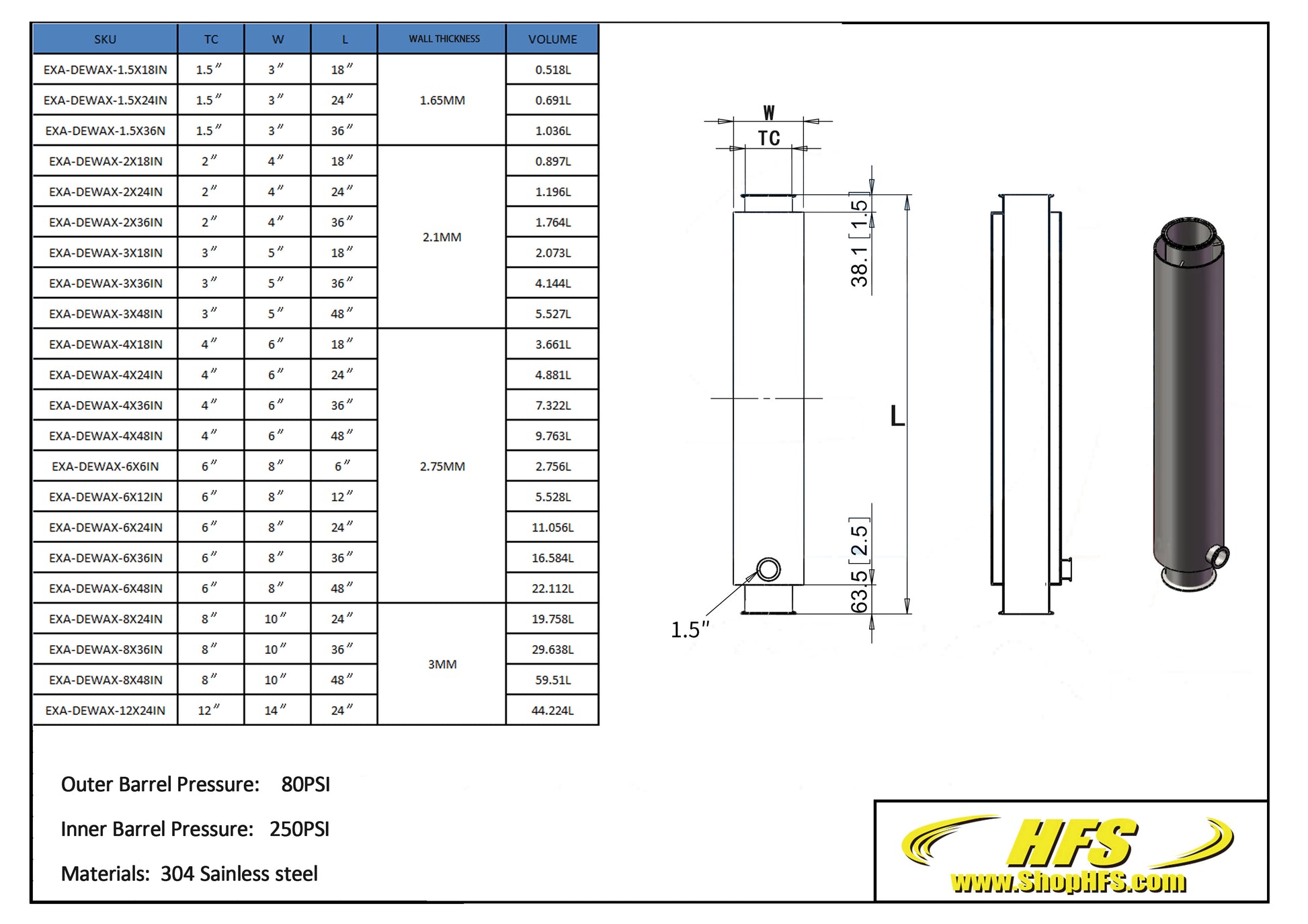

- Outer barrel pressure: 80psi
- Inner barrel pressure: 250psi
[Quality Materials]: The Sleeved Spool is made of high-quality 304 stainless steel, which is durable, stable, rust and corrosive-resistant, and suitable for a long time using.
[Precise Design]: The Dewax Spools allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor and attached tri clamp fittings on each end for user convenience.
[High Working Temp]: It is suitable for liquid working at -58°F~392°F.
[Convenient organization and storage]: Packed in a carton box with a label.
