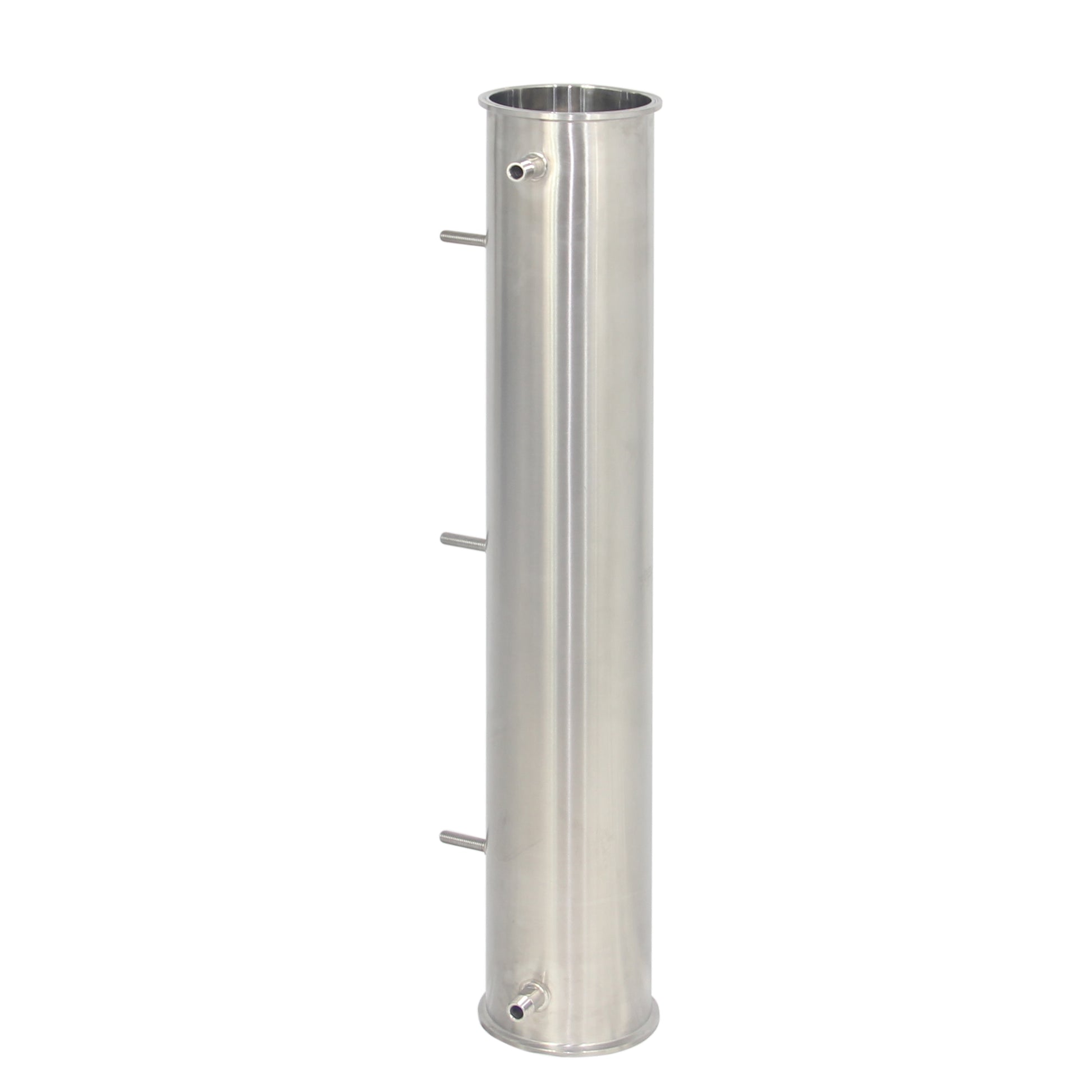

6" Tri Clamp Spool 36" Length with Cooling Coil, (2)1/2" MNPT, (3)1/2" Bolts

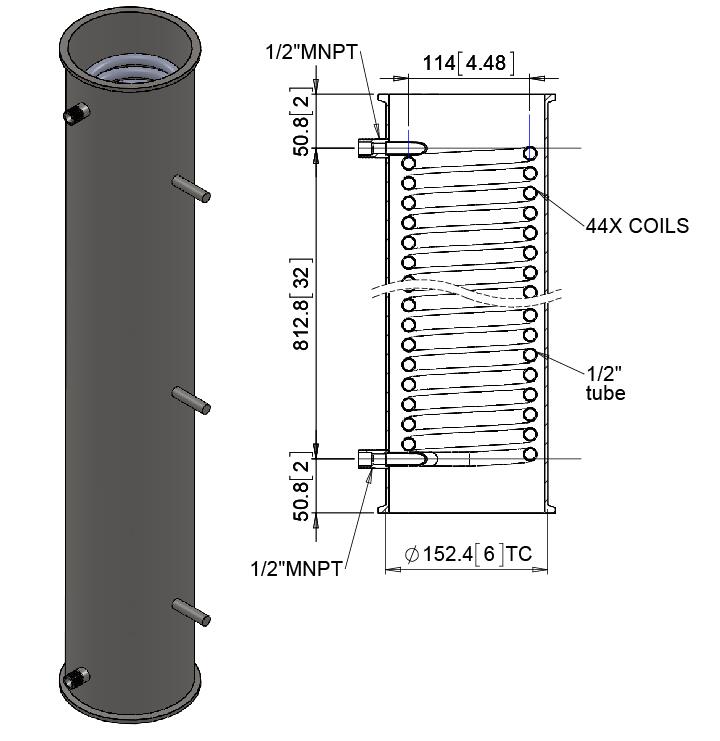

Specification

• Stainless Steel: 304
• Sanitary Size (in): 6
• OD of Flange End (in): 6.57
• Tube ID (in): 5.78
• Tube OD (in): 6
• Tube Length (in): 36''
• Outer Ports: (2) 1/2" MNPT
• Coil Tube O.D.: 1/2"
• Number of Coil: 44

Feature

[Quality Materials]: The Tri Clamp Sanitary Spool with Coil is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: The spool with coil allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor and attached MNPT fittings on each end for user convenience.

[High Working Temp]: It is suitable for liquid with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a carton box with label.
