HFS

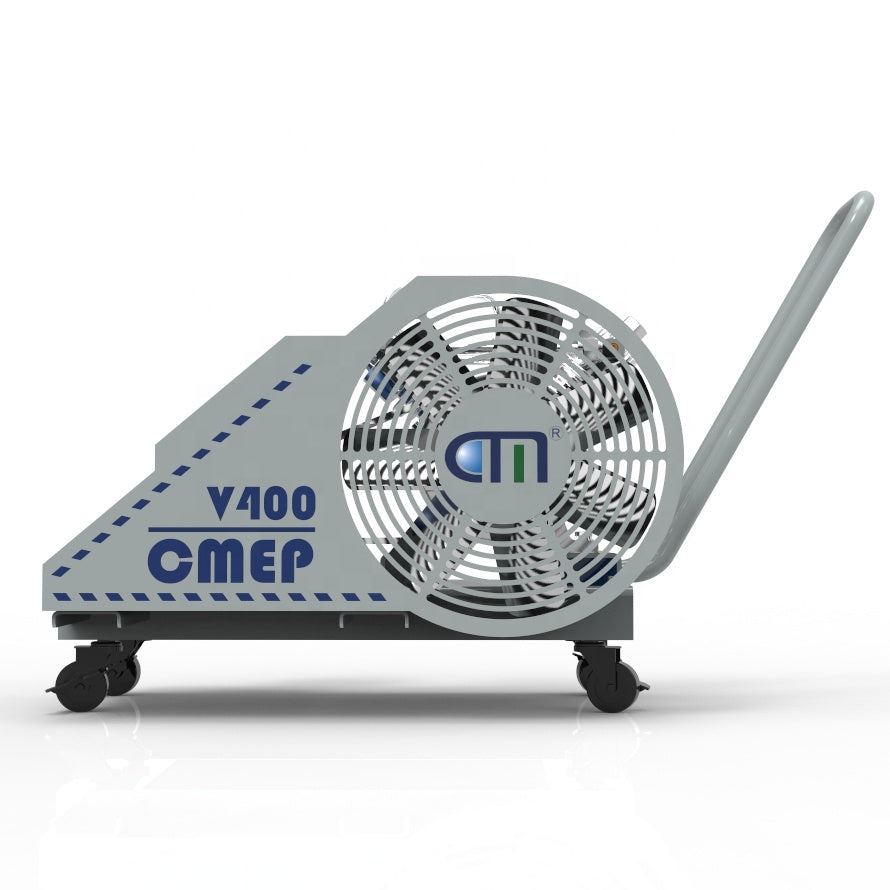

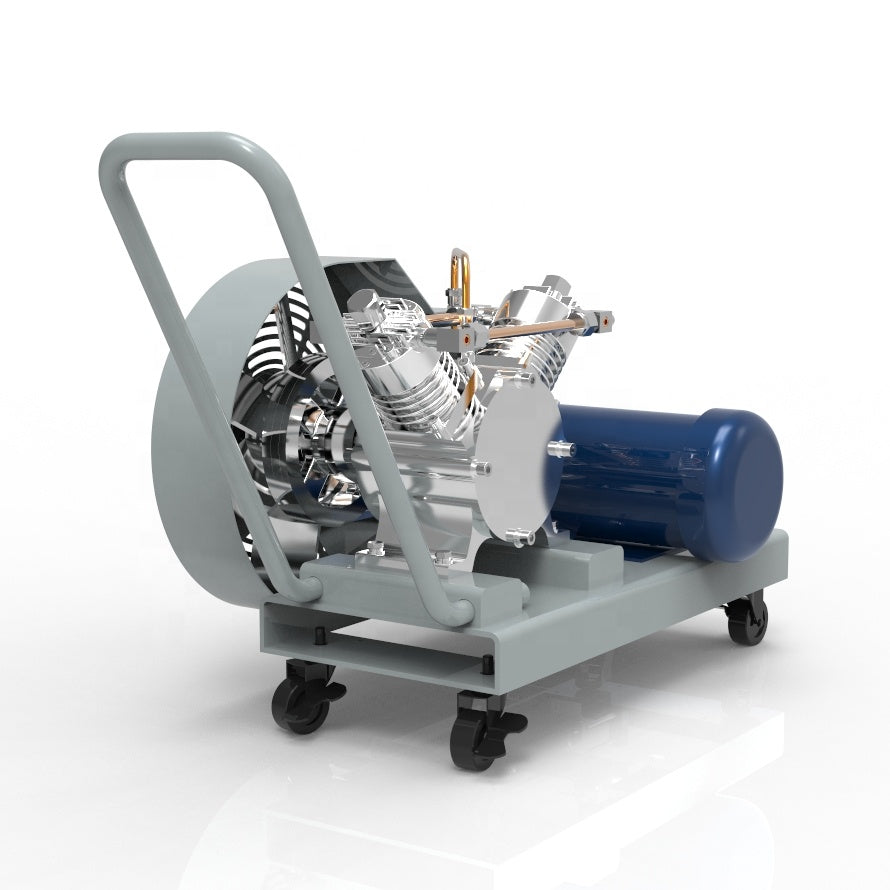

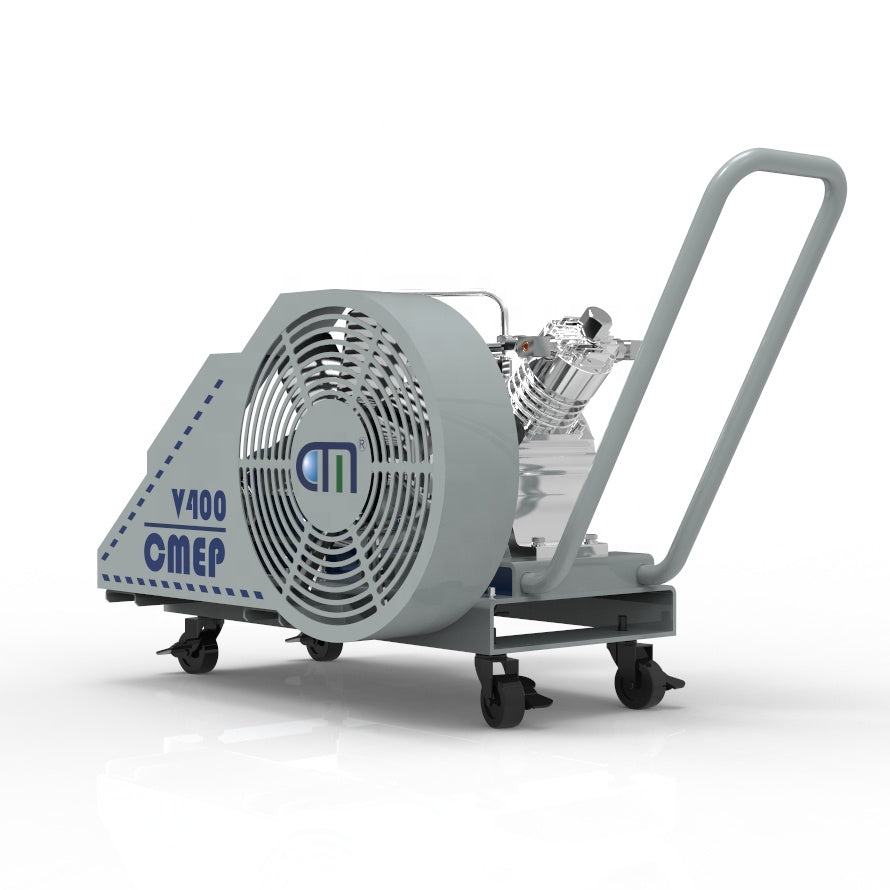

CMEP-V400 RECOVERY PUMP
CMEP-V400 RECOVERY PUMP
Couldn't load pickup availability
Features
- Recovery hydrocarbon solvent at 4CFM
- Max outlet pressure 160Psi rated for butane and propane including mixture
- Powerful 2HP UL listed C1D1 explosion proof motor
- 2000 hours running time without maintenance
- Air cooled design with oversized fan for high efficiency heat exchange
- Compliant with NFPA and UL explosion proof
CLICK HERE TO VIEW THE CMEP-V400 MANUAL
|
ITEM |
MODEL |
CMEP-V400 |
|
Performance Data |
Gas Displacement |
4 CFM |
|
Propane Recovery Rate |
1.1 lbs/min (based on inlet pressure 29 PSI) |
|
|
Butane Recovery Rate |
1.3 lbs/min (based on inlet pressure 29 PSI) |
|
|
Max.Pumping-out Pressure |
160 Psi |
|
|
Max Inlet Pressure |
70Psi |
|
|
Inlet / Outlet Port Sze |
1/2" JIC Male |
|
|
Ultimate Vacuum Degree |
28 inHg (0.96 Bar) |
|
|
Compressor Cooling Way |
Air Cooling |
|
|
Noise Level |
70 dB |
|
|
Pressure Relief Valve |
217Psi |
|
|
Working Temperature |
0-50℃ |
|
|
Explosion Proof Motor |
Horsepower |
2 HP |
|
Voltage |
230V 60Hz 3PH |
|
|
Max.Amperage Load |
5.2A |
|
|
RPM |
1725 |
|
|
Approved |
UL Class l Division l Group C&D |
|
|
Material |
Compressor,Vaive & Pipeline |
Food grade stainless steel |
|
Piston Ring |
PTFE |
|
|
Weight |
Net Weight |
60 Kg |
|
Dimension |
L*W*H |
1020*465*680 mm |
