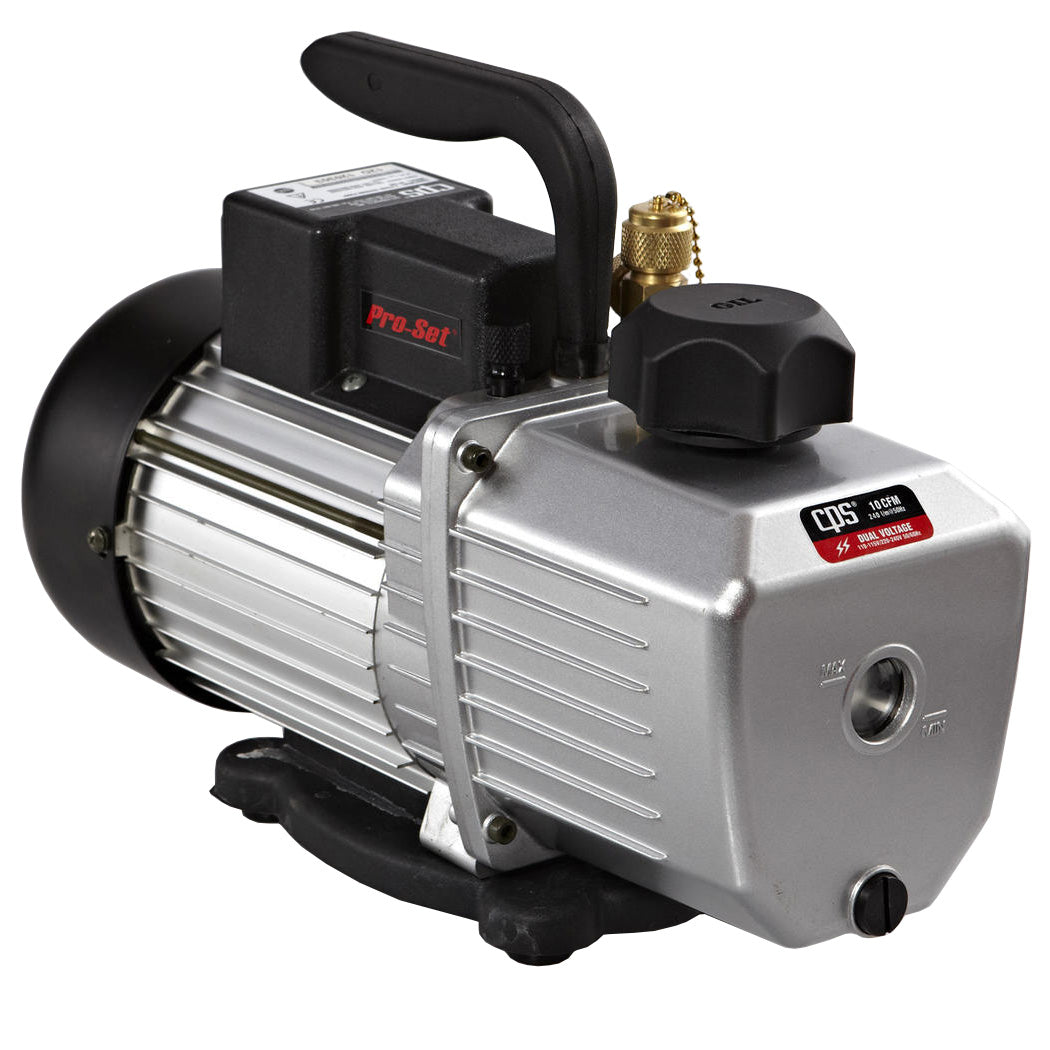

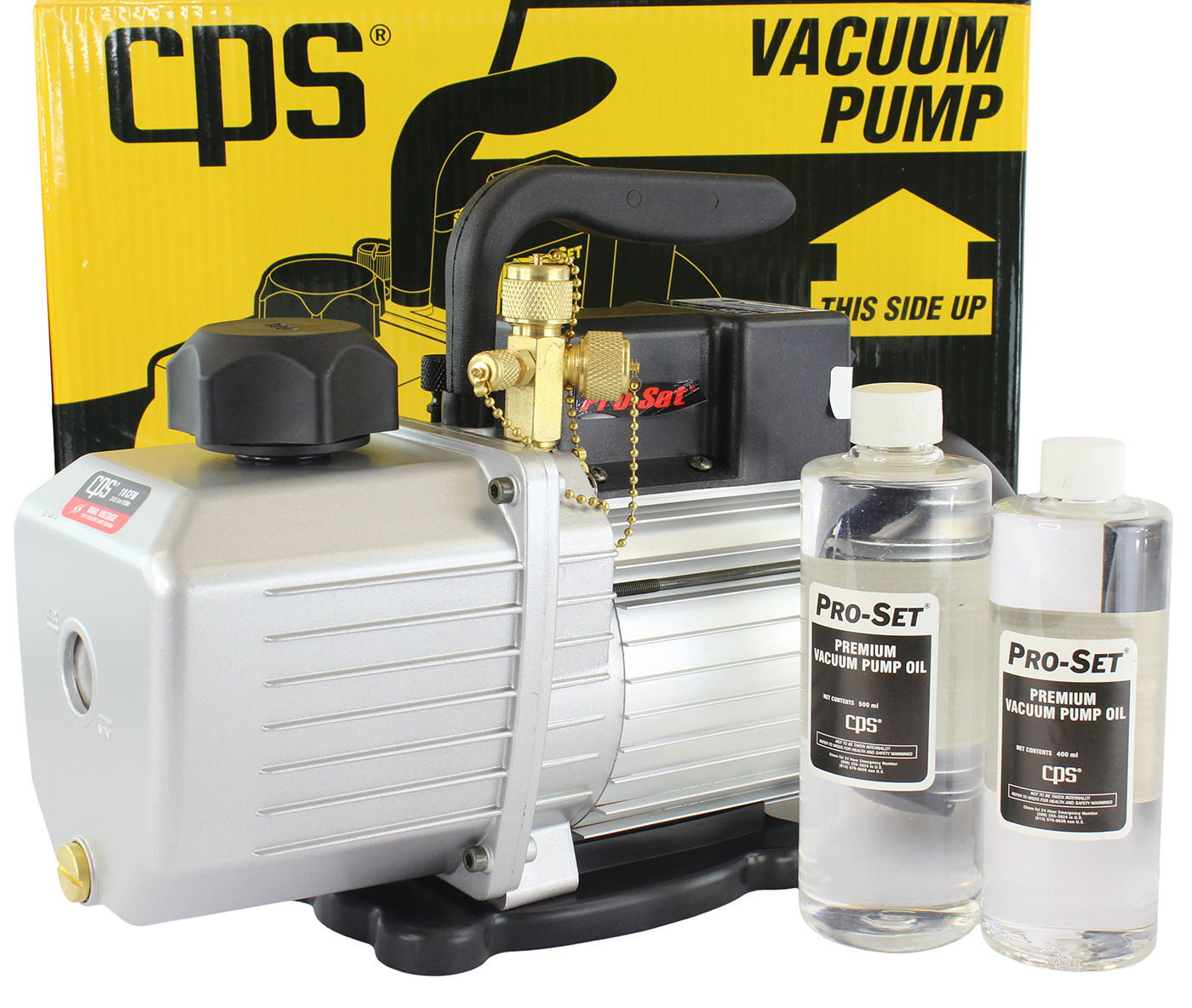

CPS VP10D | Pro-Set® 10 CFM Vacuum Pump

The VP10D Pro-Set® vacuum pump is a powerful 10 CFM, 2 stage unit with a versatile dual voltage 3/4HP motor. The VP10D unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.

CLICK HERE TO VIEW VP10D MANUAL

VP10D Key Features:

• Dual voltage operation 110-120V / 220V 50/60Hz
• Exceptional ultimate vacuum rating as low as 10 microns
• Advanced air cooled motor design for operation in high ambient temperatures
• Proprietary oil mist free exhaust port cap for clean, safe job environment
• Gas ballast valve speeds achievement of deep vacuum
• Multiple port connections for ¼”, ⅜” and ½” ACME
• Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
• Solid rubber base provides extreme shock resistance
• Sure-grip handle ergonomically designed for superior comfort and portability

Specifications:

• Stage: 2
• Motor Size (HP) RPM @ 50/60Hz: 3/4 (HP) 2880 / 3440
• Dimensions (Inches): 14.9 x 5.7 x 10.6
• Weight: 30.3 lb / 13.7kg
• Operating Temperature Range: 0˚C (32˚F) to 52˚C (125˚F)
• Power Source: 110-120V / 220V 50/60Hz
• Ultimate Vacuum: as low as 10 Microns
• Oil Capacity: 28 oz / 830 ml
• Construction: Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
• Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
• Control System: ON-OFF power switch
• Free Air Displacement: 10 CFM @ 60Hz, 240l/m @ 50Hz
• Intake Fittings: 1/4, 3/8 and 1/2 SAE
• Gas Ballast Valve: Yes
