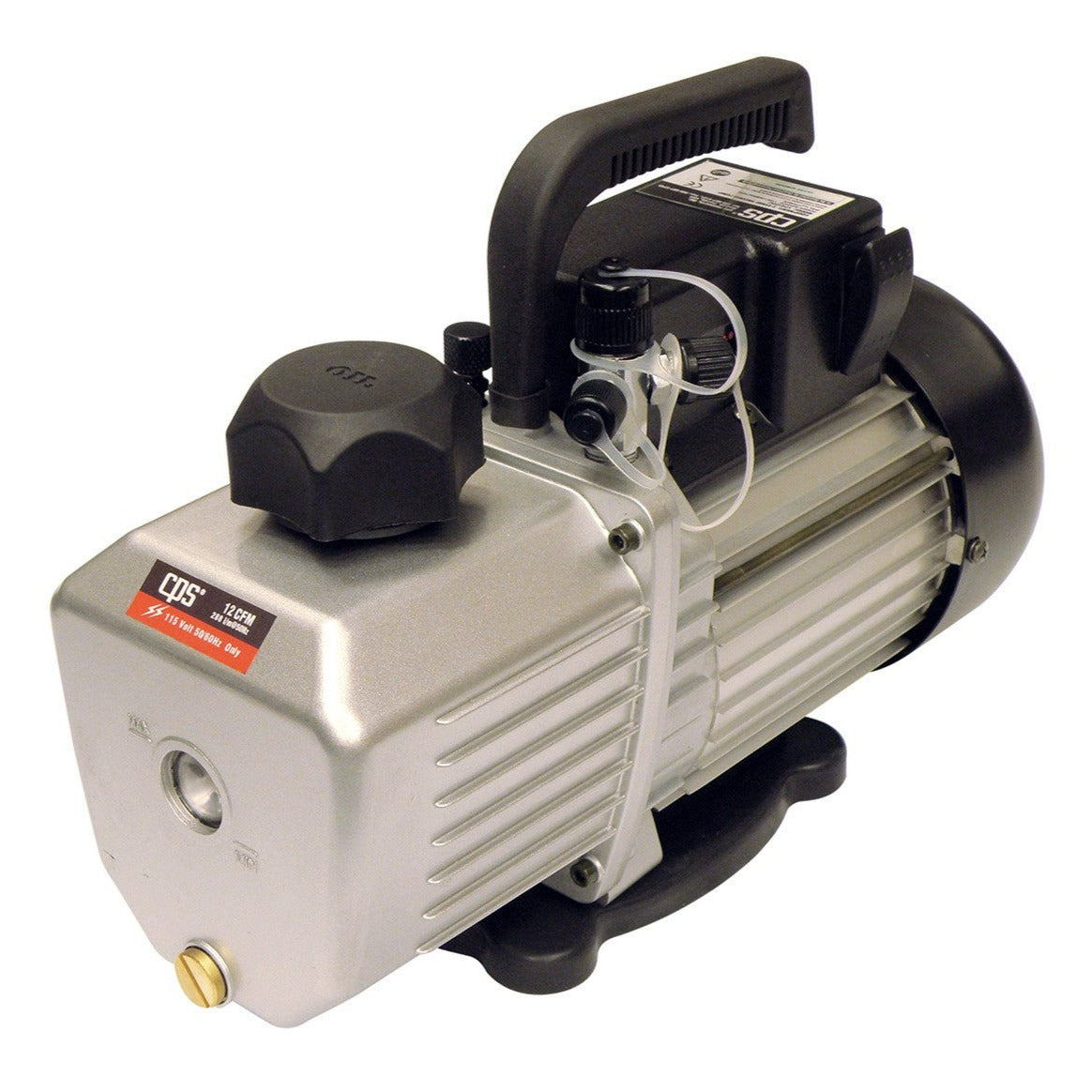

CPS VPS12DU | Pro-Set® 12 CFM Sparkless Vacuum Pump

12 CFM Sparkless (Ignition Proof) Vacuum Pump Series

CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.

CLICK HERE TO VIEW THE MANUAL INSTRUCTION

SAFETY-INSTRUCTIONS

VPS12DU Sparkless Vacuum Pump Features:

• Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
• For use on refrigeration systems utilizing: Class A1 (nontoxic, nonflammable), Class A2L (non-toxic, low flammability), Class A2 (nontoxic, flammable), and Class A3 (nontoxic, flammable) and Ammonia (NH3)
• Air-cooled, thermally protected motors encased in a durable aluminum housing
• Oil filled rotary vacuum pump cartridge construction
• Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
• Large double-sealed oil sight glass
• Sealed start relay
• Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
• Ignition proof ON-OFF switch
• Rubber lined handle, skid-resistant rubber base
• Gas ballast valve for deeper vacuum
• UL listed

Specifications

• Stage: 2
• Ultimate Vaccum: 25 microns
• Refrigerant Class: A1, A2, A3
• Dimensions: 14.9″ x 5.7″ x 10.6″
• Weight: 30.9 lb (14.0 kg)
• Free Air Displacement : 12 CFM @ 60 Hz
• Motor Size (HP) RPM @ 50 / 60 Hz: 1 HP 3440 RPM
• Voltage: 115V, 60 Hz
• Power Connection: 10′ hard wired
• Oil Capacity: 27 oz (800 ml)
