1.9 CuFt Oven Bundle ETL listed- 12 Shelf Vacuum Oven Bundle

Product Code DZF-6050-BUNDLE

AvailabilityIn stock

$2,200.00 $1,999.00
Unit price
per
Shipping calculated at checkout.
Most Orders Arrive in Four Days or less.
View Shipping Info Below.

Manual for DZF-6050 1.9 CuFt Oven Bundle

Click here to view the Certificate CE, ETL

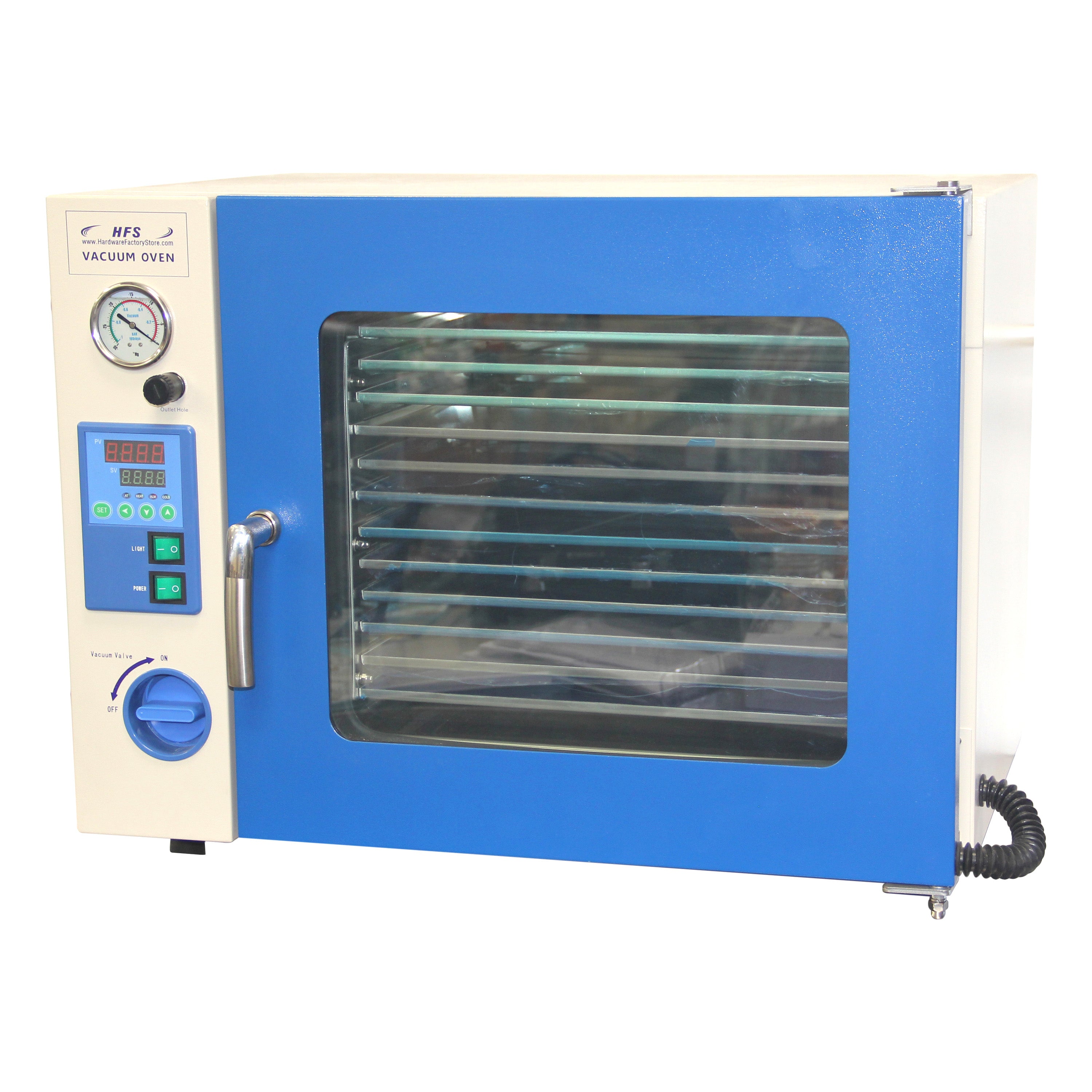

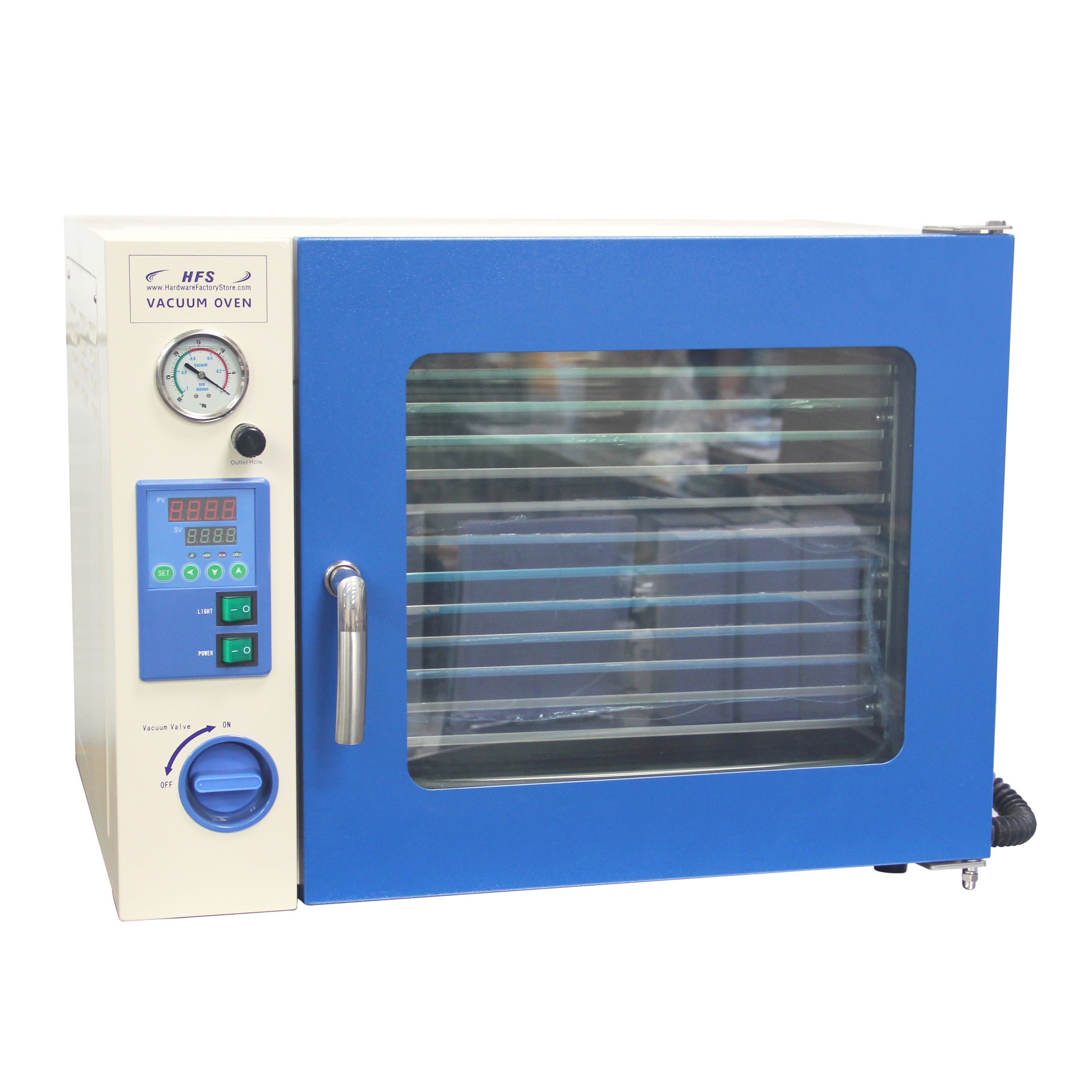

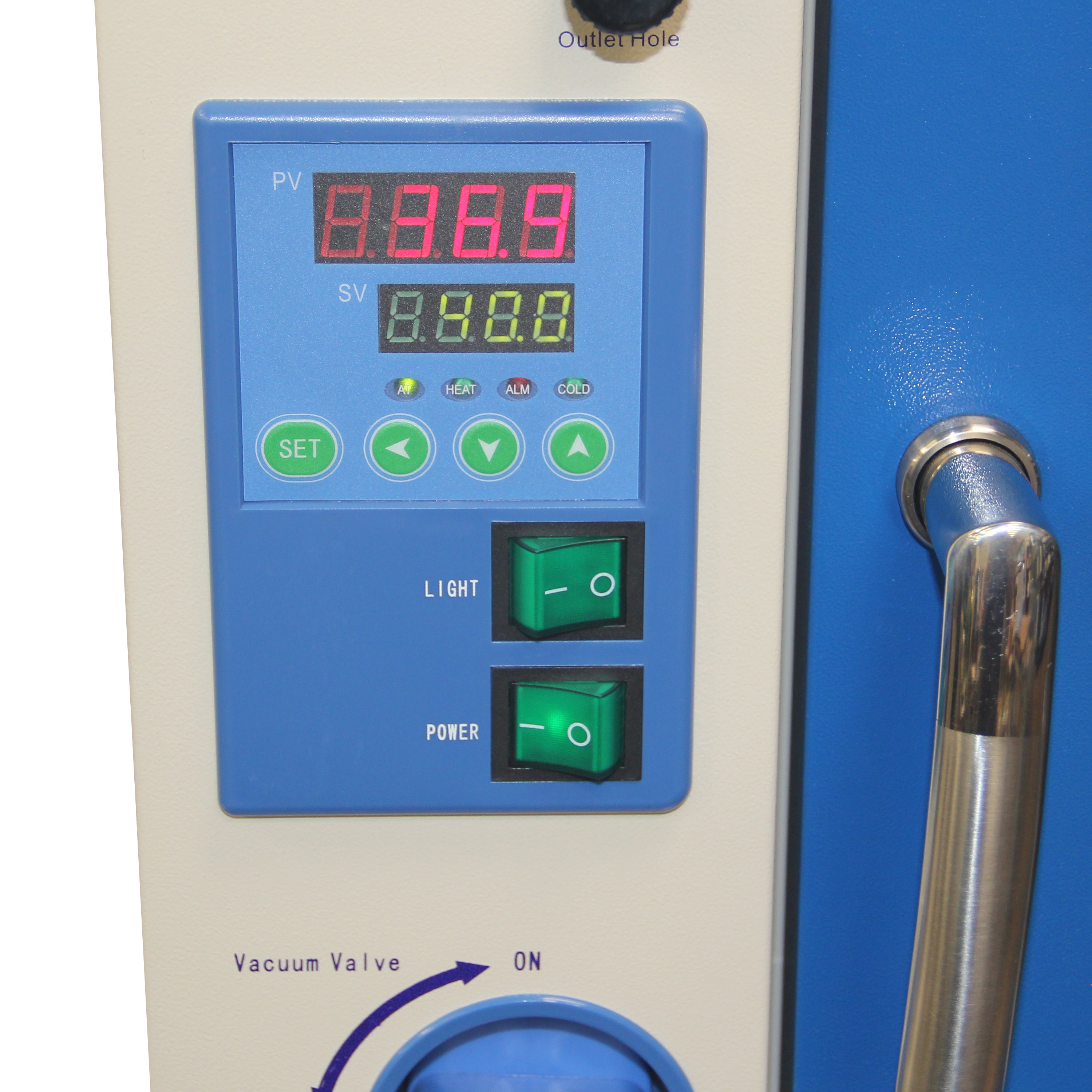

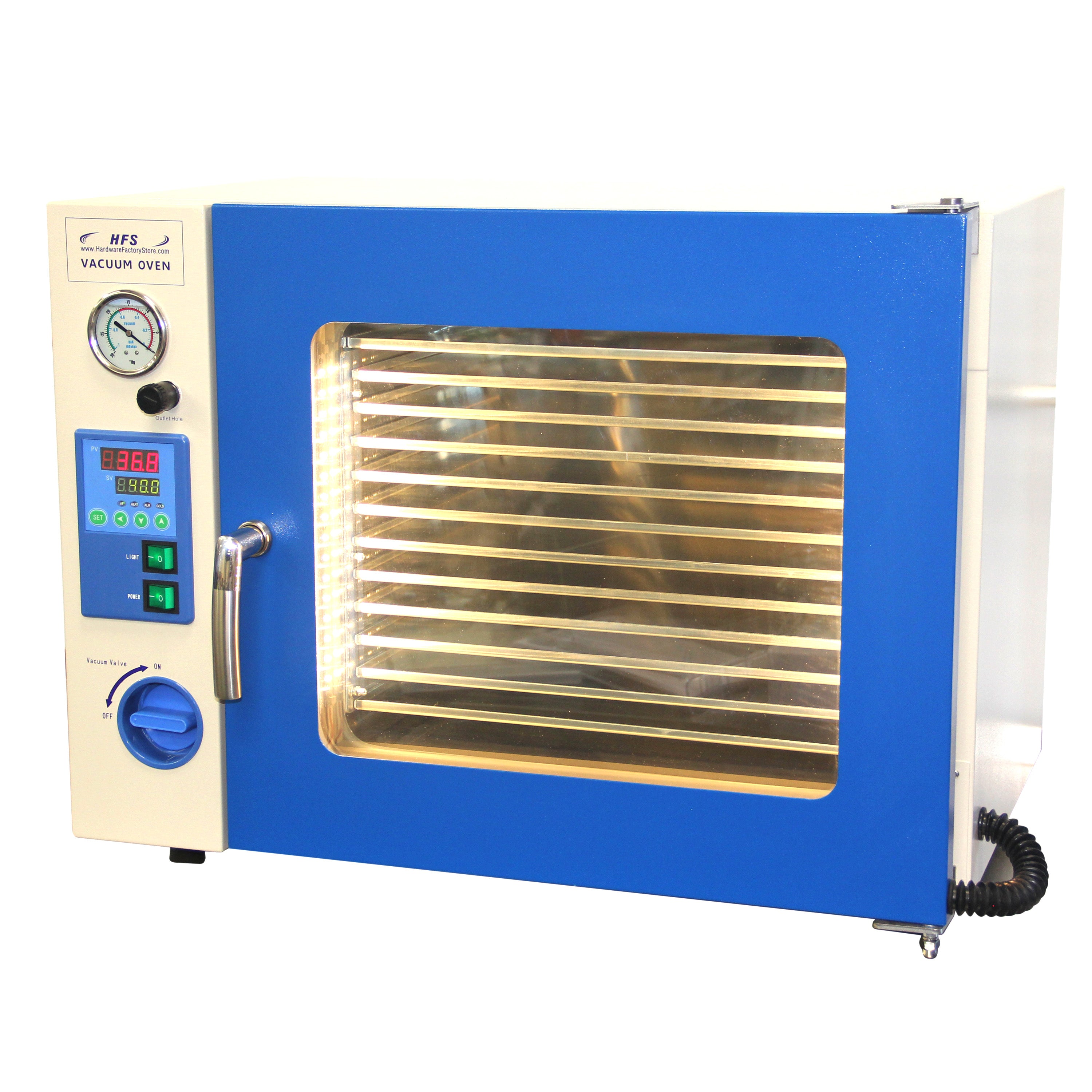

The DZF-6050 features a 1.9 Cu-Ft stainless steel chamber, large enough to accommodate large samples on multiple shelves. A highly accurate heating rate and wide operating temperature allow for precise extraction and processing. This new model featured integrated LED lighted and capability to hold up to 12 shelves. Controlling the DZF oven is a breeze with the easy-to-read digital control panel which displays temperature and time control settings. A large Hg vacuum gauge adorns the front of the oven allowing for quick easy vacuum level detection up to 30" Hg. On the front of the oven you will find the vacuum control valve and a vacuum evacuation valve that let you control the amount of vacuum in the chamber accurately.

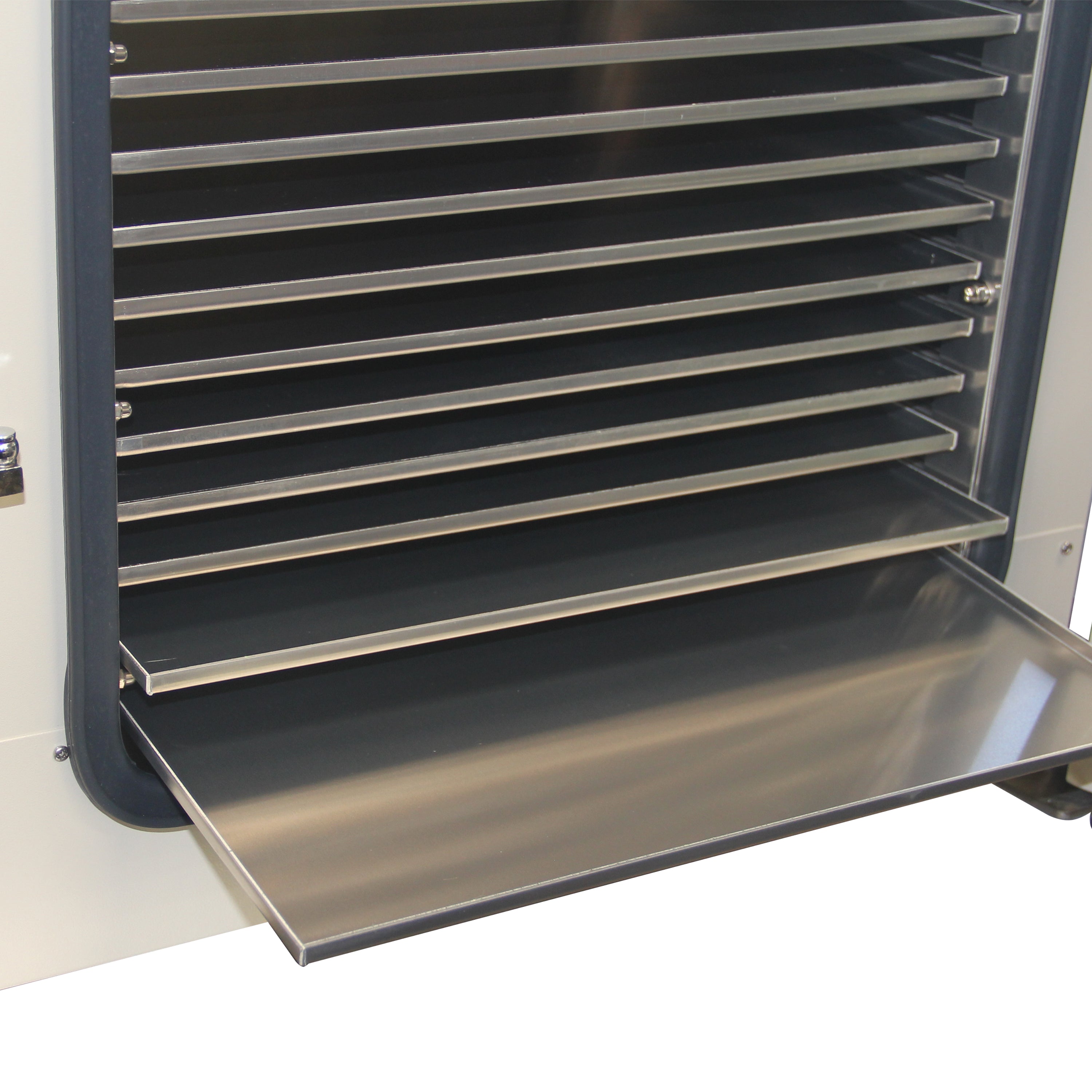

The large access door on the front of the oven opens 180 degrees, offering plenty of space for placing and removing samples. Each door is fitted with a 1/2" safety glass so you can view samples while they are extracting/degassing. A tight seal around the perimeter of the door ensures a solid vacuum with no loss of suction. The oven includes all 12 shelves at no extra cost. Our shelves are made of high-grade aluminum, and feature raised edges on all four sides so your product stays on the shelf.

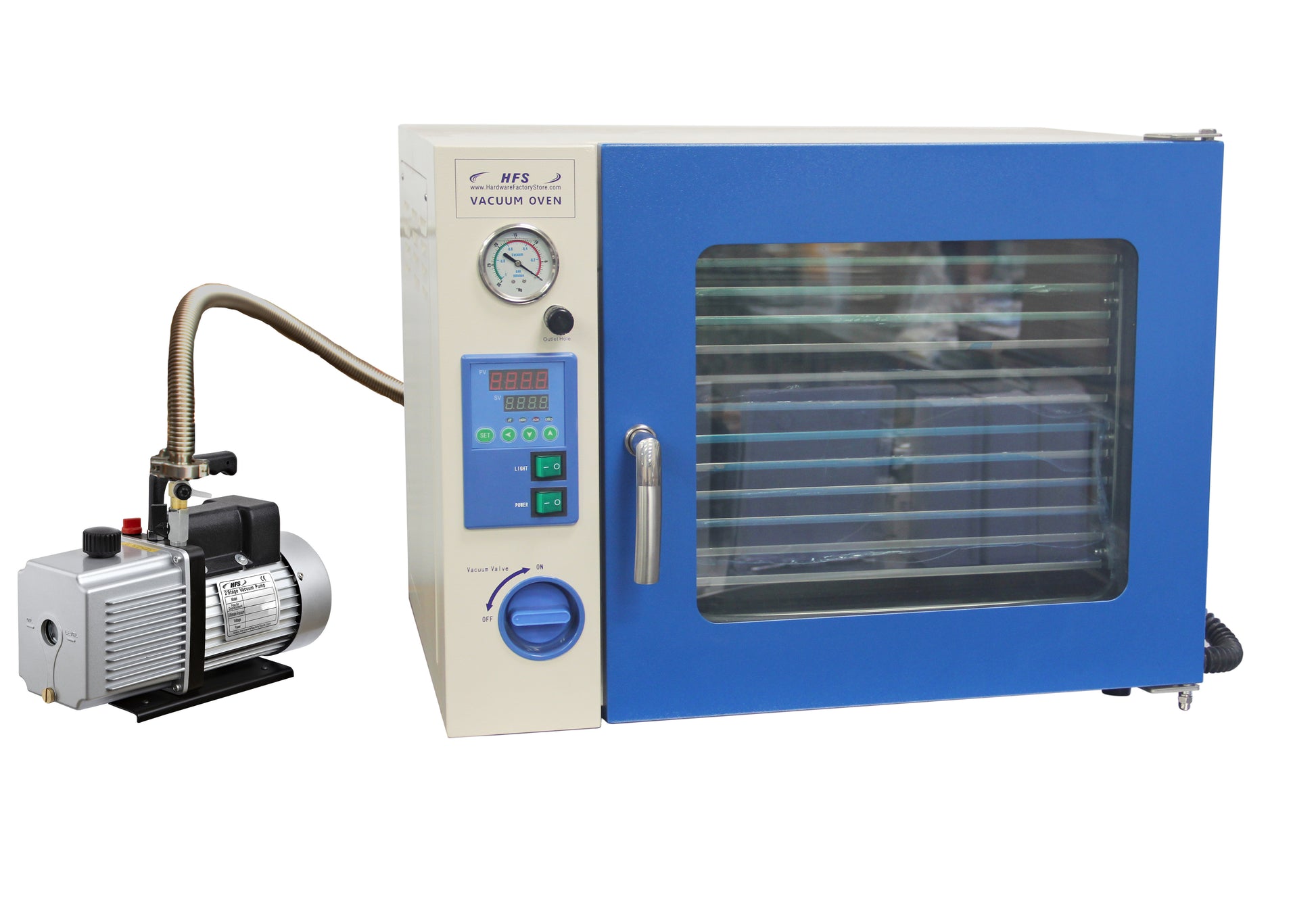

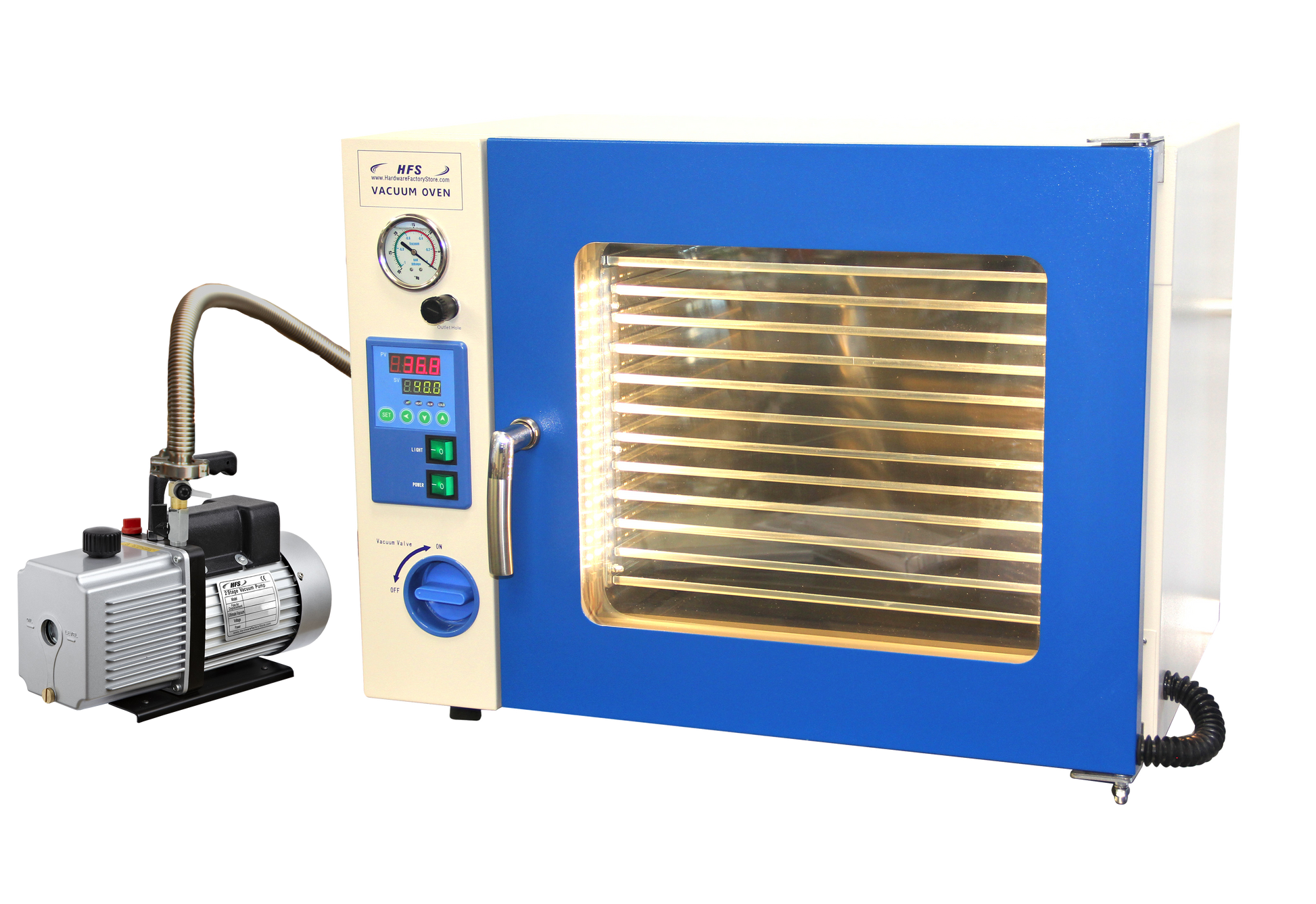

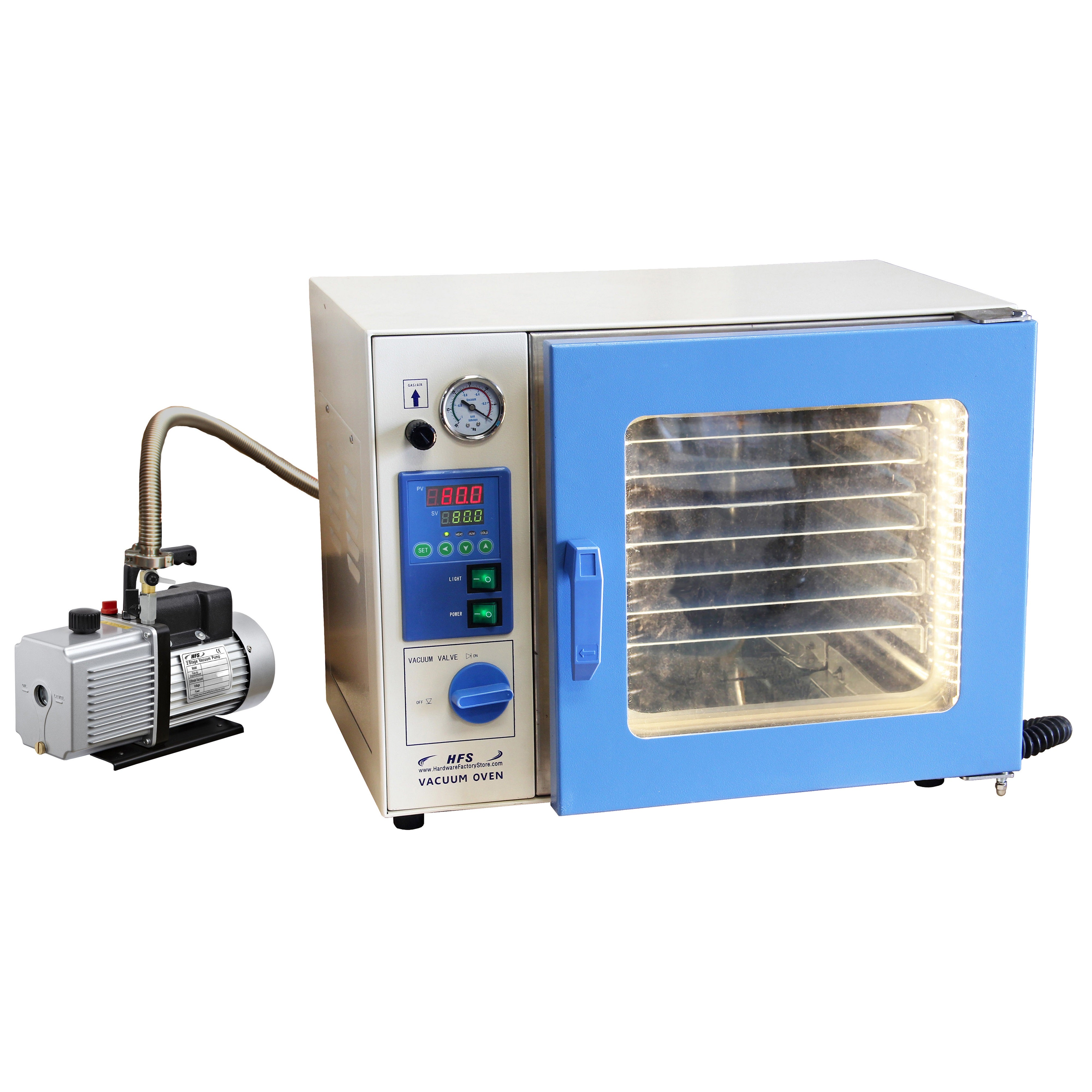

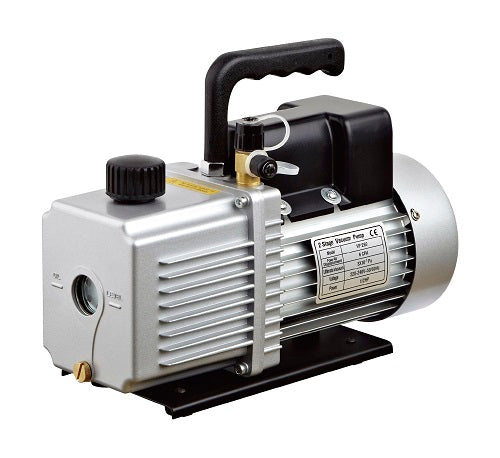

This listing includes the 1.9 oven, a vacuum pump, and all necessary fittings to connect them. The pump is our super-popular VP2200, dual stage 12CFM oil filed pump.

The DZF oven bundle is extremely easy to use, and is ready to go right out of the box. Very easy to put together and start using. Includes all necessary parts for a full system.

Features

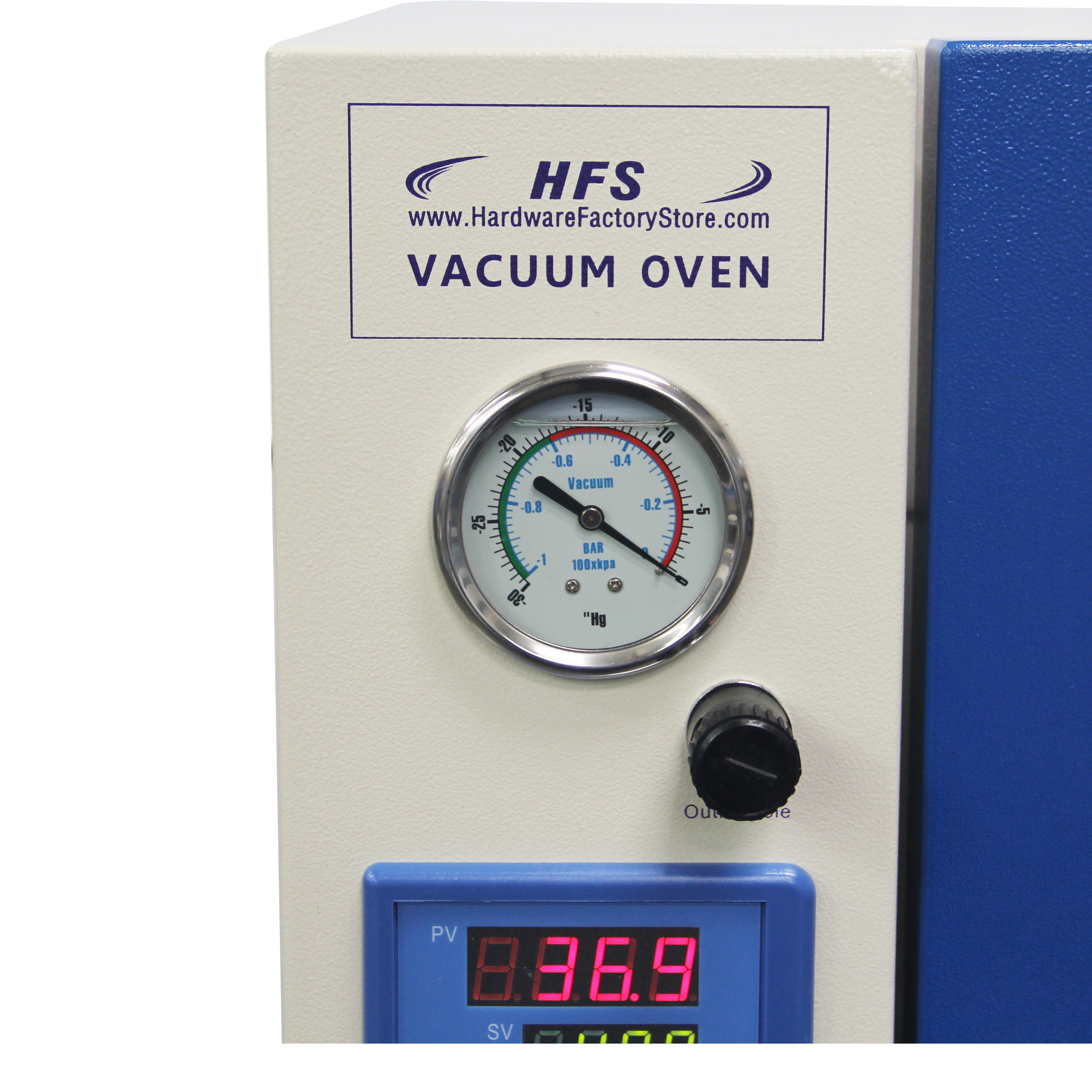

• 0-30" Hg gauge for quick vacuum level observation
• 1/2" safety glass viewing window
• Integrated LED Lighting
• Digital temperature and timer control with +- 1 degree accuracy
• Stainless Steel inner chamber
• 4-Sided Heating - Left, Right, Bottom, Top
• Standard KF-25 fitting for easy connectivity
• 12 solid aluminum shelves included
• KF25 clamp, centering ring, KF25 stainless bellows hose 40"
• VP2200 - 12CFM Dual Stage Vacuum Pump
• No assembly required
• 30 day Money-Back Guarantee
• 1-Year Warranty

Included Items
• DZF-6050 Oven
• Owner's Manual
• 2 x KF-25 Clamp, 2 x Centering Ring, KF25 40" Stainless Bellows hose
• 12 Solid Aluminum Shelves
• VP2200 - 12CFM Dual Stage Vacuum Pump


Standards in Manufacturing
• CE Certified
• ENISO12100-1:2003, ENISO12100-2:2003, EN1050:1996
• EN294:1992, EN418:1992, EN60204-1:2006

Specifications

Chamber Dimensions (WxDxH)

16" x 14.5" x 14"

Chamber Material

Stainless Steel

Door Gasket Material

Silicone

Timer Range

1-9999 minutes

Heater Power

1200 watts

Max Vacuum

30" Hg (133 Pa)

Power Supply

110V 50/60Hz 1-PH 13.6A

Power Cord

Standard US 3-Prong

Safety Designs

Circuit Breaker, Overheat Warning

Shelves

12 Solid Shelves Included

Shipping Dimensions (WxDxH)

33" x 27" x 28"

Shipping Weight

220 Lbs

Temperature Range

Room Temperature to 215°F

Temperature Accuracy

+/- 1°F

Temperature Units

Fahrenheit

Unit dimensions (WxDxH)

28" x 22" x 22"

Weight

170 Lbs

Vacuum Fitting

KF-25
