Flanged Tri Clamp Gasket Viton FKM

Product Code EXA-GASKET-VITON-8IN-EDGE

AvailabilityIn stock

$22.00 - $35.00
$22.00
Unit price
per
Shipping calculated at checkout.
Hurry! only 10 left in stock!
Most Orders Arrive in Four Days or less.
View Shipping Info Below.

FKM gaskets, also known by their trademark name Viton®, are fluorocarbon rubber gaskets that have excelled resistance to high temperatures, ozone, mineral oil, synthetic fluid, aromatics, and organic solvents and chemicals. They are one of the most commonly used gaskets in extraction due to their solvent resistance and durability. Though not as long lasting as PTFE, they are softer which makes them far easier to seal.

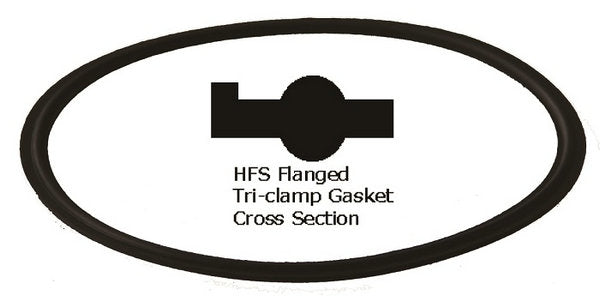

These flanged gaskets feature an extra L-shaped hook that goes around the outer edge of the gasket. This makes putting the gasket on much easier and faster, especially for larger tri clamp sizes.

[Size]: 8", 10", 12".
CLICK HERE TO VIEW THE DATASHEET.

[Quality Materials]: The flanged gasket is made of high quality viton which is durable, stable and corrosive resistance and good for long time using.

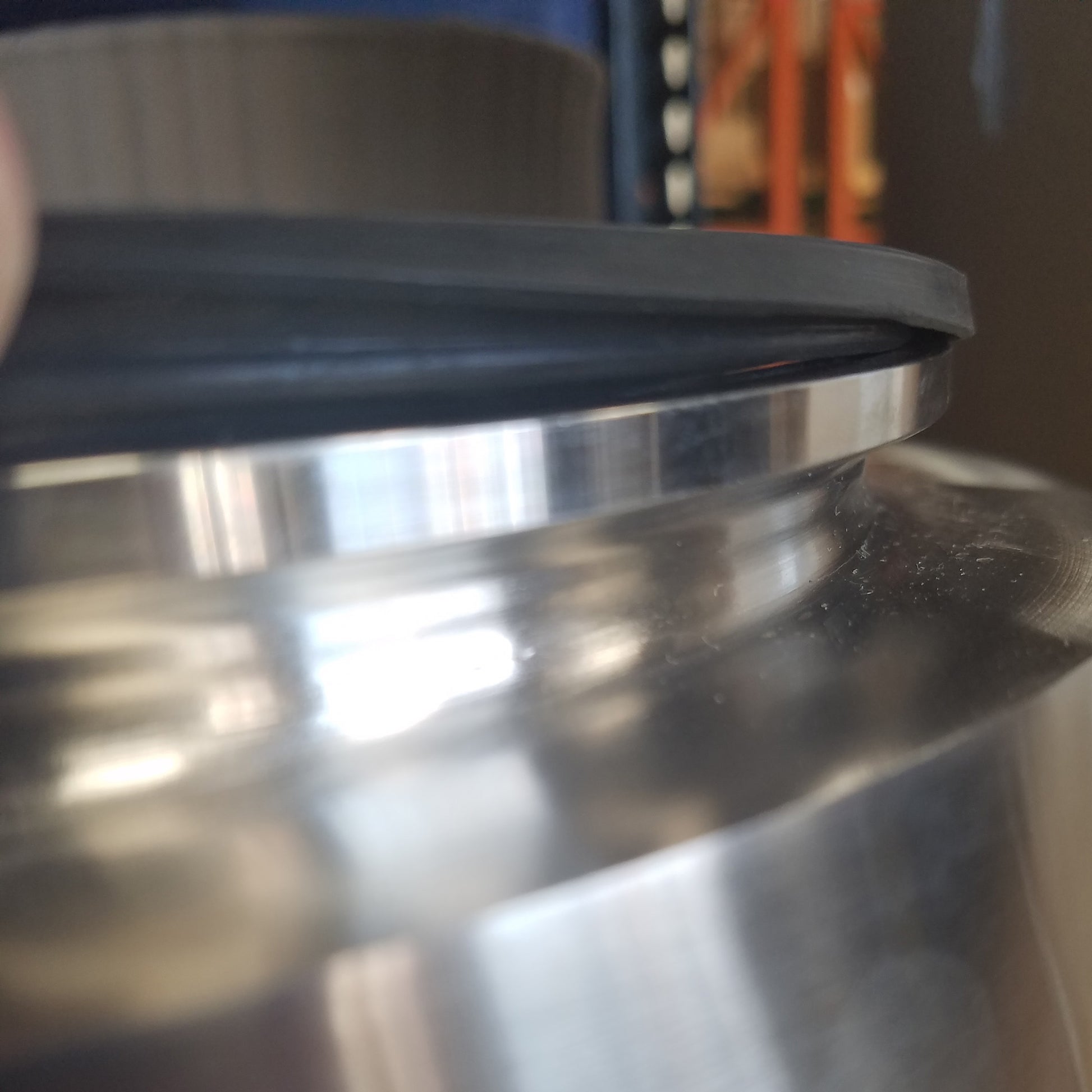

[Precise Design]: The gasket features a longer "lip" flange around the outside edge of the gasket which holds the gasket on the end of the fitting. The flange makes it much easier to keep the gasket on the fitting.

[High Working Temp. & Wide Range of Applications]: It can be used for connecting position between the pipes to ensure the pipeline sealing.It is suitable for different media including water, gas, and oil with working at -15°F~400°F.

[Convenient organization and storage]: Packed in a small plastic bag with label.

 Flanged Tri Clamp Gasket

SKU

SIZE

ØA

ØB

C

in

mm

in

mm

in

mm

EXA-GASKET-VITON-8IN-EDGE

8"

8.622

219

7.795

198

0.197

5

EXA-GASKET-VITON-10IN-EDGE

10"

10.748

273

9.882

251

0.197

5

EXA-GASKET-VITON-12IN-EDGE

12"

12.677

322

11.811

300

0.197

5

Dimensions and pressures for reference only, subject to change.
