1.9 Cu Ft Lab Vacuum Degassing Drying Oven 482 F Extraction w/ Inlet Gas Port

Product Code DZF-6055-BUNDLE

AvailabilityOut of stock

$0.00 $2,254.00
Unit price
Shipping calculated at checkout.

Manual for DZF-6050 1.9 CuFt Oven

Click here to view the Certificate CE, ETL

• 0-30" Hg gauge for quick vacuum level observation
• 1/2" thick safety glass viewing window
• Integrated LED Lighting
• Digital controller
• Barb inlet
• Inlet Valve Type: Needle
• Vacuum Line Type: Needle
• Digital temperature and timer control with +/- 1 degree accuracy
• Stainless Steel inner chamber
• 4-Sided Heating - Left, Right, Bottom, Top
• Standard KF-25 fitting for easy connectivity
• 12 solid aluminum shelves included
• KF25 clamp, centering ring,
• Easy-to-use operation
• No assembly required
• 30 day Money-Back Guarantee
• 1-Year Warranty

Included Items

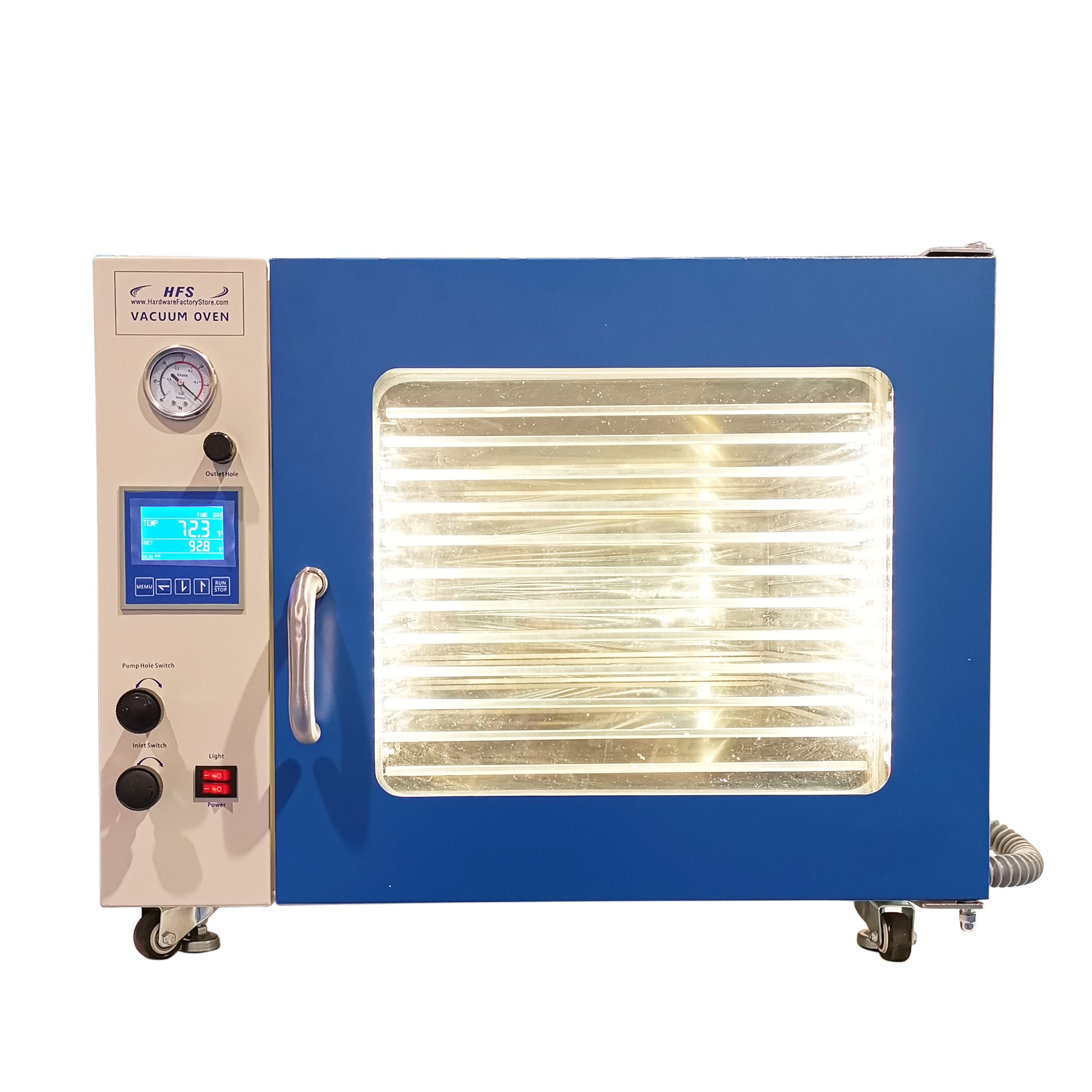

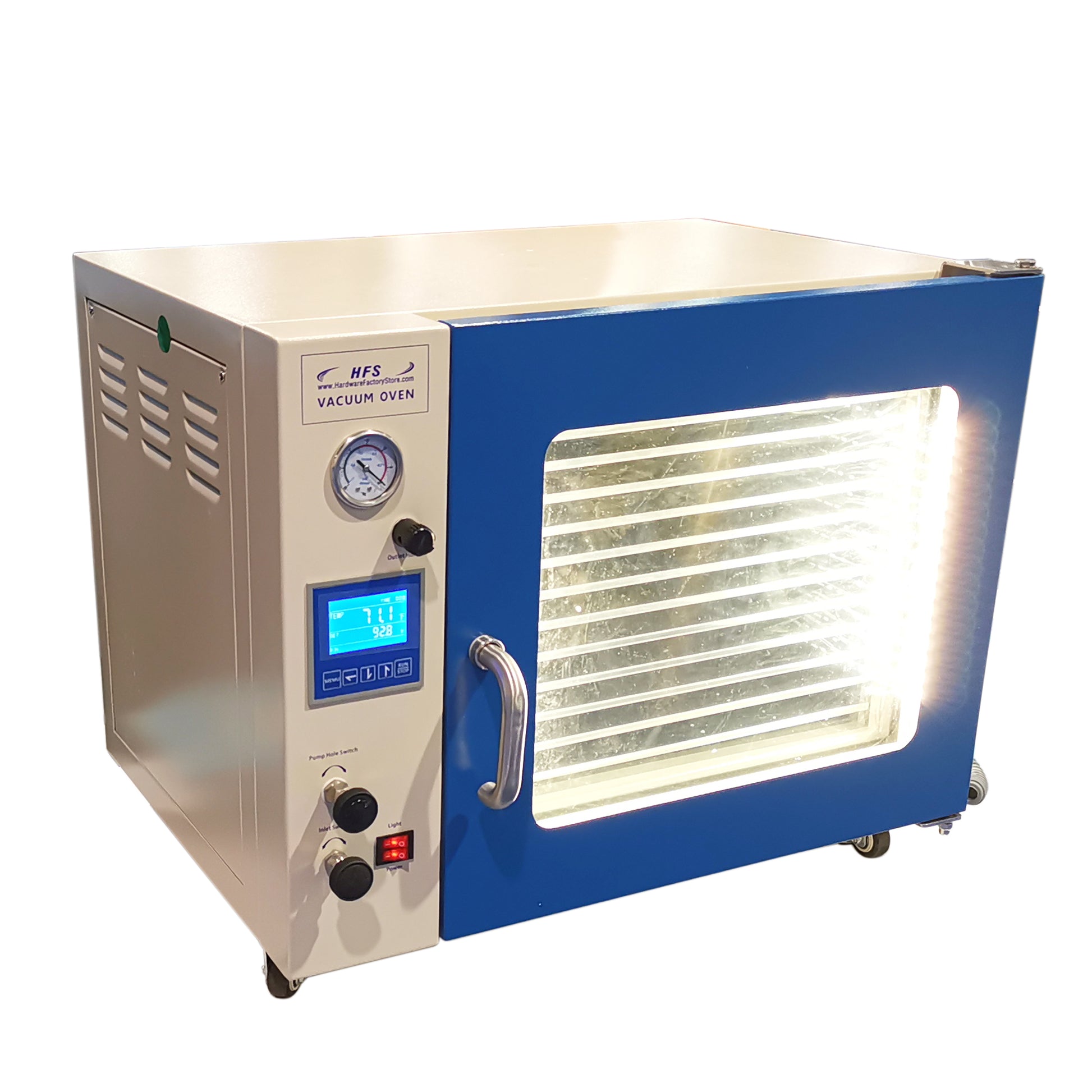

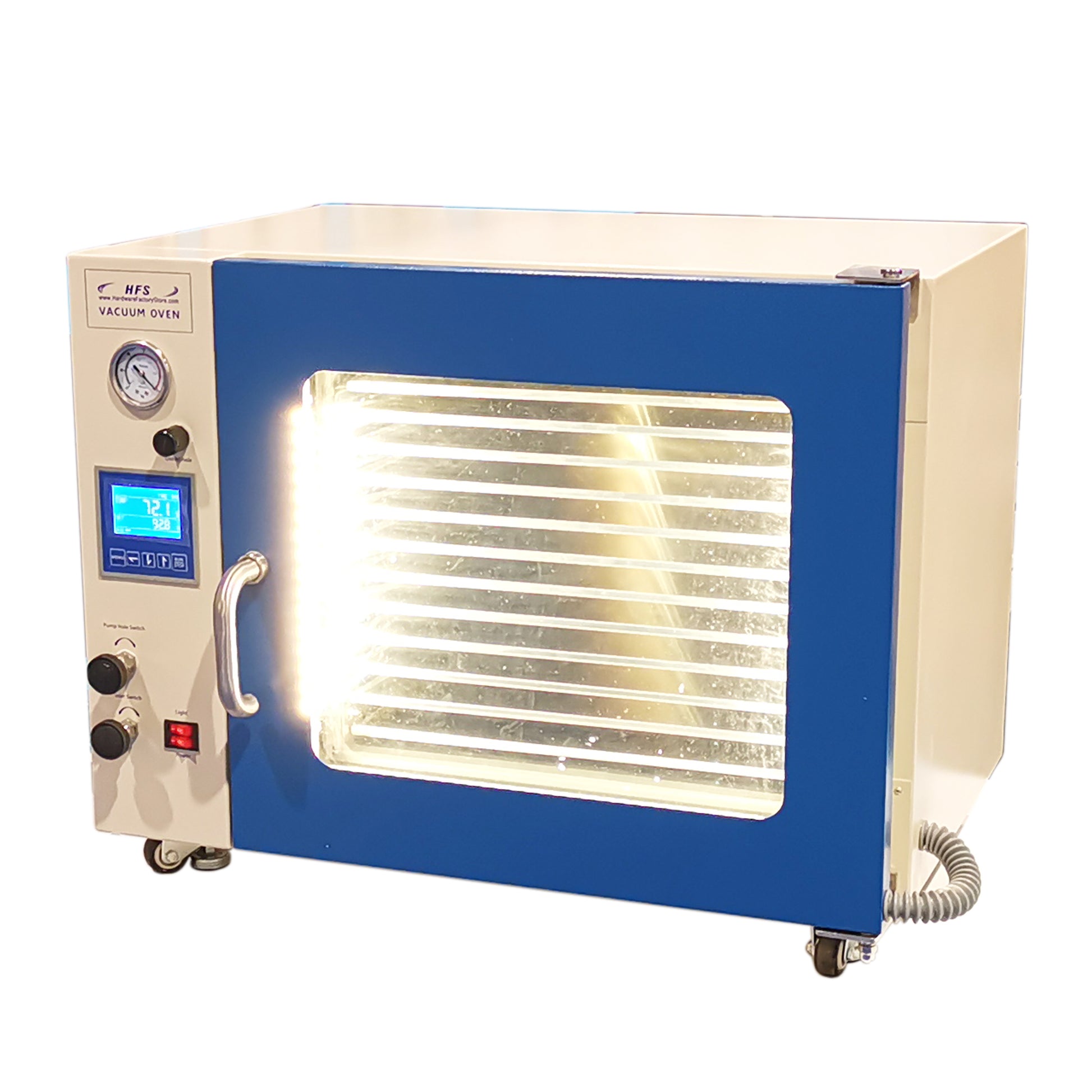

• DZF-6055 Oven
• Owner Manual

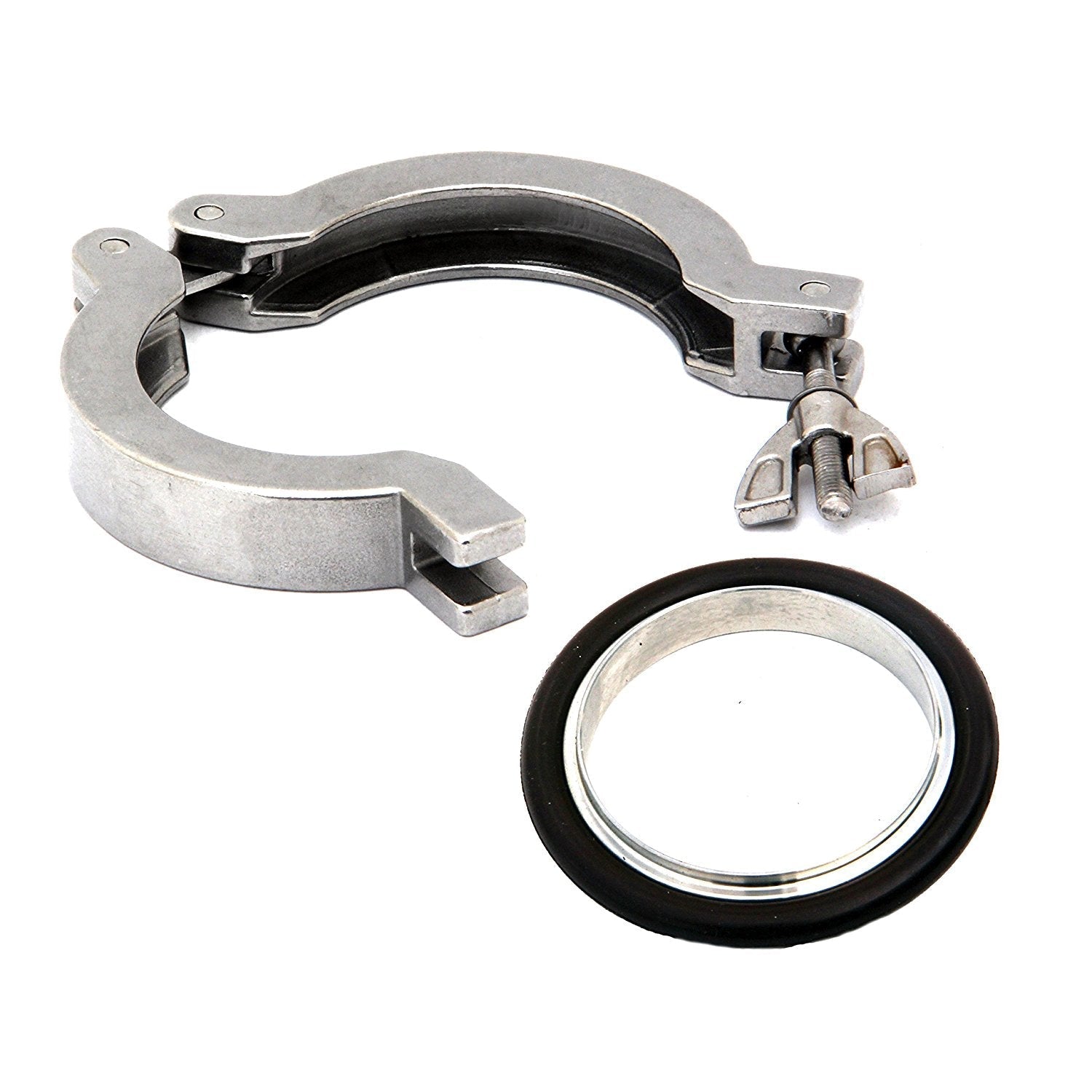

• 2PCS Stainless Steel Clamp & Centering Rings

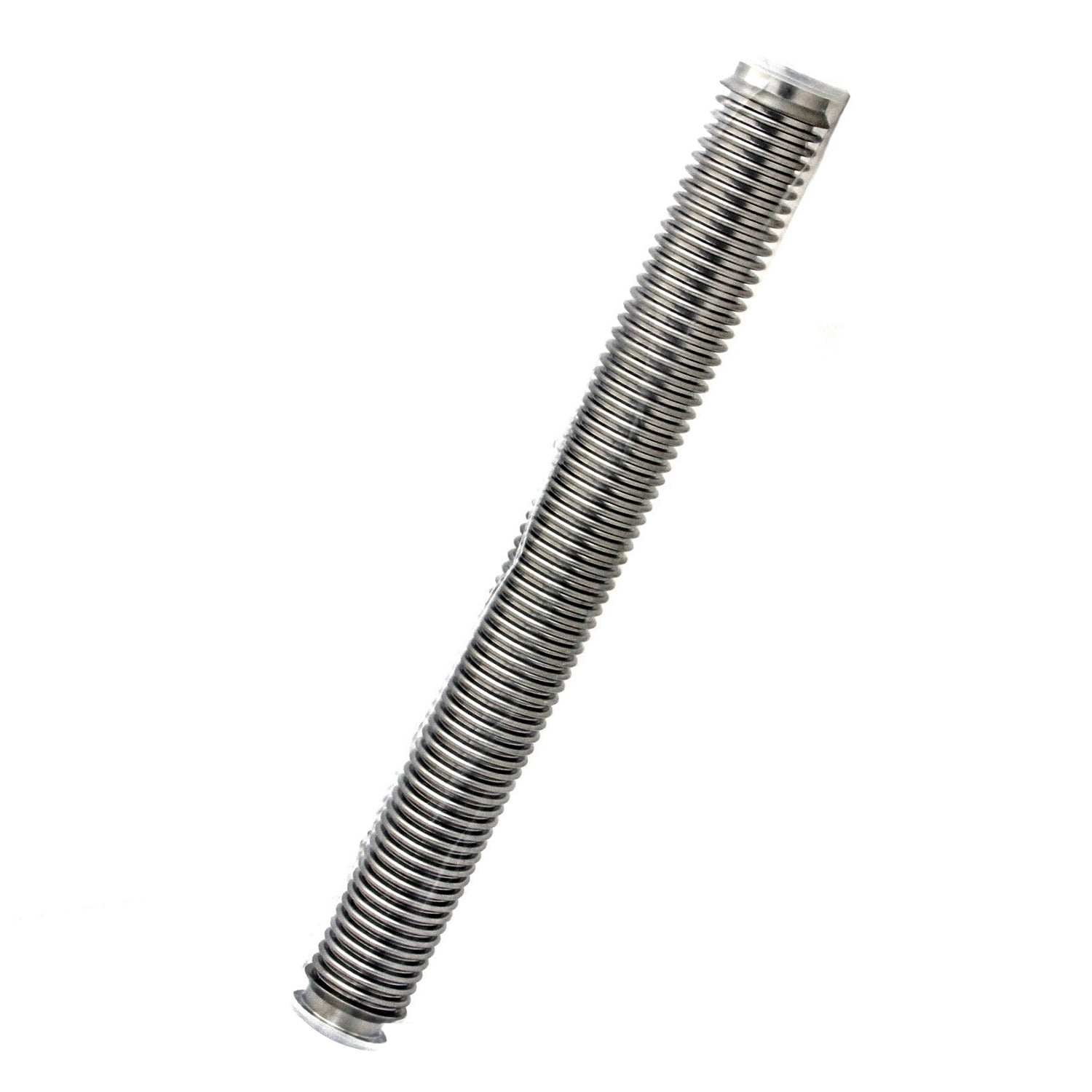

• 40" BStainless Steel Vacuum Hose

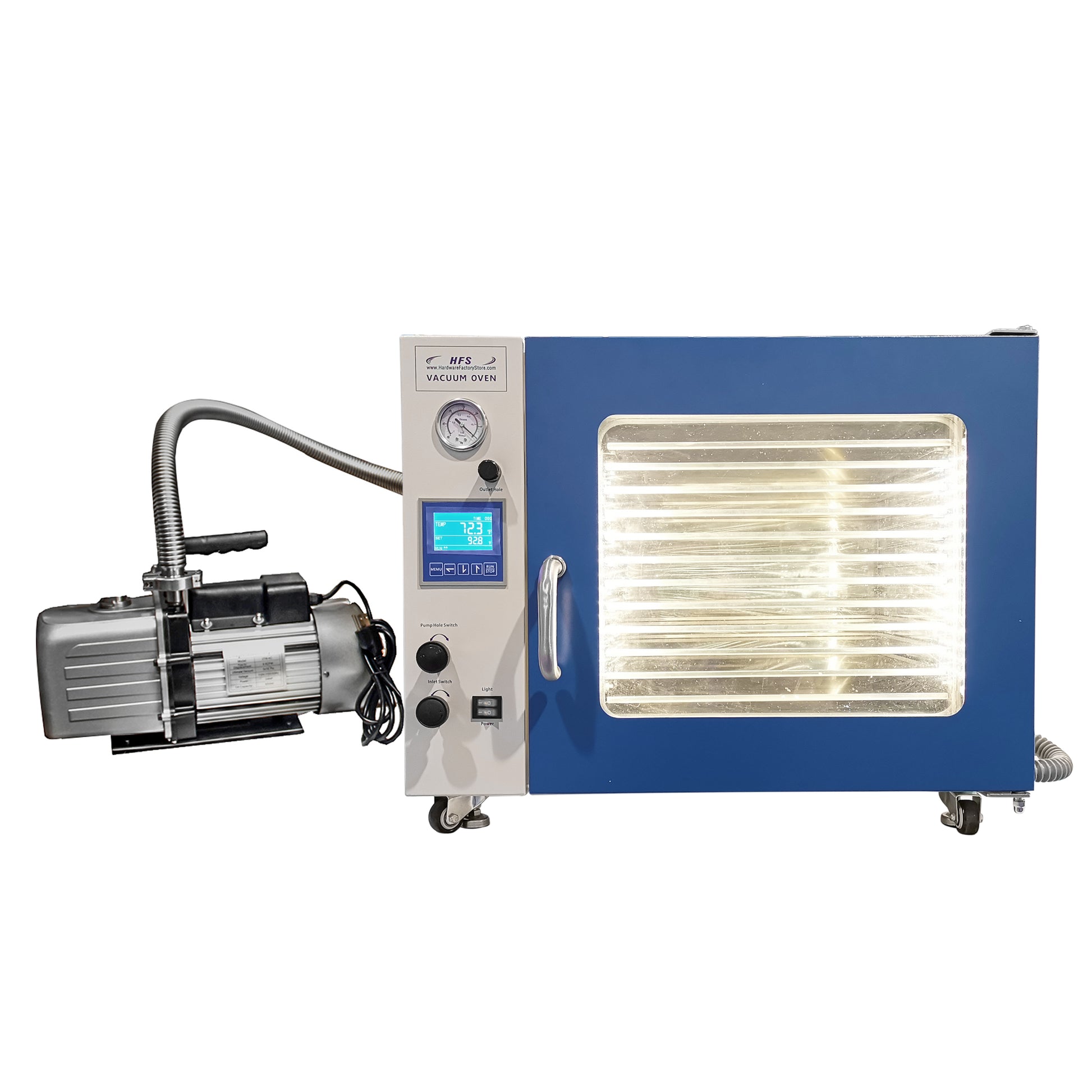

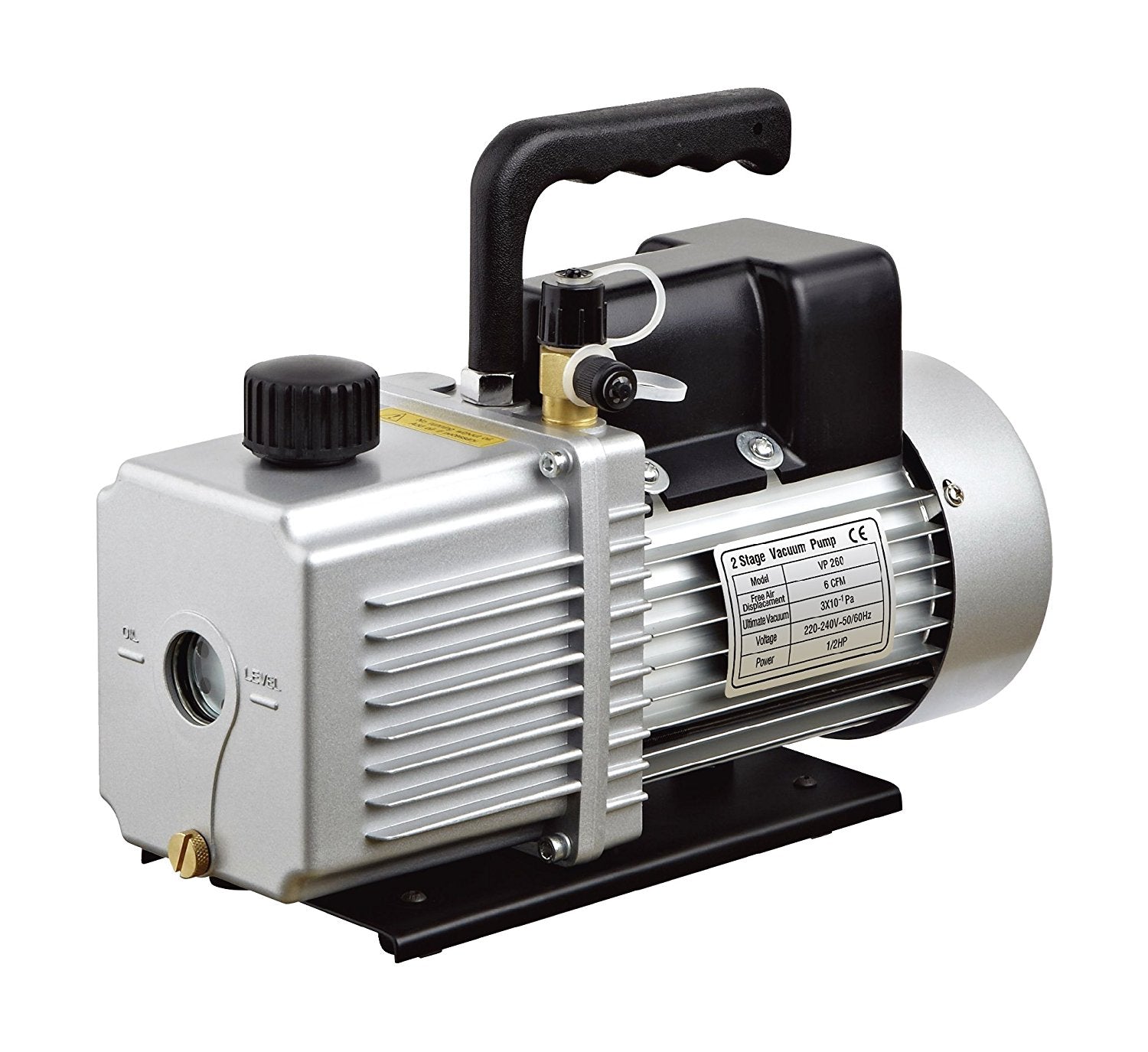

• VP2200 Vacuum Pump 6CFM and KF25 Adapter
• 12 Solid Aluminum Shelves

Chamber Dimensions (WxDxH) 16" x 14.5" x 14"
Chamber Material: Stainless Steel
Door Gasket Material: Viton
Timer Range: 1-9999 minutes
Heater Power: 1200 watts
Max Vacuum: 30" Hg (133 Pa)
Power Supply: 110V 50/60Hz 1-PH 13.6A
Power Cord: Standard US 3-Prong
Safety Designs: Circuit Breaker, Overheat Warning
Shelves: 12 Solid Shelves Included
Shipping Dimensions (WxDxH) 33" x 27" x 28"
Shipping Weight: 220 Lbs
Temperature Range: Room Temperature to 215°F
Temperature Accuracy: +/- 1°F
Temperature Units: Fahrenheit
Unit dimensions (WxDxH): 28" x 22" x 22"
Weight: 190 Lbs
Vacuum Fitting: KF-25
