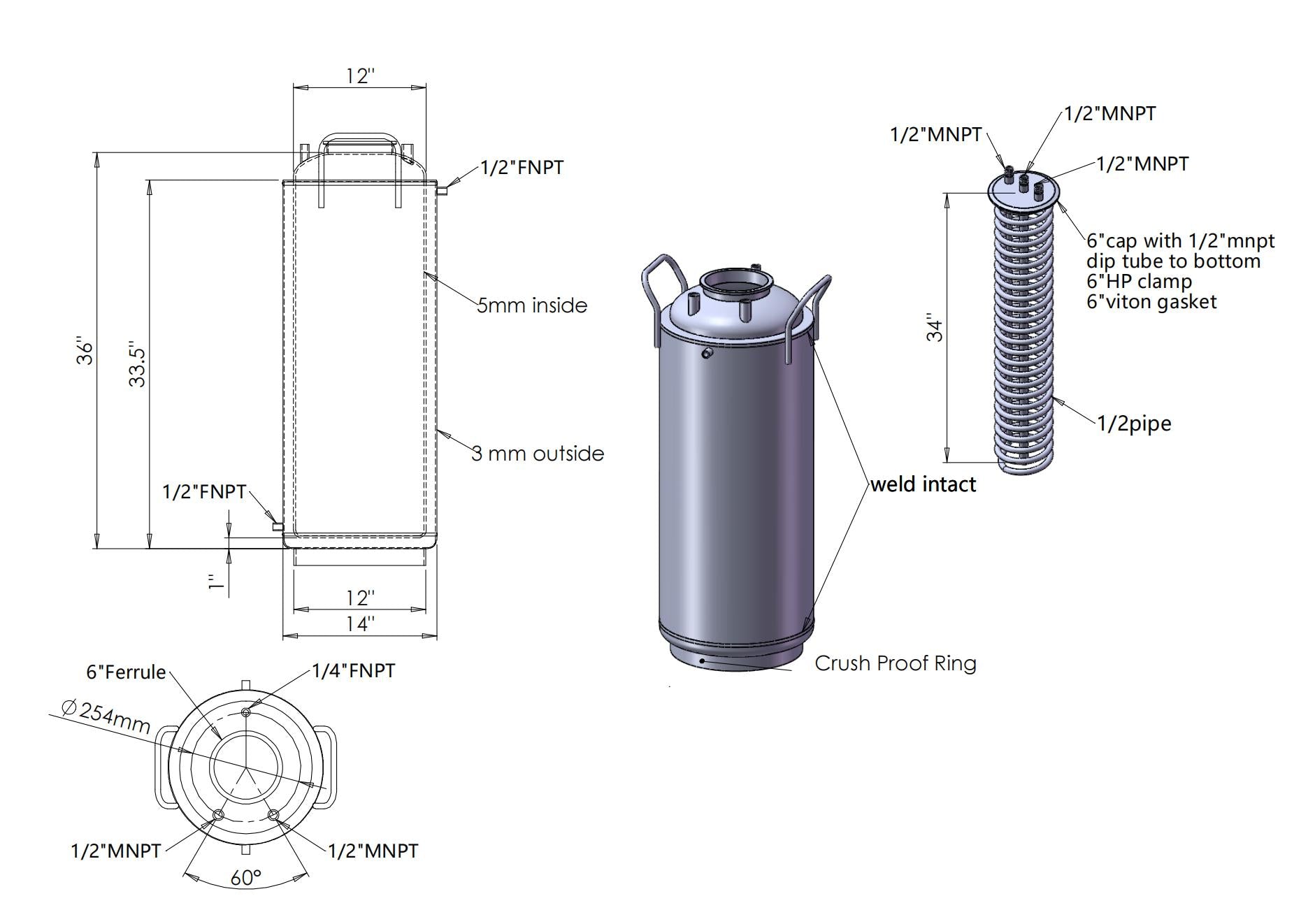

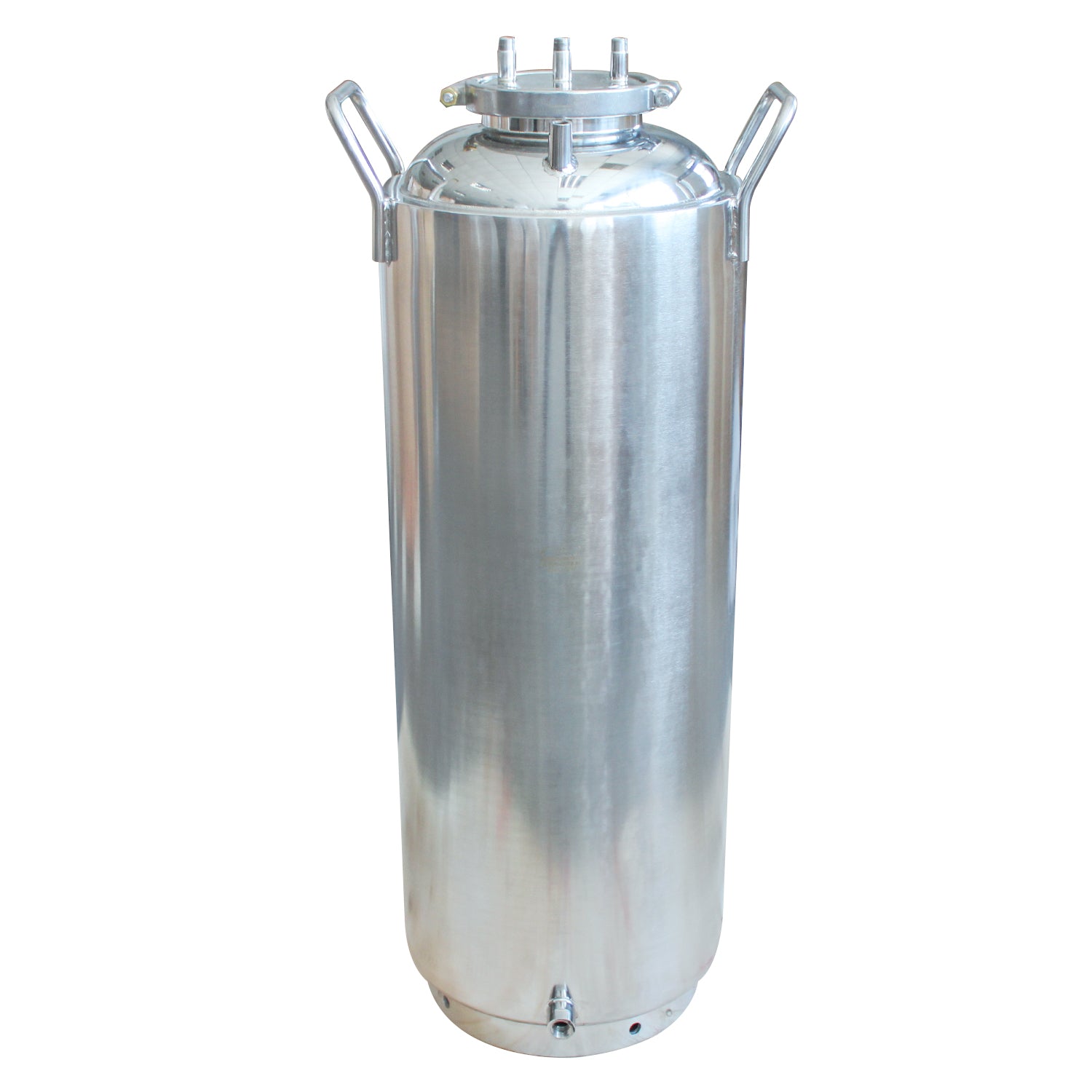

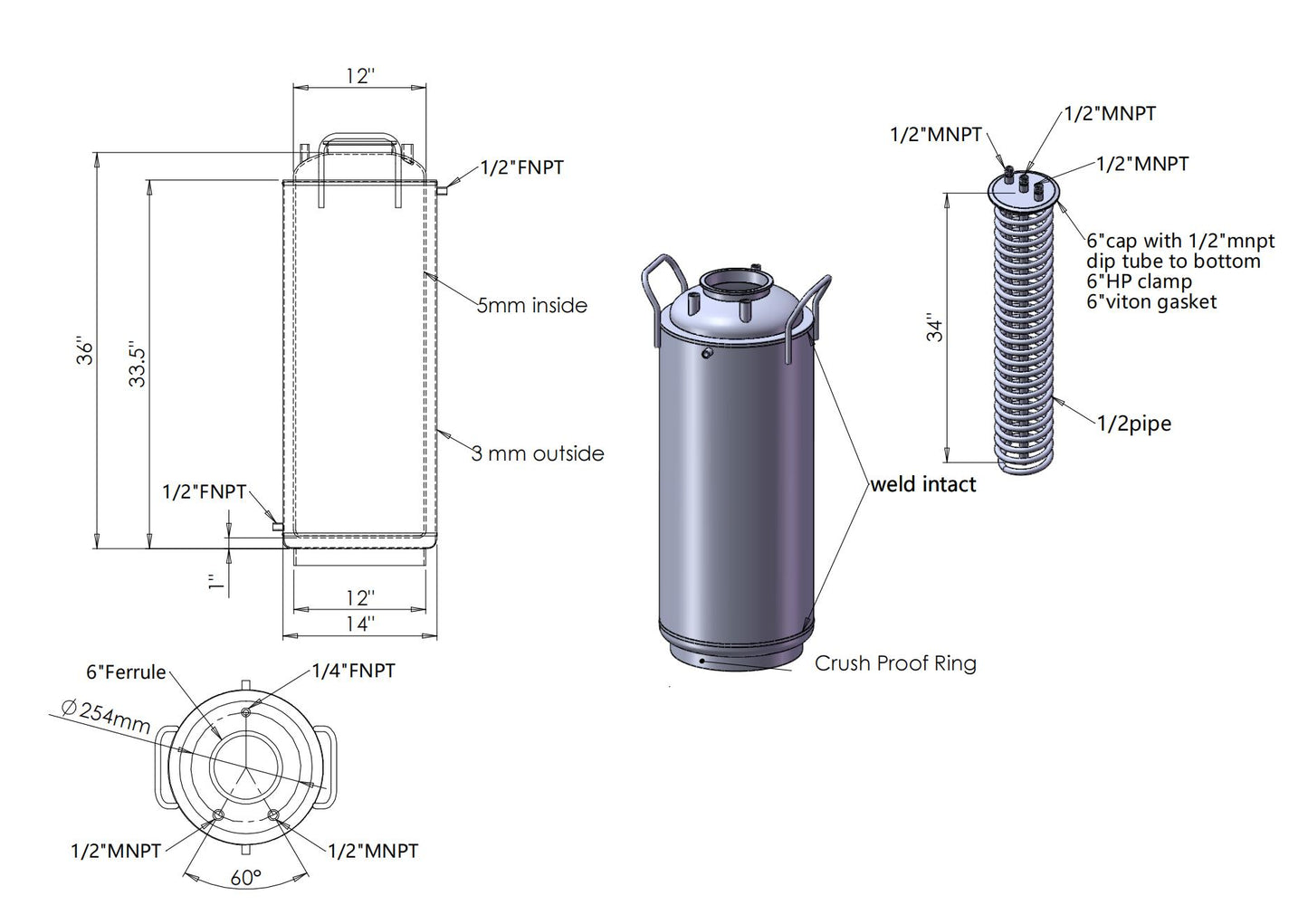

65 L, (75 lbs. Refrigerant), Jacketed Storage Vessel With Condenser

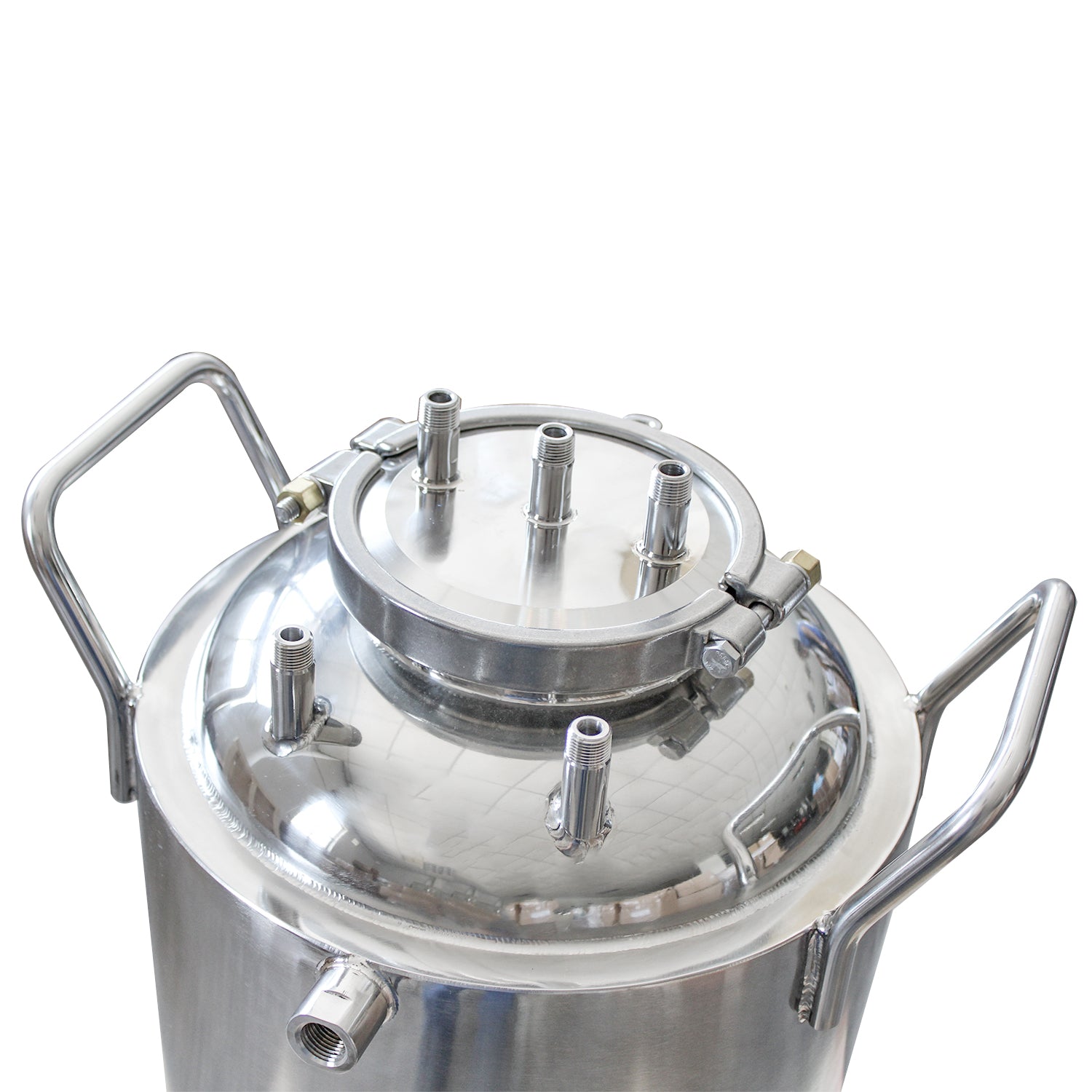

Features: Vessel

• Material: Stainless Steel
• Tri Clamp Lid Size (IN): 6
• Liquid Line Connection (IN): MNPT 1/2
• Vapor Line Connection (IN): 2x MNPT 1/2
• Other Connections (IN): FNPT 1/4
• Dual Bolt Clamp Size (IN): 6
• Viton Gasket Size (IN): 6
• Safety-Ring Size (IN): 14
• Wall Density (MM): 5
• Max Temp. (F): 250
• Max Pressure (PSI): 150

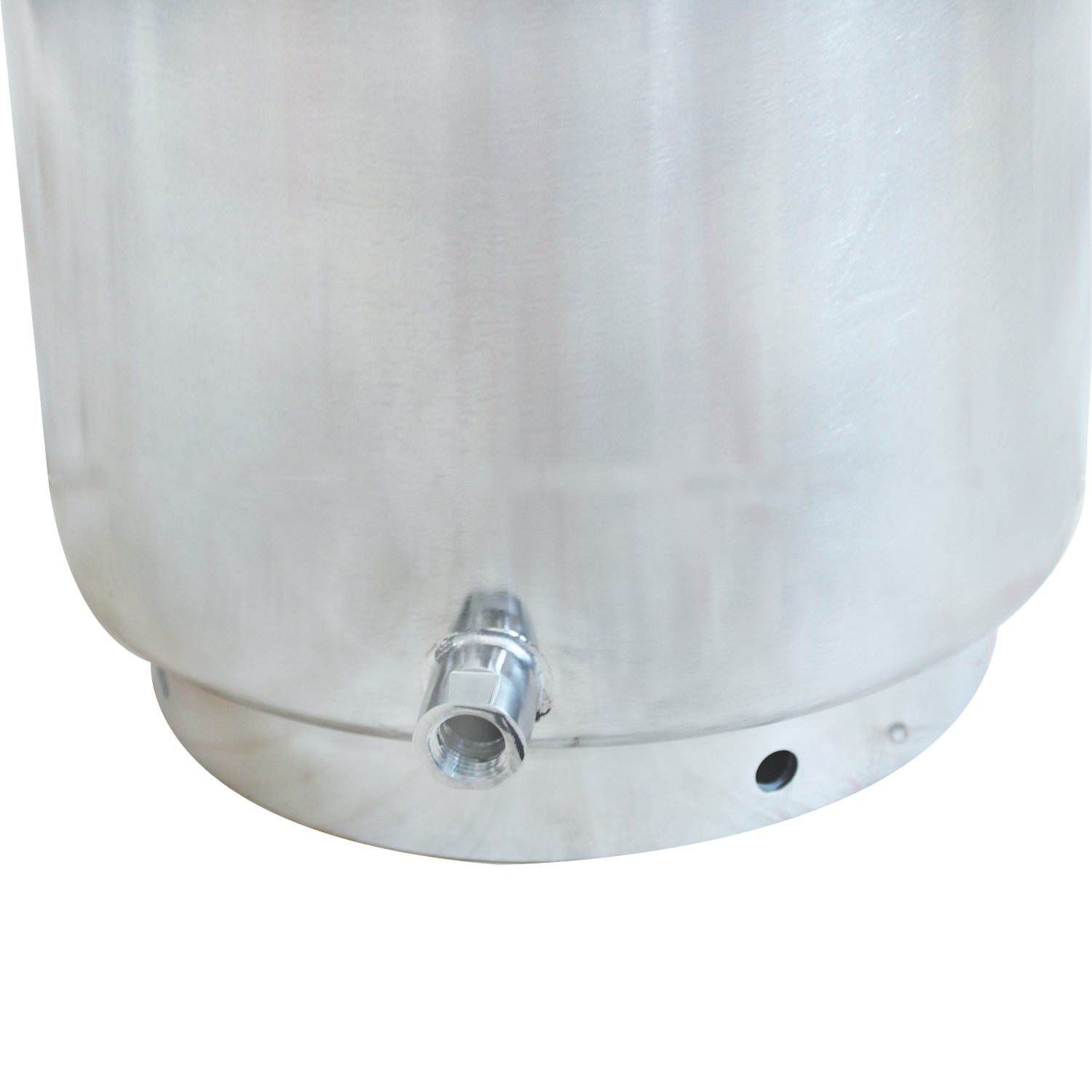

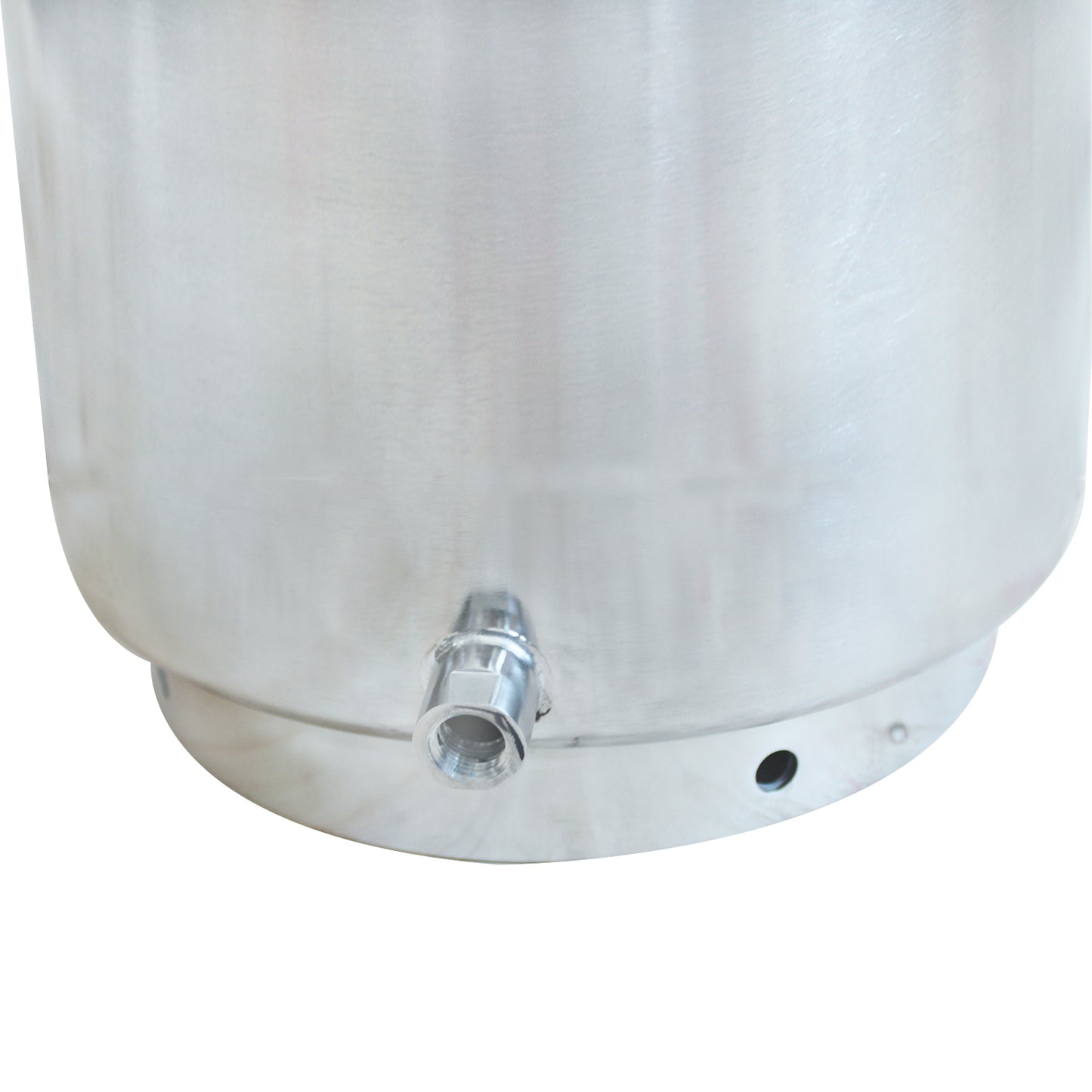

• Jacket Connection Type (IN): FNPT 1/2
• Jacket OD (IN): 14
• Jacket Length (IN): 33.5

Features: Coil

• Material: Stainless Steel
• Connection (IN): MNPT 1/2
• Footprint Height (IN): 34
• Footprint Diameter (IN): 6
• Coil Count: 23
• Tube ID (IN): 0.375
• Single Coil Length (IN): 18.84
• Overall Coil Length (IN): 433.32
• Max Temp. (F): 250
• Max Pressure (PSI): 100

Specifications: Vessel

• Diameter (IN): 12
• Height (IN): 36
• Radius (IN): 6
• Volume (Cu In): 4069.44
• Fluid Capacity (L): 66.62
• Fluid Capacity (Gal): 17.63
• Butane Capacity (LBS): 72.00 - 90.00
• Propane Capacity (LBS): 57.00 - 71.25
• Biomass Capacity (LBS): 21.00 - 30.00
• 3A Sieve Capacity (LBS): 120.00
• Nugget Ice Capacity (LBS): 96.00

Specifications: Jacket

• Fluid Capacity (L): 20.54
• Fluid Capacity (Gal): 5.43
• Sleeve Ice Capacity (LBS): 29.59

Specifications: Coil

• Diameter (IN): 0.375
• Height (IN): 433.32
• Radius (IN): 0.1875
• Volume (Cu In): 47.83
• Fluid Capacity (L): 0.78
• Fluid Capacity (Gal): 0.21
• Butane Capacity (LBS): 0.85 - 1.06
• Propane Capacity (LBS): 0.67 - 0.84
