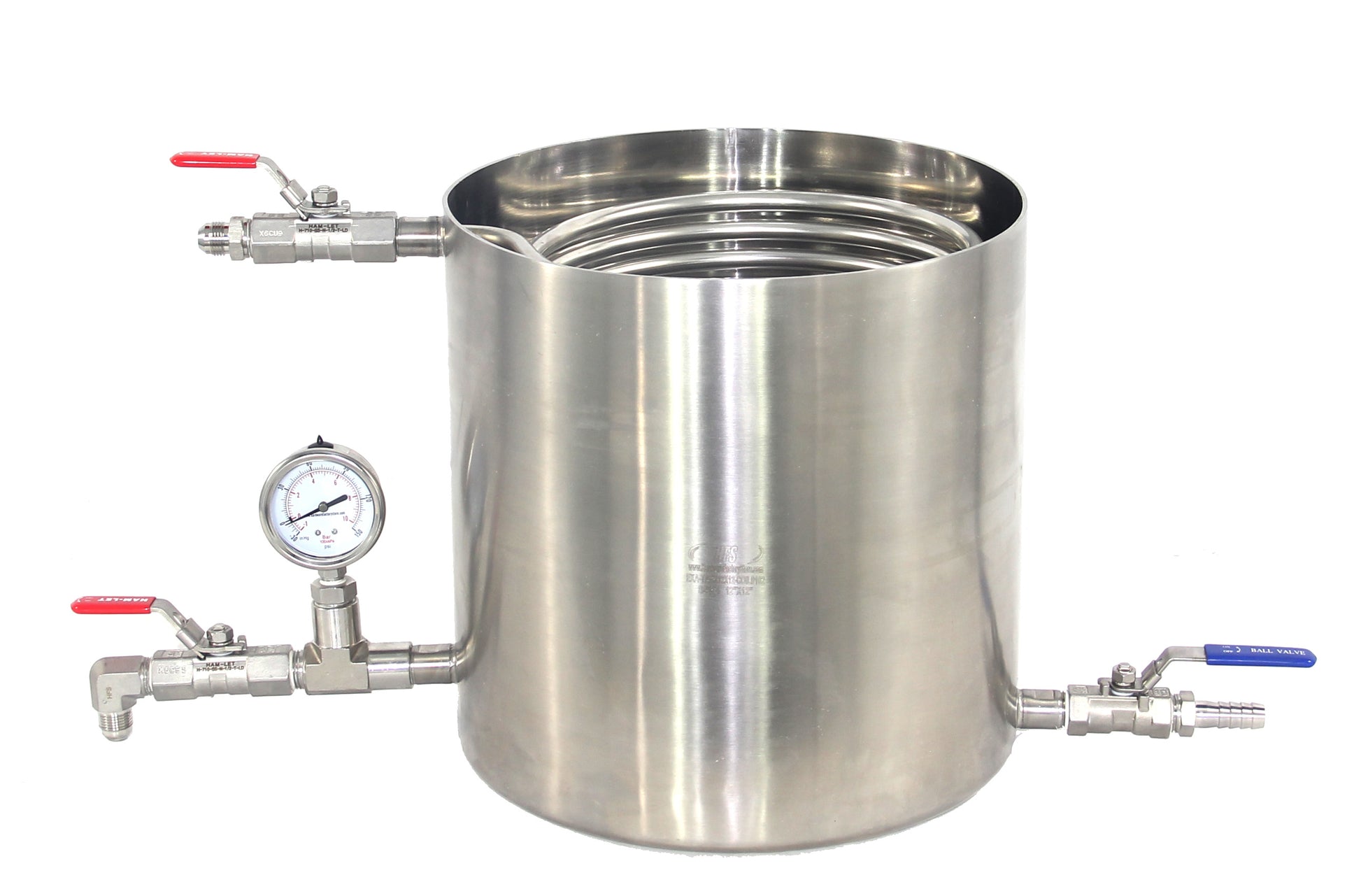

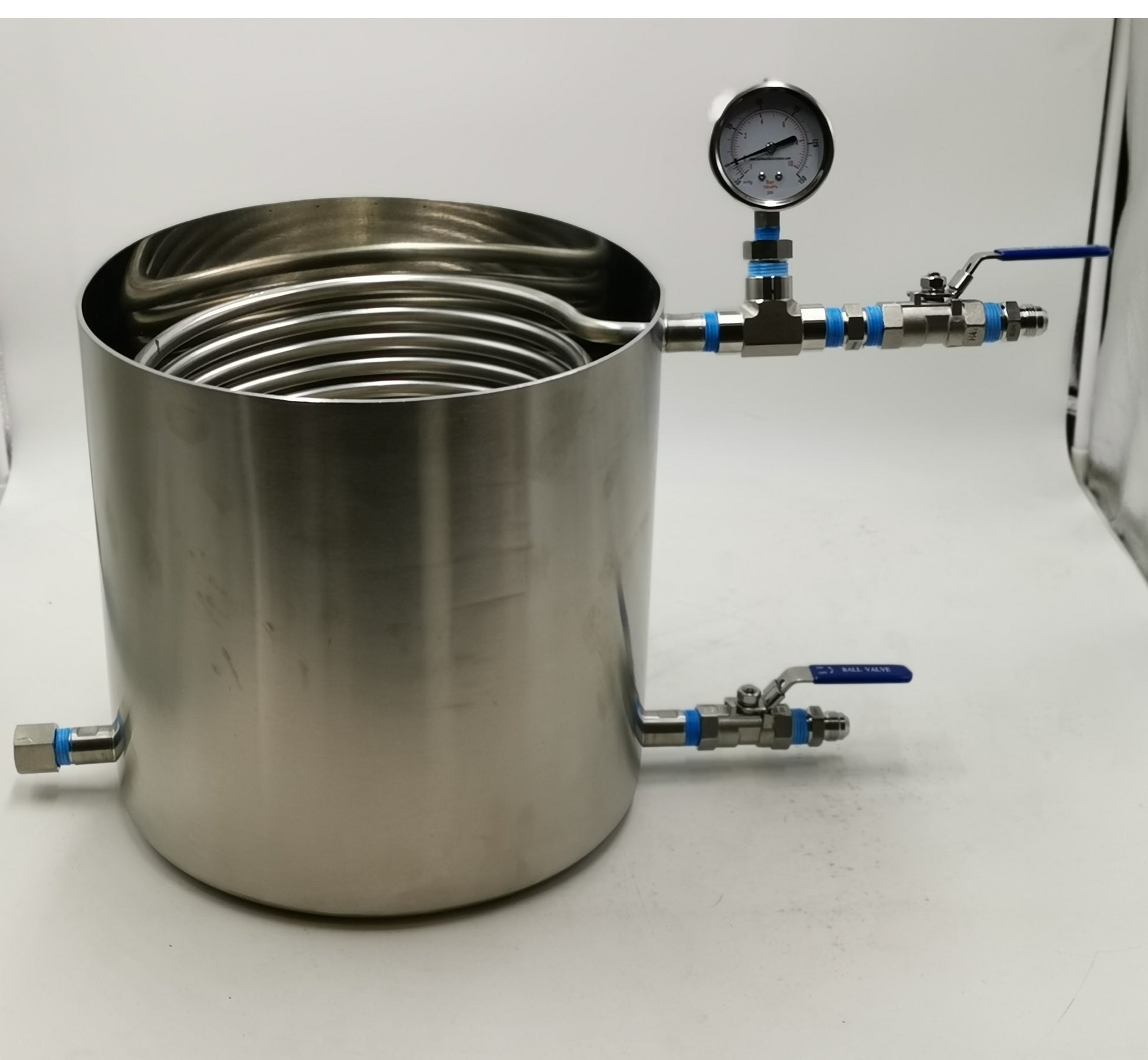

HFS(R) Condenser Coil With Vessel

Included:
Stainless Steel Vessel
Hamlet Valve and Fitting Set
Backmount Gauge

Features: Coil
Material: Stainless Steel
Coil Connection (IN): MJIC 1/2
Vessel Height (IN): 11
Vessel Diameter (IN): 12
Vessel Drain (IN): Barb 1/2
Coil Footprint Height (IN): 10
Coil Footprint Diameter (IN): 10
Coil Count: 17
Tube ID (IN): 0.375
Single Coil Length (IN): 31.4
Overall Coil Length (IN):  533.8
Max Temp. (F): 250
Max Pressure (PSI): 100

Specifications: Coil
Diameter (IN): 0.375
Height (IN): 533.8
Radius (IN): 0.1875
Volume (Cu In): 58.93
Fluid Capacity (L): 0.96
Fluid Capacity (Gal): 0.26
Butane Capacity (LBS): 1.04 - 1.30
Propane Capacity (LBS): 0.83 - 1.03

Specifications: Vessel
Diameter (IN): 12
Height (IN): 11
Radius (IN): 6
Volume (Cu In): 1243.44
Fluid Capacity (L): 20.36
Fluid Capacity (Gal): 5.39
Nugget Ice Capacity (LBS): 29.33
