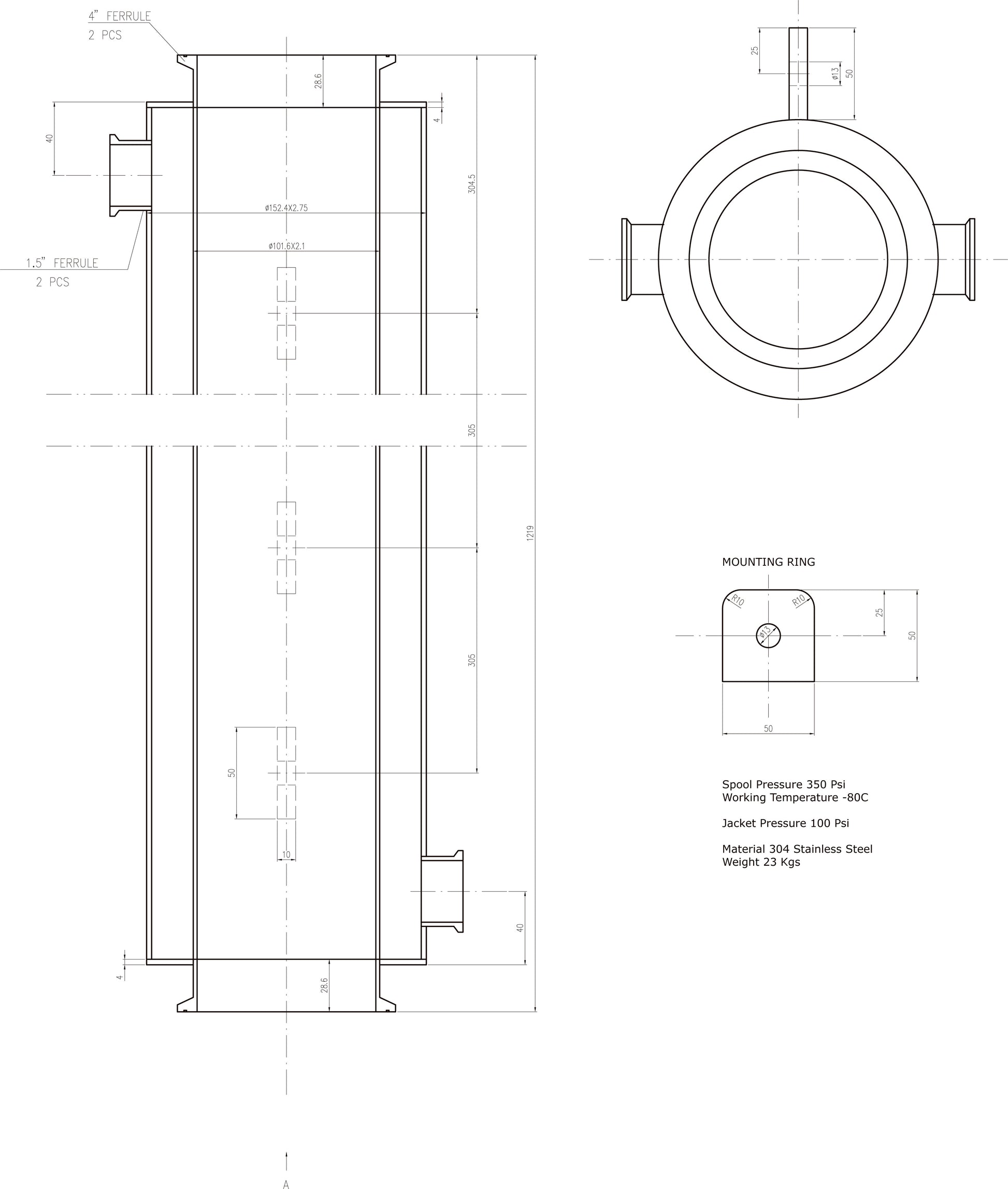

Jacketed Tri Clamp Spool 4" x 48" ASME Certified 350 PSI, 6" JACKET 150PSI


AvailabilityIn stock

Unit price
Shipping calculated at checkout.
Most Orders Arrive in Four Days or less.
View Shipping Info Below.

NOTE: EXA-JACKET, EXA-DEWAX, EXA-SPOOL series products can be customized according to your needs.
For more details, technical support or other questions, please call direct (626) 332-7744.

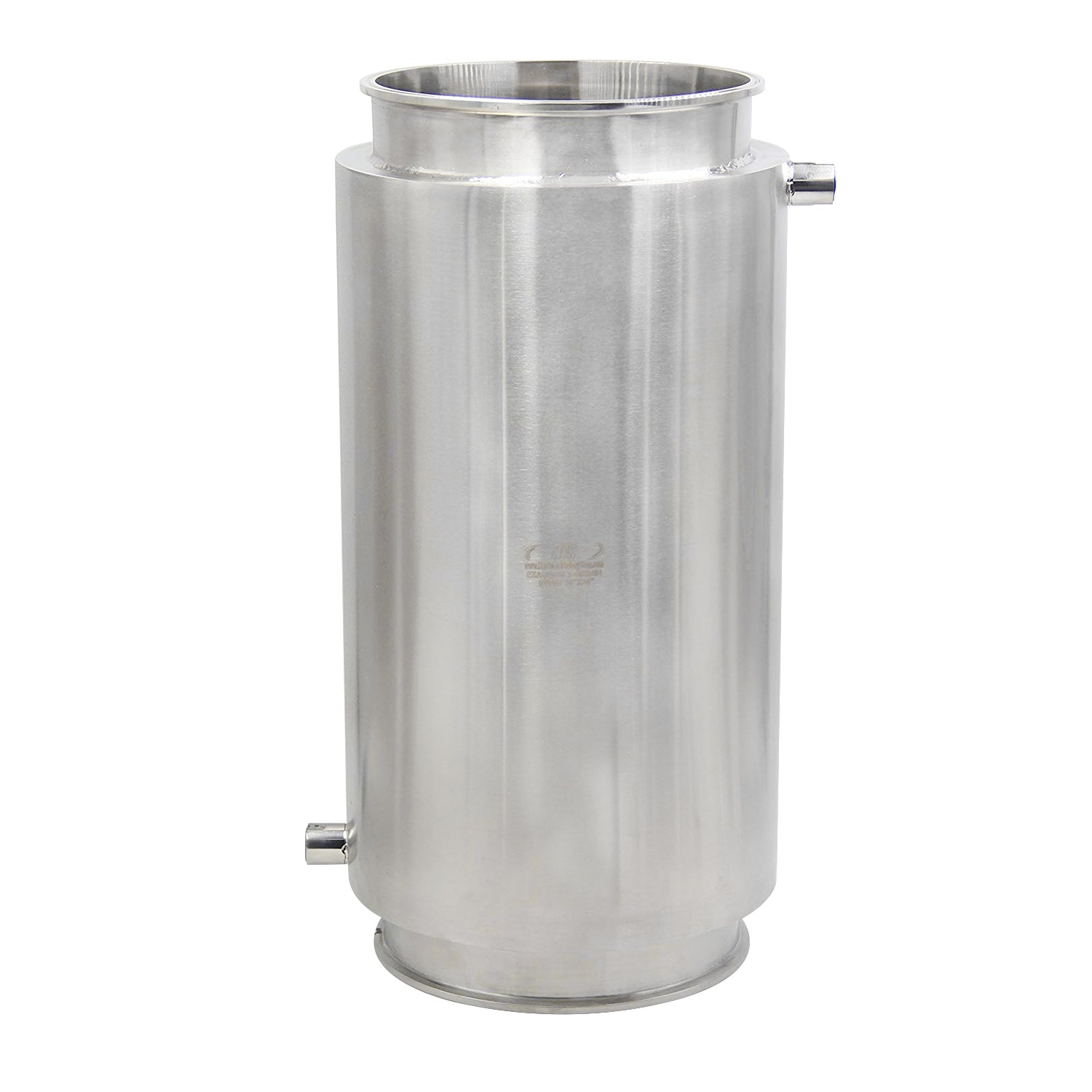

A jacketed spool is a standard spool but with as enclosed shell. This feature provides the user the option to thermally influence the inner tube and its content without disrupting any ongoing process. Thermal fluid can be circulated through the bottom and top port. The user can also choose to use the jacket as an insulation tool by isolating the jacket with valves and then evacuating it completely.



  • Material: Stainless Steel 304
  • Connection type: Tri Clamp
  • Connection Size: 4"
  • Outer Port: 1.5" Tri Clamp
  • Spool O.D.: 4"
  • Jacketed O.D.: 6"
  • Inner Barrel Pressure: 350psi
  • Outer Barrel Pressure: 150psi


[Quality Materials]: The Jacketed Spool is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: The Jacketed Spool allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor and attached tri clamp fittings on each end for user convenience.

[High Working Temp]: It is suitable for liquid with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a carton box with label.
