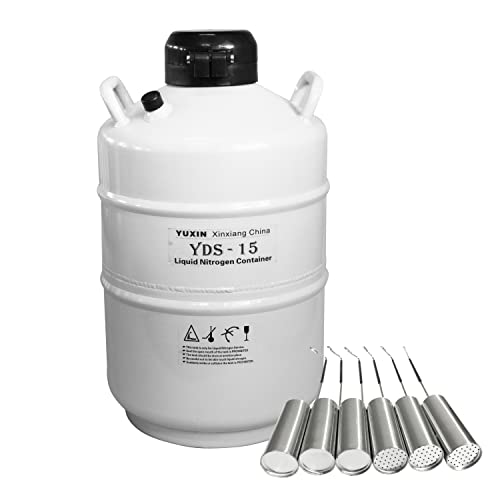

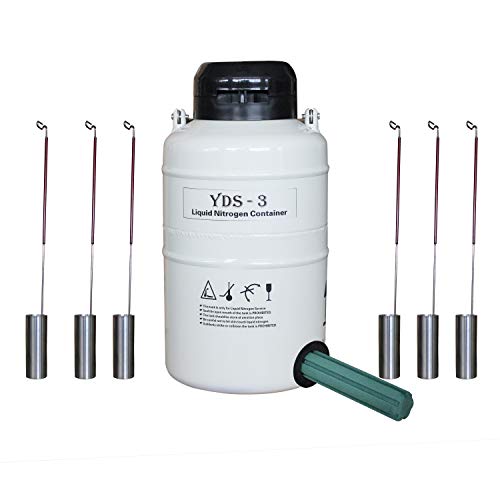

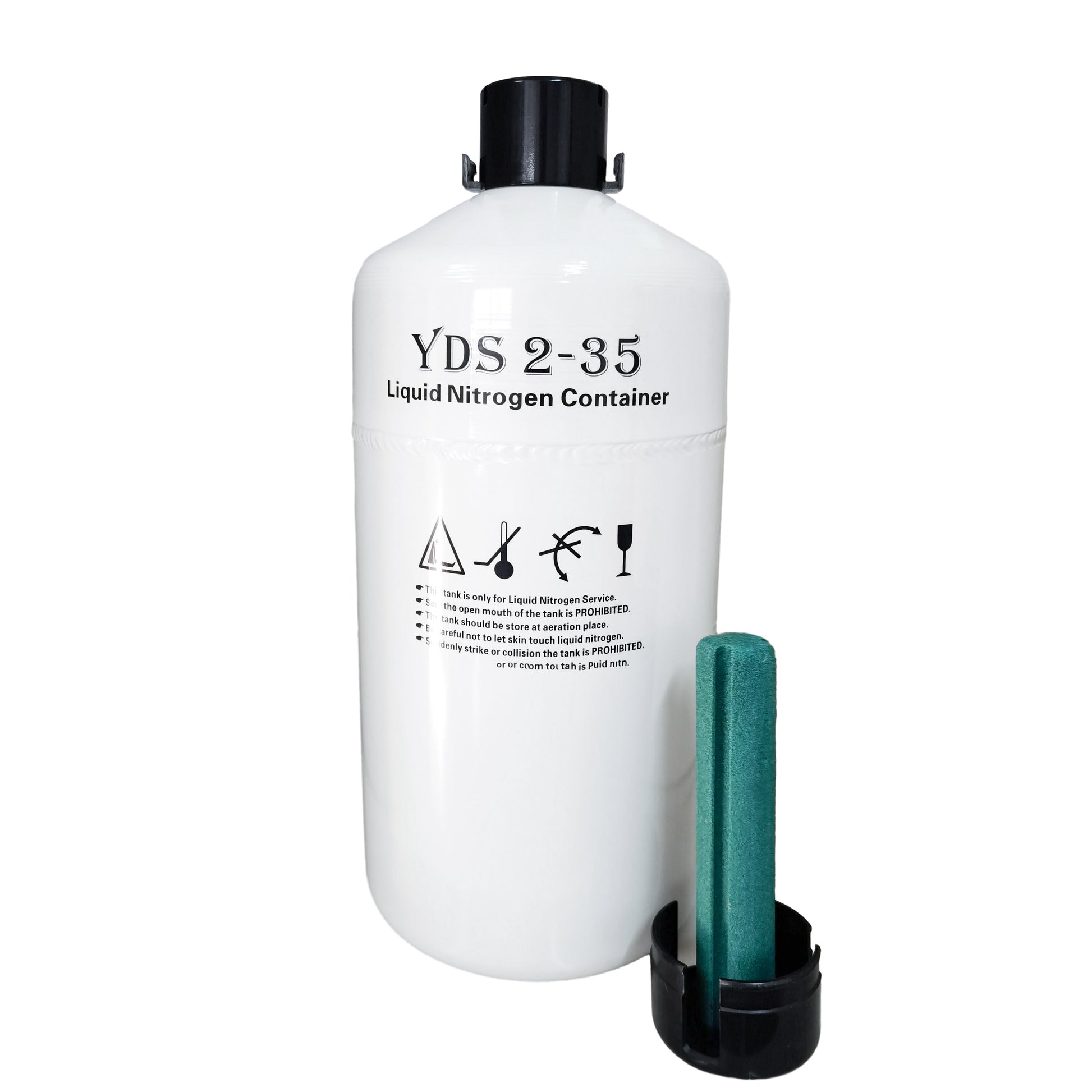

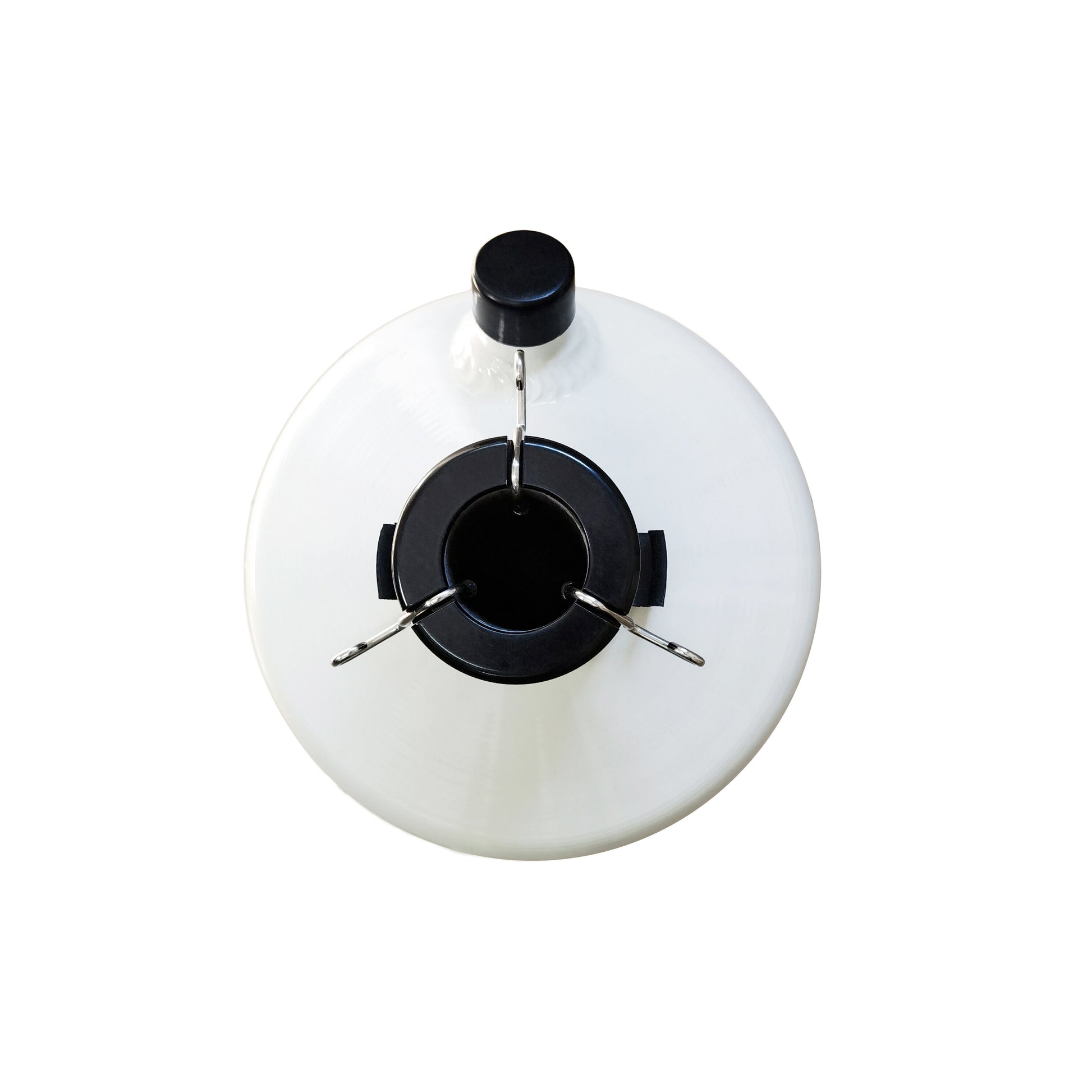

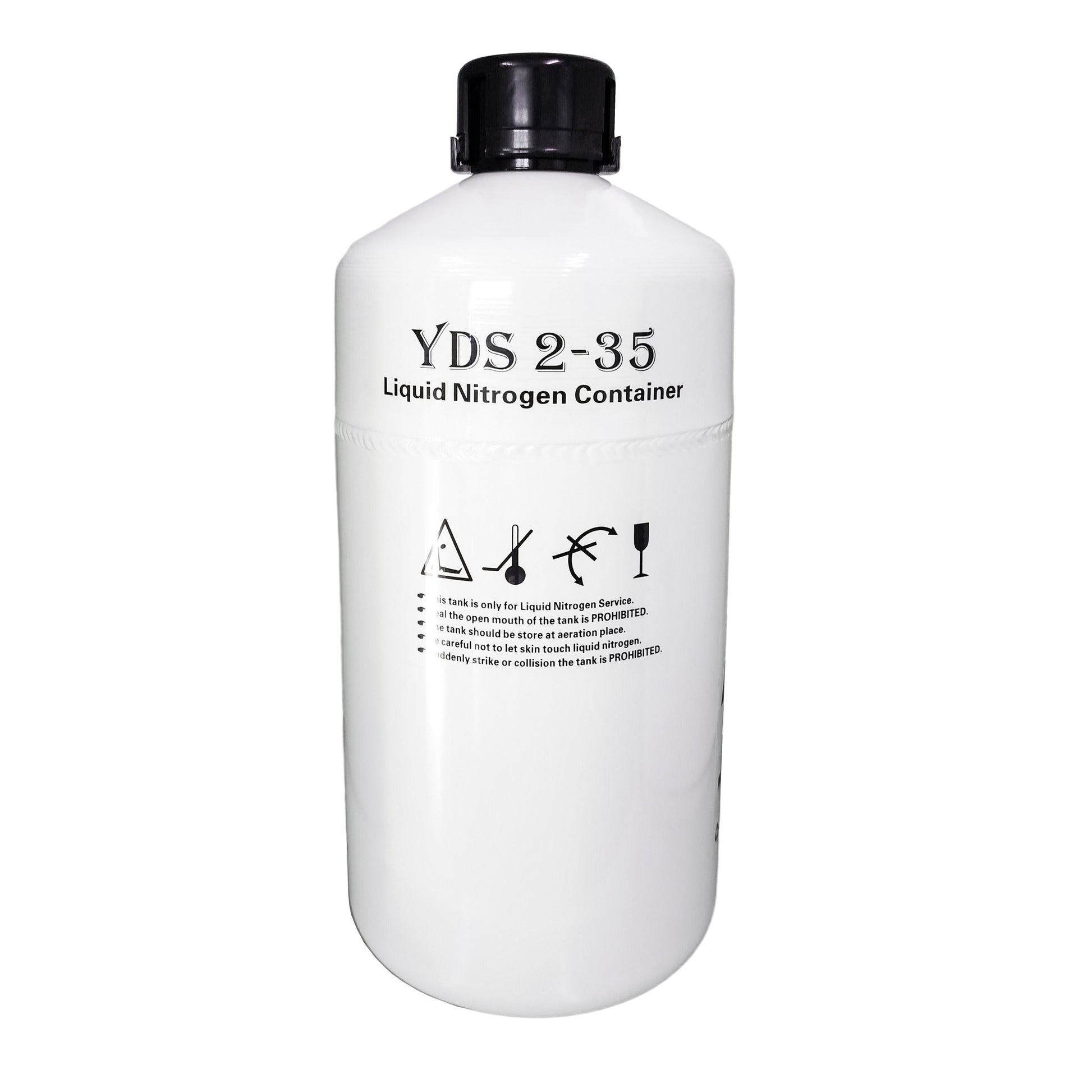

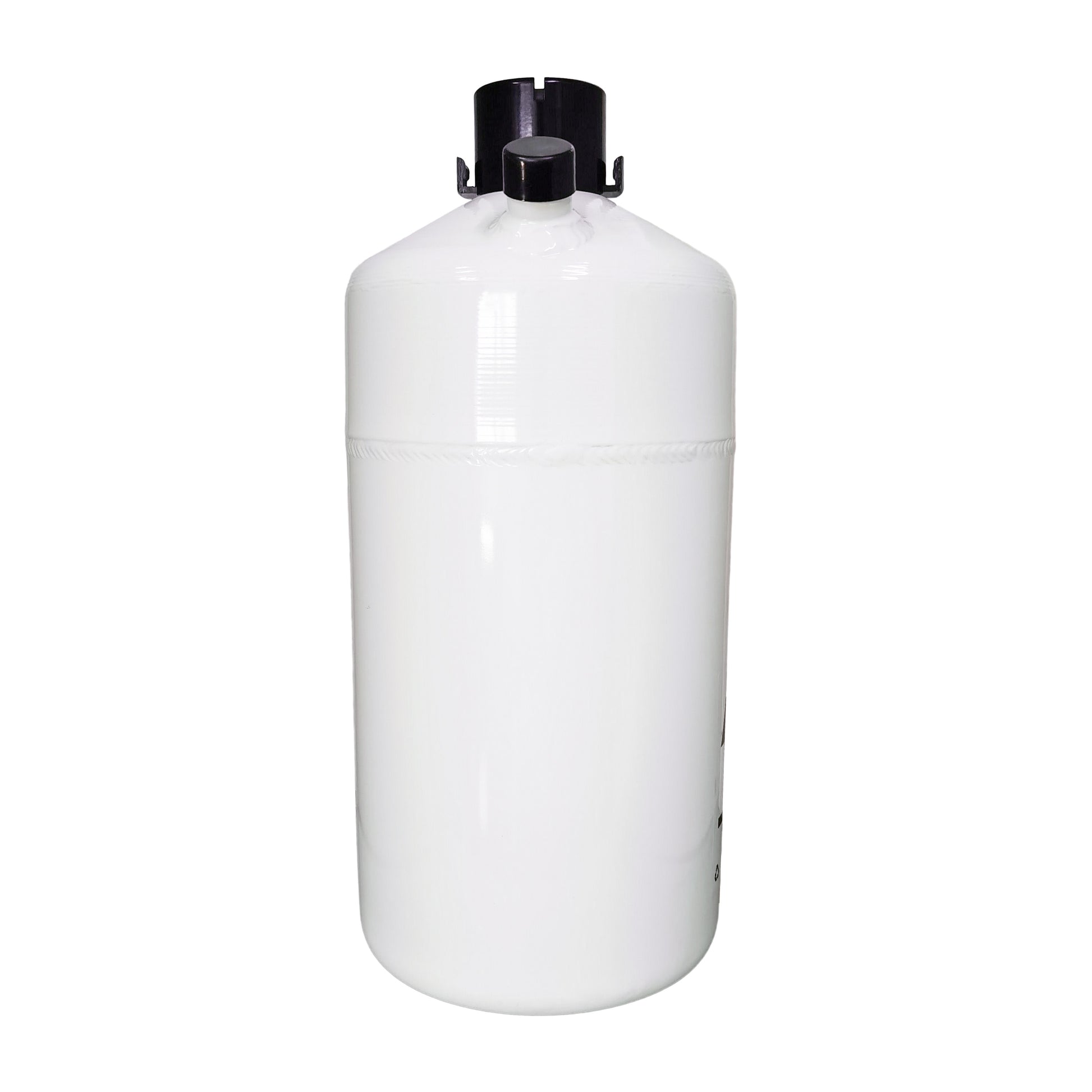

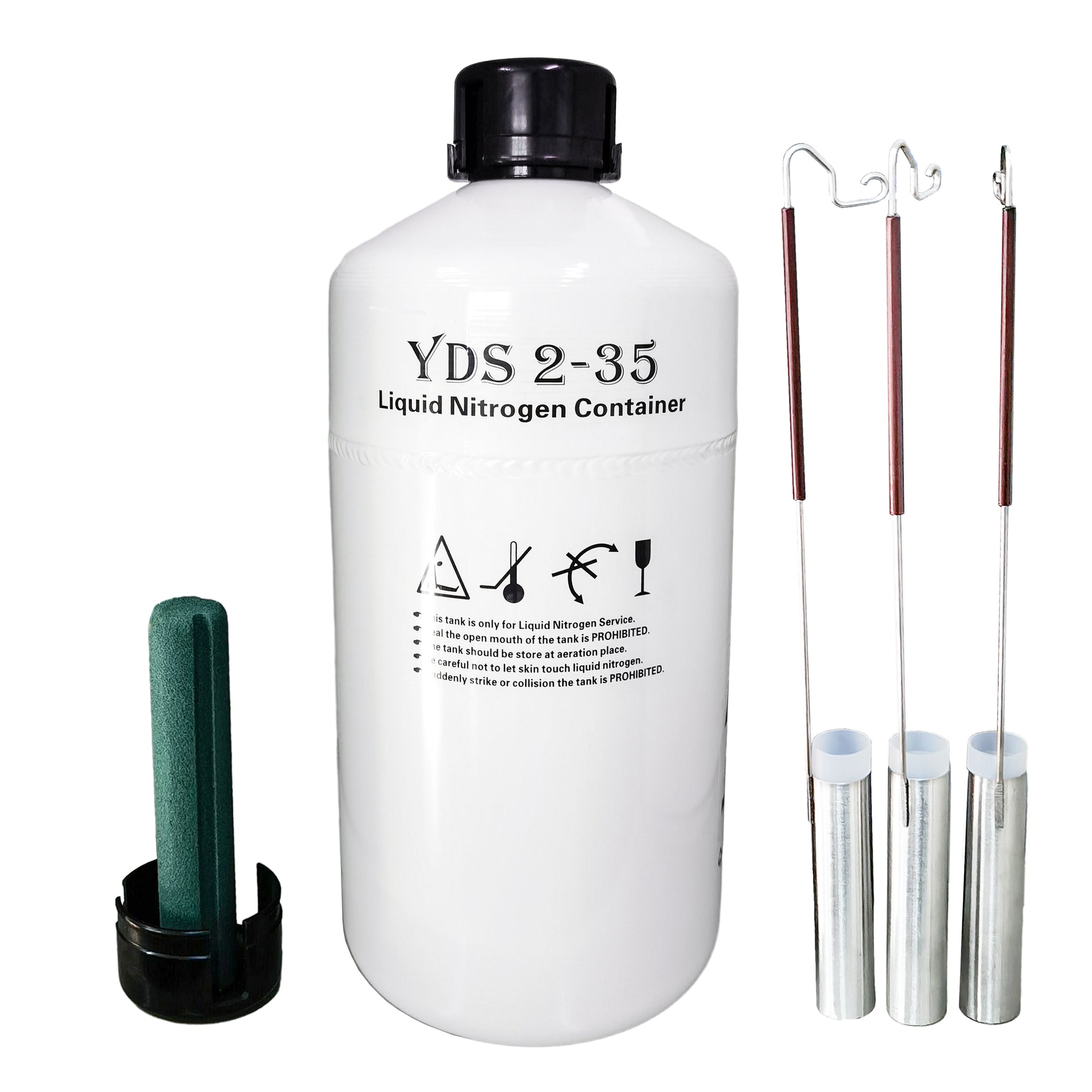

Liquid Nitrogen Tanks YDS series
Product Code YDS-2-NS
[High-Strength Aviation Aluminum Alloy]: The liquid nitrogen container is made of high-strength aviation aluminum alloy. It can still work even if the storage tank is scratched and deformed due to improper operation.

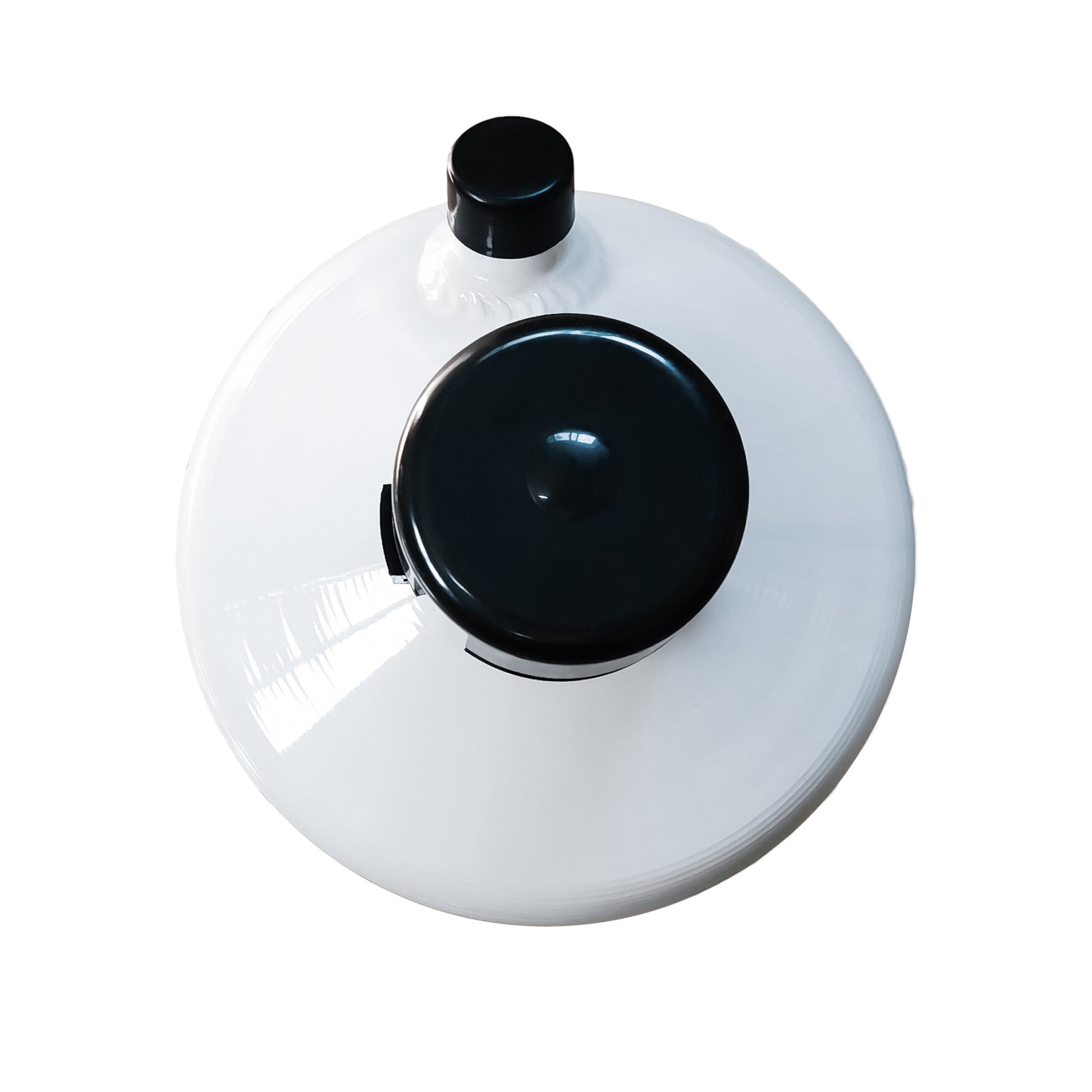

[Reliable & Superior Design]: There is a big vacuum space between the outer shell and the inner container. The nitrogen tank is equipped with a gas adsorbent to adsorb other gases and maintain a high vacuum environment. High-quality vacuum plugs enhance the tightness. Lockable cover provides immunity to low-temperature, sound insulation, and reduced evaporation of liquid nitrogen; enhanced handle: ergonomic design, non-slip security, easy to move.
[Wide Applications]: This liquid nitrogen container is light weight, easy to carry, has a long holding time, and widely used for medical and scientific purposes. Such as: For the conservation of semen, embryos, spawn, vaccines, skin, organ, and other biological material. For industrial cryogenic processing, cold assembly, instruments and components of cooling, cold therapy etc.
[NOTE]: For the best tank performance put a small amount of liquid nitrogen into the tank and allow it to cool for 20 mins. before filling. Filling a cool tank will have less evaporation than filling a warm tank and provide longer hold times. Holding time depends on many factors including storage location, temperature, humidity, light, disturbances, etc. Max holding time can’t be guaranteed. This tank does not include or ship with liquid nitrogen inside.
|
Model |
Unit |
YDS-2 |
YDS-3 |
YDS-6 |
YDS-10 |
YDS-15 |
YDS-20 |
YDS-30 |
|
|
Capacity |
L |
2 |
3.15 |
6 |
10 |
15.2 |
21 |
31.5 |
|
|
Outer Diameter |
mm |
224 |
224 |
285 |
305 |
355 |
355 |
455 |
|
|
Mouth Diameter |
mm |
30 |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
Height |
mm |
378 |
425 |
460 |
530 |
600 |
620 |
670 |
|
|
Net Weight |
Kg |
2.9 |
3.2 |
4.4 |
6 |
8.6 |
9 |
13.8 |
|
|
Max Holding Time |
days |
30 |
30 |
60 |
100 |
157 |
193 |
293 |
|
|
Numbers of Canister |
EA |
3 |
6 |
6 |
6 |
6 |
6 |
6 |
|
|
Static Evaporation Loss |
L/d |
0.07 |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
|
|
Canister Outer Diameter |
mm |
19 |
38 |
38 |
38 |
38 |
38 |
38 |
|
|
Canister Height |
mm |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
|
|
Straw Holding Capacity(single level) |
0.5ml |
EA |
90 |
792 |
792 |
792 |
792 |
792 |
792 |
|
0.25ml |
EA |
204 |
1788 |
1788 |
1788 |
1788 |
1788 |
1788 |
|
|
Straw Holding Capacity(single level) |
0.5ml |
EA |
- |
- |
- |
- |
- |
- |
- |
|
0.25ml |
EA |
- |
- |
- |
- |
- |
- |
- |
|
