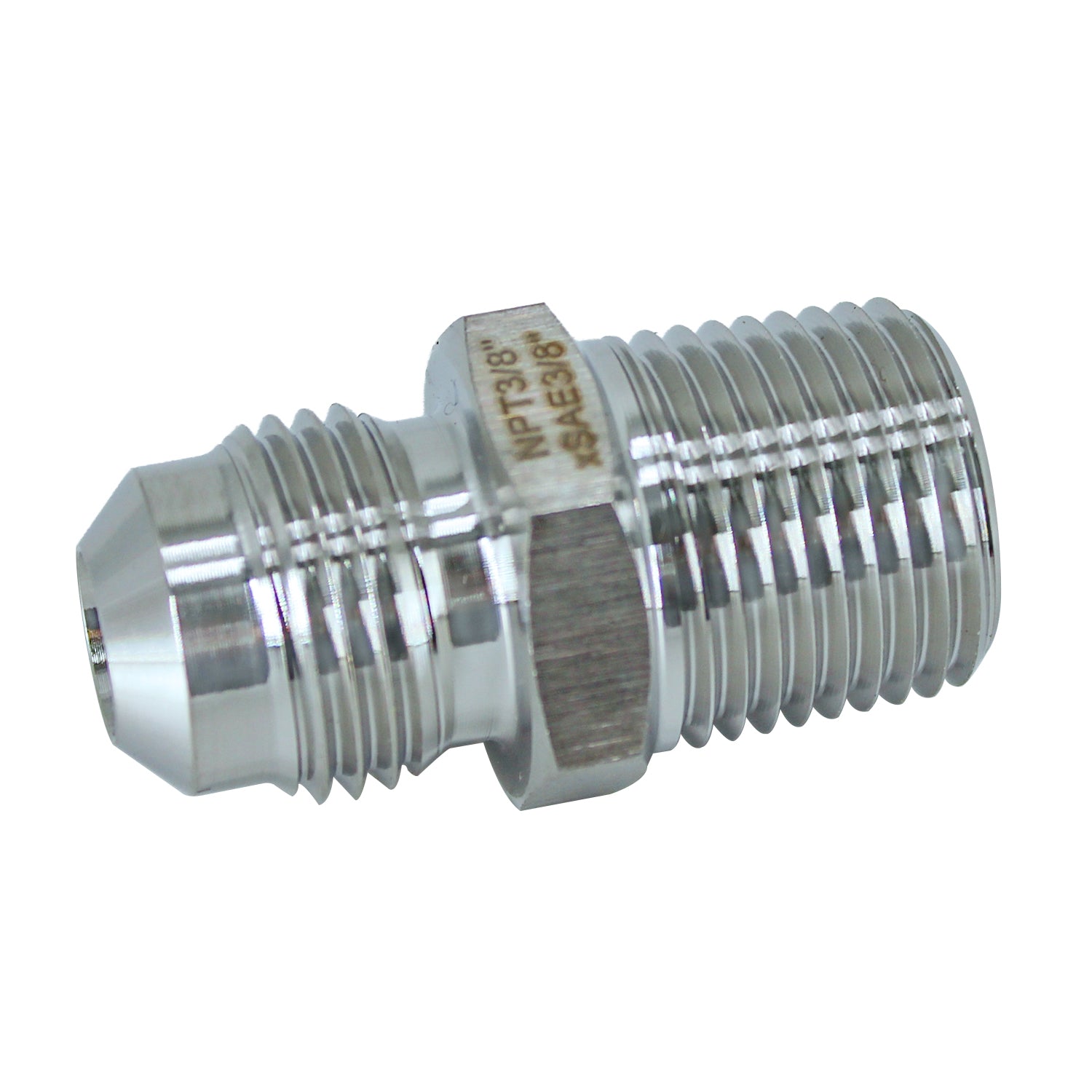

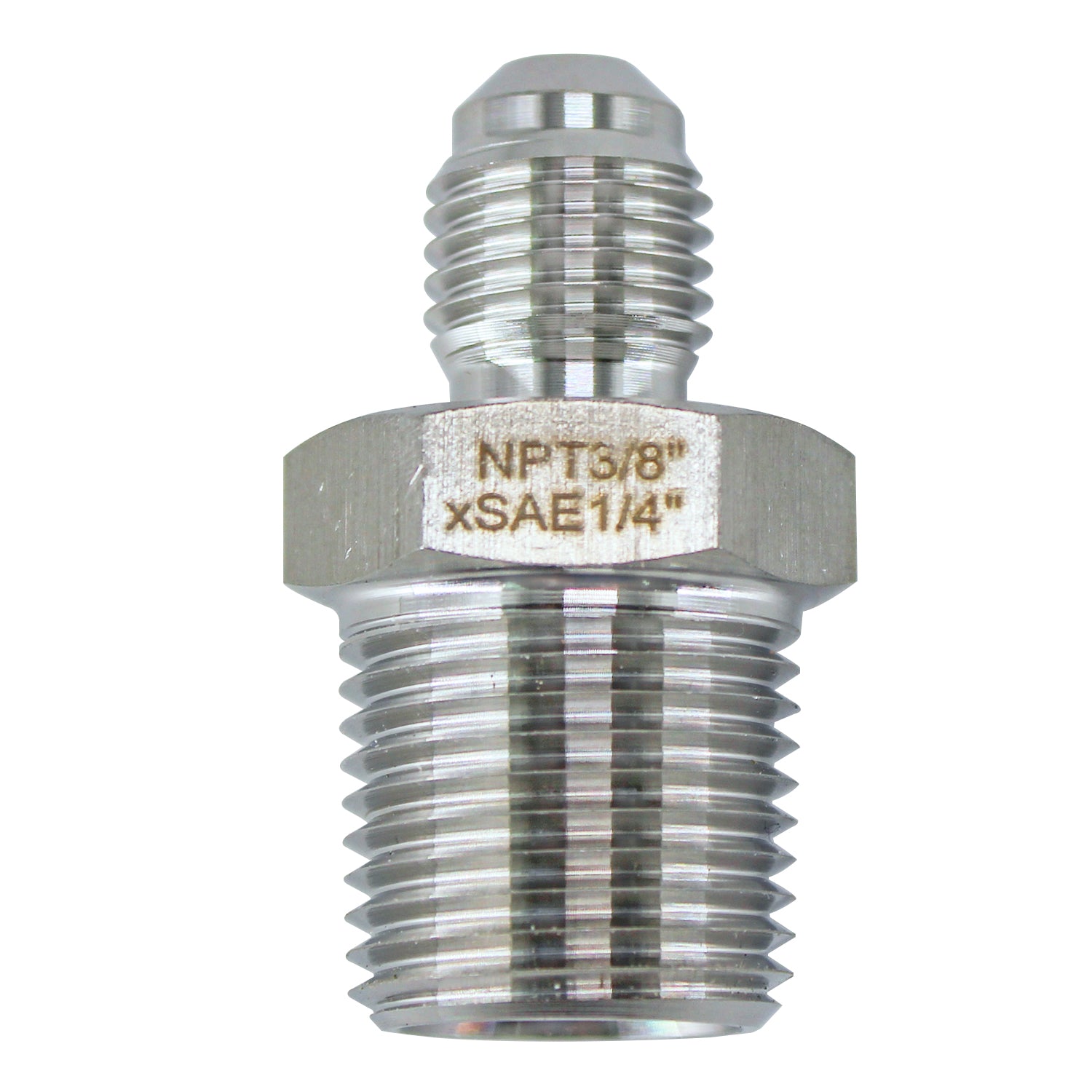

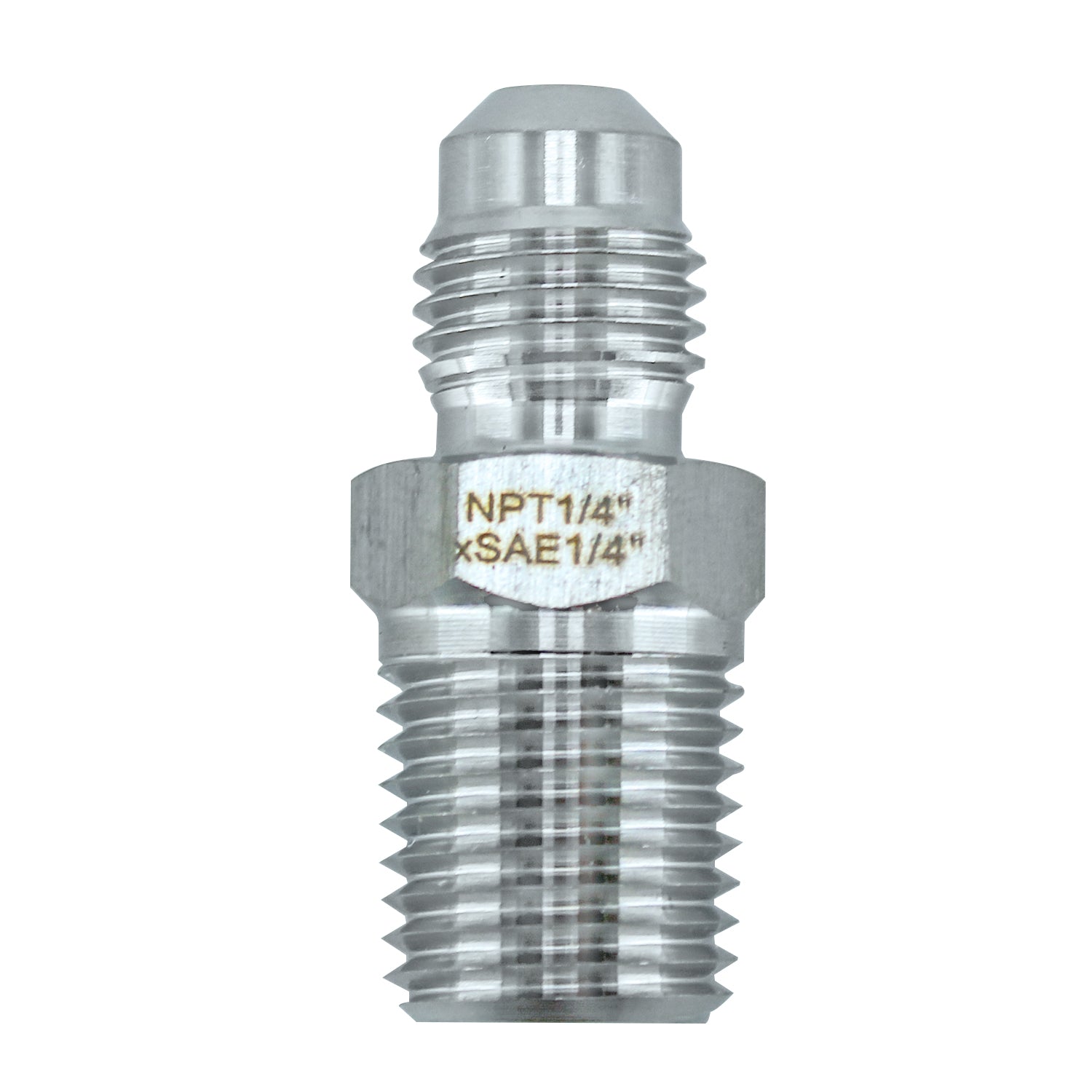

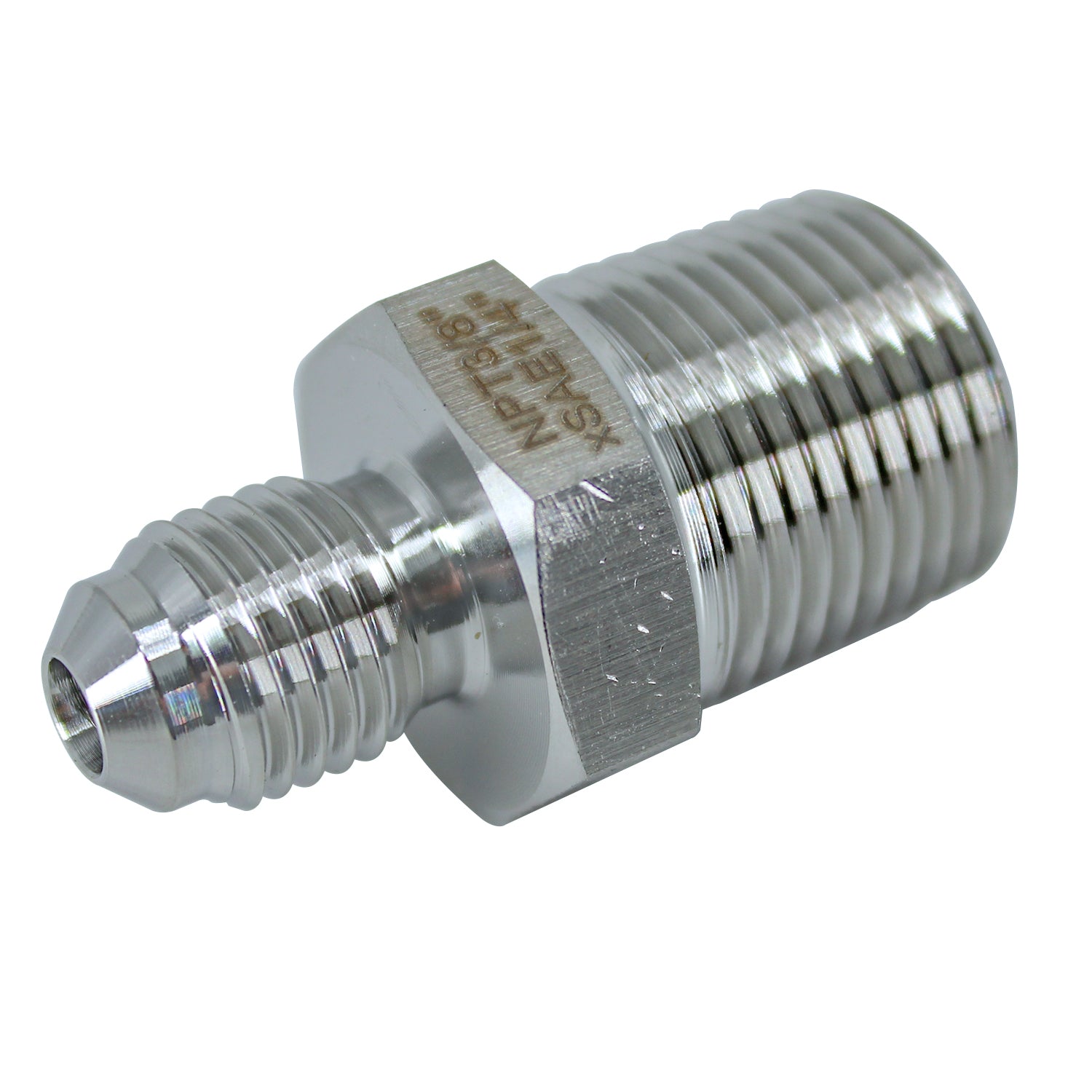

This adapter converts from a male NPT thread to a male SAE thread. They are made from 304 stainless steel, and come with a polished finish. The adapters are available in many sizes, so be sure to choose the size you need above.
- Connection Type: NPT male x SAE male
- Item Shape: Straight
- Material: Stainless Steel 304
- Working Temp: -67°F~428°F
- Service: Steam, Air, Water, Oil, Most solvents and acids that are compatible with 304SS.
[Size]: NPT male x SAE male.
[Quality Materials]: The NPT to SAE Male adapter is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.
[Precise Design]: Male NPT x Male SAE can be used for connecting and extending Straight female threaded pipes.
[High Working Temp. & Wide Range of Applications]: The SAE adapter can be used for connecting two pipes in the same direction in the double seal system. It is suitable for different media including water, gas, and oil with working at -67°F~428°F.
[Convenient organization and storage]: Packed in a plastic bag with label.
NOTE: SAE and JIC look similar but have a different nose cone degree. SAE and JIC are not compatible, and make leak at high pressure if mated. The JIC female has straight threads and a 37° flare seat. The Seal is made on the 37° flare seat. The SAE 45° flare male will mate with an SAE 45° flare female only. The SAE male has straight threads and a 45° flare seat.
