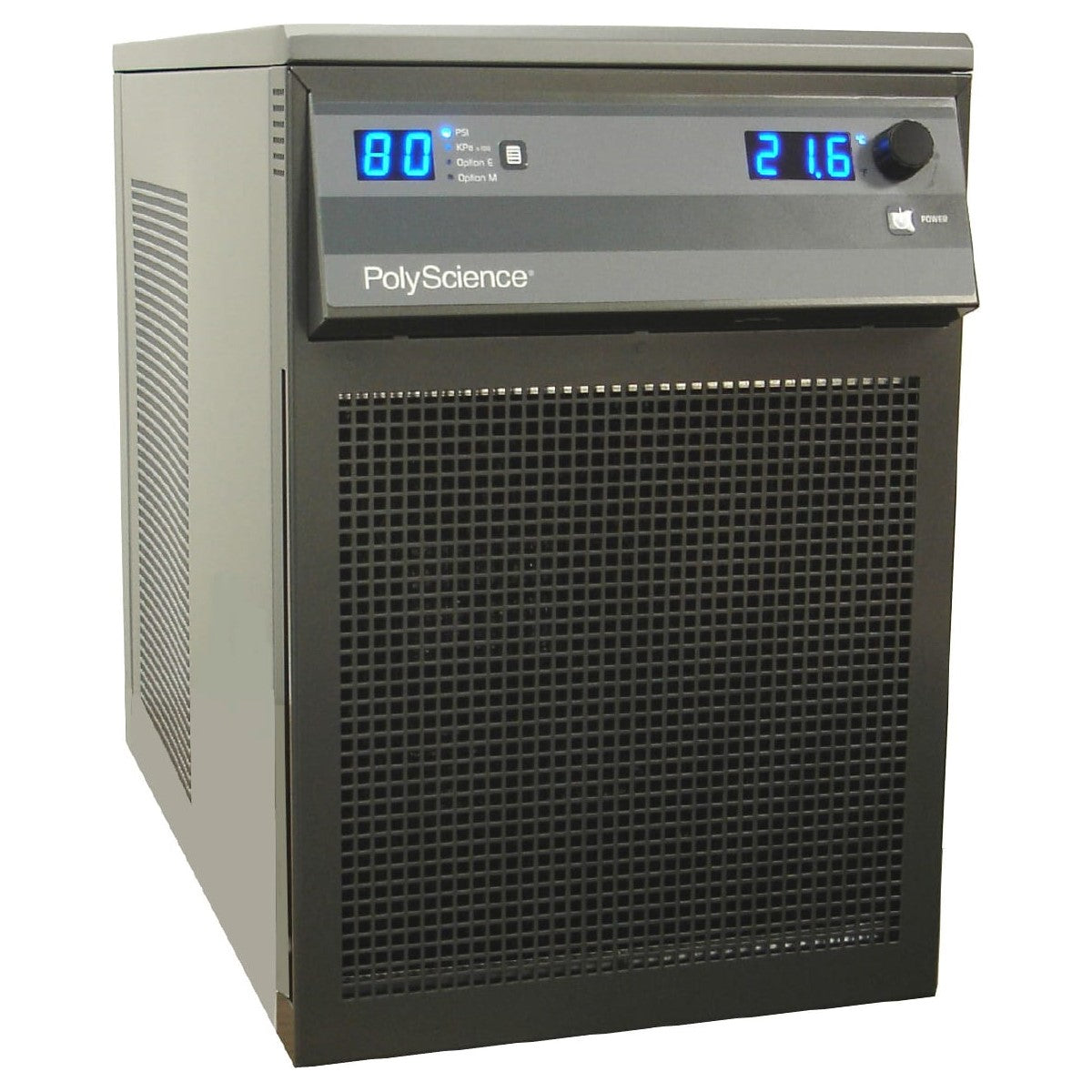

POLYSCIENCE - 1 HP Chiller, Turbine Pump - 220V/60HZ ---10 TO 40°C - 15L
Product Code 6160T21A130D
- Large, dual displays present temperature and pressure or flow rate simultaneously
- Compact, portable design takes up less floor space
- Cooling at ambient temperatures as high as 30°C
- Powerful turbine pump
- Choice of compressor sizes
- User-adjustable temperature, pressure, and flow rate alarms
- External temperature tracking and communications capability (optional)
- Cool Command™, WhisperCool® (3/4 and 1 HP models)
Common Specifications
Working Temperature Range °F |
14° to 104° |
---|---|
Working Temperature Range °C |
-10° to 40° |
Reservoir Capacity (gallons) |
1.11 |
Reservoir Capacity (liters) |
4.2 |
Reservoir Cover |
Screw-on Cap |
Cleanable Air Filter |
Yes |
Cleanable Fluid Filter |
Yes |
Temperature Stability °F |
±0.2° |
Temperature Stability °C |
±0.1° |
Display |
LED |
Pump Type |
Turbine |
Pump Speed |
Constant, Single Speed |
Process Connections |
1/2" (F) NPT |
External Temperature Control Capability |
Optional |
Over-Temperature Protection / Failsafe Heater Control |
Yes |
Reservoir Liquid Level Indicator |
Yes |
WhisperCool Environmental Control Technology |
Yes |
Cool Command Refrigeration Technology |
Yes |
Reservoir Drain |
Yes |
Heater Option |
Yes |
Maximum Ambient Temperature °F |
95° |
Maximum Ambient Temperature °C |
35° |
Overall Dimensions (L x W x H) (inches) |
27.6 x 14.5 x 22.6 in |
Overall Dimensions (L x W x H) (cm) |
70.2 x 36.8 x 57.5 cm |
Compressor Size (HP) |
1 |
Refrigerant |
R134a |
Shipping Weight (pounds) |
199.0 |
Shipping Weight (kilograms) |
90.0 |
Catalog Page Number |
102-103 |
60 Hz Only
Part Number |
6160T21A130D |
---|---|
Maximum Pressure (psi) |
100.0 |
Maximum Pressure (bar) |
6.90 |
Maximum Pressure Flow Rate (gpm) |
3.50 |
Maximum Pressure Flow Rate (l/min) |
13.2 |
Cooling Capacity @ -10°C (W) | 450 |
Cooling Capacity @ -5°C (W) |
725 |
Cooling Capacity @ 0°C (W) | 1000 |
Cooling Capacity @ +10°C (W) | 1925 |
Cooling Capacity @ +20°C (W) |
2900 |
Cooling Capacity @ +30°C (W) | 3103 |
Cooling Capacity @ +40°C (W) | 3196 |
Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT |
Electrical Requirements (VAC/Hz/Ph/A) |
230/60/1/12.2 |
Regulatory Approvals |
TUV |
