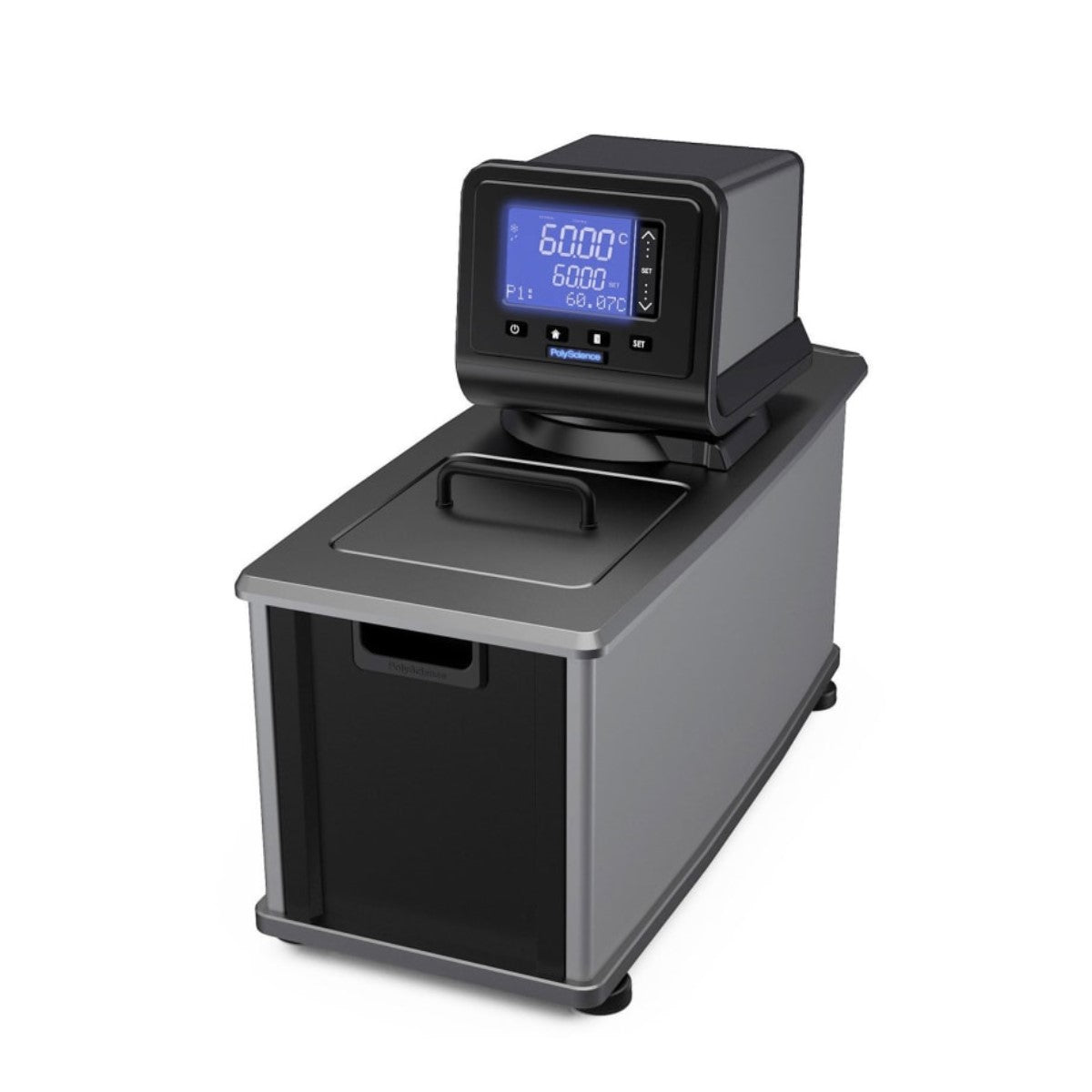

PolyScience AD07H200-A11B Advanced Digital Heated Circulator, 1.6 gal, 120 V/60 Hz

Product Code AD07H200-A11B

AvailabilityIn stock

$3,160.00 $3,000.00
Unit price
Shipping calculated at checkout.
Most Orders Arrive in Four Days or less.
View Shipping Info Below.

PolyScience AD07H200-A11B Offers

The PolyScience AD07H200-A11B Advanced Digital Heated Circulator can work volumes up to 1.8 gal (7 L). The bath is easy to use with its intuitive LCD, touch-pad controls and on-screen prompts. It's made with a stainless-steel reservoir complete with DuraTop and nylon hose adapters.

MANUAL for PolyScience AD07H200-A11B Advanced Digital Heated Circulator

DATASHEET for PolyScience AD07H200-A11B Advanced Digital Heated Circulator


  • Easy-to-use 3.75" (9.5 cm) LCD with touch-pad controls
  • 4 operating languages to choose from: French, German, Spanish and English
  • Swivel 180™ rotating controller for added convenience
  • Maximum pressure rating of 4.3 psi (0.3 bar)
  • On-screen prompts to help guide you
  • Offers automatic performance optimization and specific heat tuning
  • 1-point temperature calibration capability
  • Stainless-steel reservoir with DuraTop, LidDock, drain and cooling coil
  • Powerful pressure/suction pump with variable speed control
  • Provides over-temperature and low liquid level protection


Temperature Control Type

Advanced digital

Power Source

Plug in

Product Weight

42 lbs (19 kg)


ETL, RoHS, WEEE; III (FL) DIN 12876-1

Product Length

19.6" (49.9 cm)

Product Height

16.1" (40.9 cm)

Bath Volume

1.8 gal (7 L)

Connector Type(s)

0.25" (0.64 cm) F NPT; USB-A and B, Ethernet, RS-232/RS-485 and external temperature probe

Power Requirements

120 VAC, 60 Hz, 1 Ph, 10 A

Product Width

8.7" (22.1 cm)

Product Type

Open bath



Working Temperature Range

20 to 392°F (10 to 200°C)

Temperature Stability

±0.02°F (±0.01°C)

Heating Capacity

1,100 W

Pump Flow Rate

Pressure: 5.3 GPM (20.1 LPM); suction: 3.9 GPM (14.7 LPM)

Bath Size

6.18 x 5.59 x 5" (15.7 x 14.2 x 12.7 cm)

Software Compatibility

PolyTemp Viewer, USB driver
