PolyScience MX07R-20-A11B MX Space-Saving 1.85 Gal (7 L) Refrigerated Circulator, 120 V, 60 Hz
PolyScience MX07R-20-A11B MX Space-Saving 1.85 Gal (7 L) Refrigerated Circulator, 120 V, 60 Hz
Couldn't load pickup availability
PolyScience MX07R-20-A11B Offers

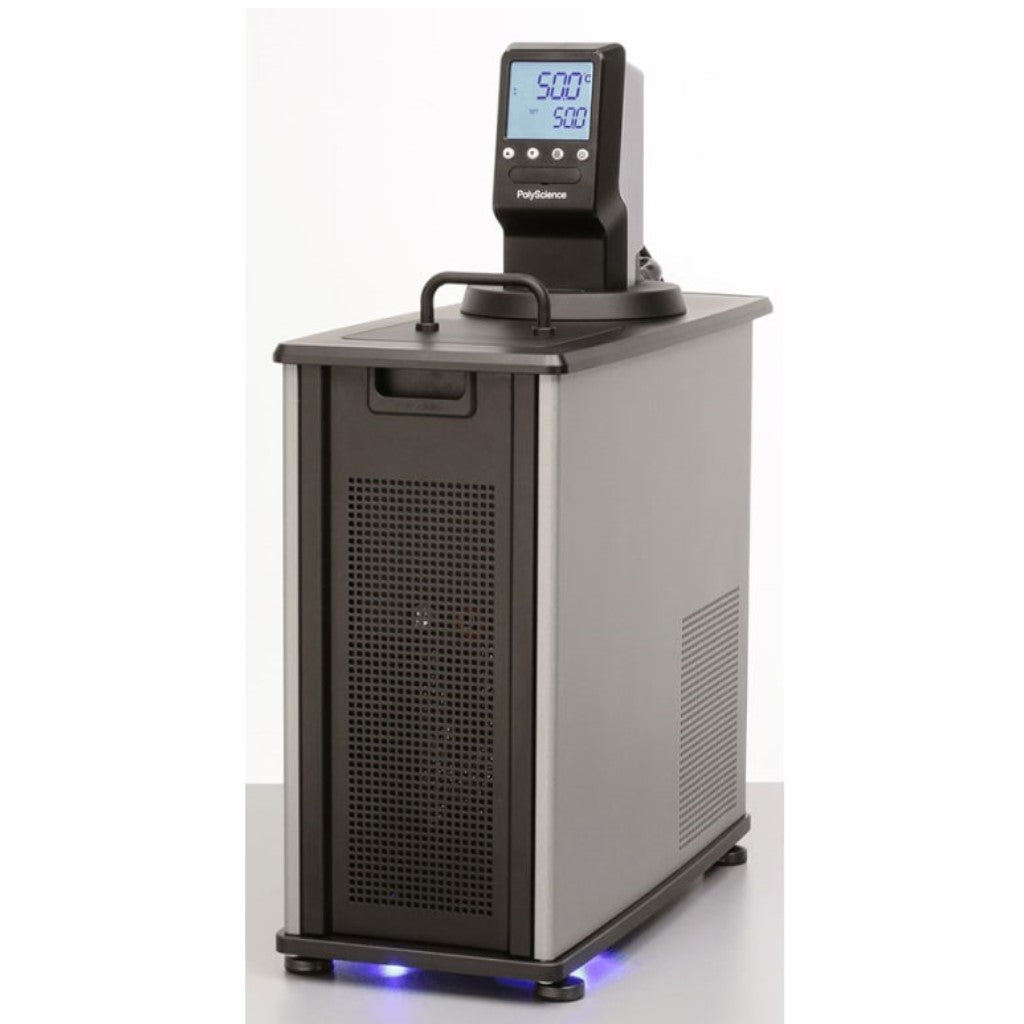

The PolyScience MX07R-20-A11B MX Space-Saving 1.8 gal Refrigerated Circulator offers temperature control for samples in a convenient package. It is designed with single-point calibration to ensure accuracy and features a 1-speed pressure pump. The LCD is easy to view and offers on-screen prompts to help simplify operation.
Manual for PolyScience MX07R-20-A11B 7L Space-Saving Refrigerated Circulator
Datasheet for PolyScience MX07R-20-A11B 7L Space-Saving Refrigerated Circulator
Features
- Made with a space-saving design for convenient use
- Features a large LCD screen with English and universal characters for accessibility
- Designed with a 1-speed pressure pump to suit your needs
- Reservoir cover, DuraTop and LidDock for enhanced protection
- Cleanable air filter prevents contamination
- Provides on-screen prompts for ease of use
- Single-point calibration maintains accuracy
- Stainless-steel construction provides long-lasting durability
- Over-temperature protection, liquid level protection and failsafe heater control protect your chiller from damage
- 2.3 psi (0.16 bar) maximum pressure
Specifications
|
Temperature Control Type |
MX |
|
Product Length |
21.3" (54.1 cm) |
|
Product Height |
24.3" (61.7 cm) |
|
Bath Volume |
1.85 gal (7 L) |
|
Connector Type(s) |
0.5" (12.7 mm) OD barbed tubes |
|
Power Requirements |
120 VAC, 60 Hz, 1 Ph, 12 A |
|
Product Width |
8.7" (22.1 cm) |
|
Product Type |
Refrigerated circulator |
|
Application(s) |
Cooling |
|
Working Temperature Range |
-4 to 275°F (-20 to 135°C) |
|
Temperature Stability |
±0.13°F (0.07°C) |
|
Heating Capacity |
1,100 W |
|
Cooling Capacity |
30 W at -4°F (-20°C); 120 W at 32°F (0°C); 200 W at 68°F (20°C); 200 W at -212°F (100°C) |
|
Pump Flow Rate |
3.6 GPM (13.5 LPM) |
|
Refrigerant Type |
R134a |
|
Product Weight |
84 lbs (38.1 kg) |
|
Approvals |
RoHS, WEEE, ETL, flammability class (DIN 12876-1) I (NFL) |
