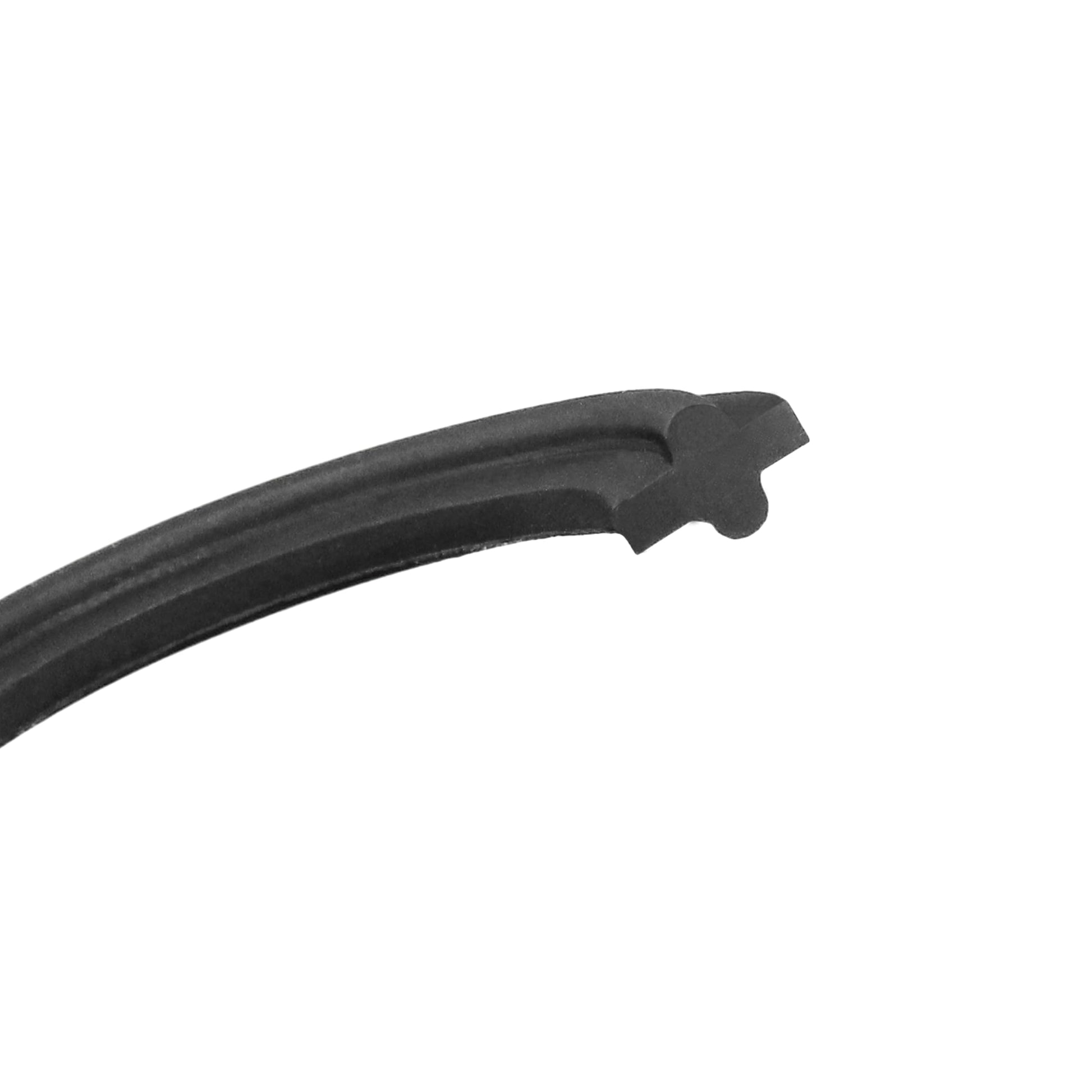

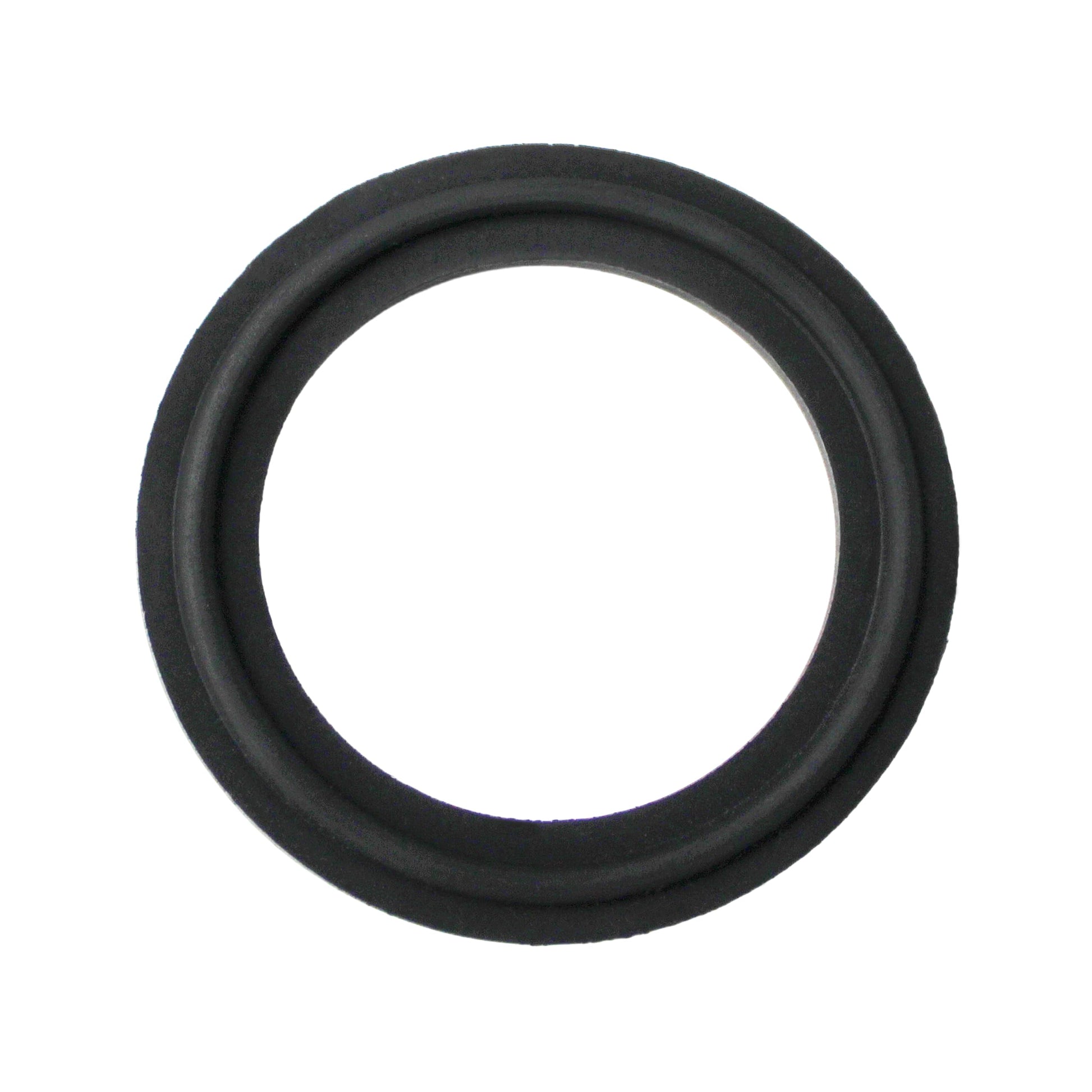

Sanitary Standard Tri Clamp FKM (Viton) Gasket

CLICK HERE TO VIEW THE DATASHEET.

FKM gaskets, also known by their trademark name Viton®, are fluorocarbon rubber gaskets that have excelled resistance to high temperatures, ozone, mineral oil, synthetic fluid, aromatics, and organic solvents and chemicals. They are one of the most commonly used gaskets in extraction due to their solvent resistance and durability. Though not as long lasting as PTFE, they are softer which makes them far easier to seal.

Specification

• Material: Viton/FKM
• Type: Sanitary Gasket
• Connection Type: Tri Clamp
• Connection Size: 1.5'', 2'', 3'', 4'', 6'', 8'', 10'', 12''
• Working Temp.: -40°F~446°F
• Service: Water, gas, and oil and Most solvents and acids that are compatible with Viton.

Feature

[Size]: 1.5'', 2'', 3'', 4'', 6'', 8'', 10'', 12''.

[Quality Materials]: The gasket is made of high quality viton which is durable, stable and corrosive resistance and good for long time using.

[Precise Design]: The viton gasket can be quick connected to tri clamp fittings and easy to replace and install.

[High Working Temp. & Wide Range of Applications]: It can be used for connecting position between the pipes to ensure the pipeline sealing.It is suitable for different media including water, gas, and oil with working at -40°F~446°F.

[Convenient organization and storage]: Packed in a small plastic bag with label. The gasket life depends on the working environment and the frequency of using, Check gasket Regularly for aging, damaged or hardening.
