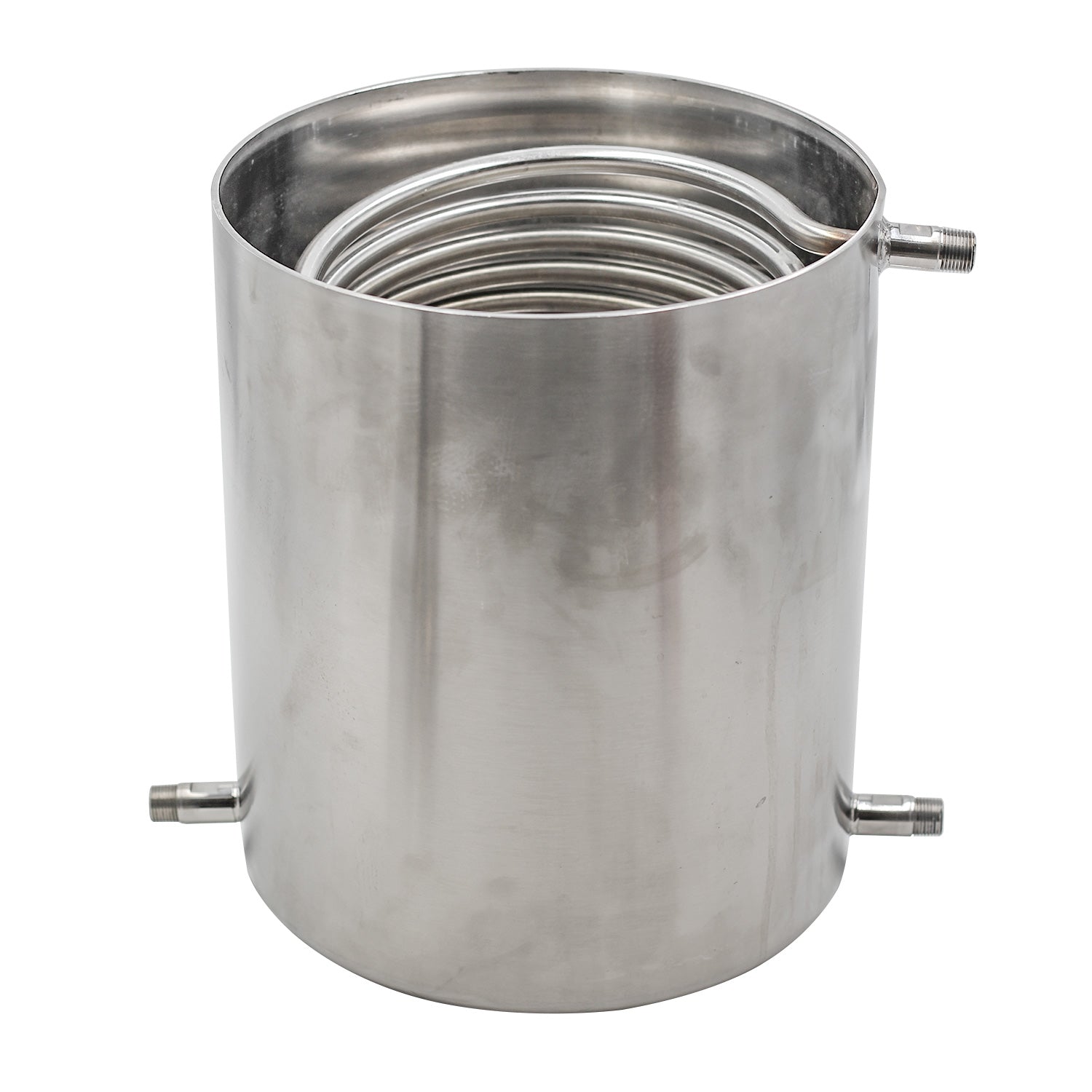

All-In-One Bucket Condensing Coil Tube 1/2" Male NPT

These condensing coils are welded into a stainless bucket for a simple asll-in-one design. Just add dry ice or your favorite cooling agent and you're ready to go. The bucket features a drain spout to easily empy without lifting.

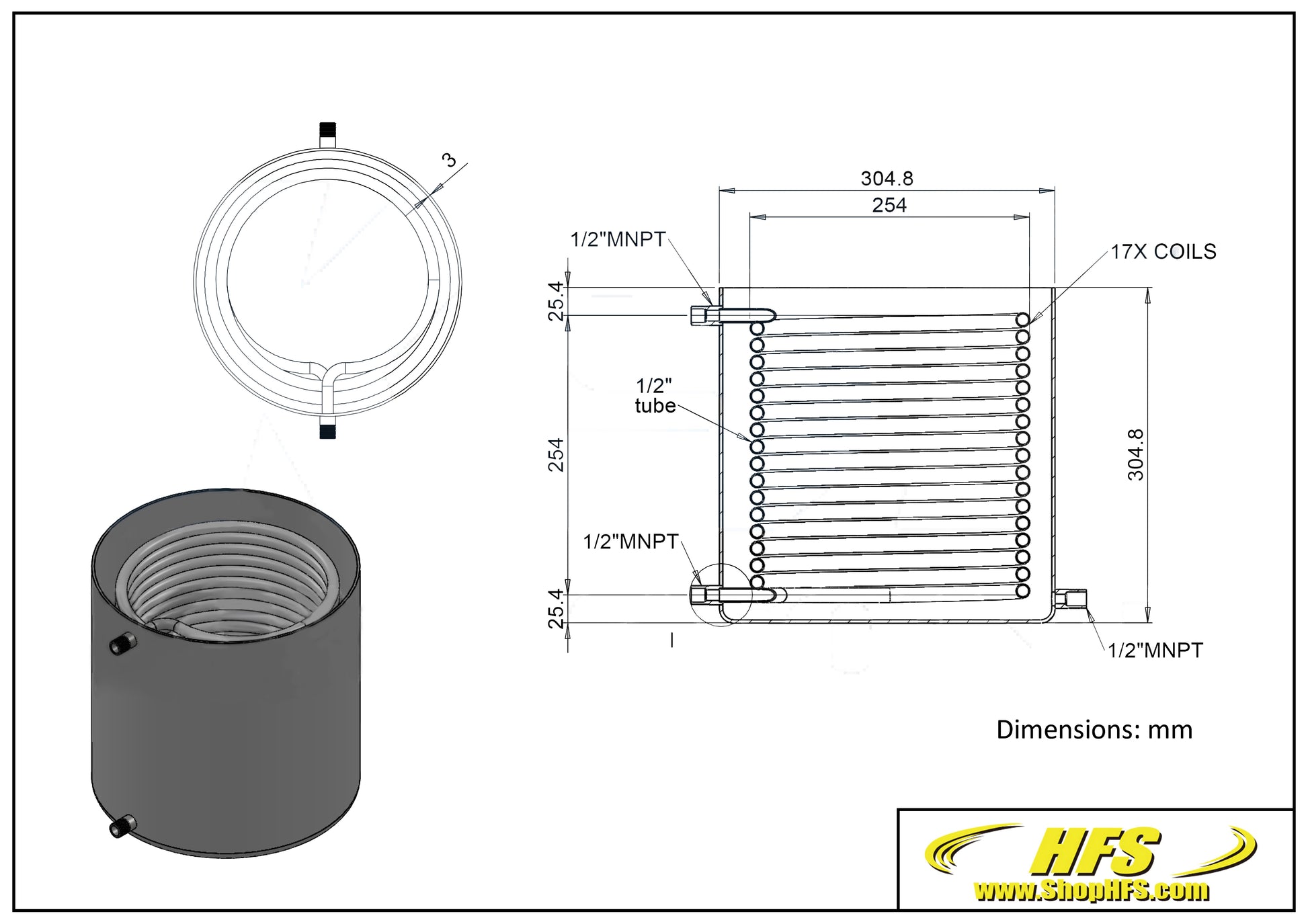

Features: Coil

• Material: Stainless Steel
• Coil Connection (IN): MNPT 1/2
• Vessel Height (IN): 11
• Vessel Diameter (IN): 12
• Vessel Drain (IN): MNPT 1/2
• Coil Footprint Height (IN): 10
• Coil Footprint Diameter (IN): 10
• Coil Count: 17
• Tube ID (IN): 0.375
• Single Coil Length (IN): 31.4
• Overall Coil Length (IN): 533.8
• Max Temp. (F): 250
• Max Pressure (PSI): 100

Specifications: Coil

• Diameter (IN): 0.375
• Height (IN): 533.8
• Radius (IN): 0.1875
• Volume (Cu In): 58.93
• Fluid Capacity (L): 0.96
• Fluid Capacity (Gal): 0.26
• Butane Capacity (LBS): 1.04 - 1.30
• Propane Capacity (LBS): 0.83 - 1.03

Specifications: Vessel

• Diameter (IN): 12
• Height (IN): 11
• Radius (IN): 6
• Volume (Cu In): 1243.44
• Fluid Capacity (L): 20.36
• Fluid Capacity (Gal): 5.39
• Nugget Ice Capacity (LBS): 29.33
