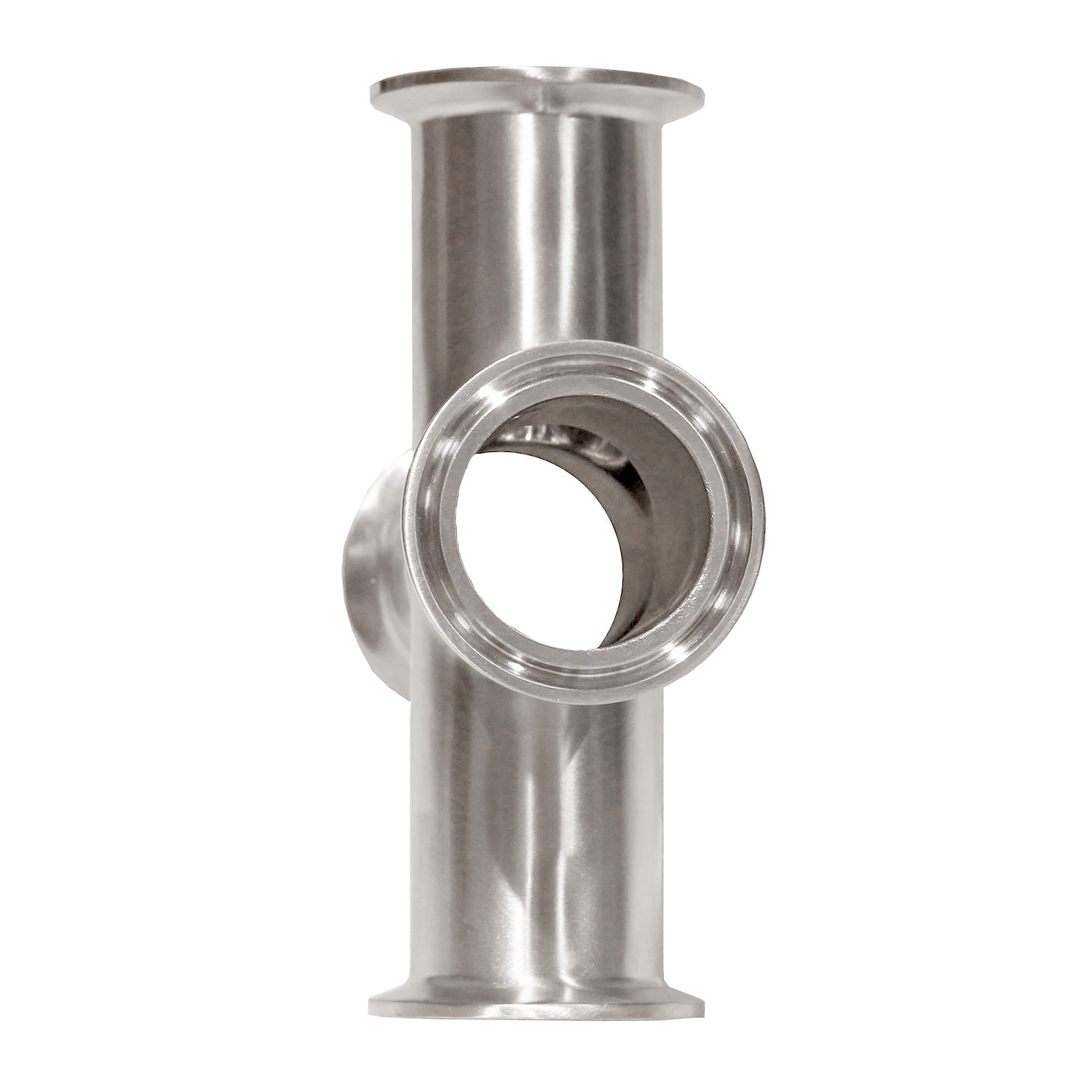

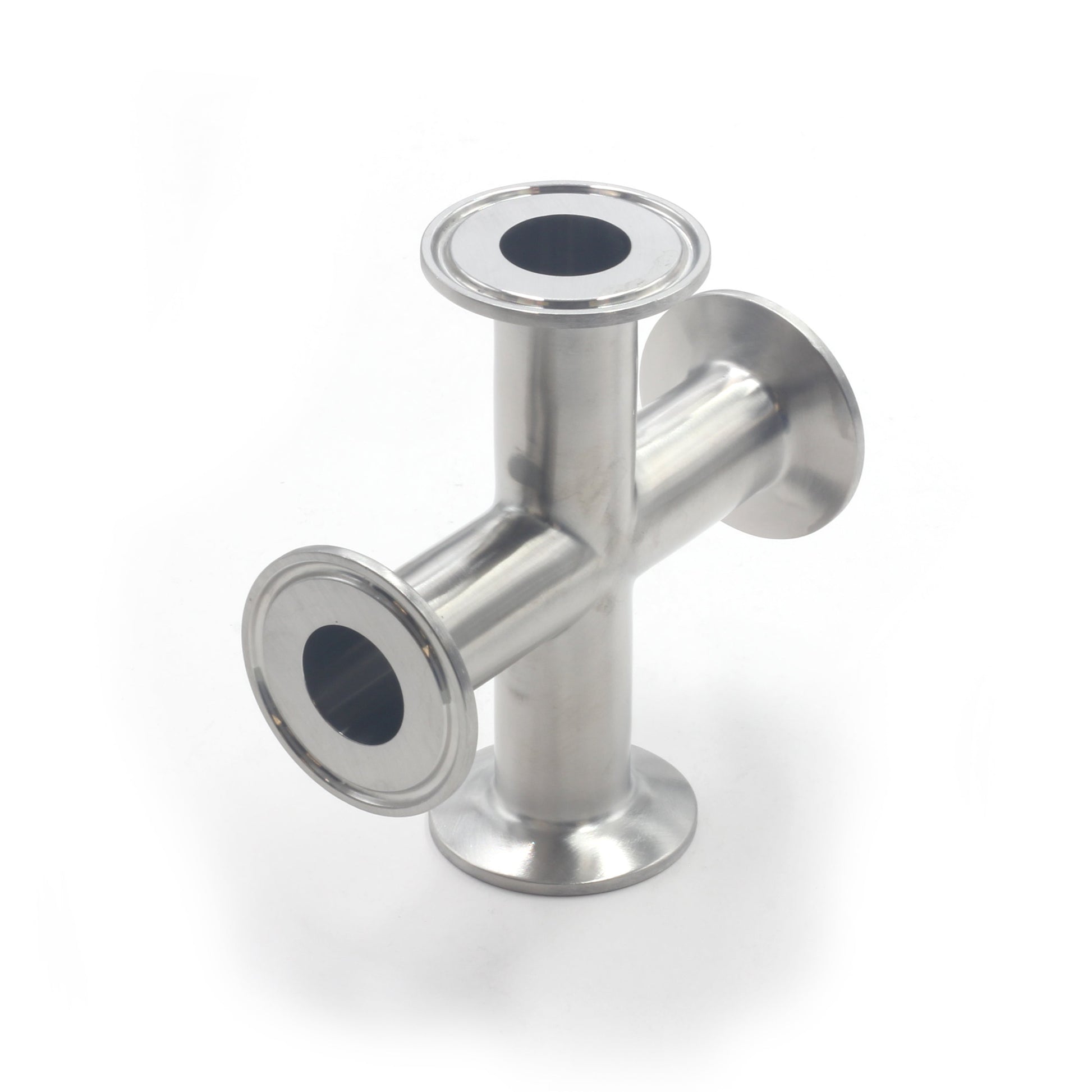

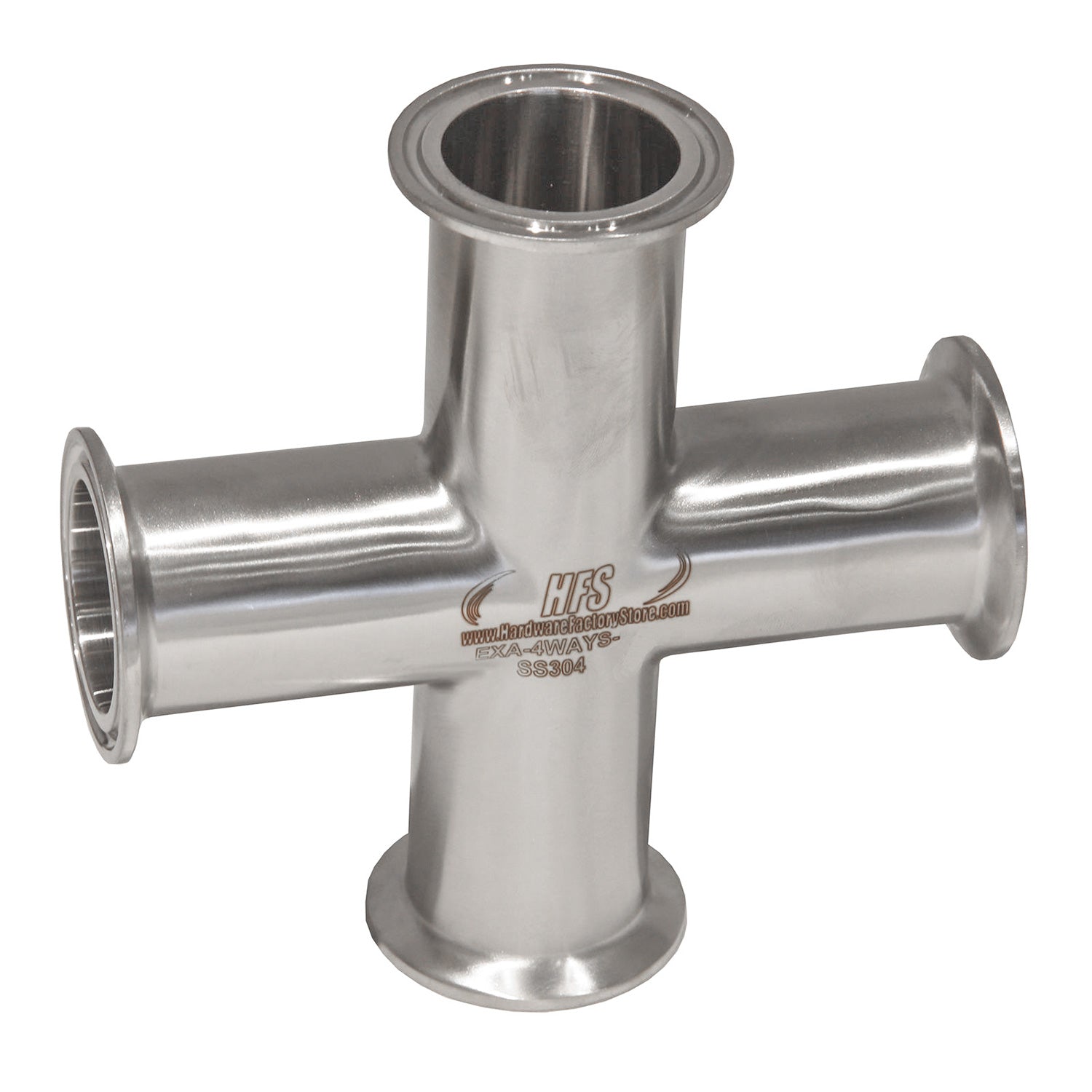

Tri Clamp 4 Way Cross 304 Stainless Steel 304

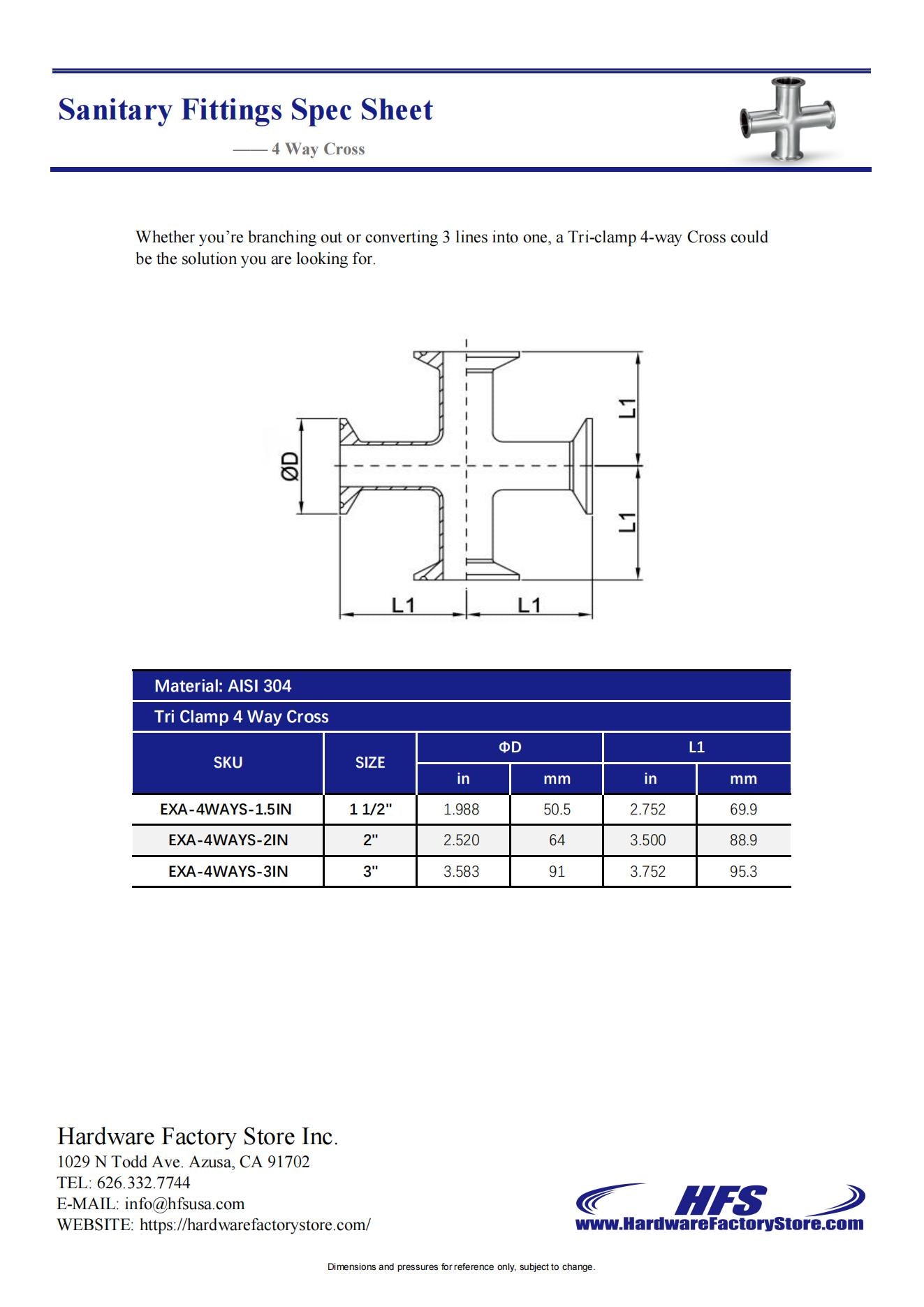

Datasheet for HFS Tri Clamp 4 Way Cross

Whether you’re branching out or converting 3 lines into one, a Tri clamp 4-way Cross could be the solution you are looking for.

Specification

• Connection Type: Tri Clamp
• Connection Size: 1.5", 2", 3"
• Connection Count: 4
• Item Shape: Cross
• Material: Stainless Steel 304
• Working Temp: -67°F~428°F

Feature

[Quality Materials]: The Tri Clamp Cross is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: It can be used for connecting pipe fittings.

[High Working Temp. & Wide Range of Applications]: The CROSS is designed with four openings for connecting and branching four pipes or tubes. It is suitable for different media including water, gas, and oil with working at -67°F~428°F.

[Convenient organization and storage]: Packed in a small plastic bag with label.
