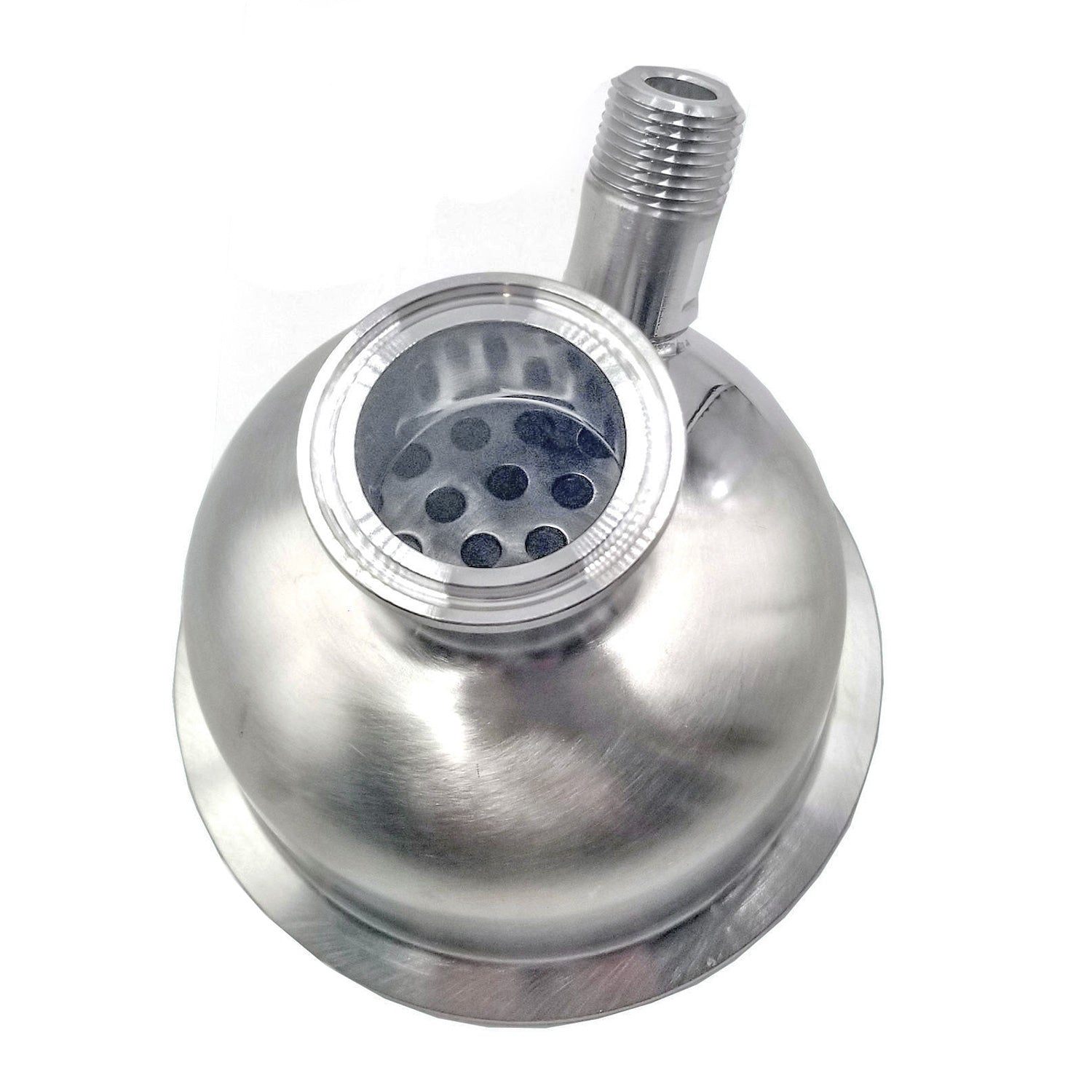

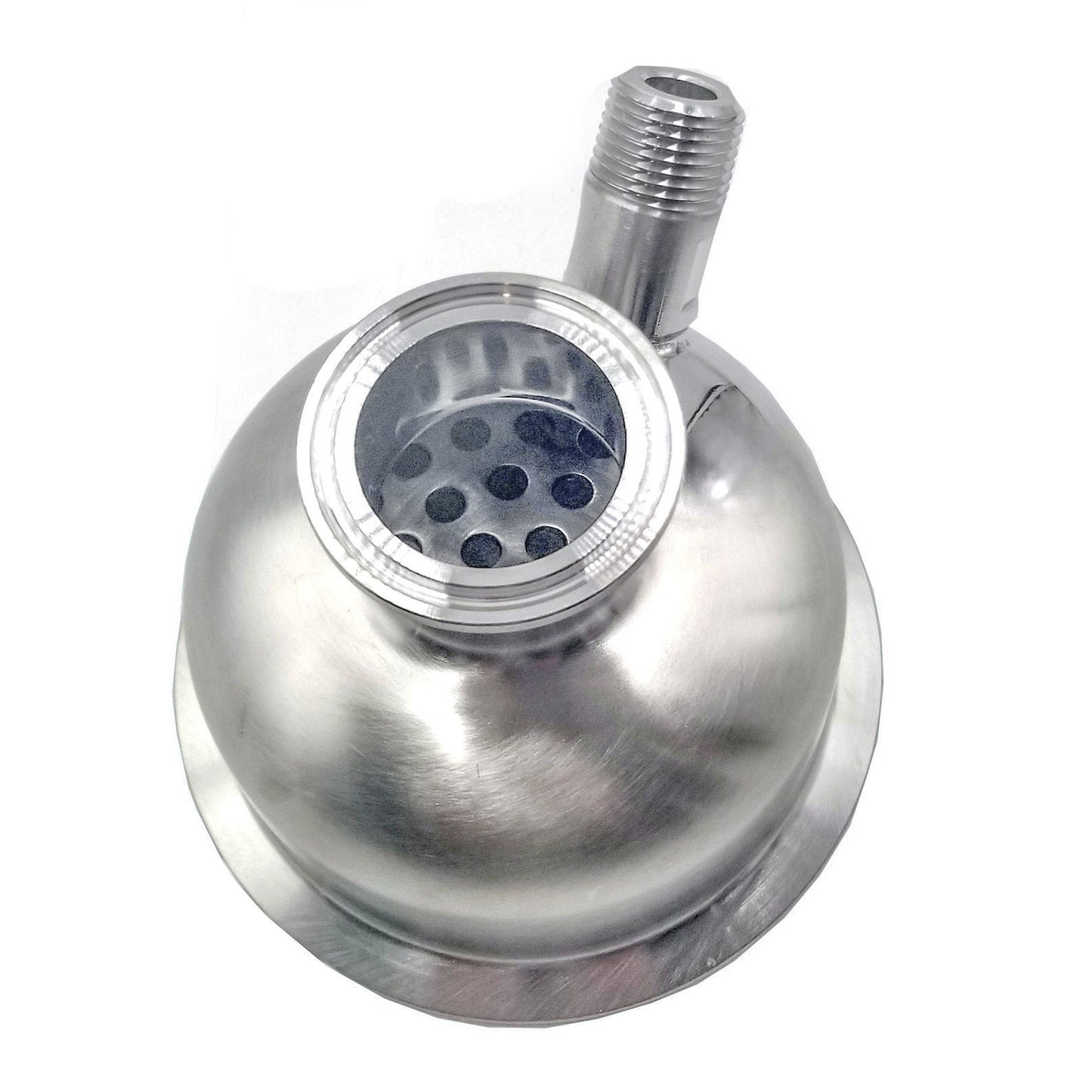

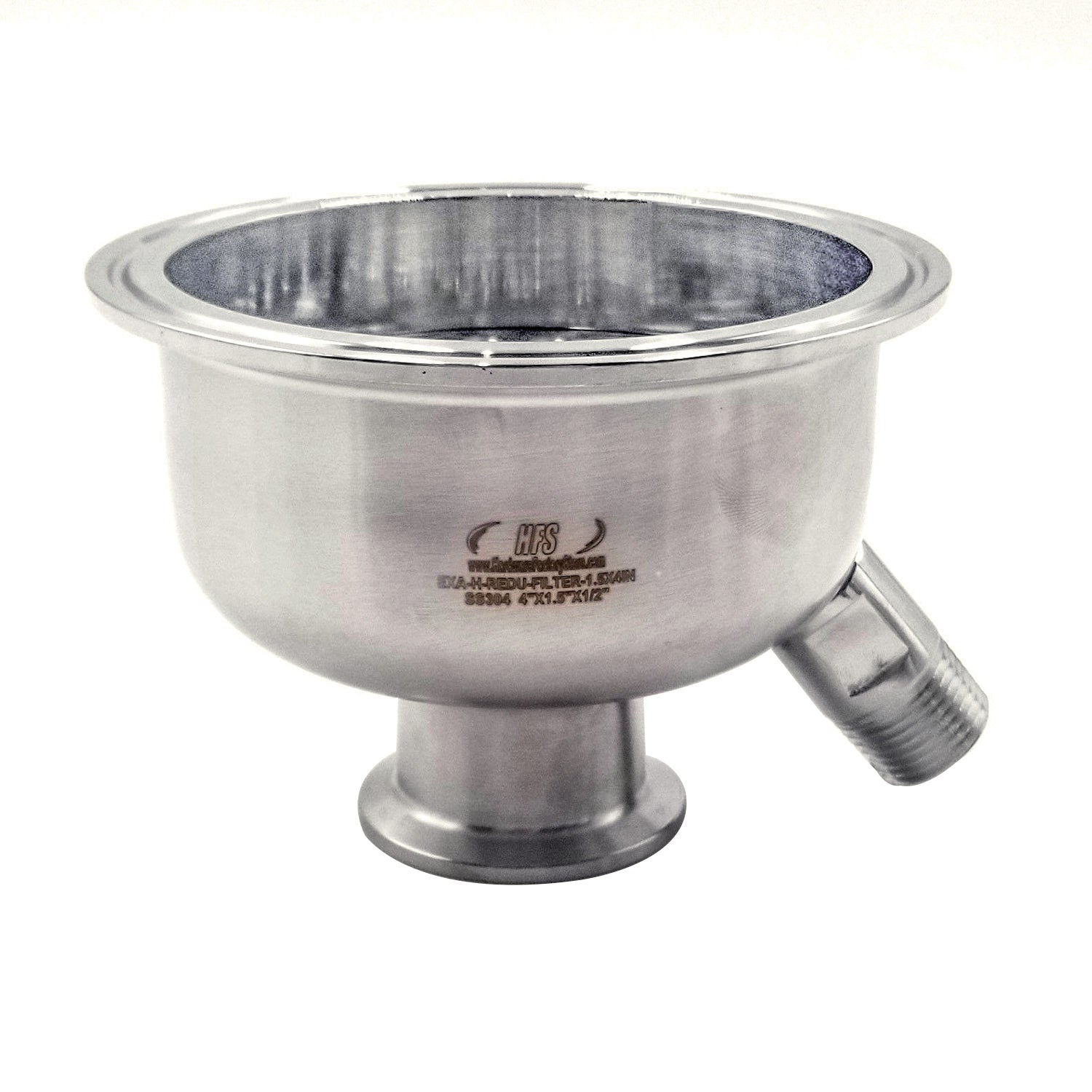

- Product: Tri Clamp Hemispherical Filter Plate Reducer
- Connection Type(s): Tri Clamp, MNPT
- Connection Size: 1.5" to 4"/6", 1/2"
- Material: 304 Stainless Steel
- Working Temp.: 58°F~392°F
- Service: Air, Water, Oil, Most solvents and acids that are compatible with 304SS.
[Size]: Tri Clamp-Tri Clamp, filter plate with 6mm holes,1/2" NPT male.
[Quality Materials]: The Filter Plate is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

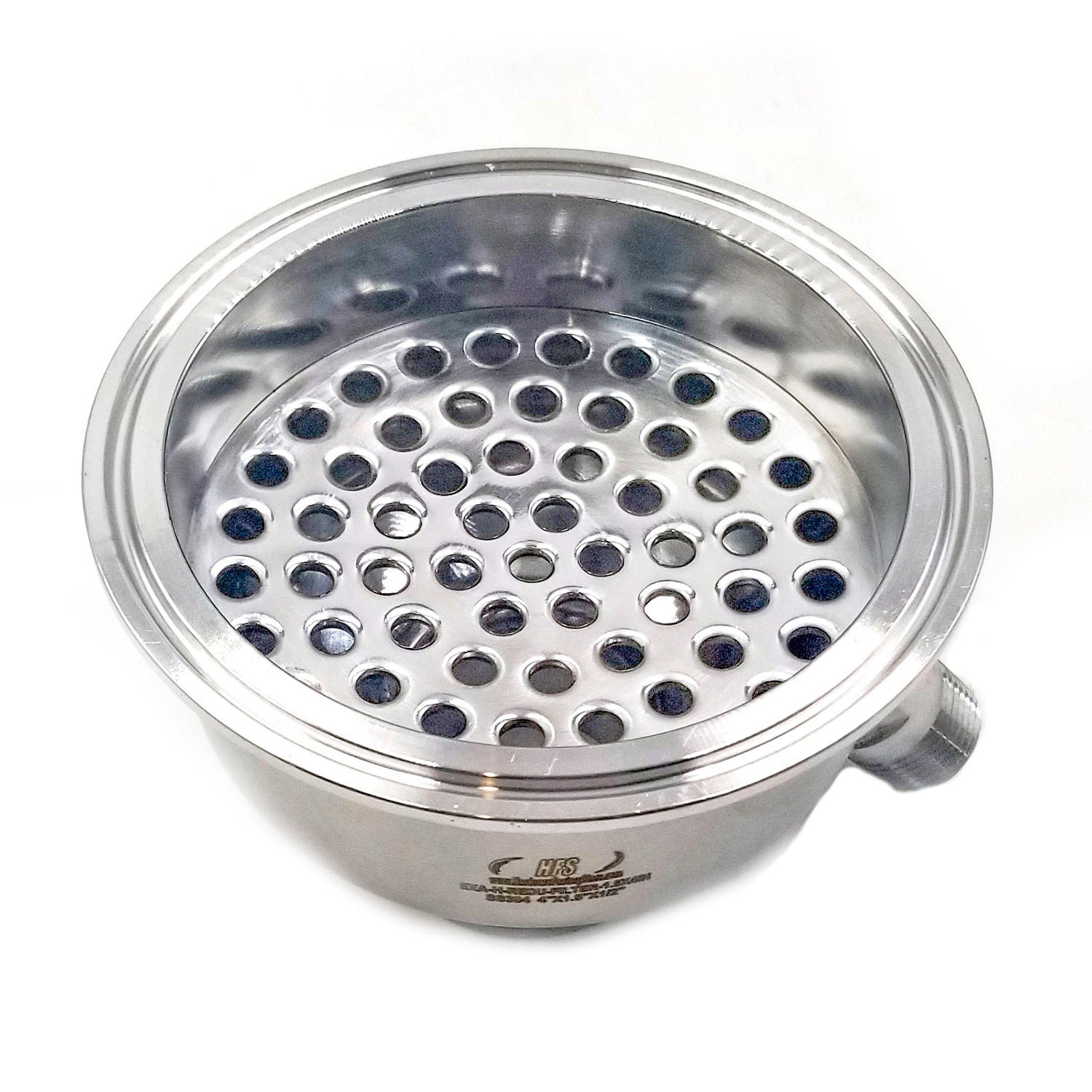

[Precise Design]: The reducer have a rigid surface across the face of the middle, called a perforated plate. This perforated plate has 6mm holes. When filtered sediment accumulates at the face of the screen gasket increasing pressure, the perforated plate holds the gasket in place and prevents any screen displacement and the 1/2 MNPT can be used to connect pipes or fittings.
[High Working Temp. & Wide Range of Applications]: The Filter Plate reducer can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface and filtration level to remove fats, lipids, waxes and other material during the extraction process. It is suitable for different media including water, gas, and oil with working at -58°F~392°F.
[Convenient organization and storage]: Packed in a plastic bag with label.
