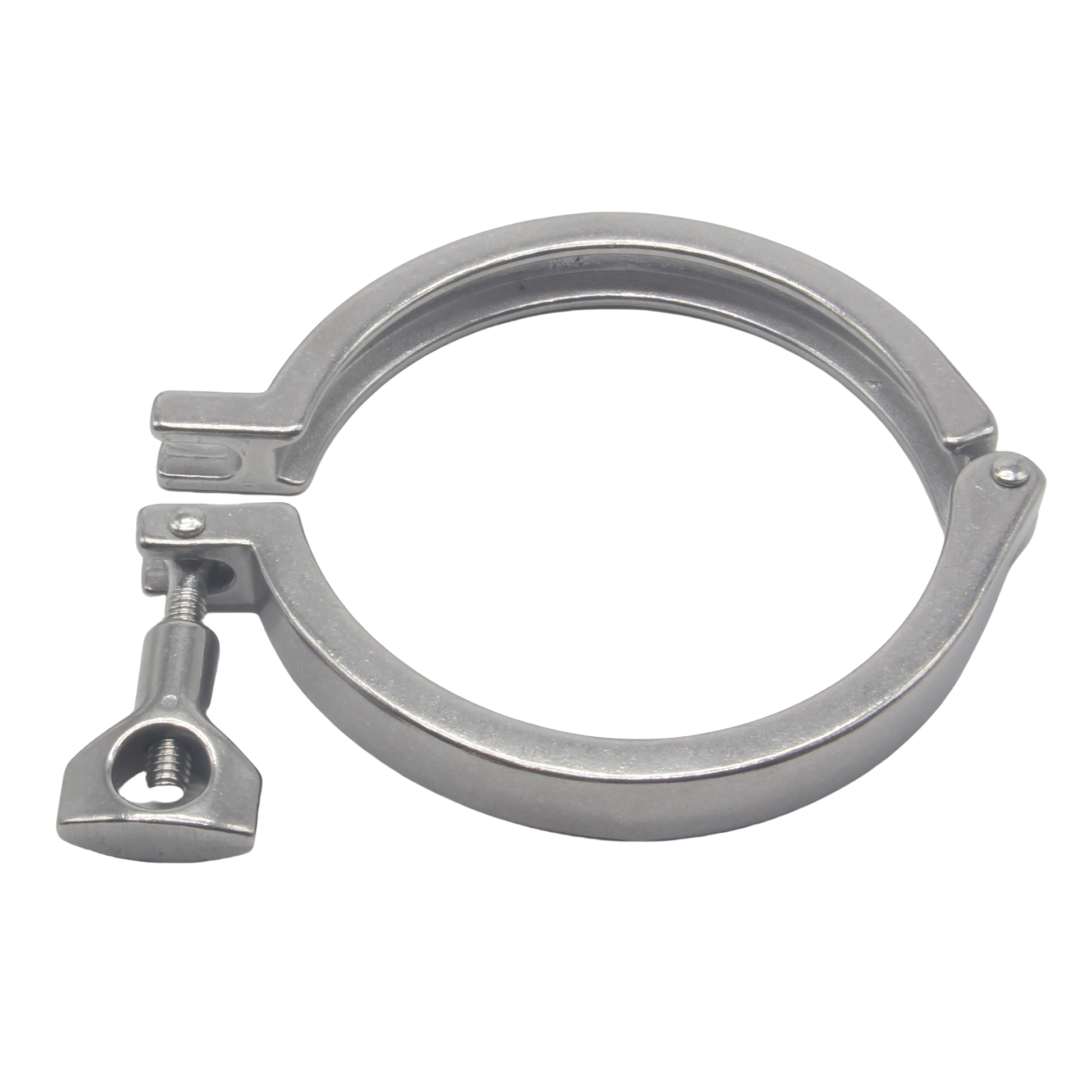

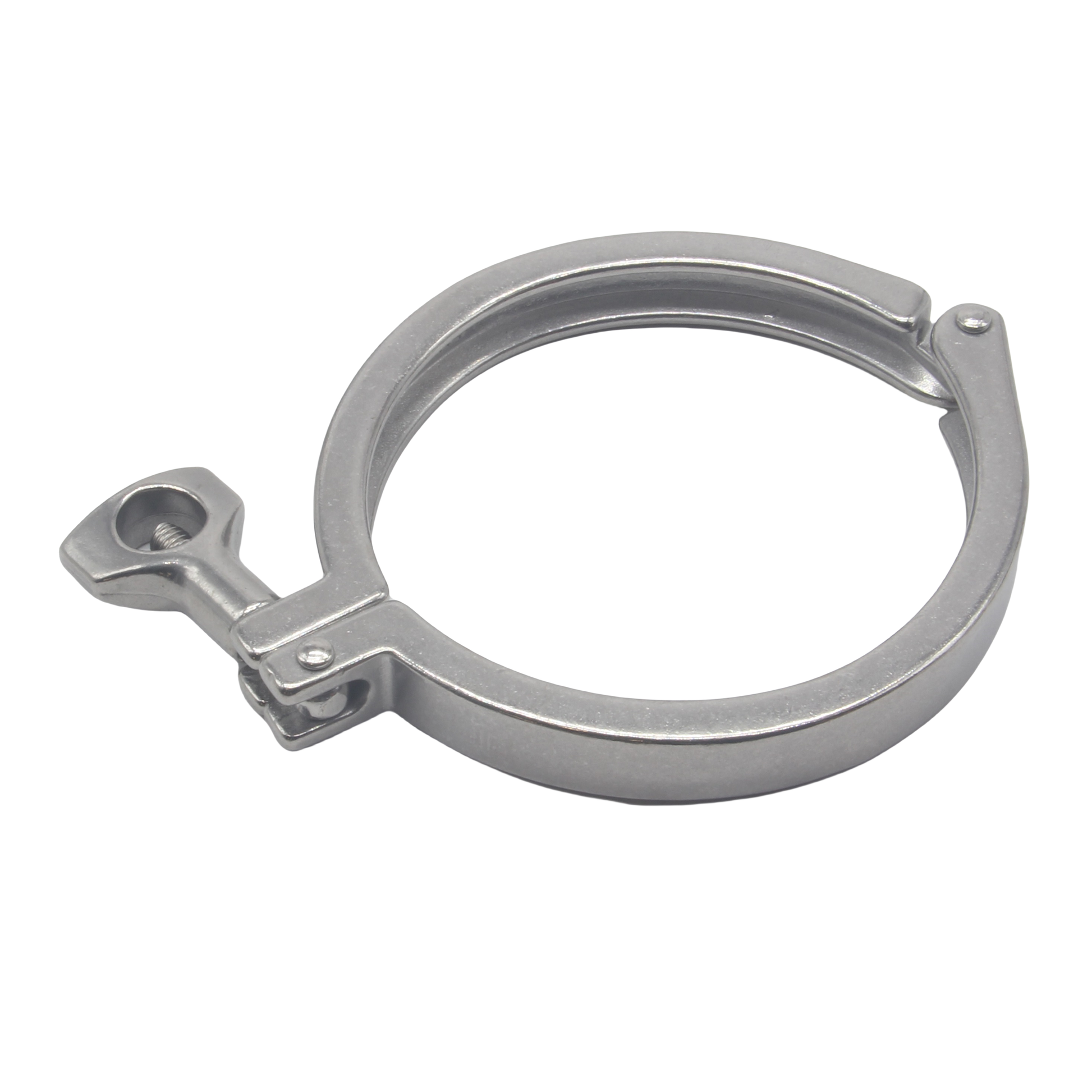

Single Pin Heavy Duty Tri Clamp (13MHH)
Single Pin Heavy Duty Tri Clamp (13MHH)
Couldn't load pickup availability
[Size]: 1.5", 2", 3", 4", 6", 8", 10", 12".
CLICK HERE TO VIEW THE DATASHEET.

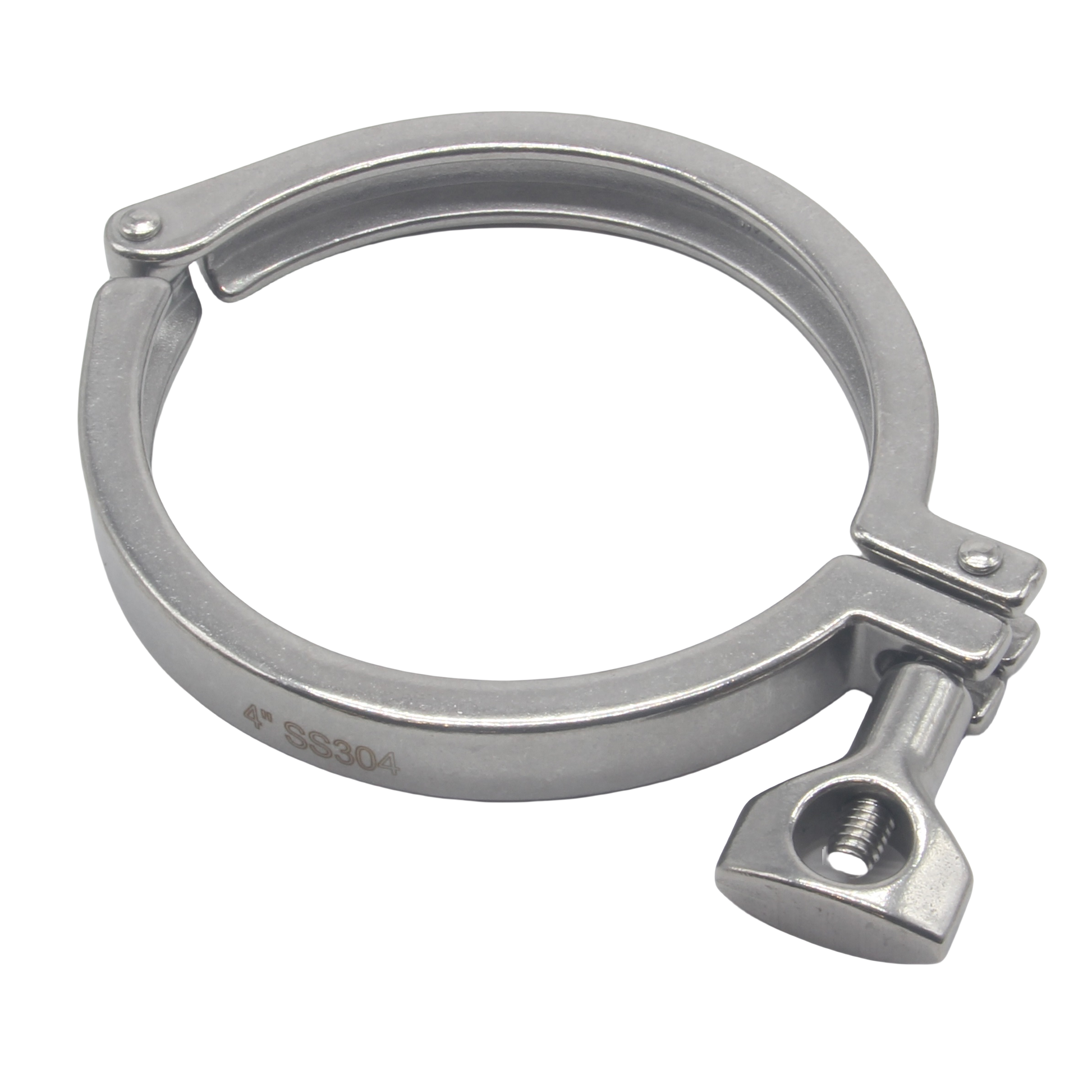

[Quality Materials]: The Clamp is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

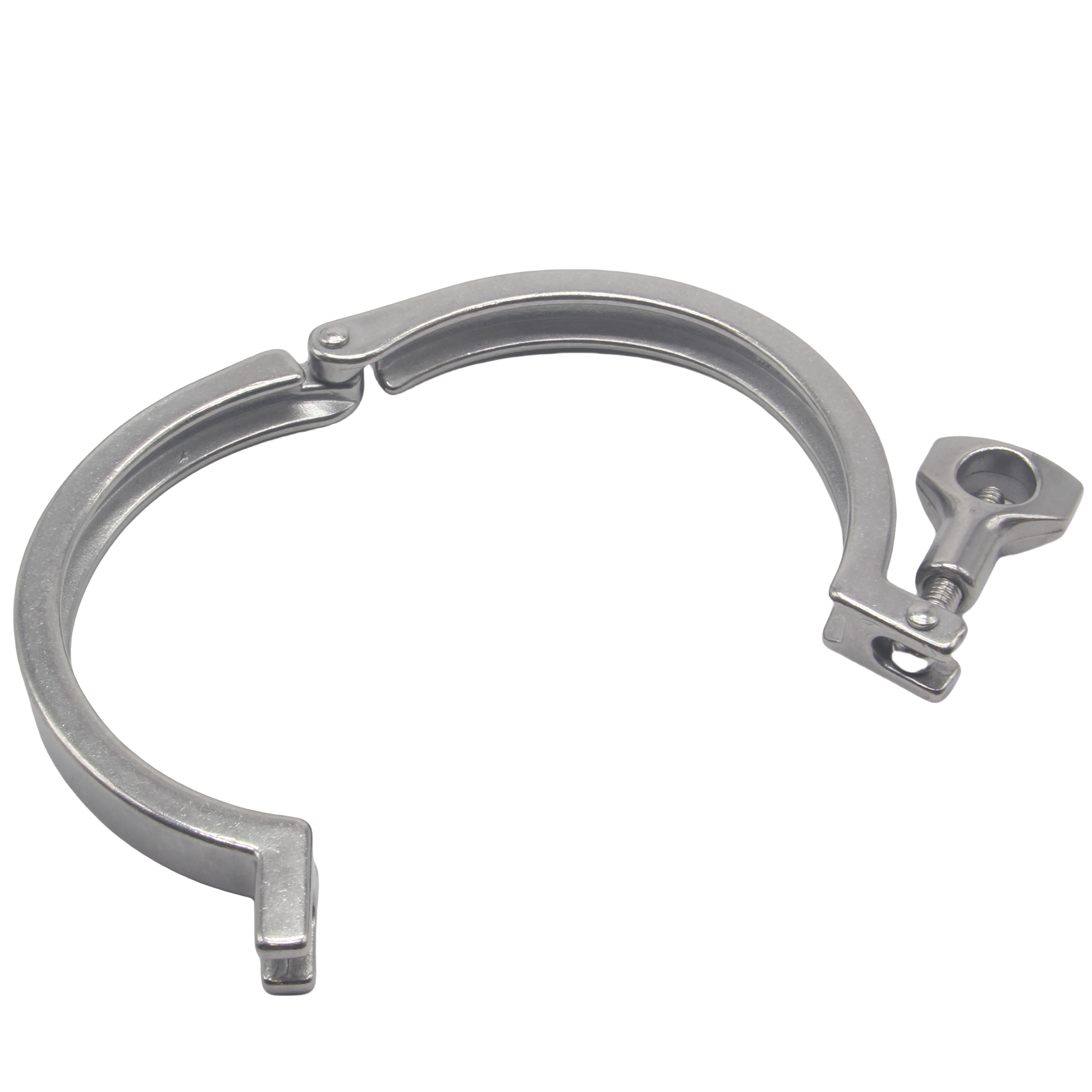

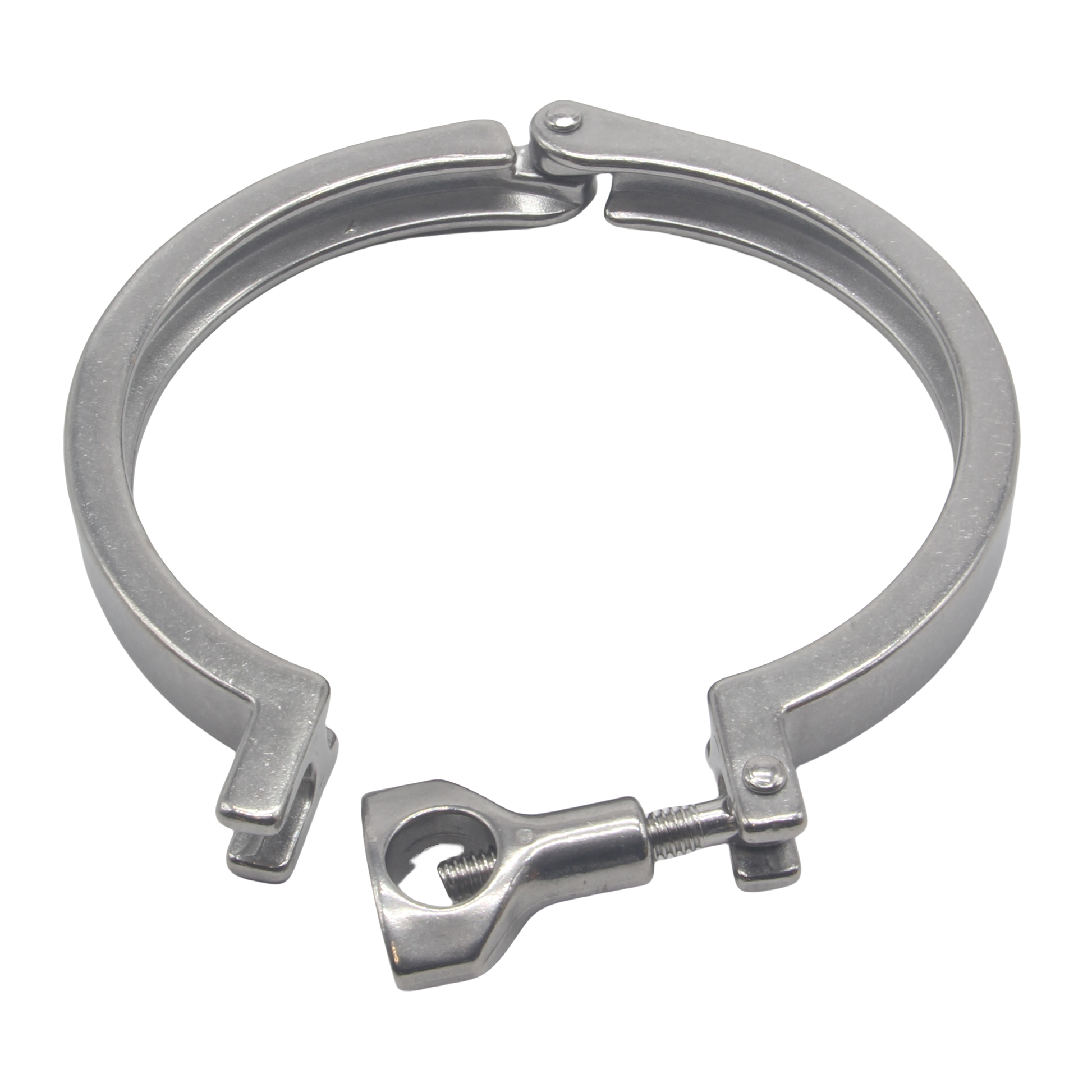

[Precise Design]: The 2-piece hinge design of these sanitary clamps provides the evenly distributed clamping pressure possible while maintaining the ease of use that a wing nut style clamp offers.
[Wide Range of Applications]: It can be used for connecting position between the pipes to make the pipeline easy to install and better ensure the pipeline sealing.
[Convenient organization and storage]: Packed in a small plastic bag with label.
|
SKU |
SIZE |
ΦA |
ΦB |
Max PSI @ 70°F |
Max PSI @ 300°F |
||
|
in |
mm |
in |
mm |
||||
|
EXA-CLAMP-1IN |
1" |
1.748 |
44.4 |
2.110 |
53.6 |
435 |
218 |
|
EXA-CLAMP-1.5IN |
1 1/2" |
1.748 |
44.4 |
2.110 |
53.6 |
435 |
218 |
|
EXA-CLAMP-2IN |
2" |
2.276 |
57.8 |
2.678 |
67 |
435 |
218 |
|
EXA-CLAMP-2.5IN |
2.5" |
2.811 |
71.4 |
3.173 |
80.6 |
392 |
196 |
|
EXA-CLAMP-3IN |
3" |
3.307 |
84 |
3.708 |
94.2 |
392 |
196 |
|
EXA-CLAMP-3.5IN |
3 1/2" |
3.896 |
99 |
4.299 |
109.2 |
363 |
181 |
|
EXA-CLAMP-4IN |
4" |
4.331 |
110 |
4.811 |
122.2 |
363 |
181 |
|
EXA-CLAMP-6IN |
6" |
6.118 |
155.4 |
6.709 |
170.4 |
348 |
174 |
|
EXA-CLAMP-8IN |
8" |
8.071 |
205 |
8.661 |
220 |
290 |
145 |
|
EXA-CLAMP-10IN |
10" |
10.157 |
258 |
10.709 |
272 |
232 |
116 |
|
EXA-CLAMP-12IN |
12" |
12.087 |
307 |
12.717 |
323 |
174 |
87 |
|
Dimensions and pressures for reference only, subject to change. |
|||||||
