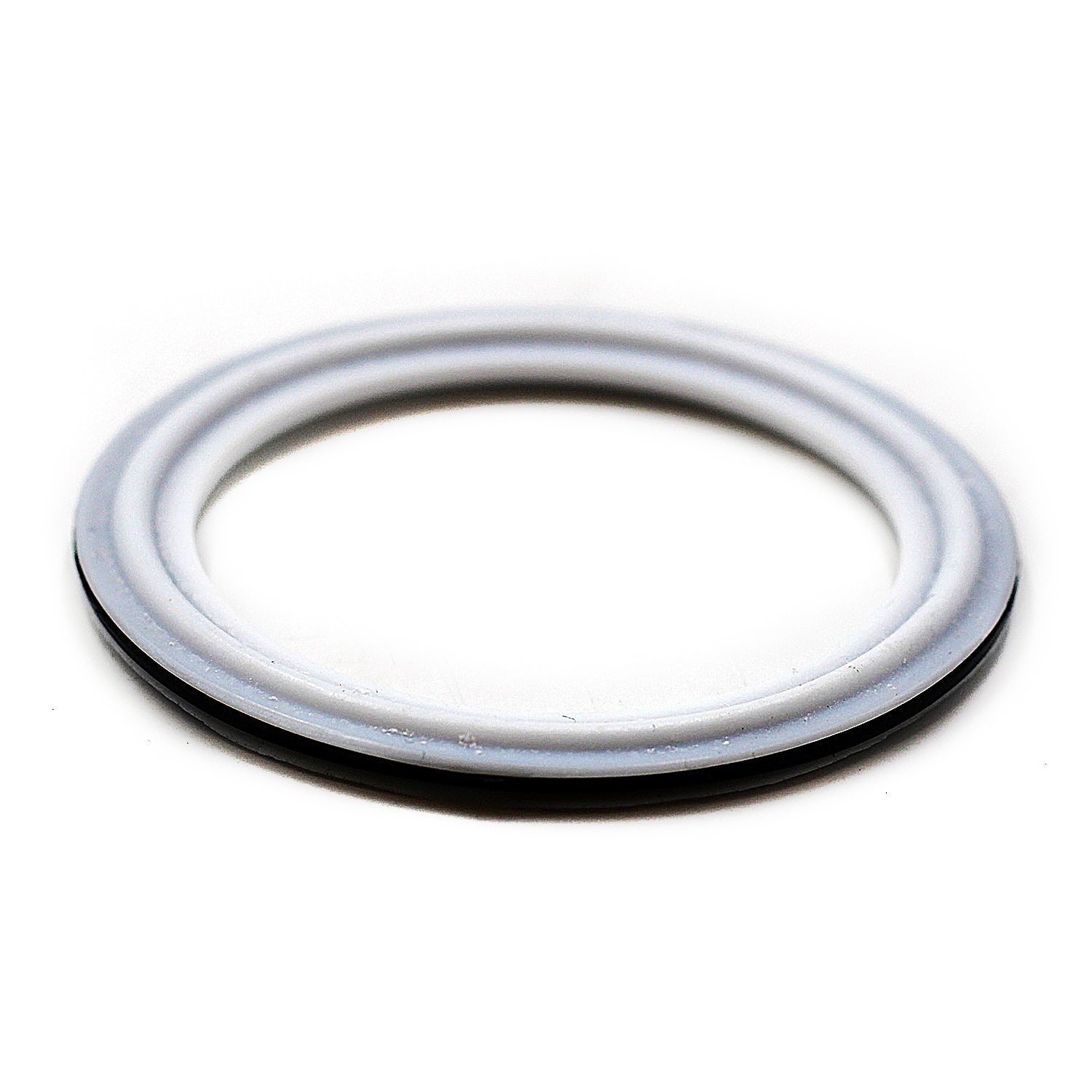

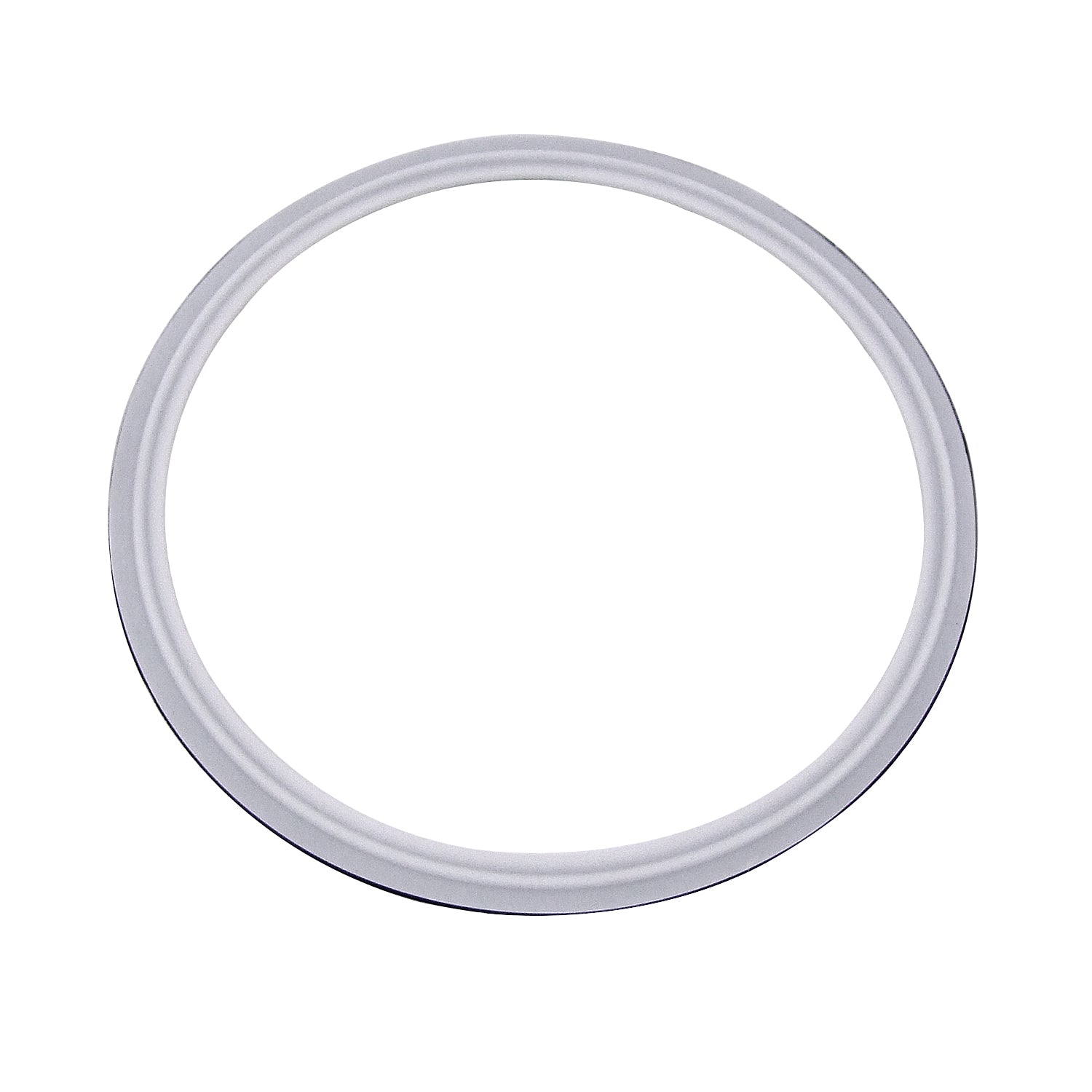

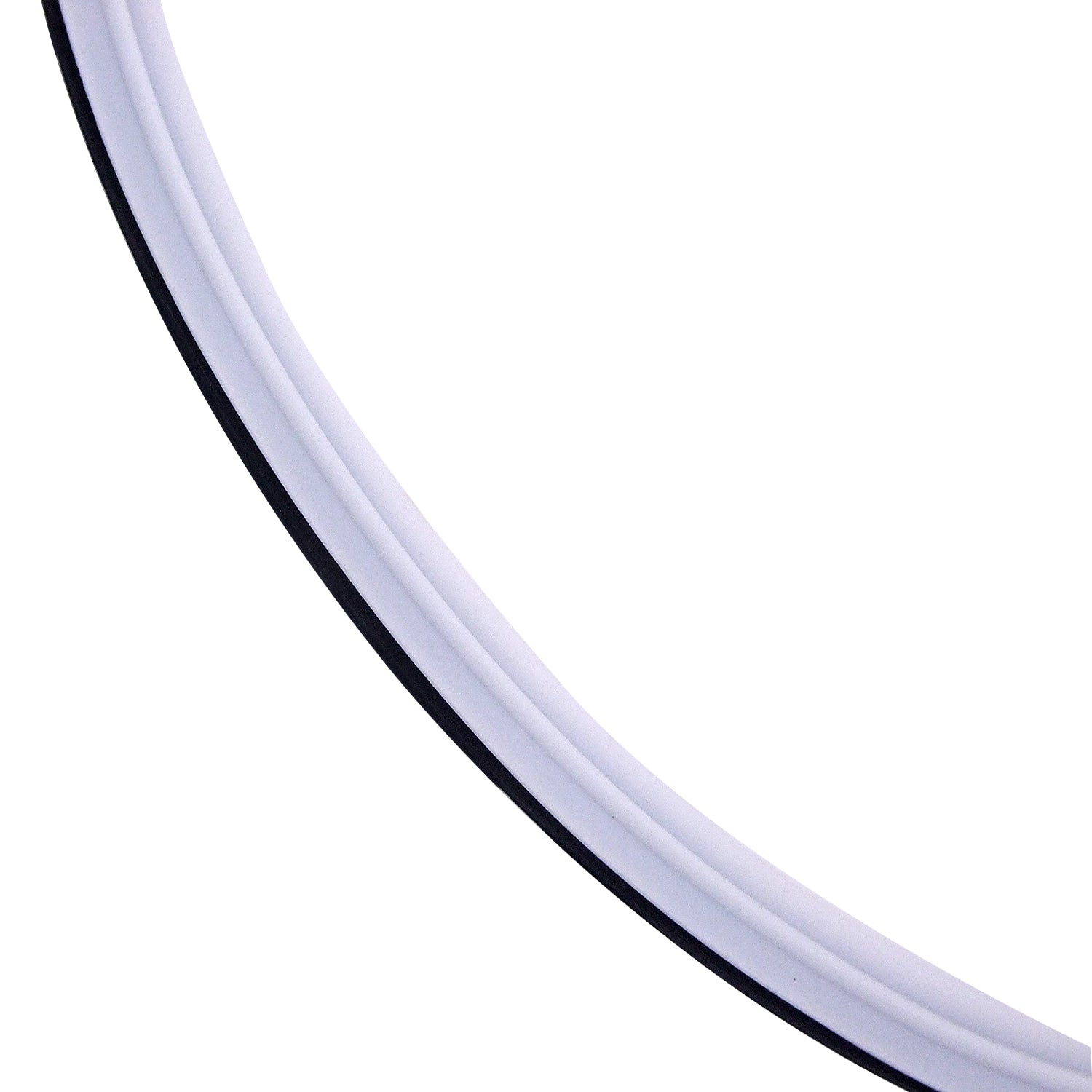

PTFE Envelope Tri Clamp Gaskets w/ Viton Filler
PTFE Envelope Tri Clamp Gaskets w/ Viton Filler
Couldn't load pickup availability
[Size]: 1.5'', 2'', 3'', 4'', 6'', 8'', 10'', 12''.
CLICK HERE TO VIEW THE DATASHEET.
[Quality Materials]: The PTFE Envelope Tri Clamp Gaskets is made of high quality viton with white PTFE covered which is durable, stable and corrosive resistance and good for long time using.
[Precise Design]: The PTFE Envelope Gasket with FKM Filler can be quick connected to tri clamp fittings and easy to replace and install.
[Wide Range of Applications]: It can be used for connecting position between the pipes to ensure the pipeline sealing.It is suitable for different media including water, gas, and oil with working at -4°F~356°F.
[Convenient organization and storage]: Packed in a small plastic bag with label.
|
SKU |
SIZE |
ØA |
ØB |
C |
|||
|
in |
mm |
in |
mm |
in |
mm |
||
|
EXA-GASKET-VP-1.5IN |
1 1/2" |
1.988 |
50.5 |
1.378 |
35 |
0.205 |
5.2 |
|
EXA-GASKET-VP-2IN |
2" |
2.520 |
64 |
1.890 |
48 |
0.205 |
5.2 |
|
EXA-GASKET-VP-3IN |
3" |
3.583 |
91 |
2.835 |
72 |
0.205 |
5.2 |
|
EXA-GASKET-VP-4IN |
4" |
4.685 |
119 |
3.858 |
98 |
0.205 |
5.2 |
|
EXA-GASKET-VP-6IN |
6" |
6.575 |
167 |
5.827 |
148 |
0.205 |
5.2 |
|
EXA-GASKET-VP-8IN |
8" |
8.543 |
217 |
7.874 |
200 |
0.205 |
5.2 |
|
EXA-GASKET-VP-10IN |
10" |
10.551 |
268 |
9.764 |
248 |
0.205 |
5.2 |
|
EXA-GASKET-VP-12IN |
12" |
12.559 |
319 |
11.732 |
298 |
0.205 |
5.2 |
|
Dimensions and pressures for reference only, subject to change. |
|||||||
