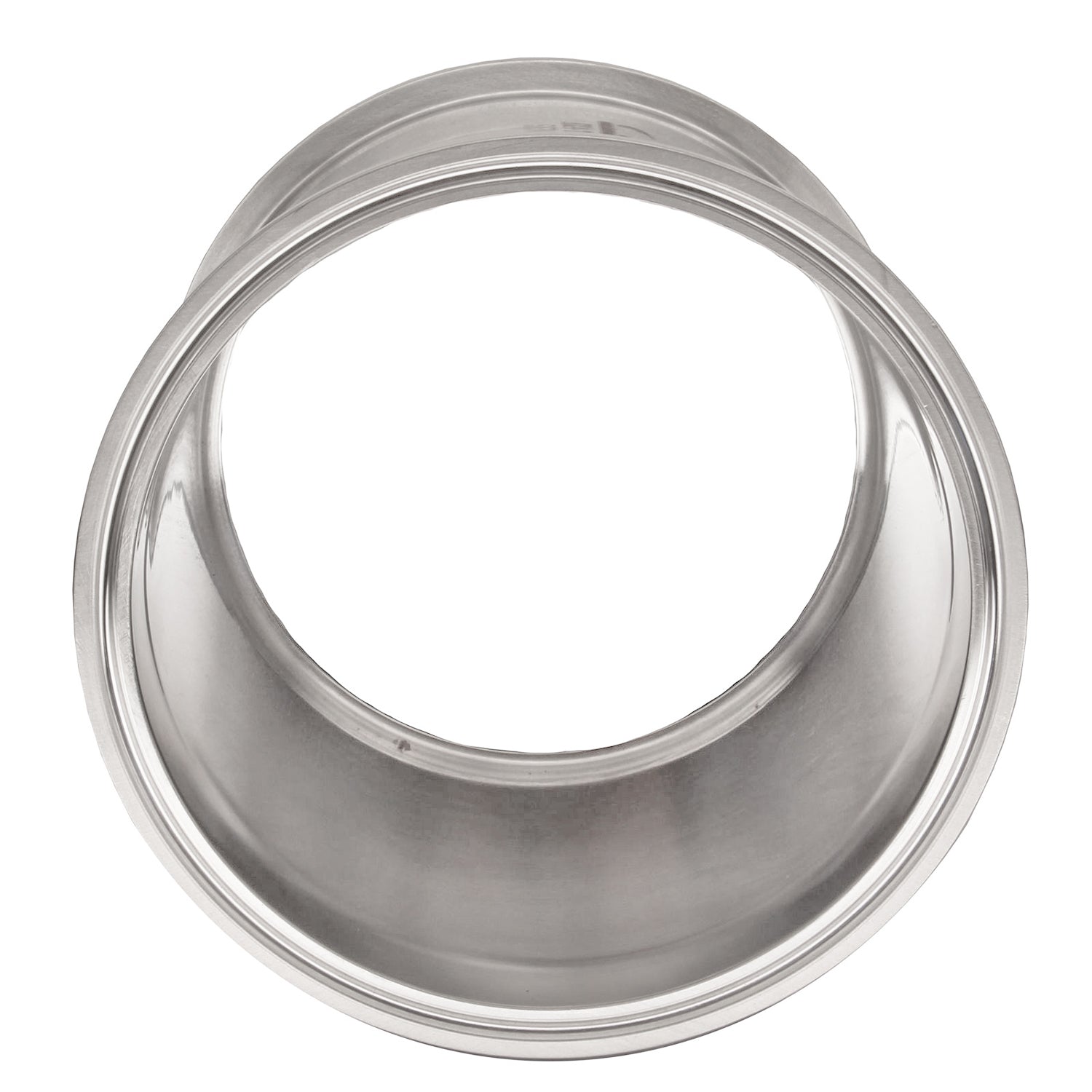

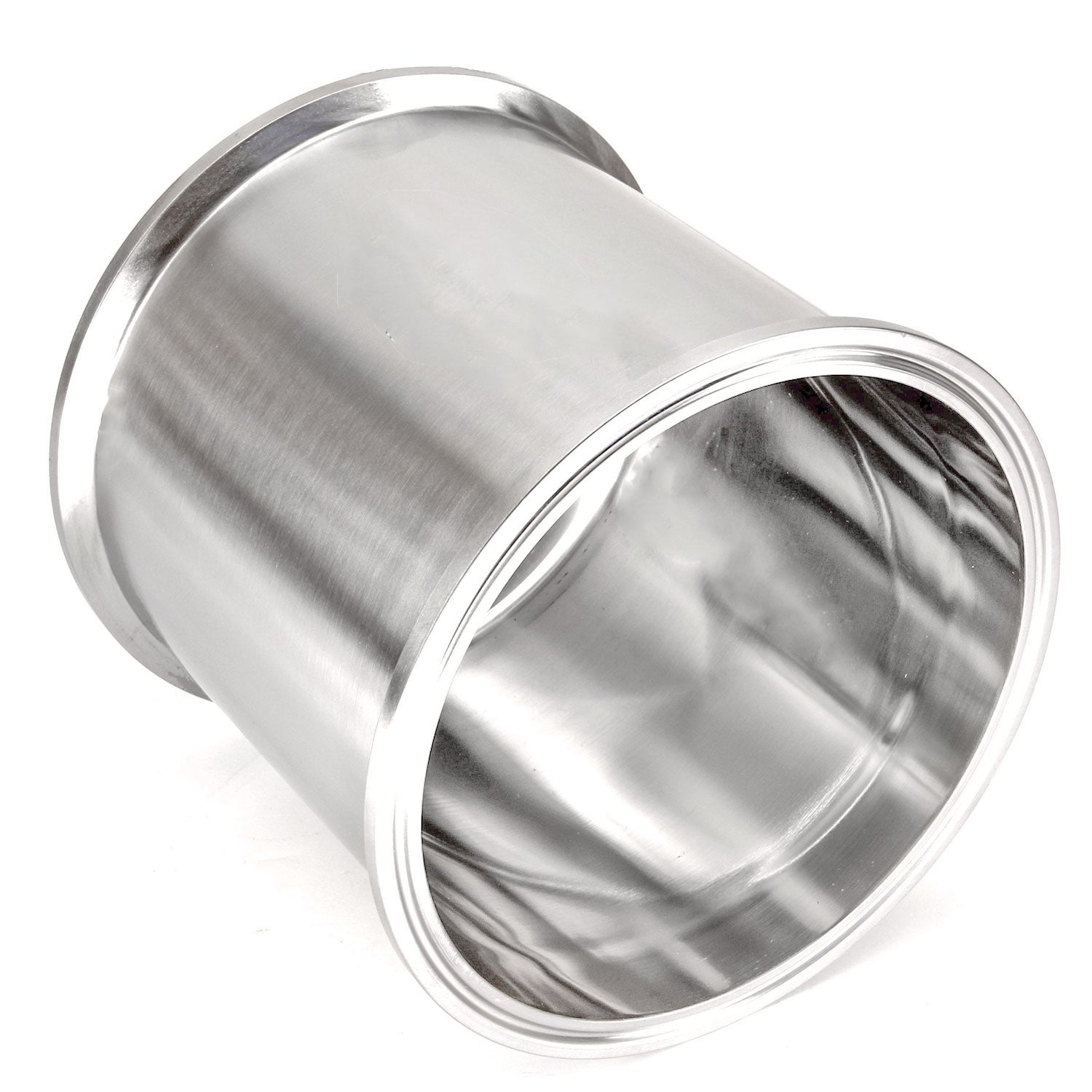

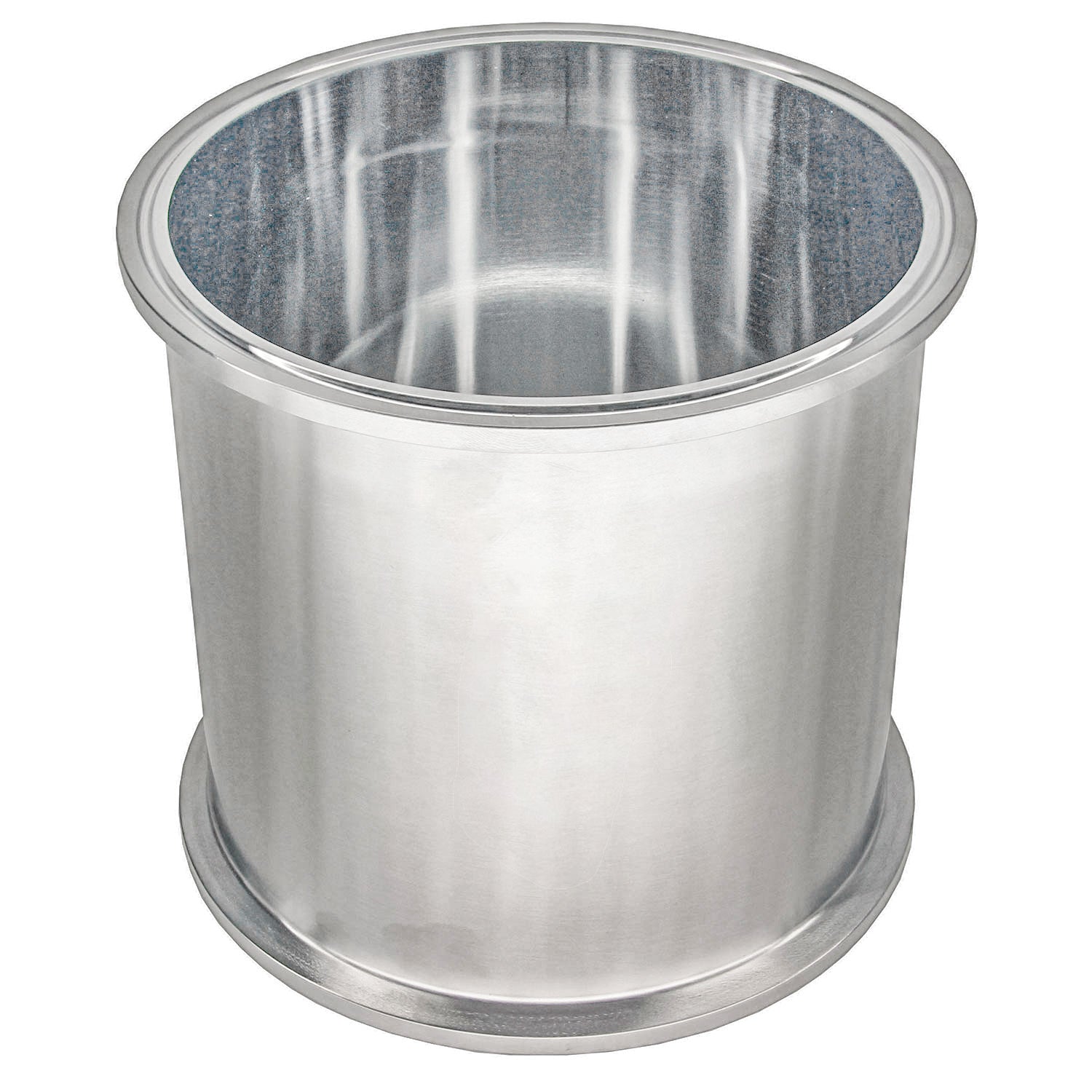

8'' Tri Clamp Sanitary Spool

Product Code EXA-SPOOL-8X8IN

AvailabilityIn stock

$120.00 - $380.00
Unit price
Shipping calculated at checkout.
Most Orders Arrive in Four Days or less.
View Shipping Info Below.

NOTE: EXA-JACKET, EXA-DEWAX, EXA-SPOOL series products can be customized according to your needs.
For more details, technical support or other questions, please call direct (626) 332-7744.

Tri Clamp Spools are versatile in use as they can accomplish most manufacturing goals. Combined with clamps, gaskets, end claps, and fittings, spools can provide a multitude of solutions for any production line. The Triclamp feature offers a non-permanent characteristic which does not require welding and can easily be assembled and disassembled. The Stainless steel composition removes the possibility of contamination due to corrosion while its quality gives confidence to its integrity under high pressures and extreme temperatures.

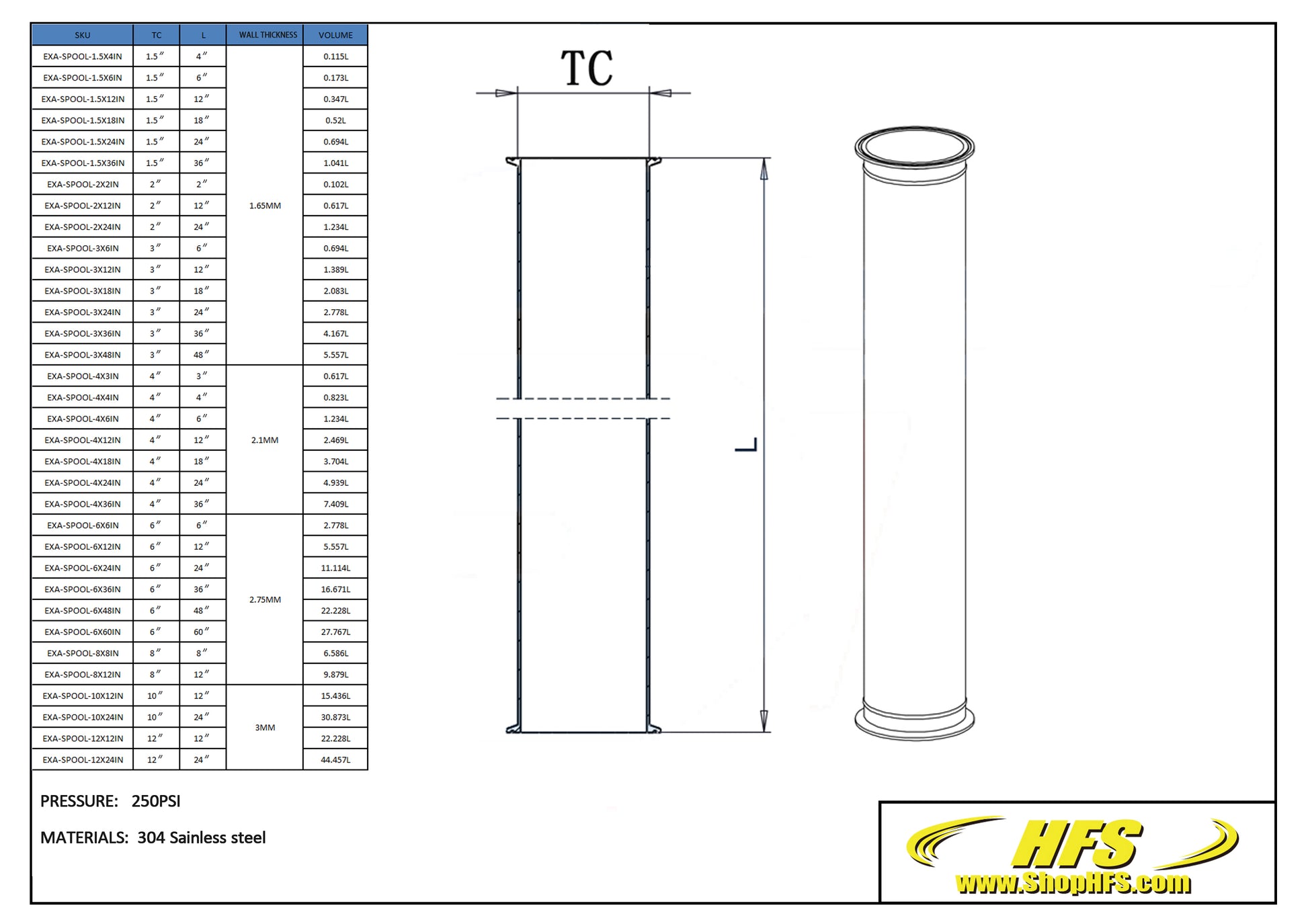

  • Stainless Steel: 304
  • Sanitary Size (in): 8
  • OD of Flange End (in): 8.57
  • Tube ID (in): 7.78
  • Tube OD (in): 8

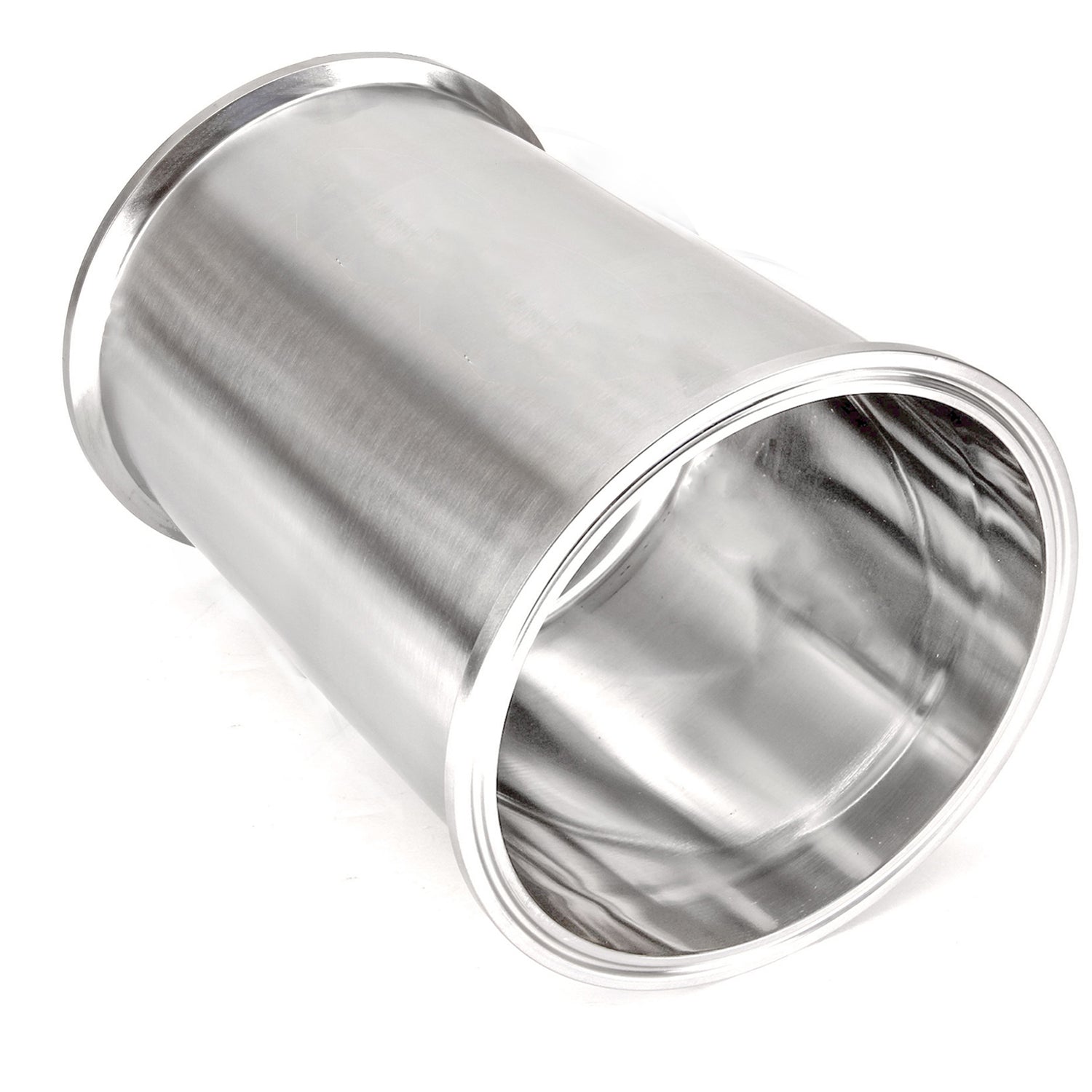

  • Tube Length: 8'', 12'', 48''


[Quality Materials]: The Sanitary Spool Tube is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: It can be used for transporting water gas and oil.

[High Working Temp. & Wide Range of Applications]: The spool can be used in HVAC and plumbing systems and for applications in the aerospace, automotive, chemical processing, food and beverage, manufacturing, and medical industries. It is suitable for different media including water, gas, and oil with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a small carton with label.
